Engine Control System Self-Diagnostics - 2.5L
>>
Connector Identification
Connector Identification
Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Crankshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying EGR Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying EVAP Canister Purge Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying EVAP Canister Vent Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Fuel Injector No. 5 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Fuel Injector No. 6 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Fuel Pump Relay Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Fuel Sender Assembly Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

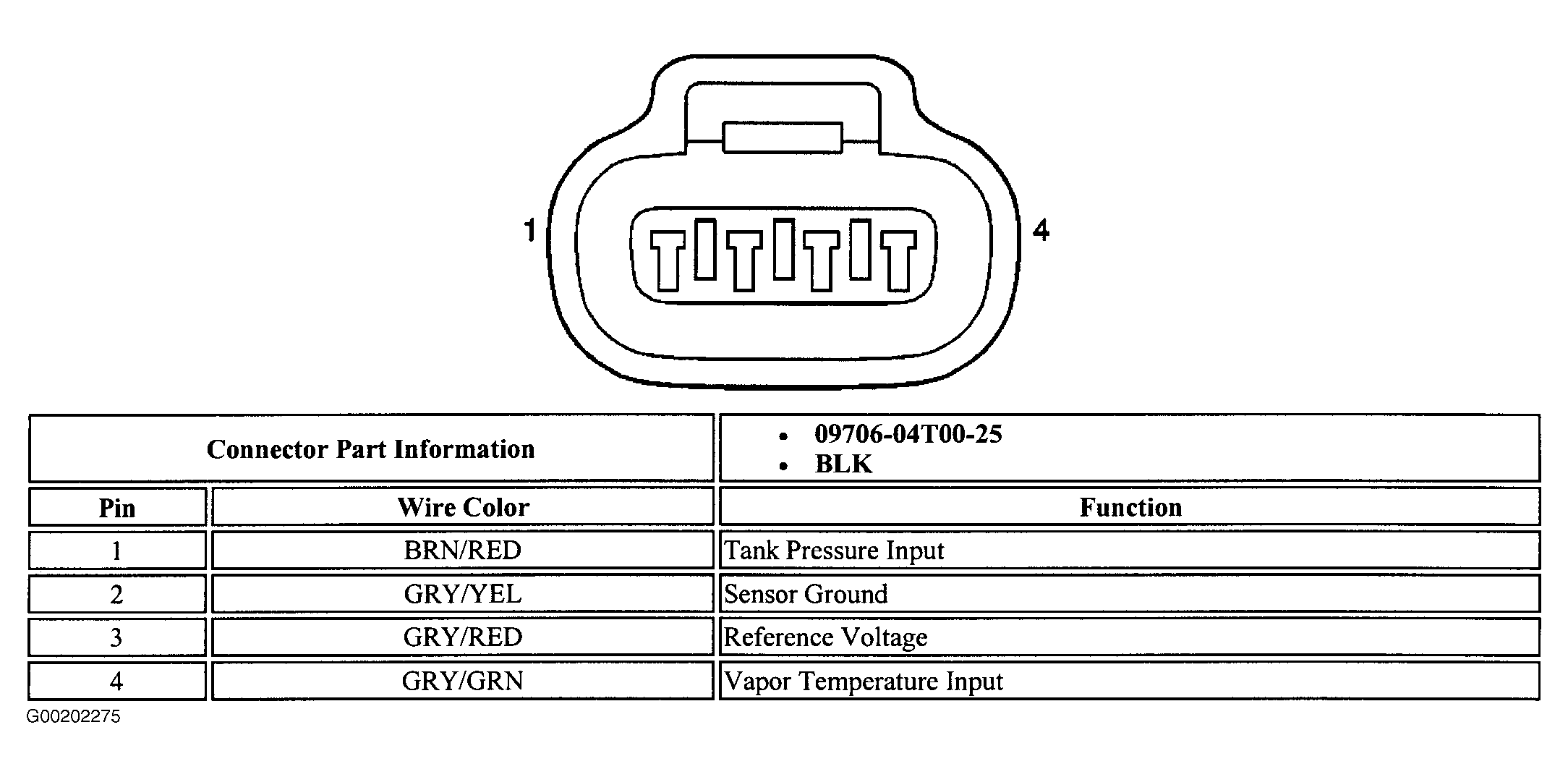

Fig 15: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying HO2S Bank 1; Sensor 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying HO2S Bank 2; Sensor 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying HO2S Bank 1; Sensor 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying HO2S Bank 2; Sensor 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Idle Air Control Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Intake Air Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Ignition Coil - Cylinder No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Ignition Coil - Cylinder No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Ignition Coil - Cylinder No. 3 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Ignition Coil - Cylinder No. 4 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Ignition Coil - Cylinder No. 5 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying Ignition Coil - Cylinder No. 6 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Main Relay Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying MAP Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

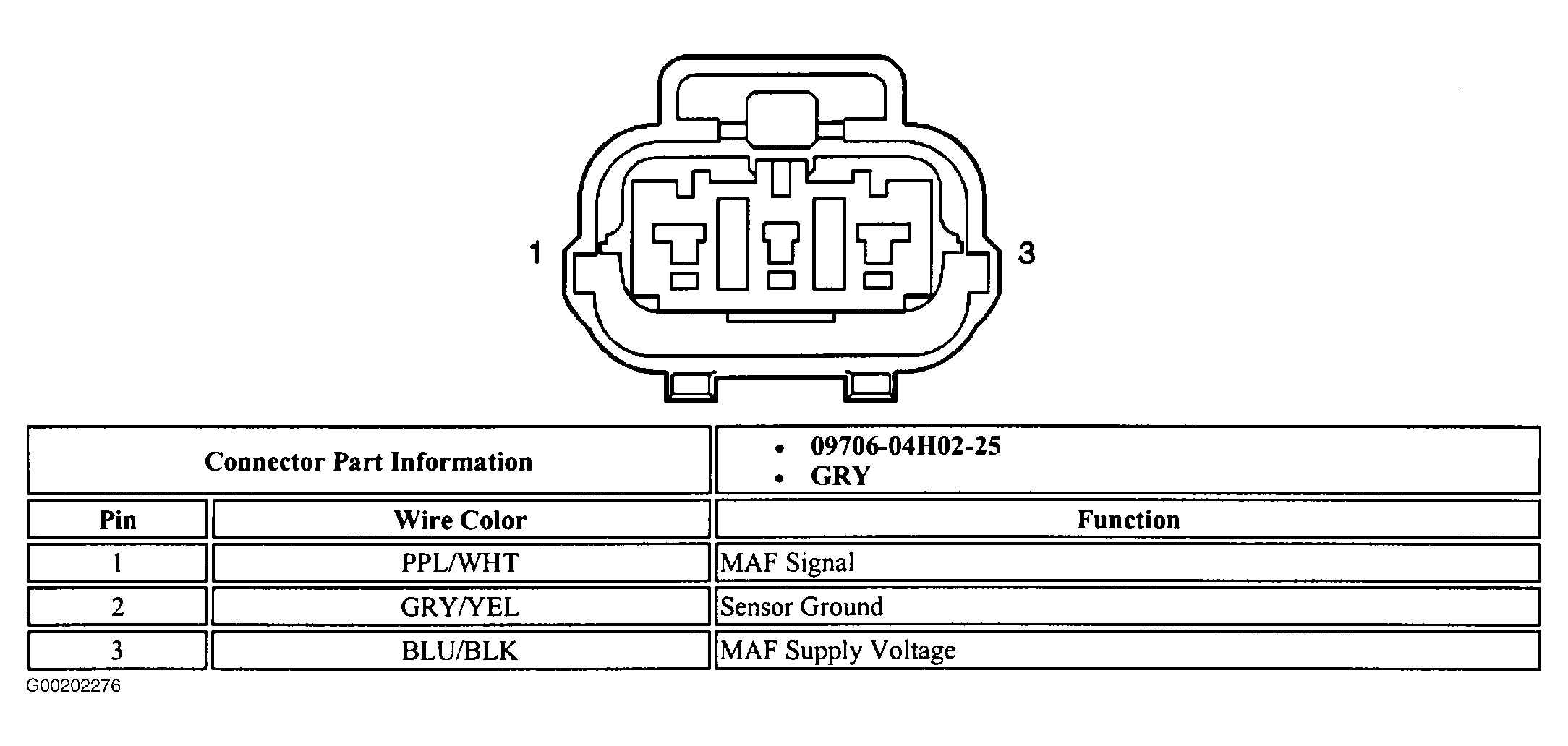

Fig 30: Identifying Mass Airflow Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying PCM Harness Connector C1 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying PCM Harness Connector C2 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying PCM Harness Connector C3 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying PCM Harness Connector C4 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying TP Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 36: Identifying Transmission Range Switch Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying Transmission Shift Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 38: Identifying Vehicle Speed Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
