Installation Procedure

  1. Install the rear window Defogger timer/relay (2) into the relay block (1).
  2. Install the right side instrument panel insulator panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages, and Console.

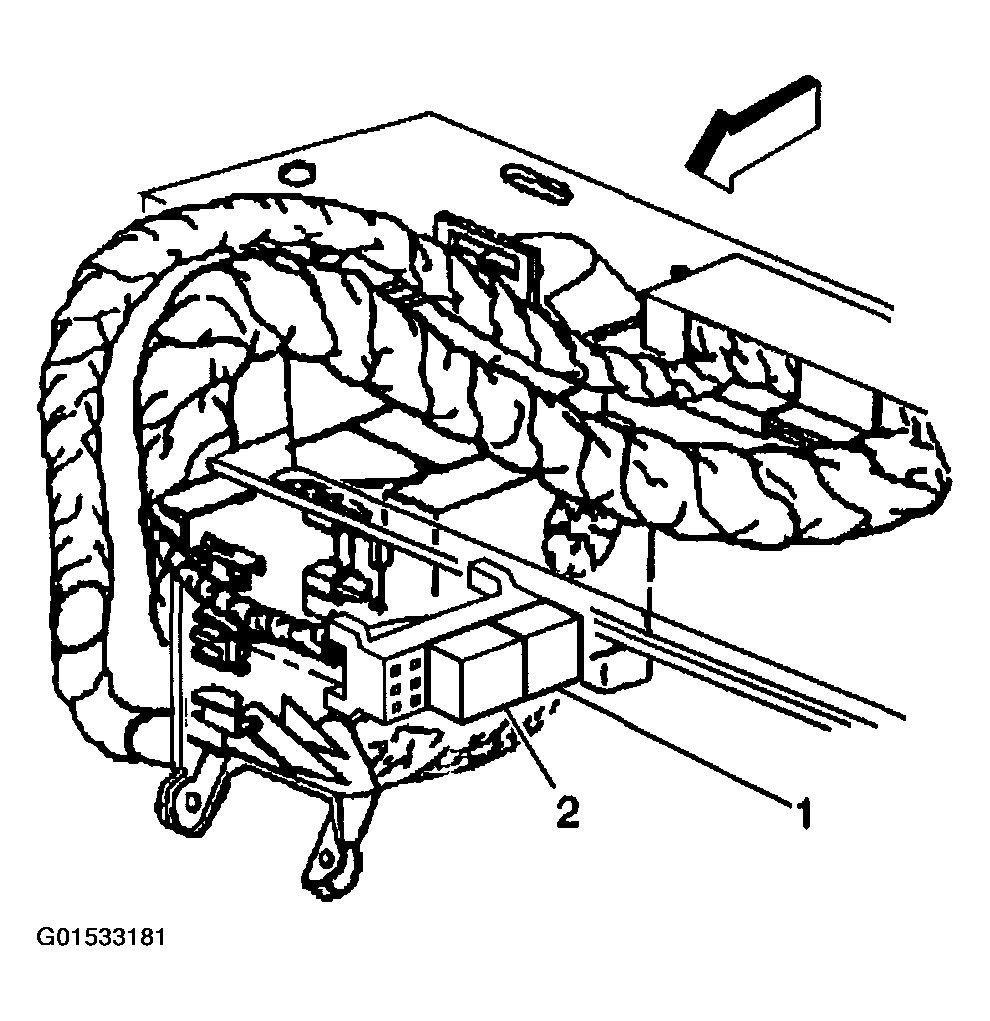

    Fig 1: Installing Rear Window Defogger Timer/Relay Into Relay Block
    G01533181Courtesy of GENERAL MOTORS CORP.
