Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

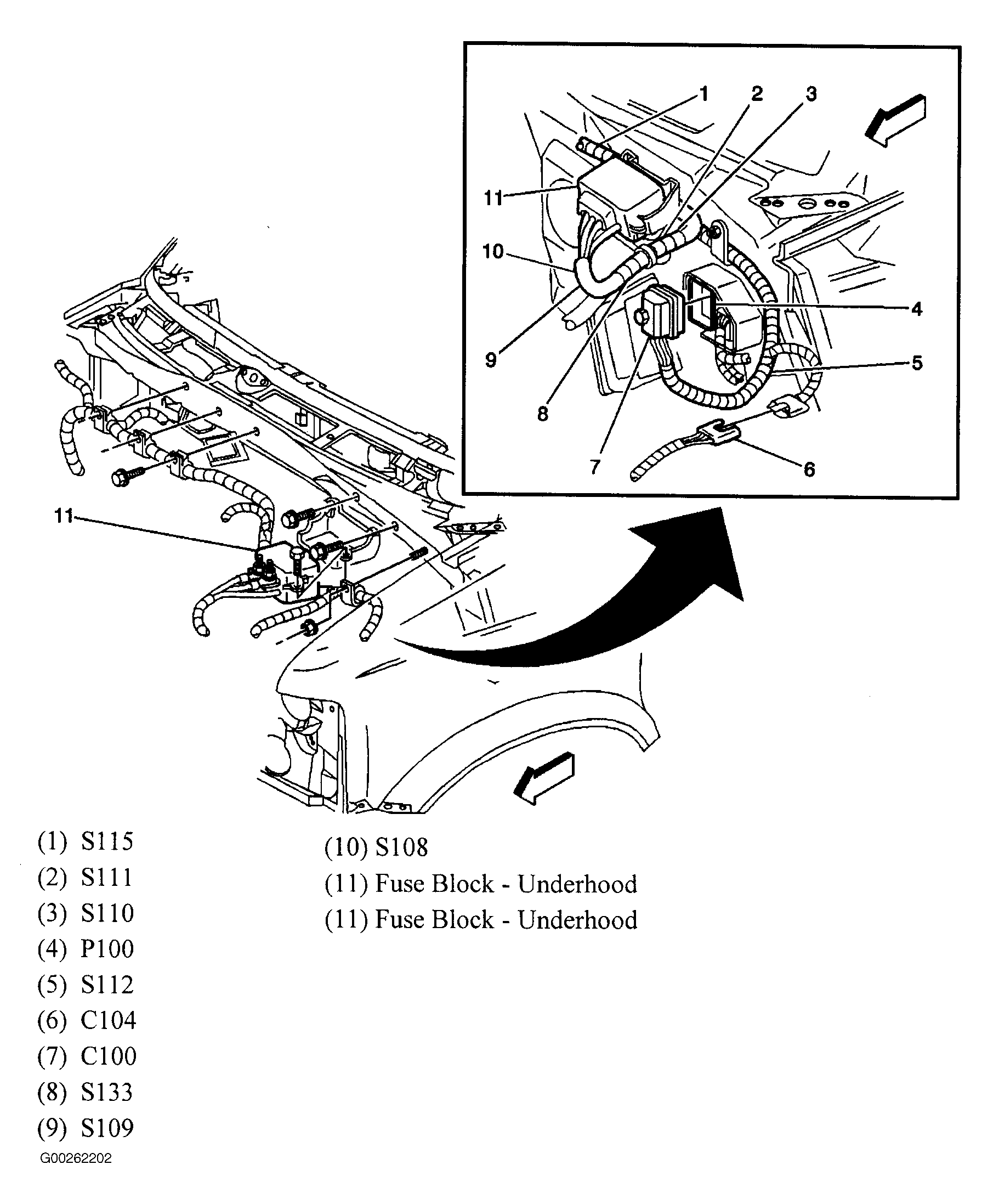

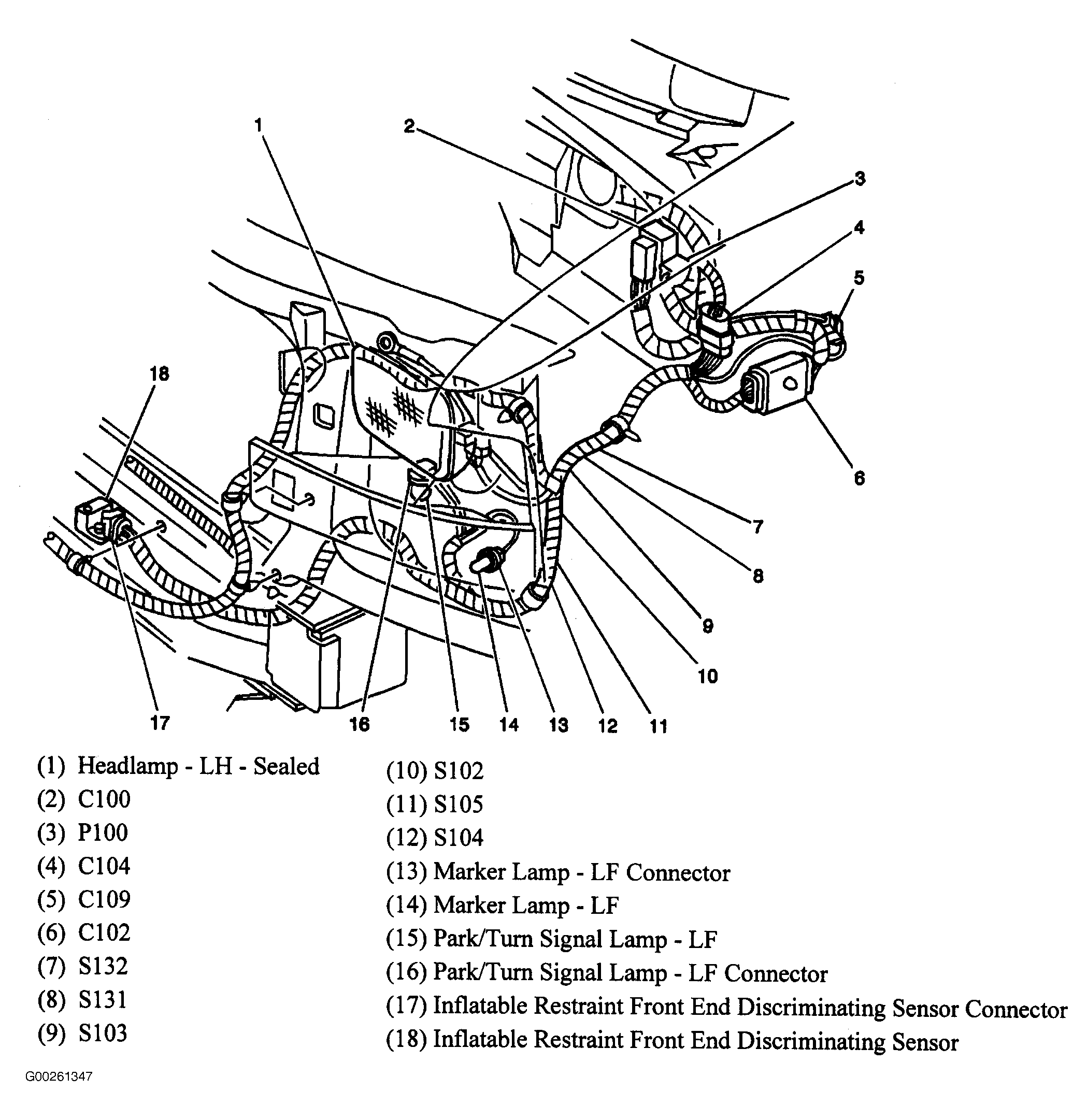

Fig 1: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

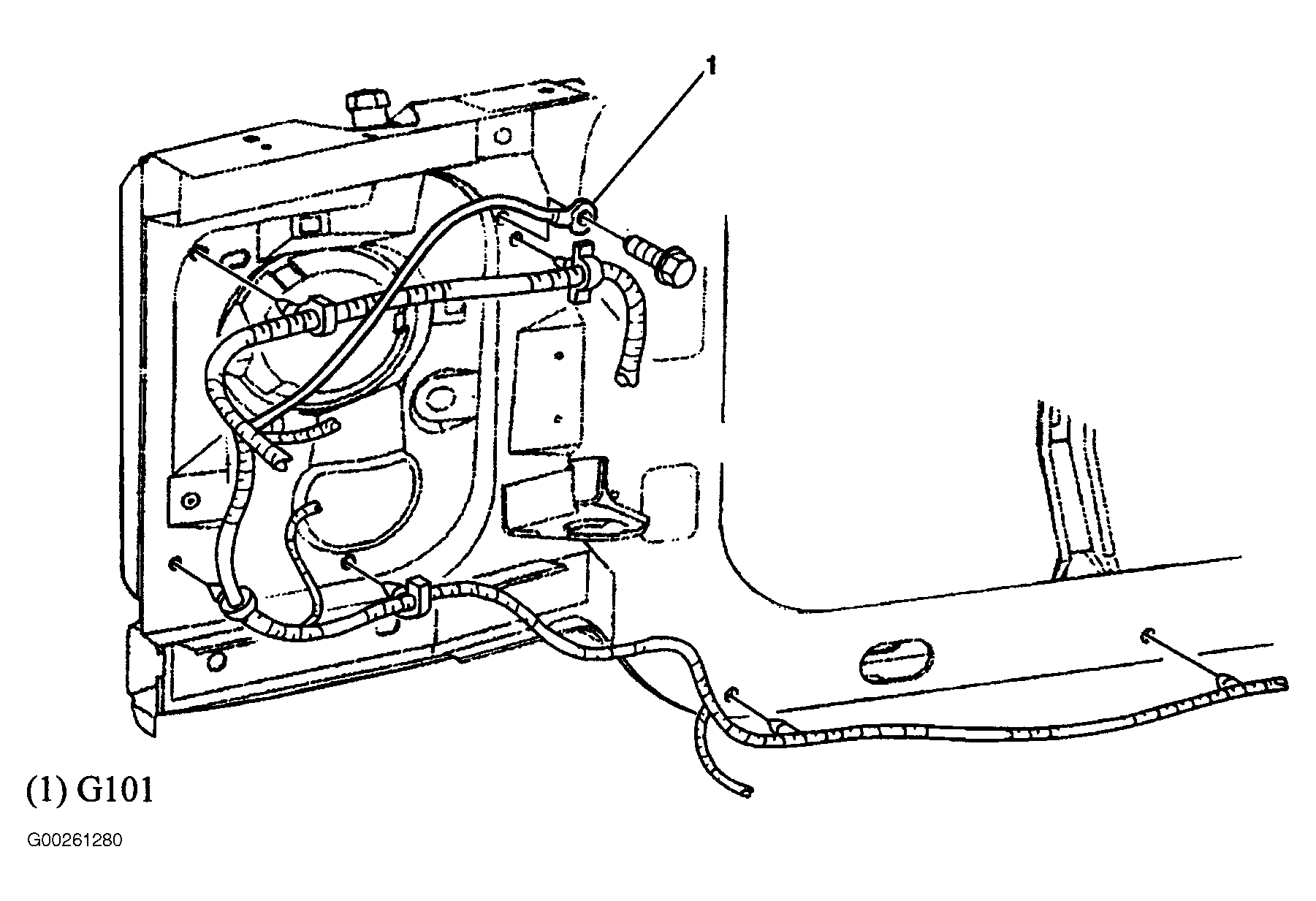

Fig 2: Left Forward Lamp Ground
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

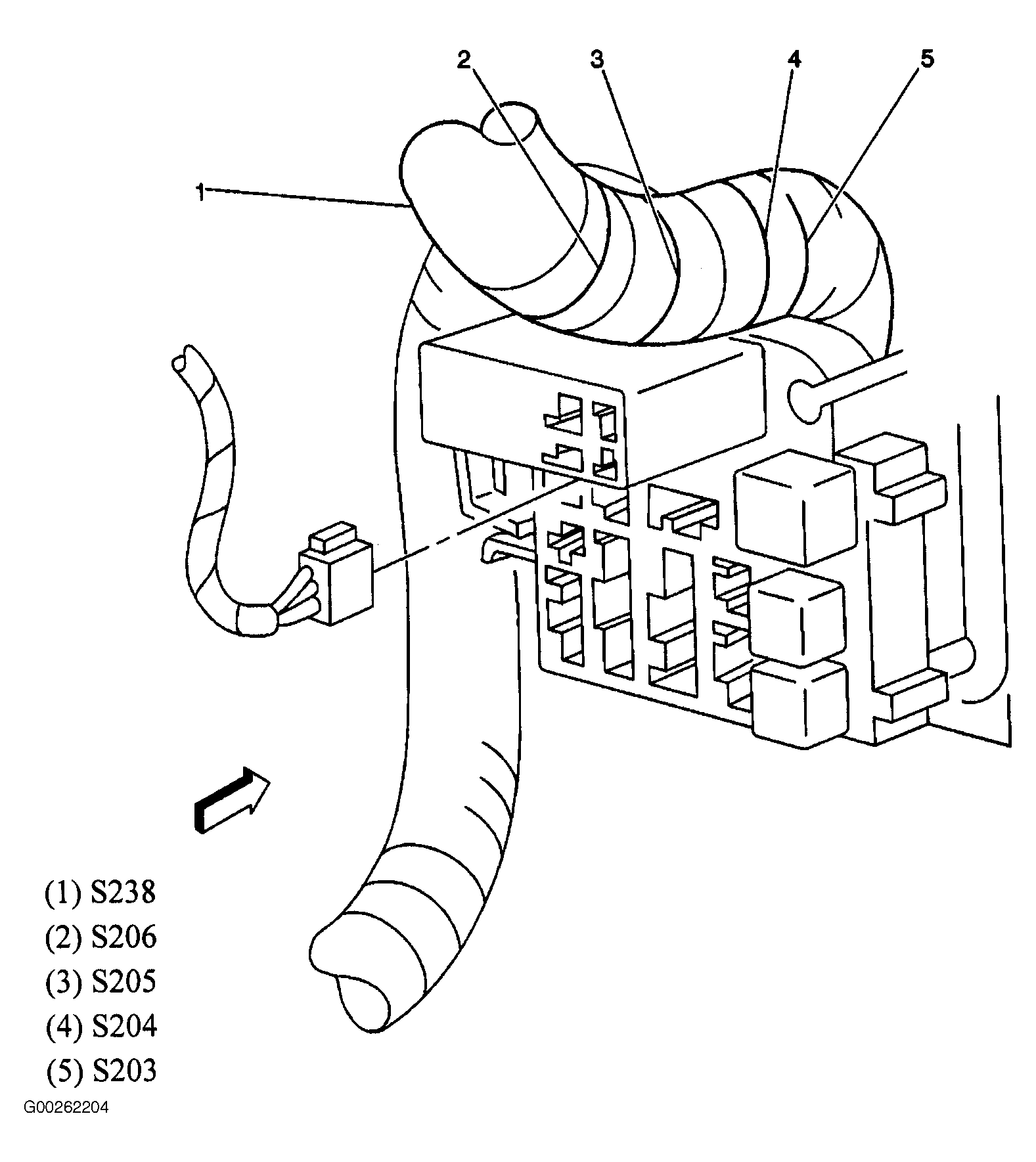

Fig 4: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.

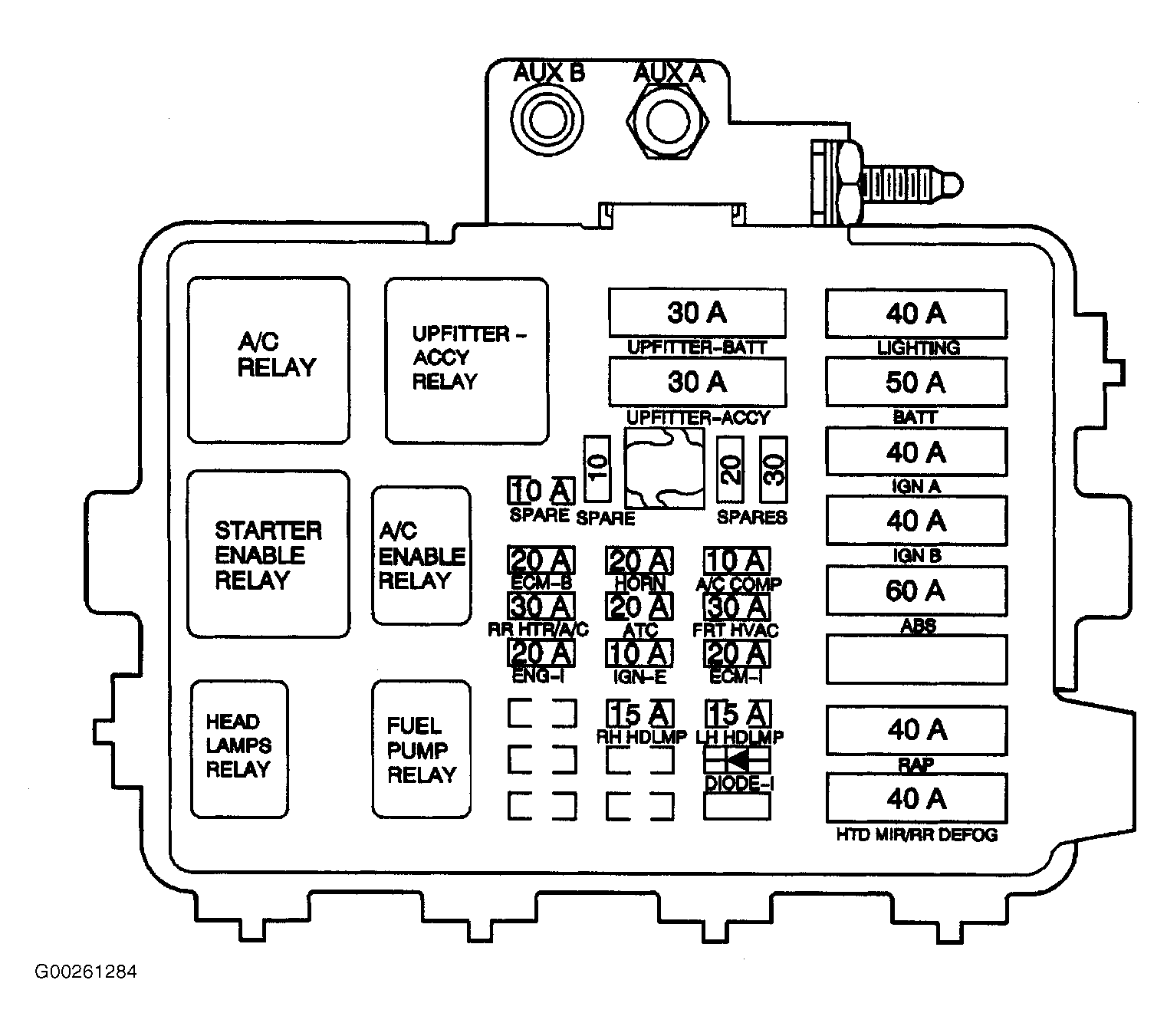

Fig 5: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

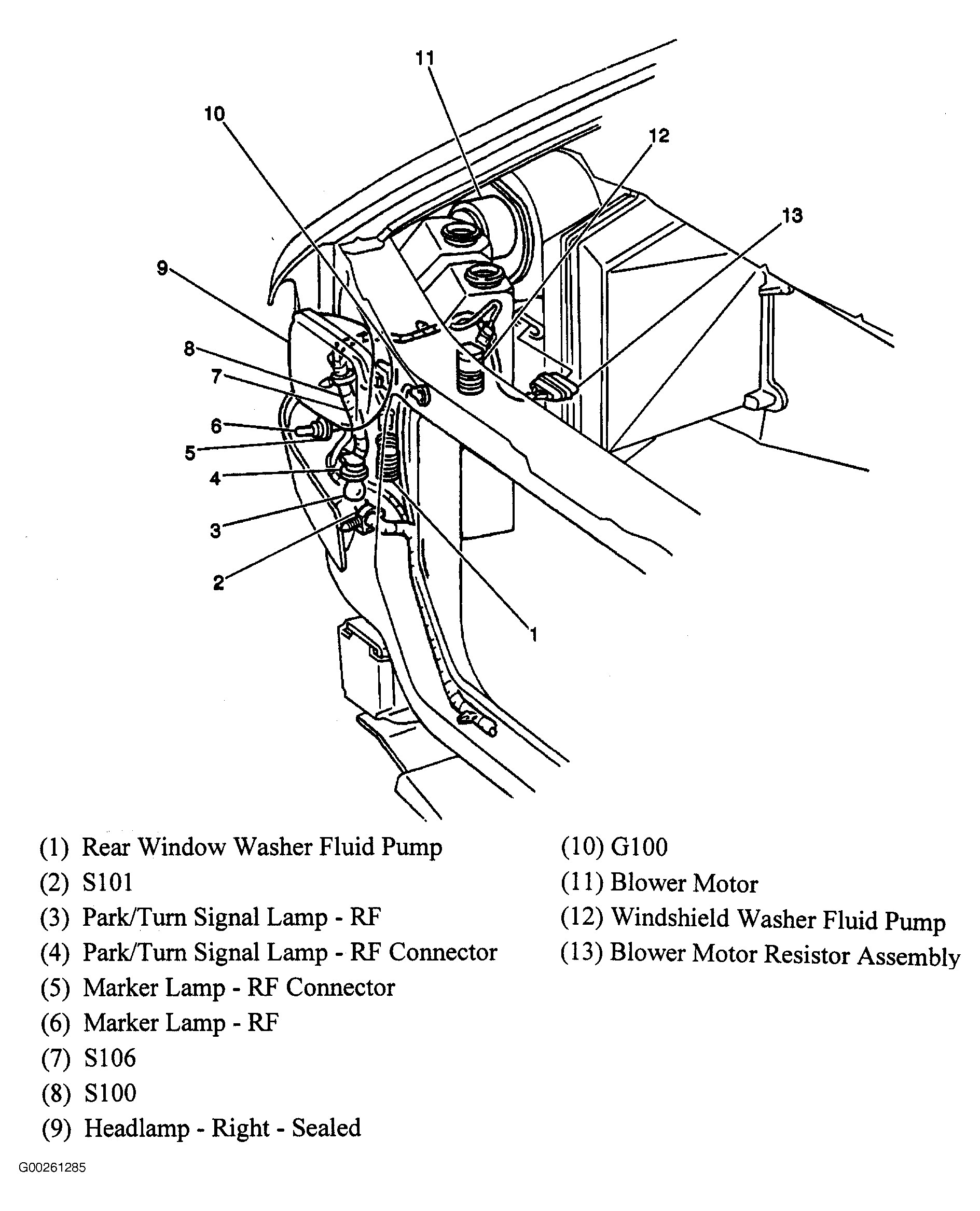

Fig 6: Right Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.
Fig 7: Rear View Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

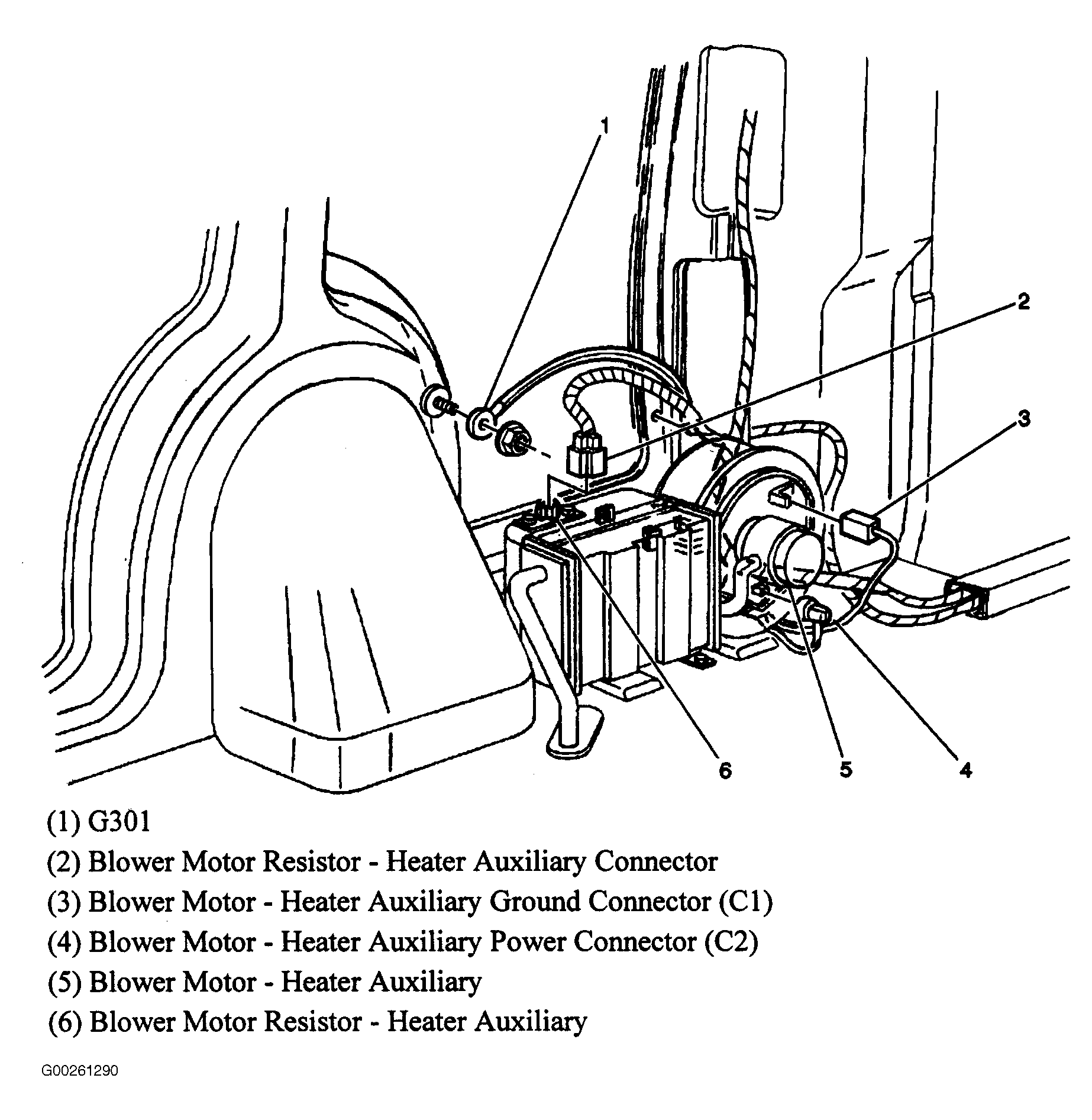

Fig 10: Rear Of Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 11: Rear Of Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.

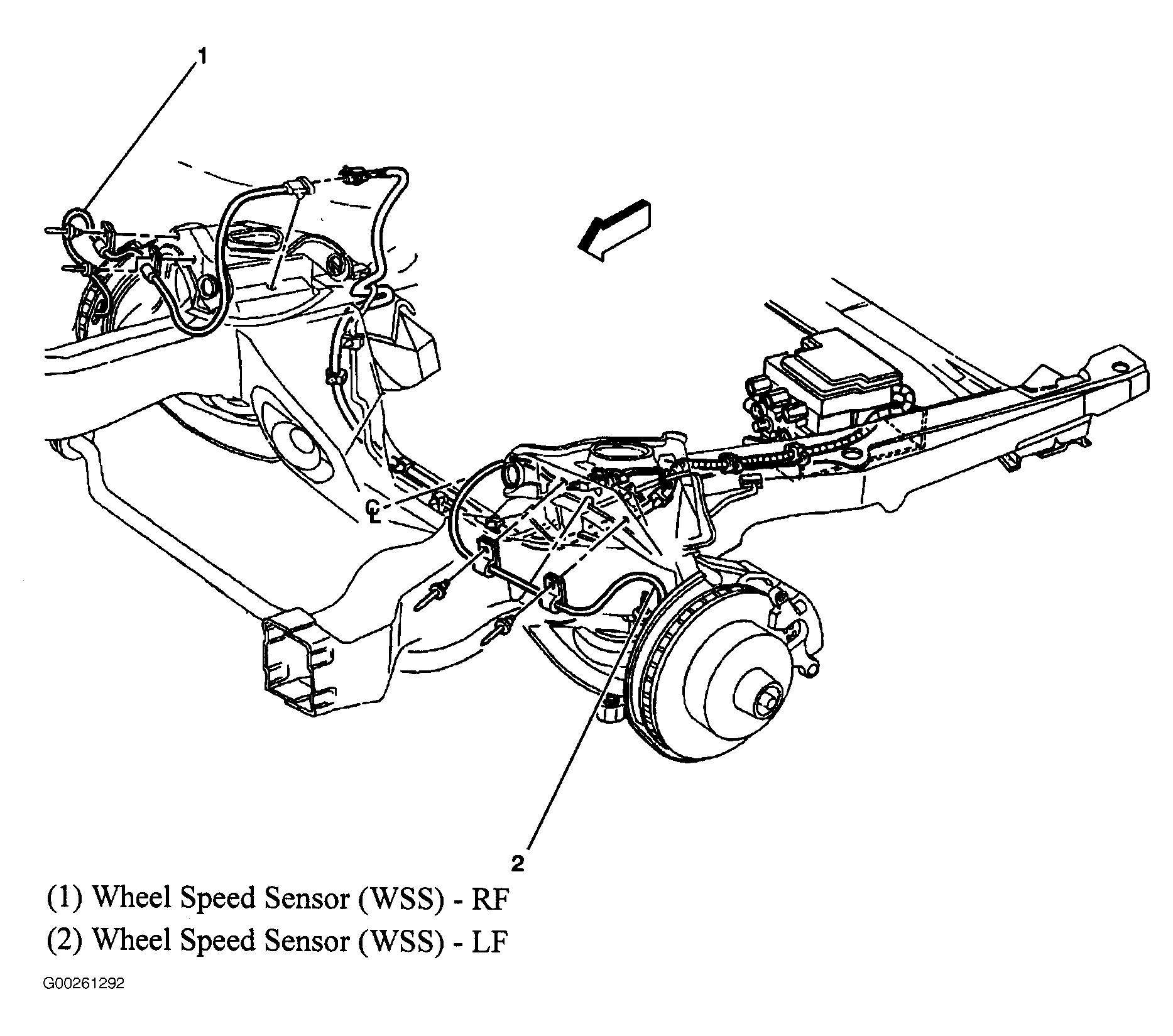

Fig 12: Antilock Brake System Components
Courtesy of GENERAL MOTORS CORP.
Fig 13: Undercarriage Wiring
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

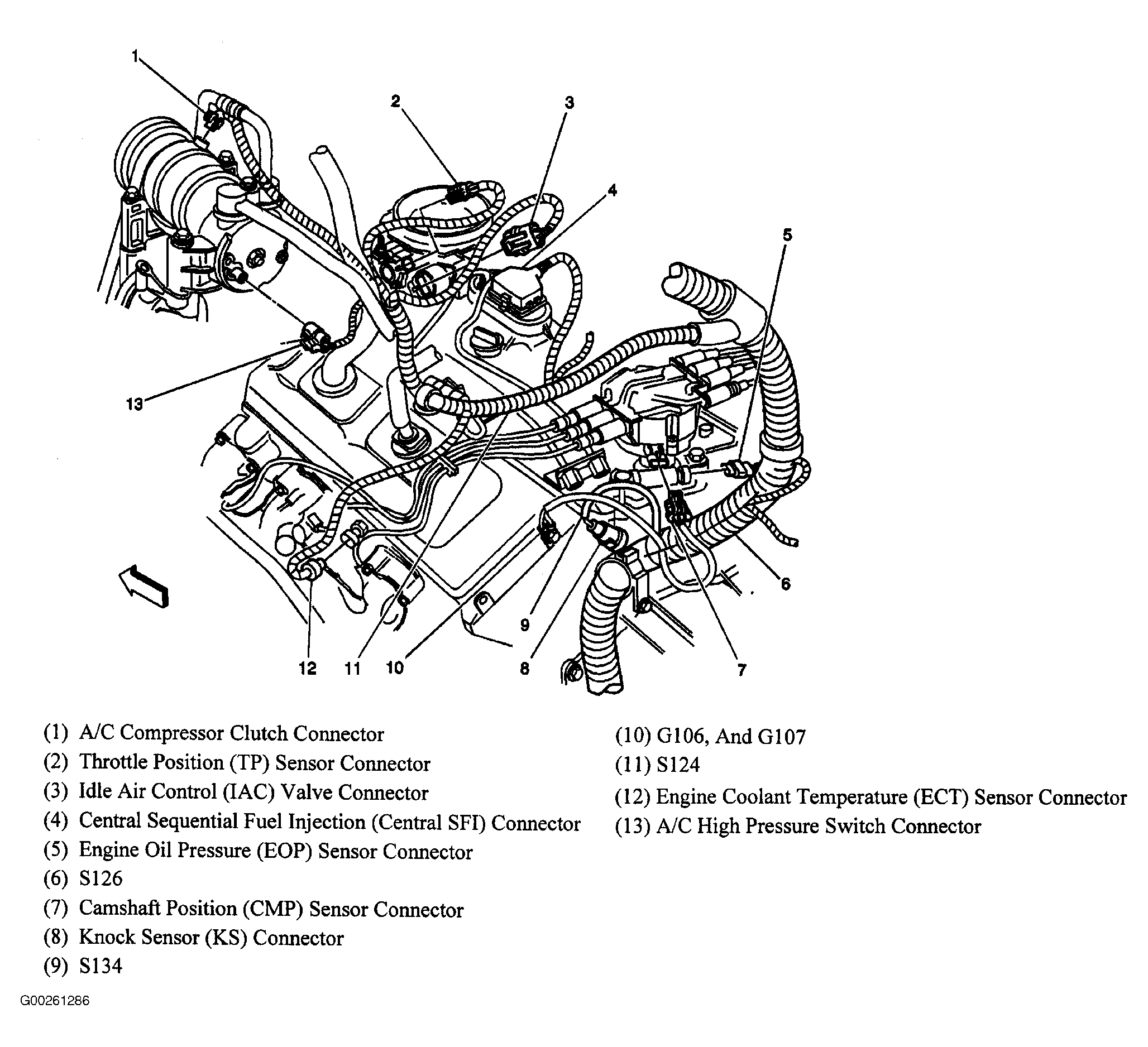

Fig 16: Left Rear View Of Engine
Courtesy of GENERAL MOTORS CORP.

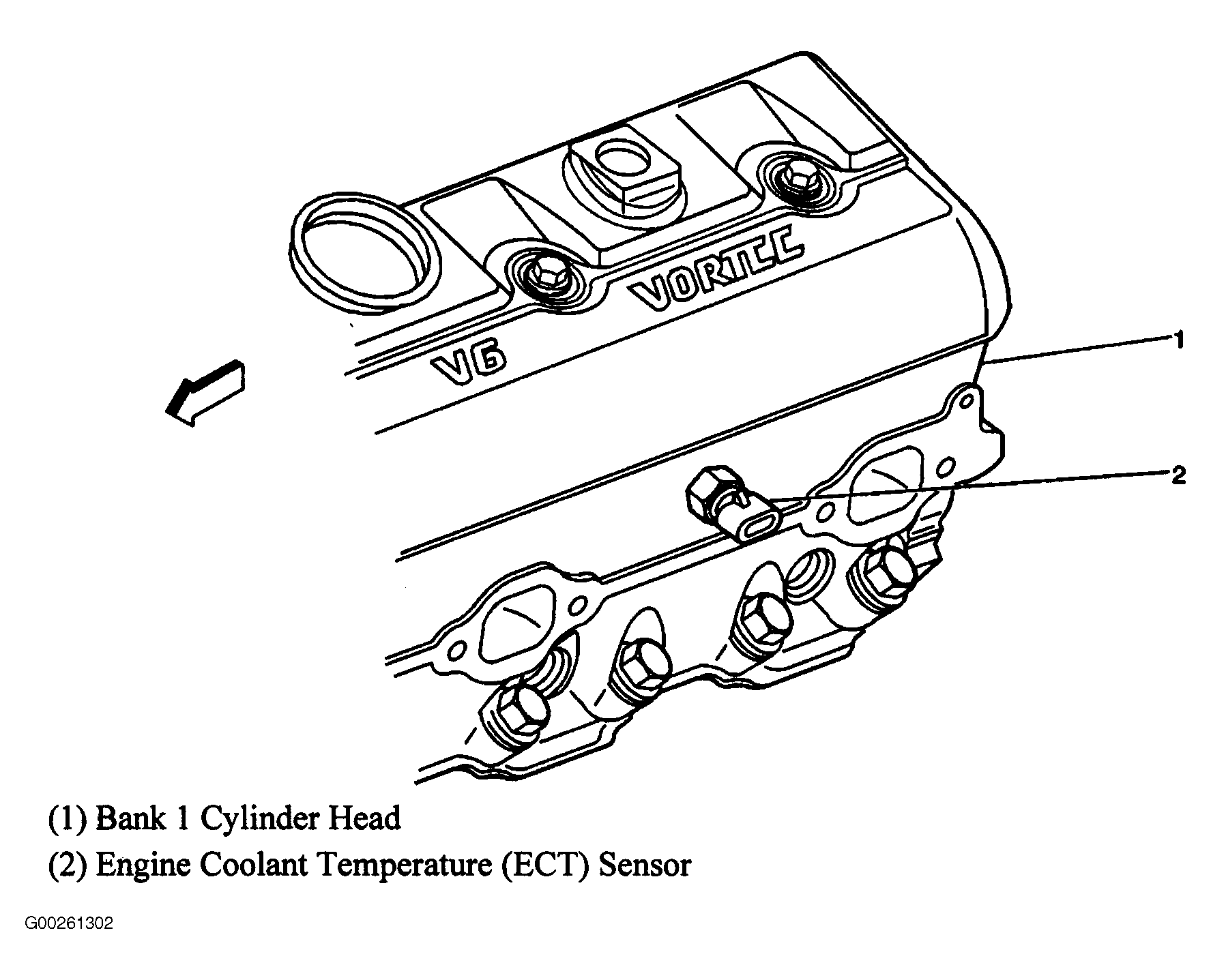

Fig 17: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

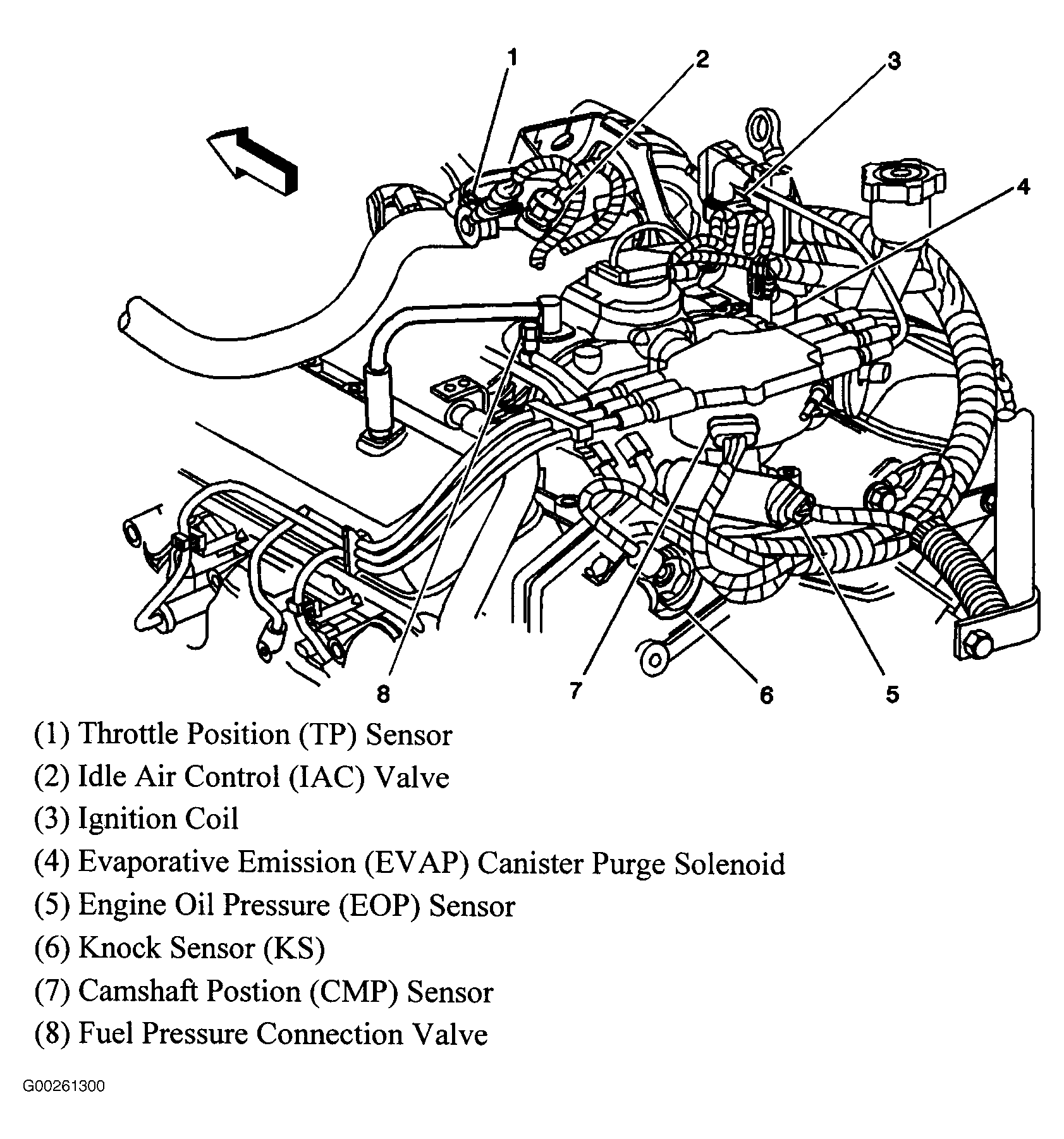

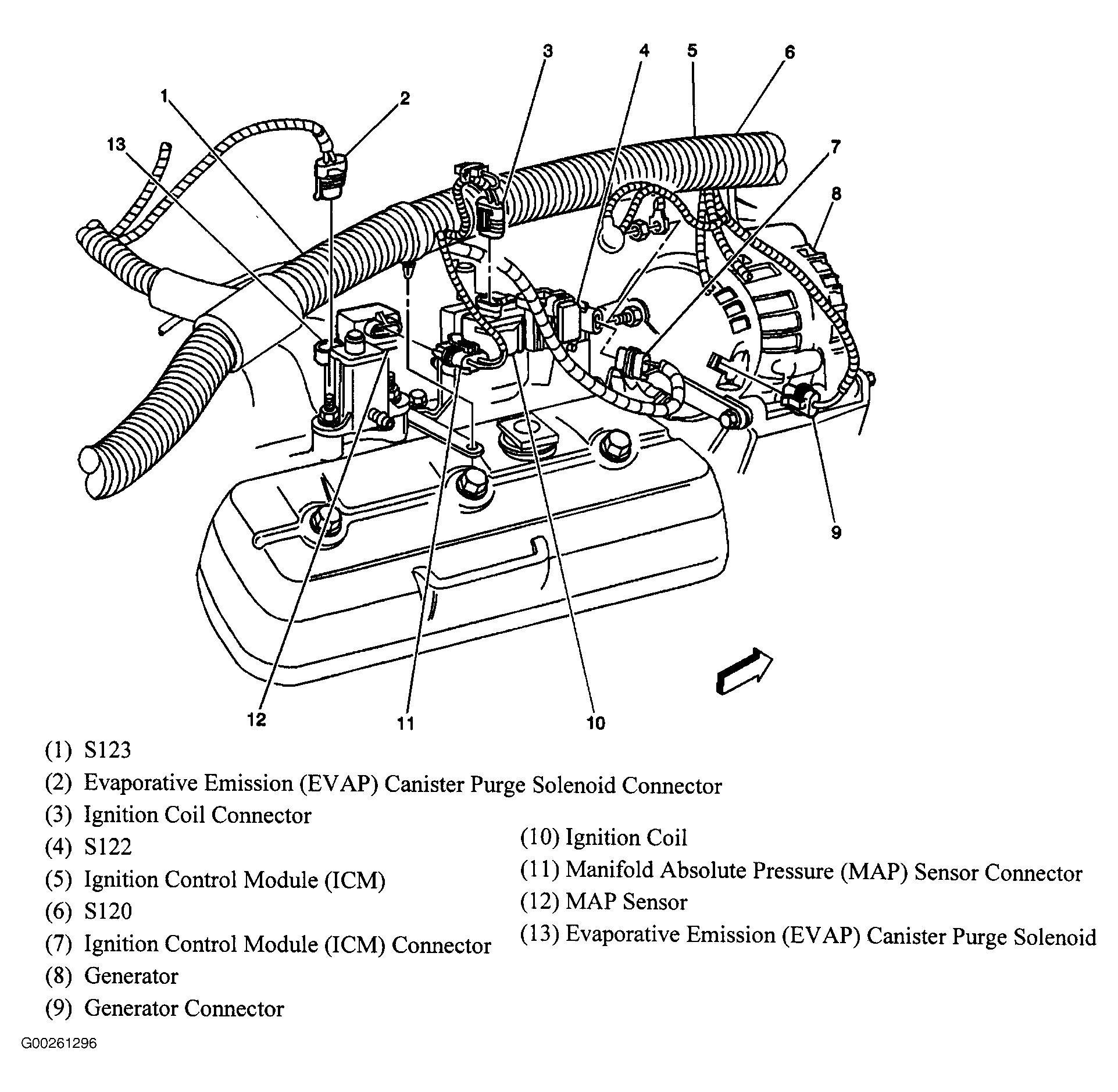

Fig 18: Top Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

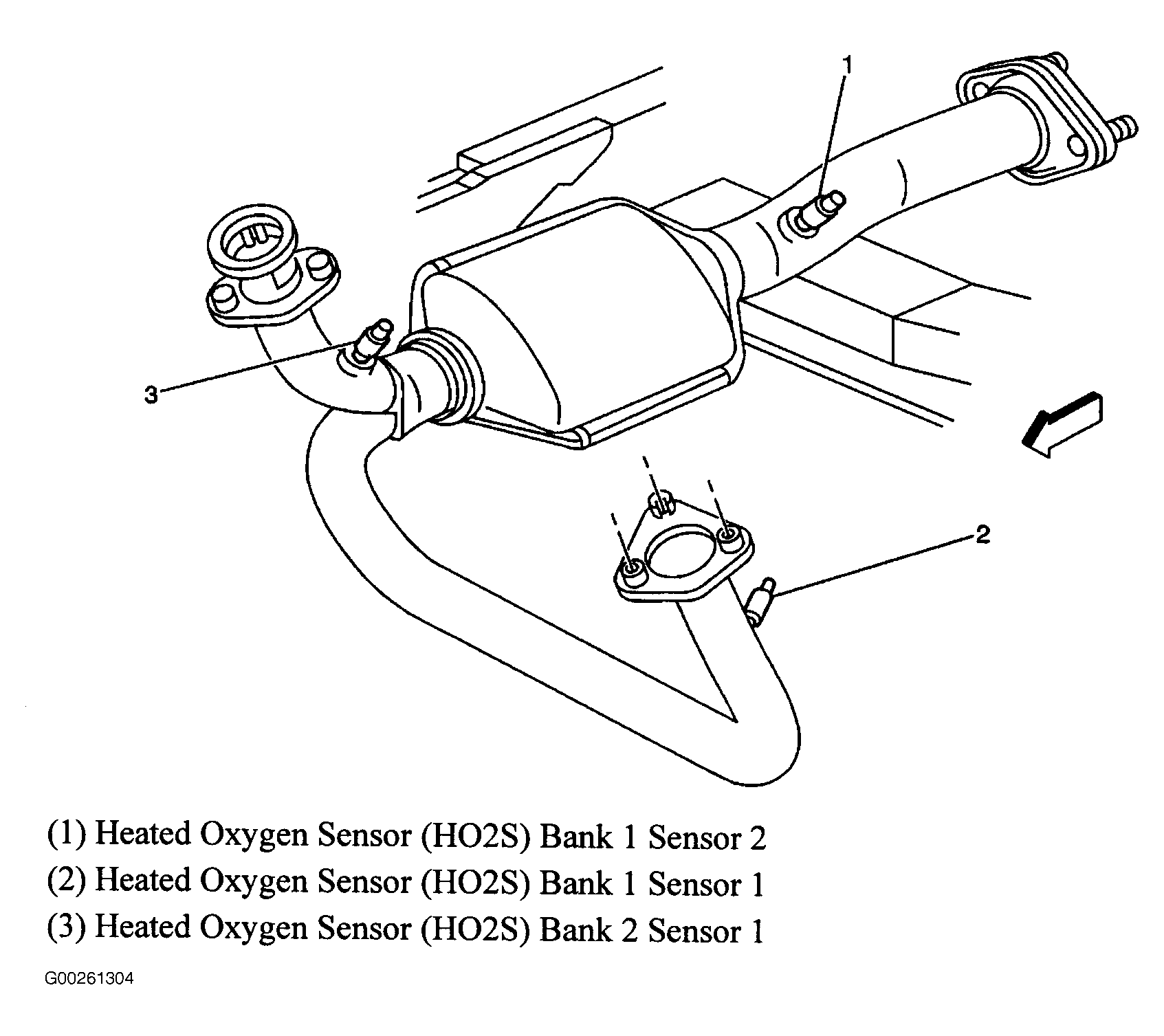

Fig 19: Exhaust System
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

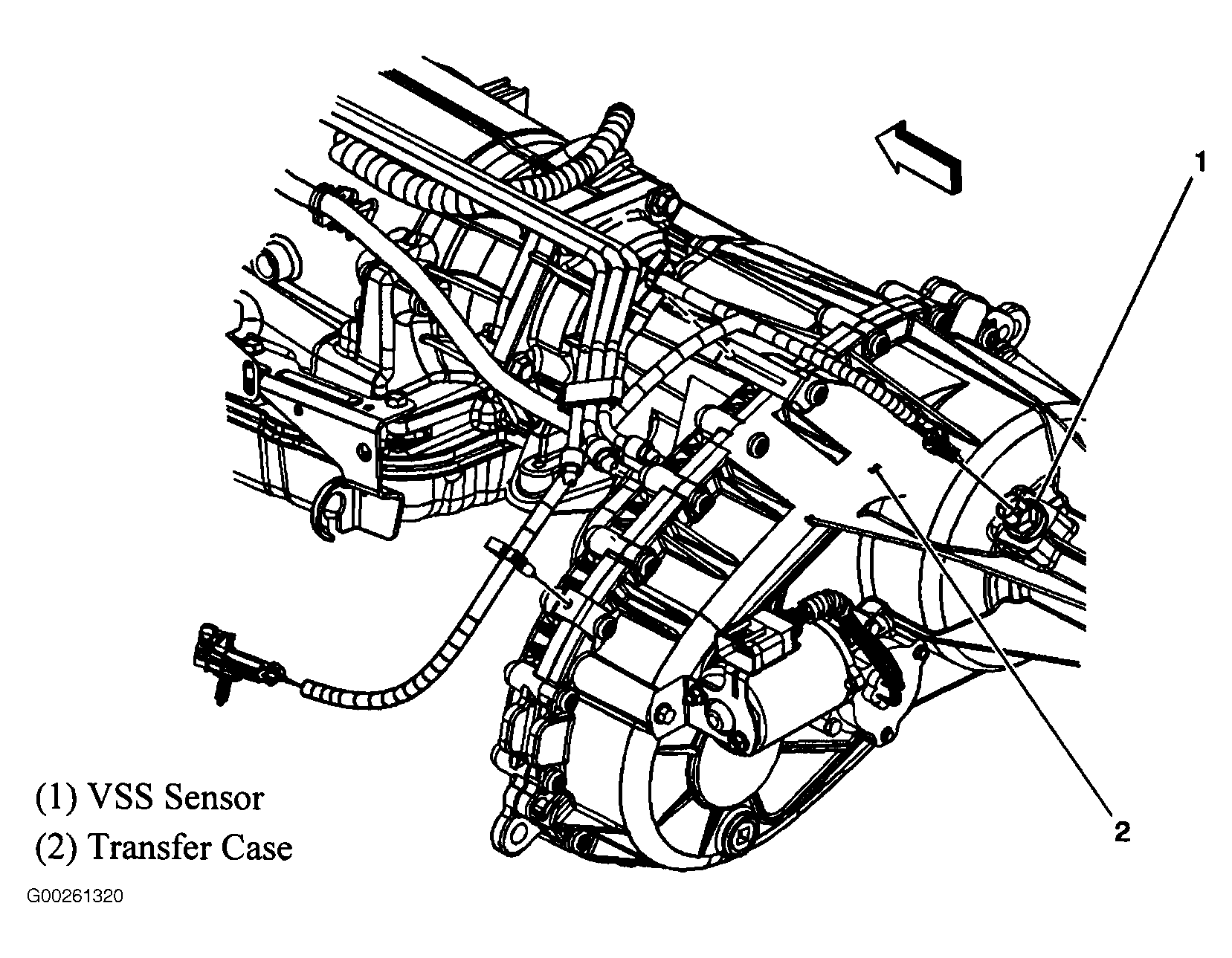

Fig 21: A4WD Transfer Case
Courtesy of GENERAL MOTORS CORP.

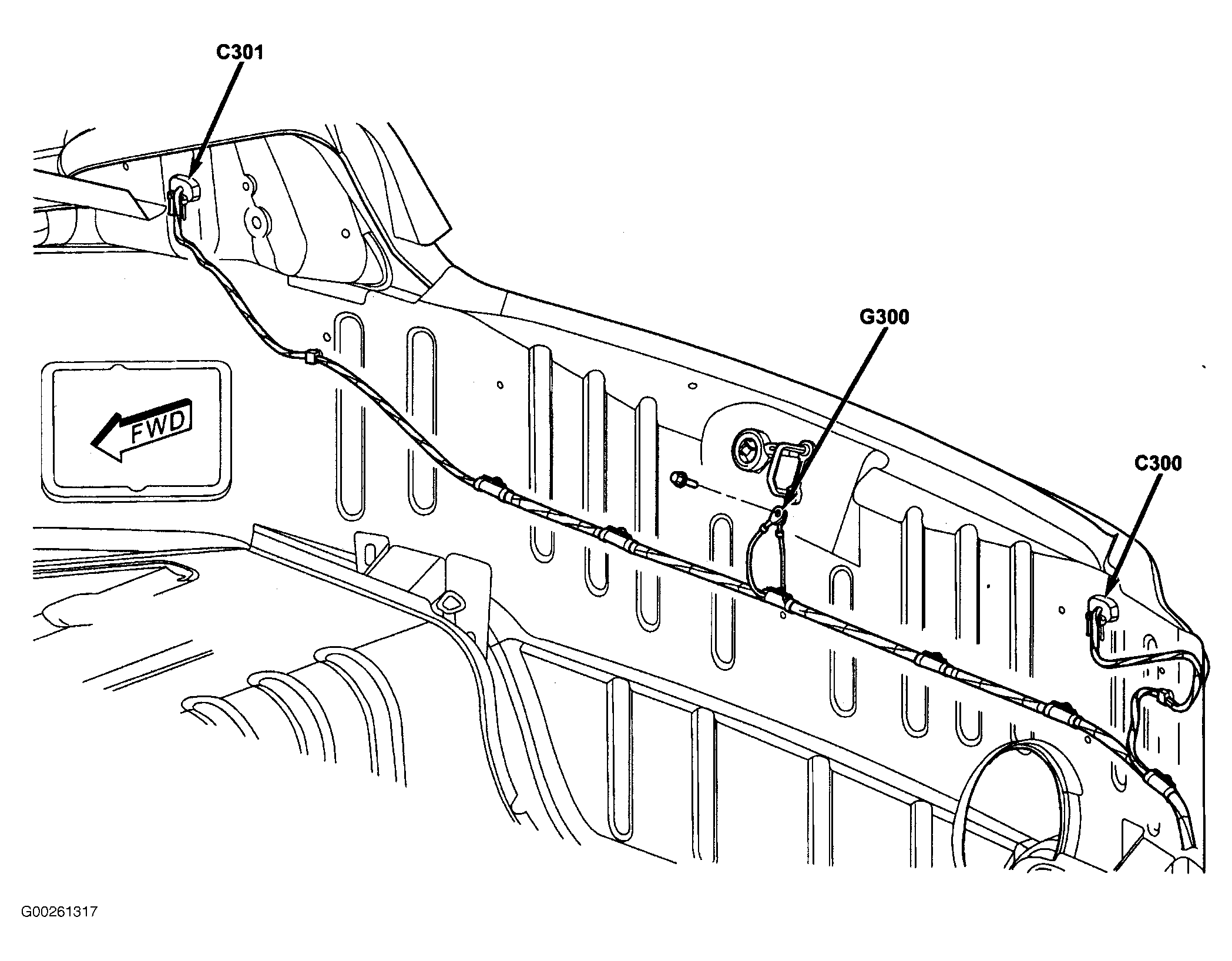

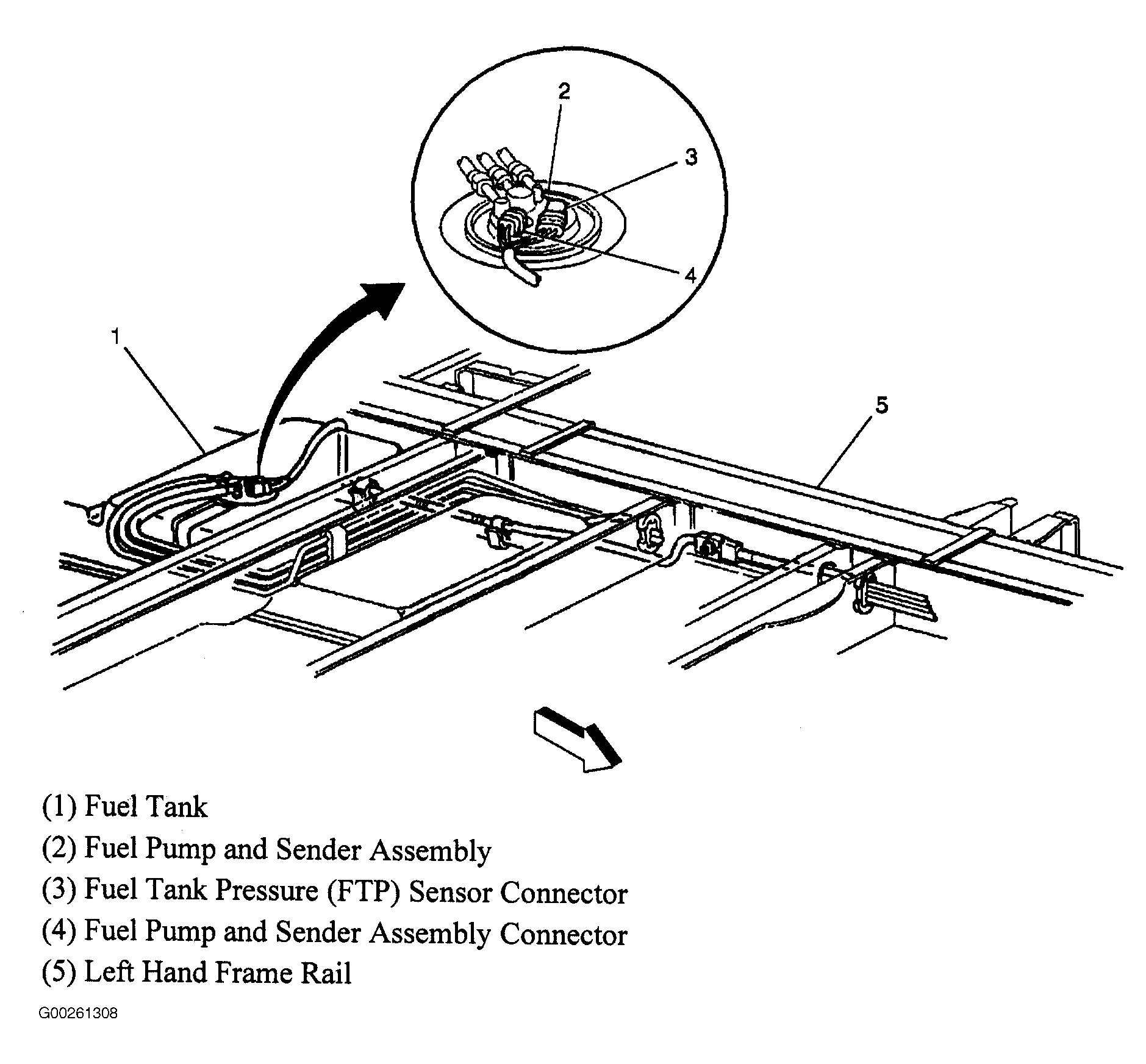

Fig 22: Left Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 23: Automatic Transmission Shift Lock Control (Page 1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Automatic Transmission Shift Lock Control (Page 2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Automatic Transmission Shift Lock Control (Page 3 Of 3)
Courtesy of GENERAL MOTORS CORP.

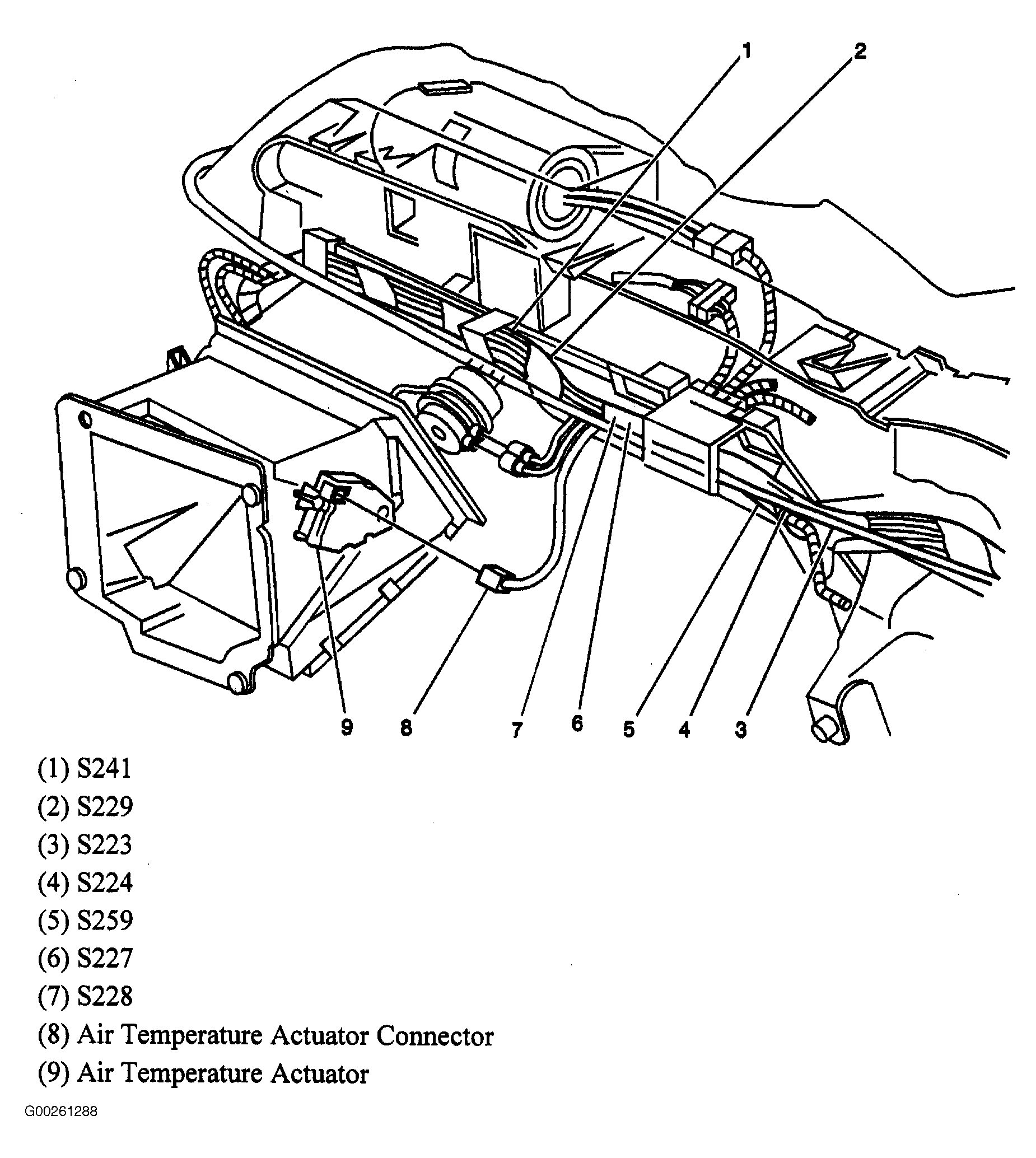

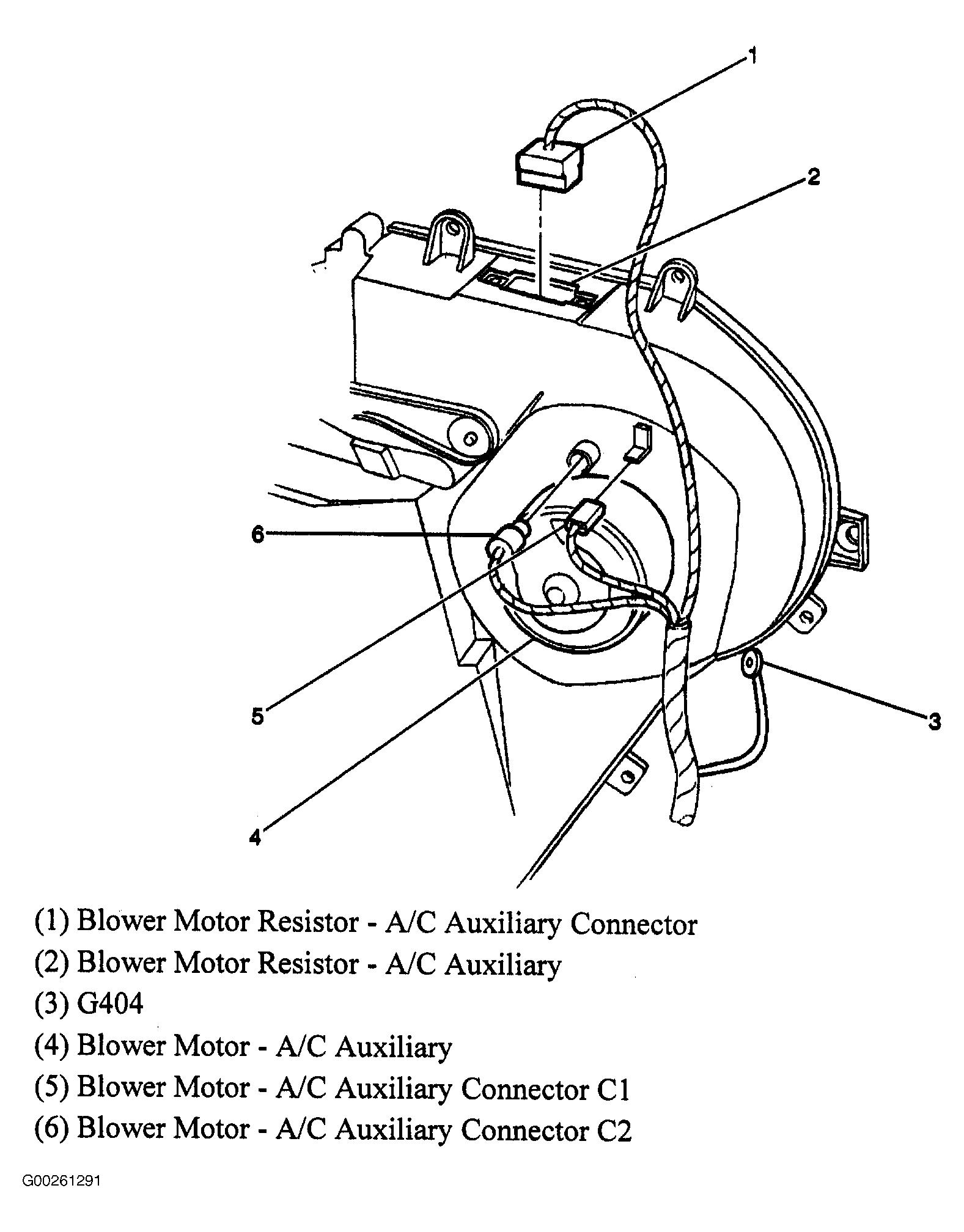

Fig 26: HVAC Unit
Courtesy of GENERAL MOTORS CORP.

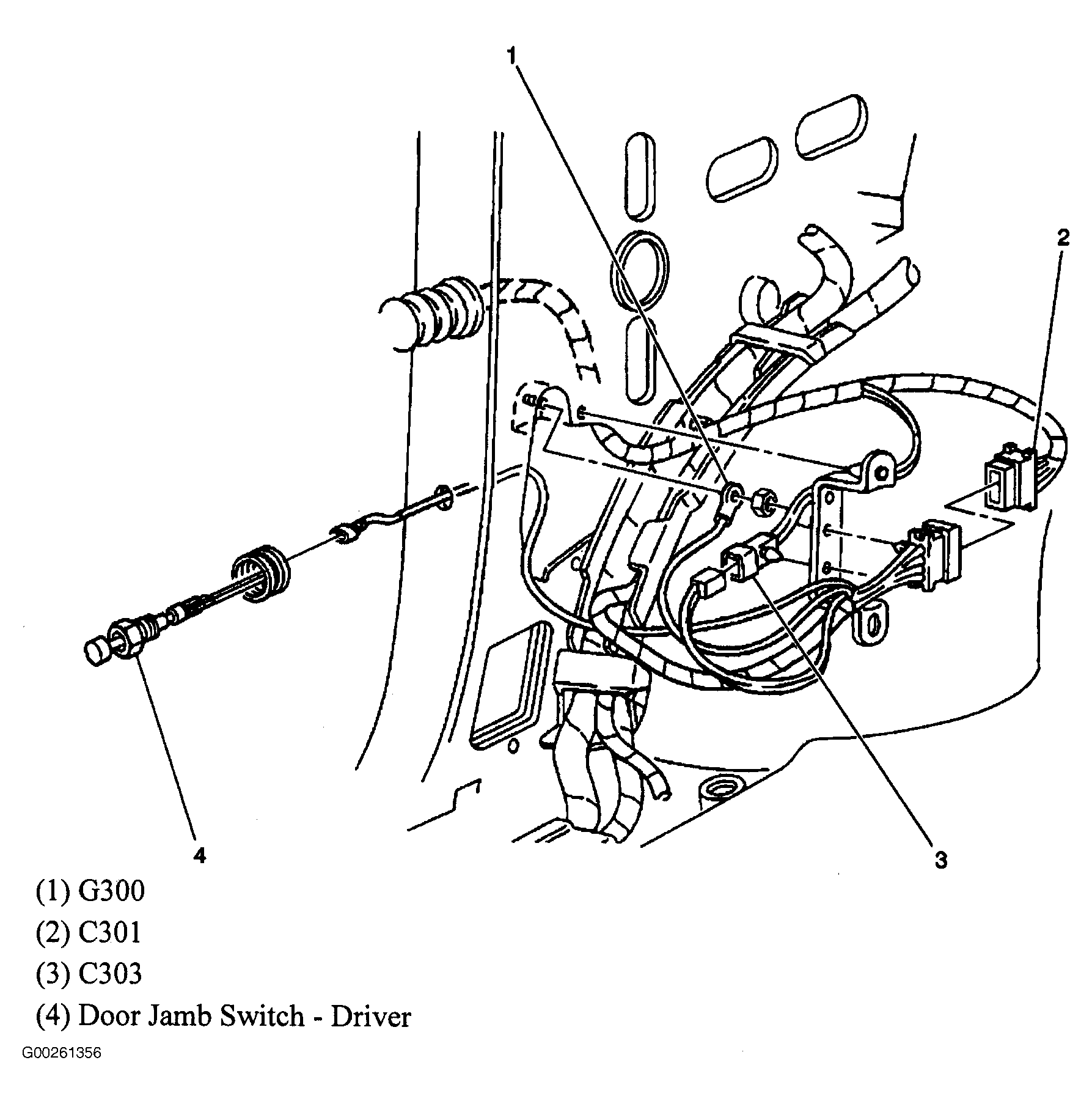

Fig 27: Bottom Of Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 28: Roof
Courtesy of GENERAL MOTORS CORP.

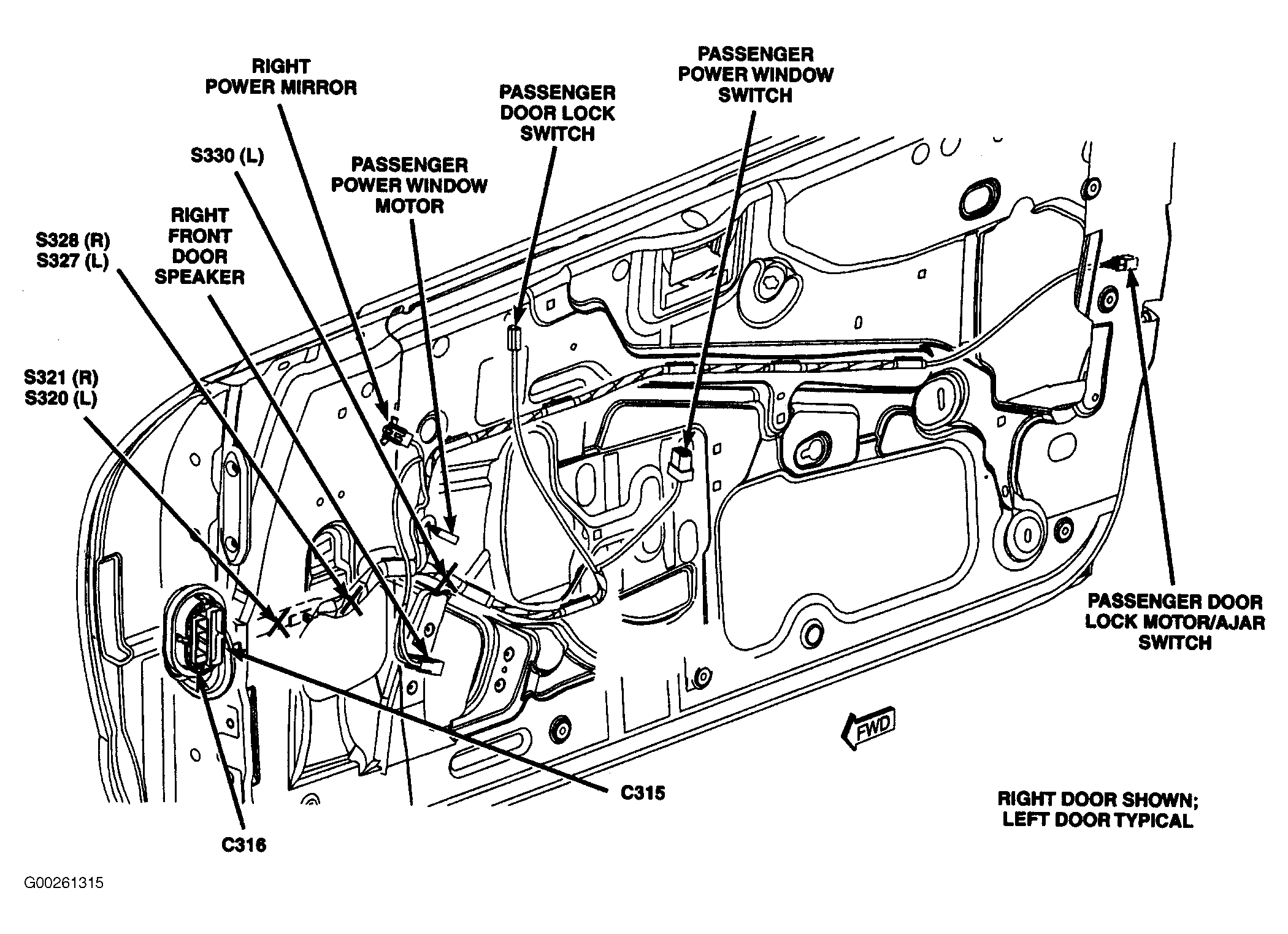

Fig 29: Left & Right Front Doors
Courtesy of GENERAL MOTORS CORP.

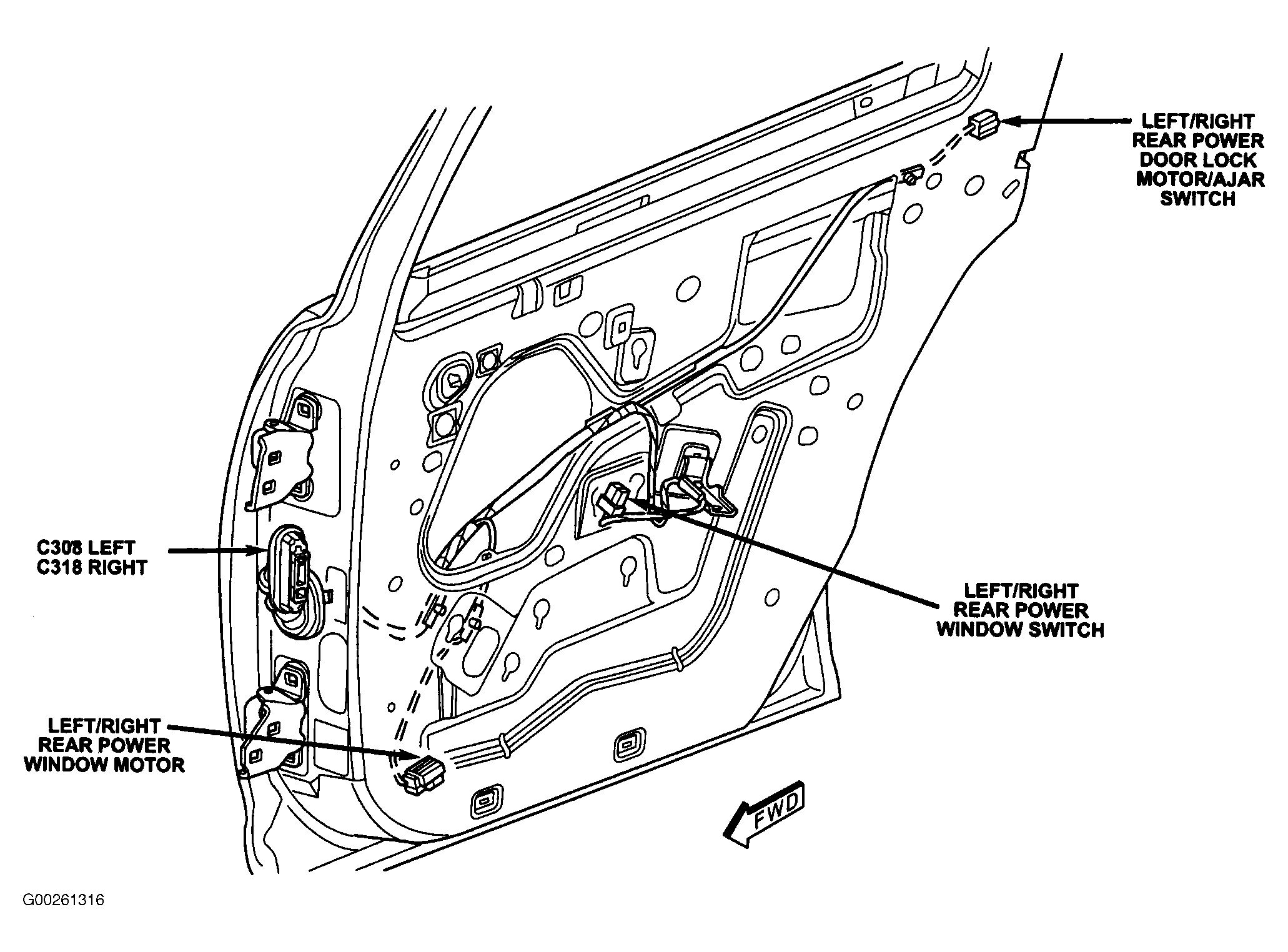

Fig 30: Left & Right Rear Doors
Courtesy of GENERAL MOTORS CORP.
Fig 31: Behind Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

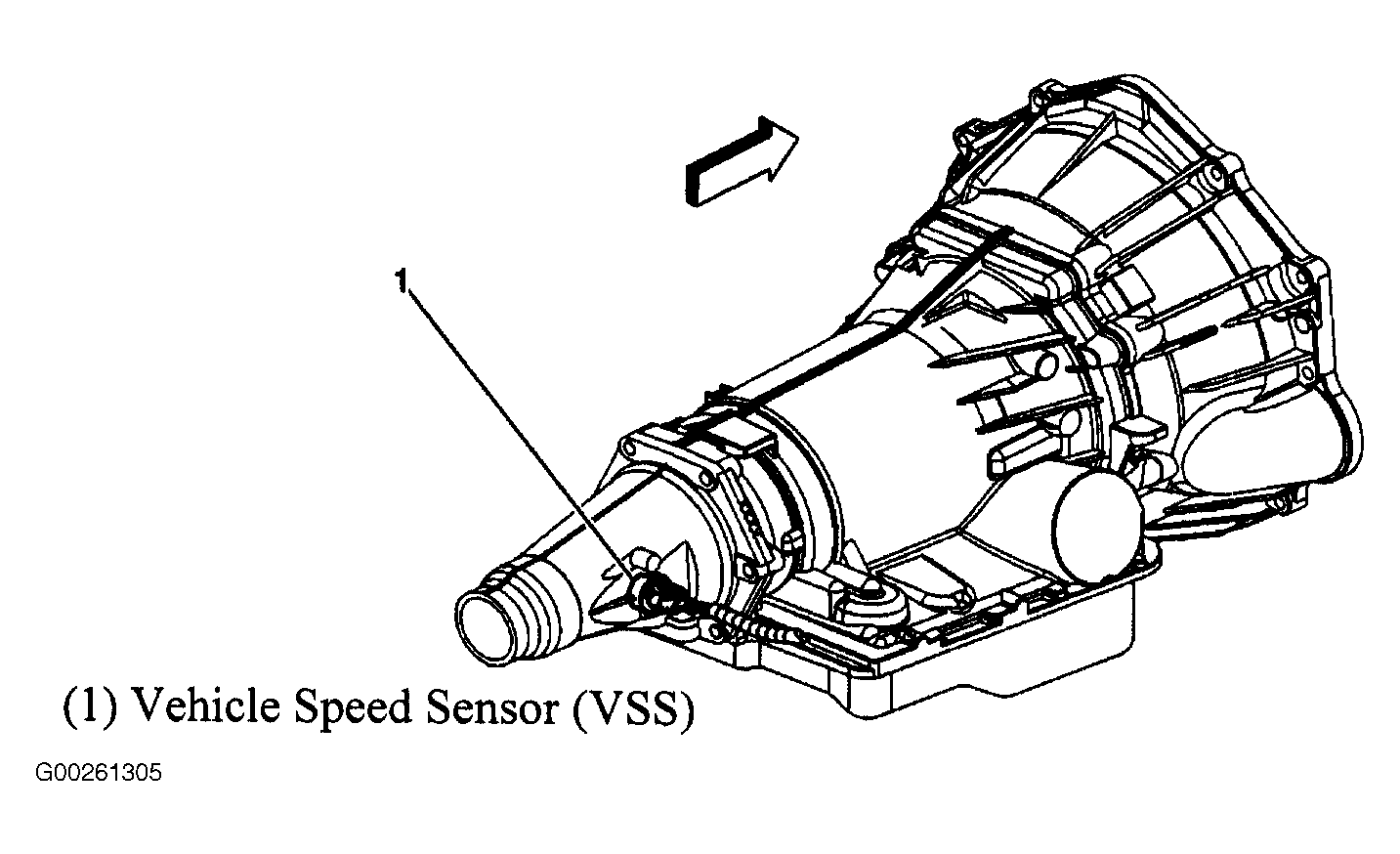

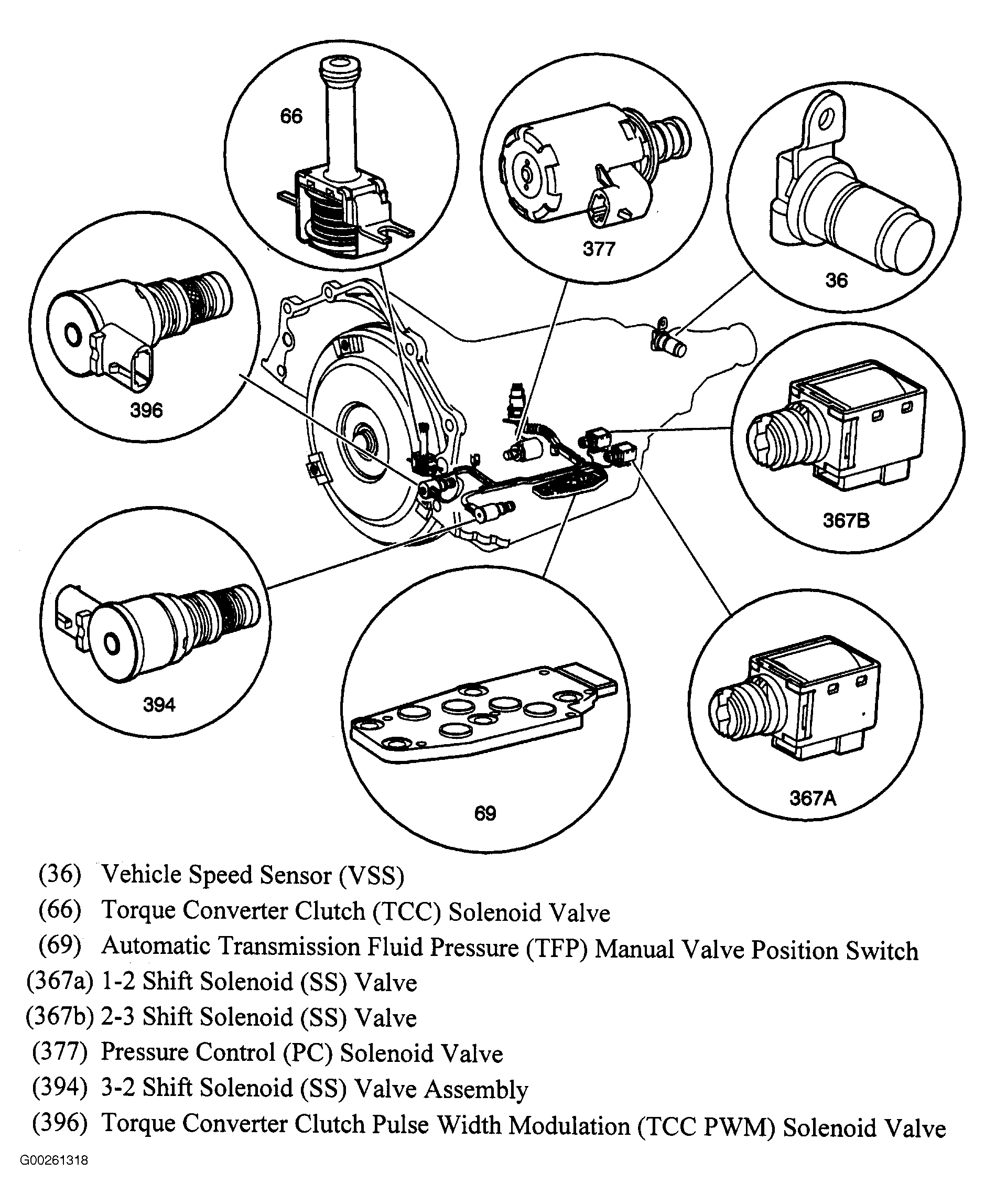

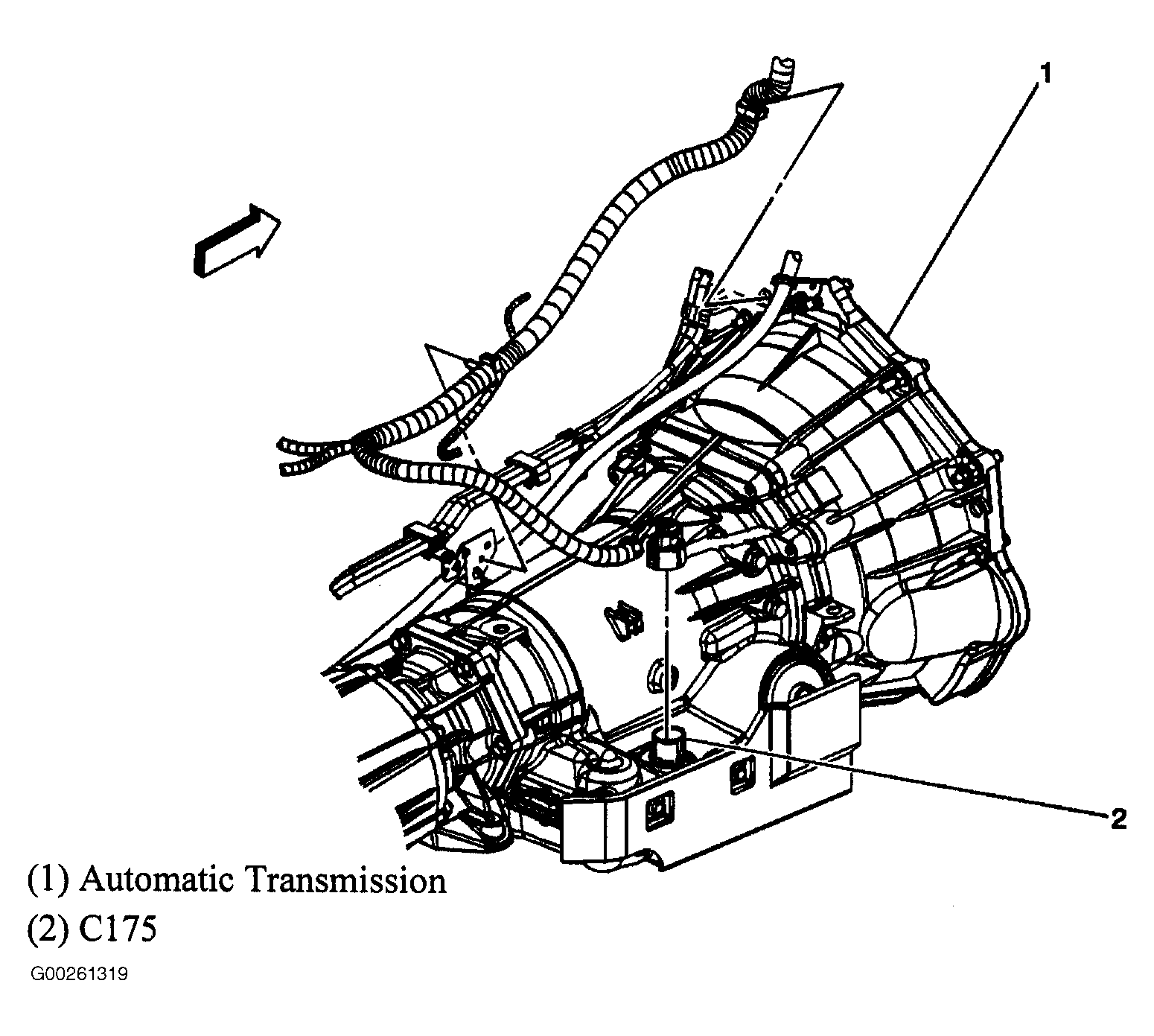

Fig 32: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

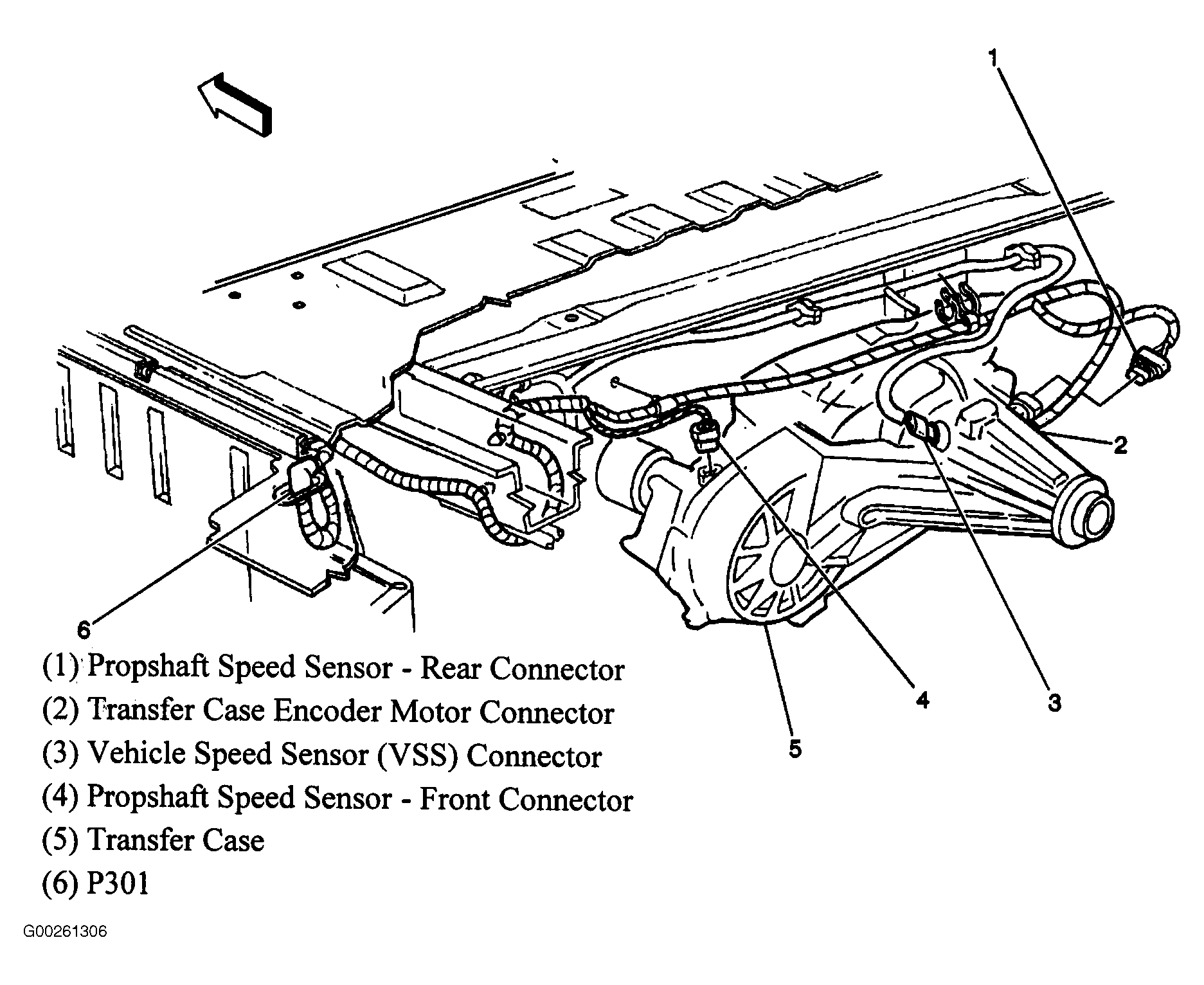

Fig 34: Transfer Case
Courtesy of GENERAL MOTORS CORP.

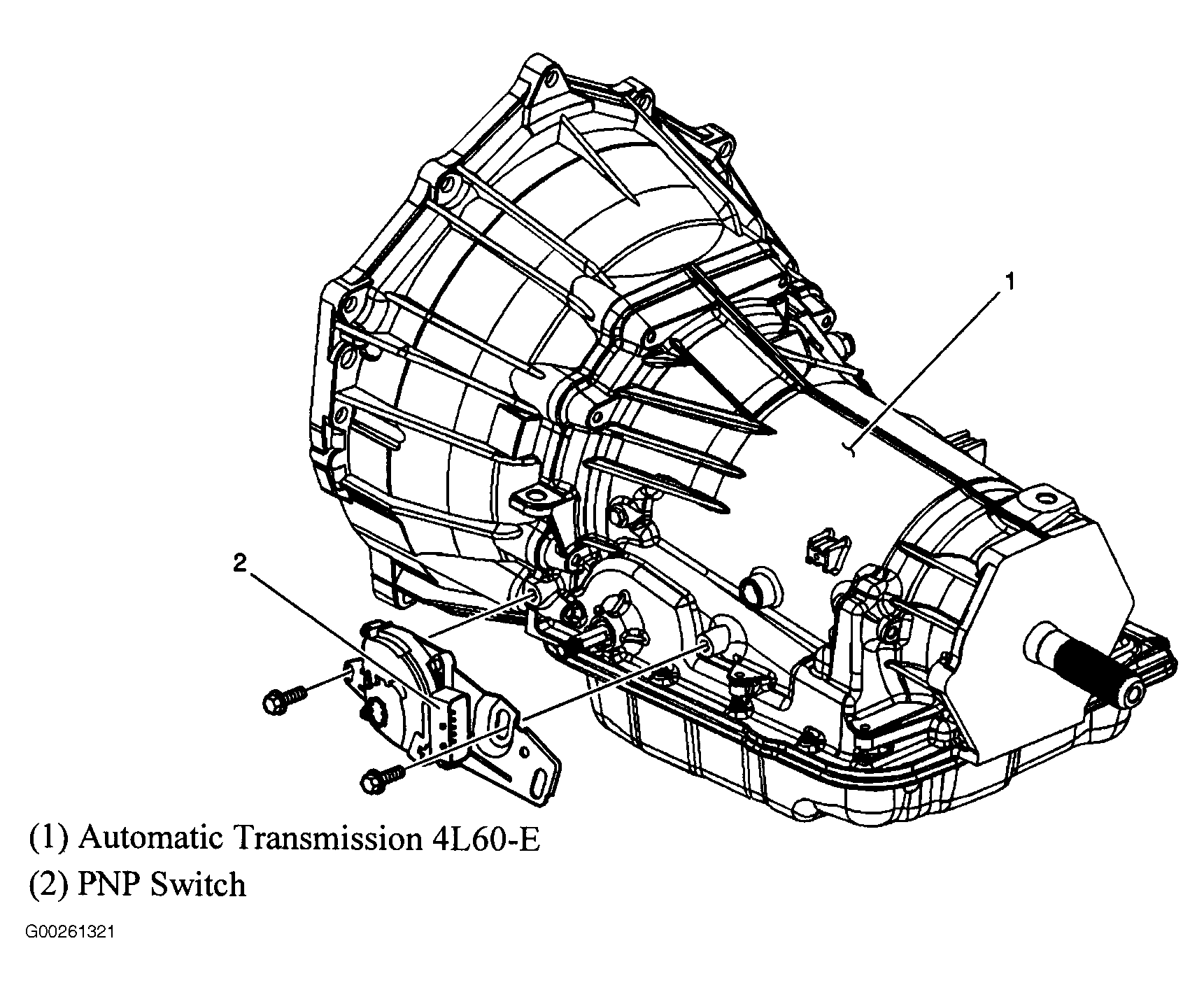

Fig 35: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

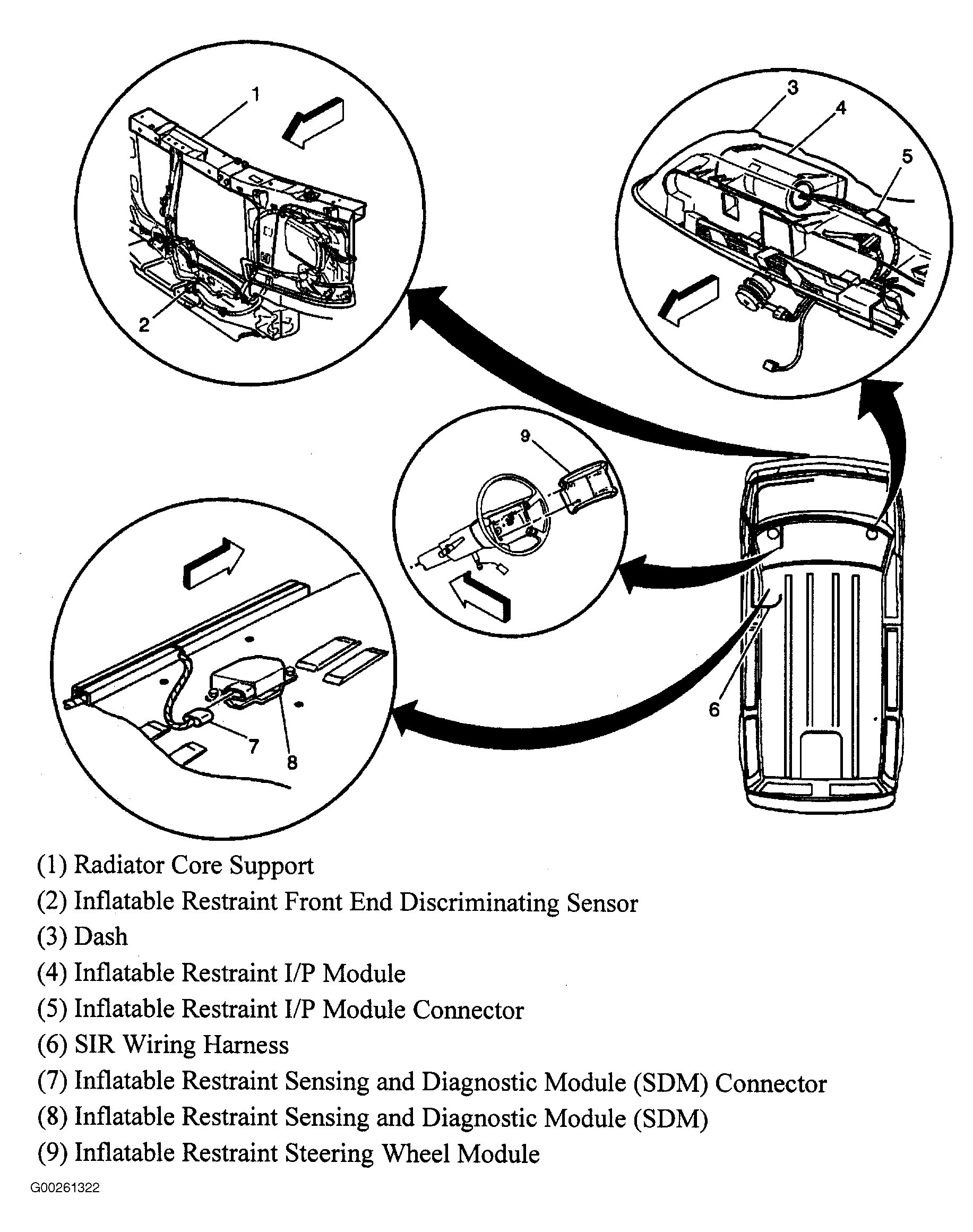

Fig 36: Inflatable Restraint System
Courtesy of GENERAL MOTORS CORP.
Fig 37: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

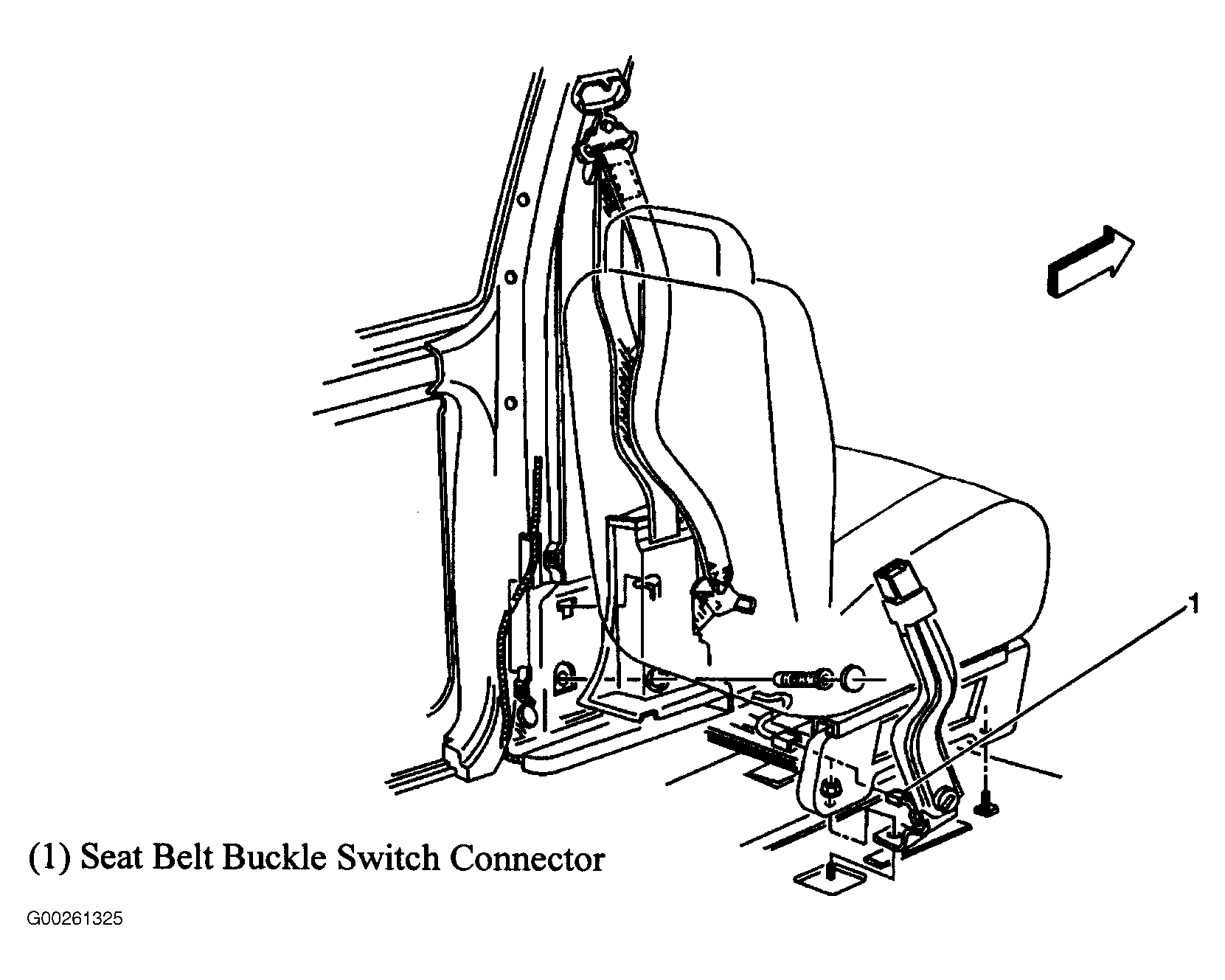

Fig 38: Left Front Seat
Courtesy of GENERAL MOTORS CORP.

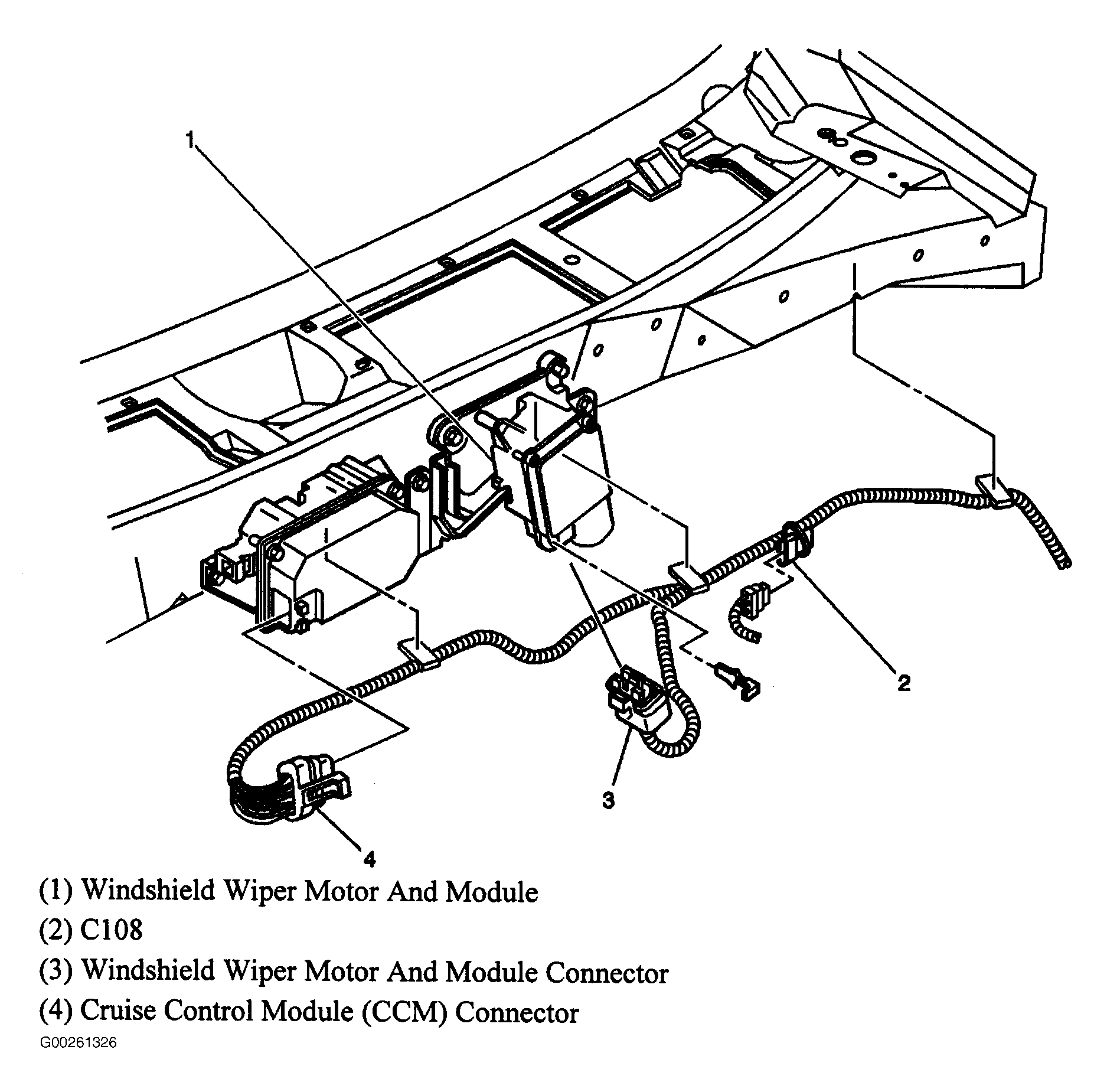

Fig 39: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

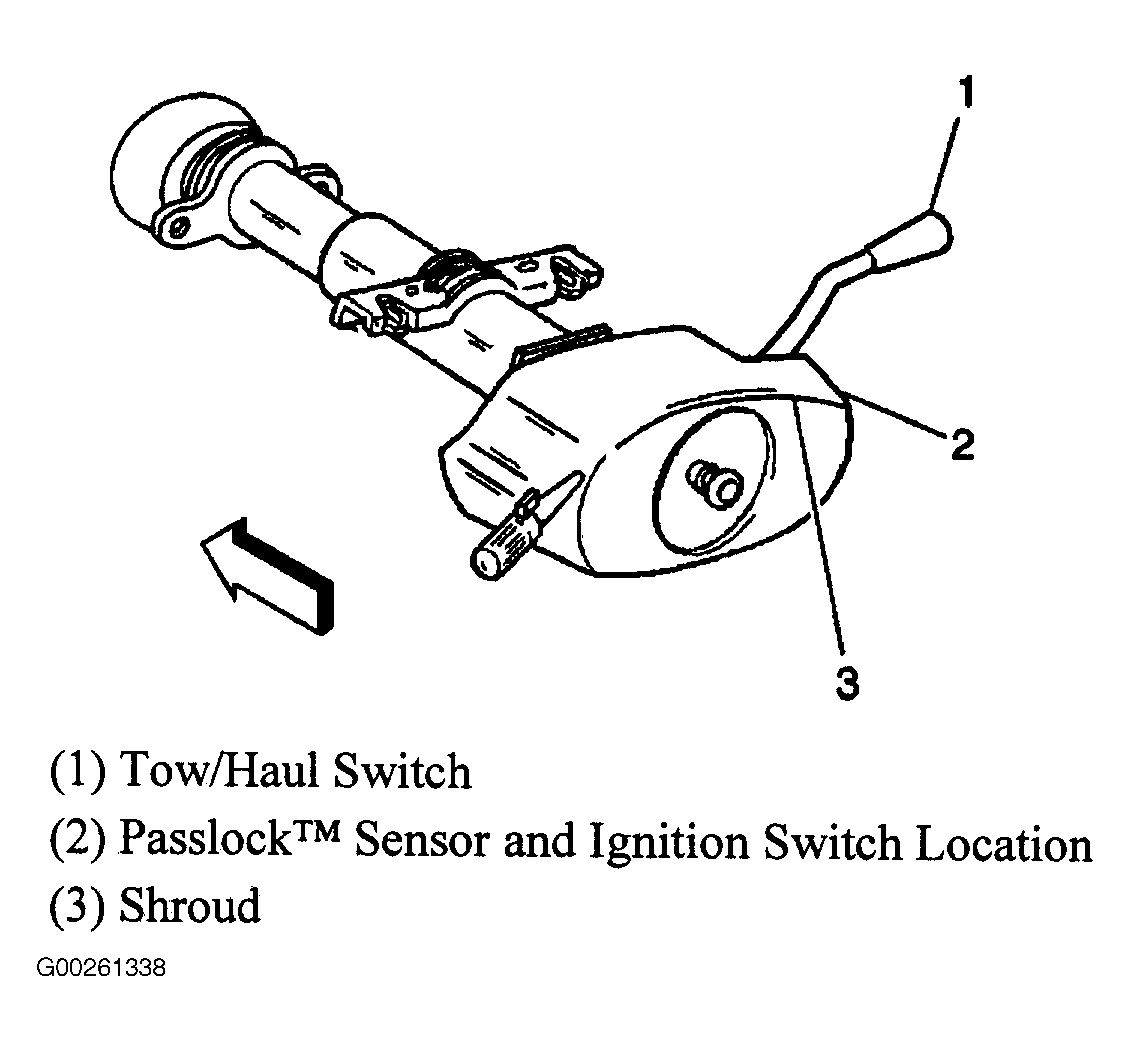

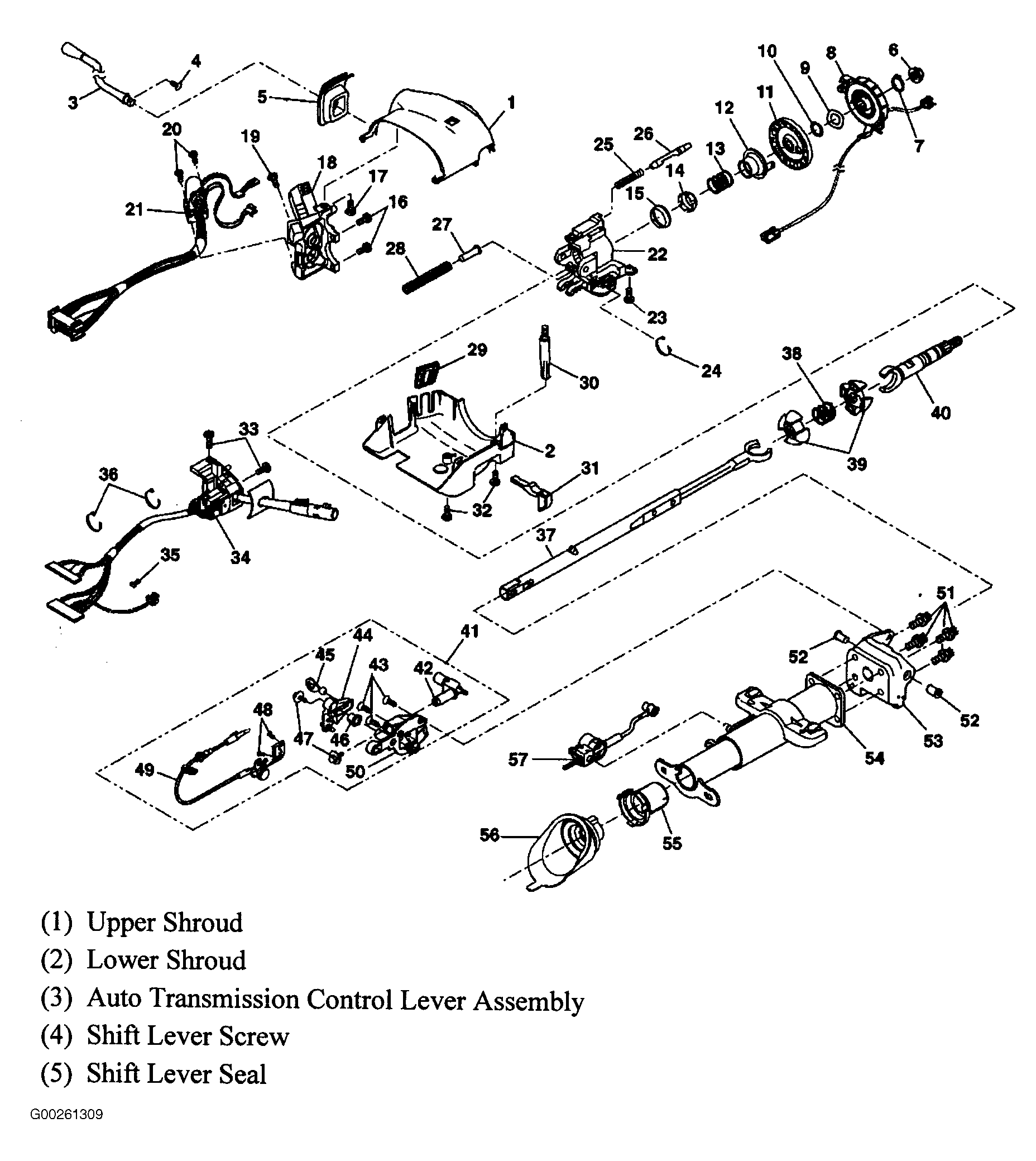

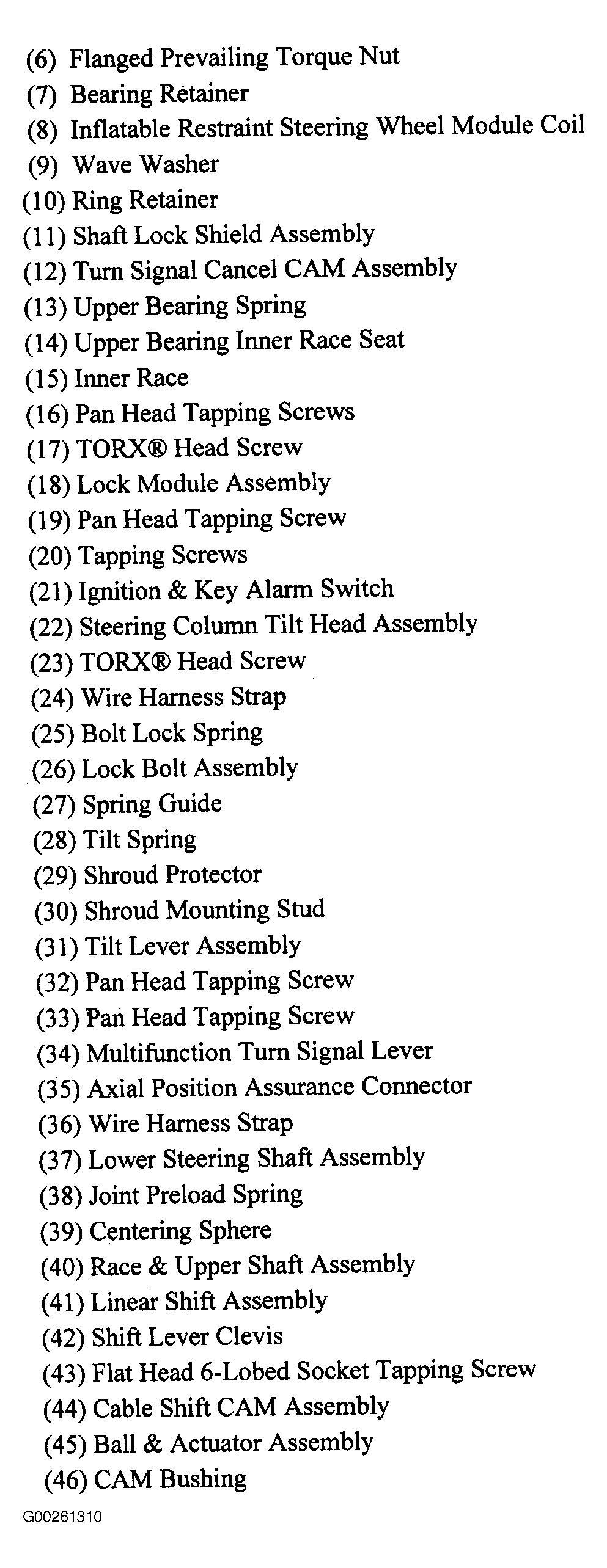

Fig 40: Steering Column
Courtesy of GENERAL MOTORS CORP.

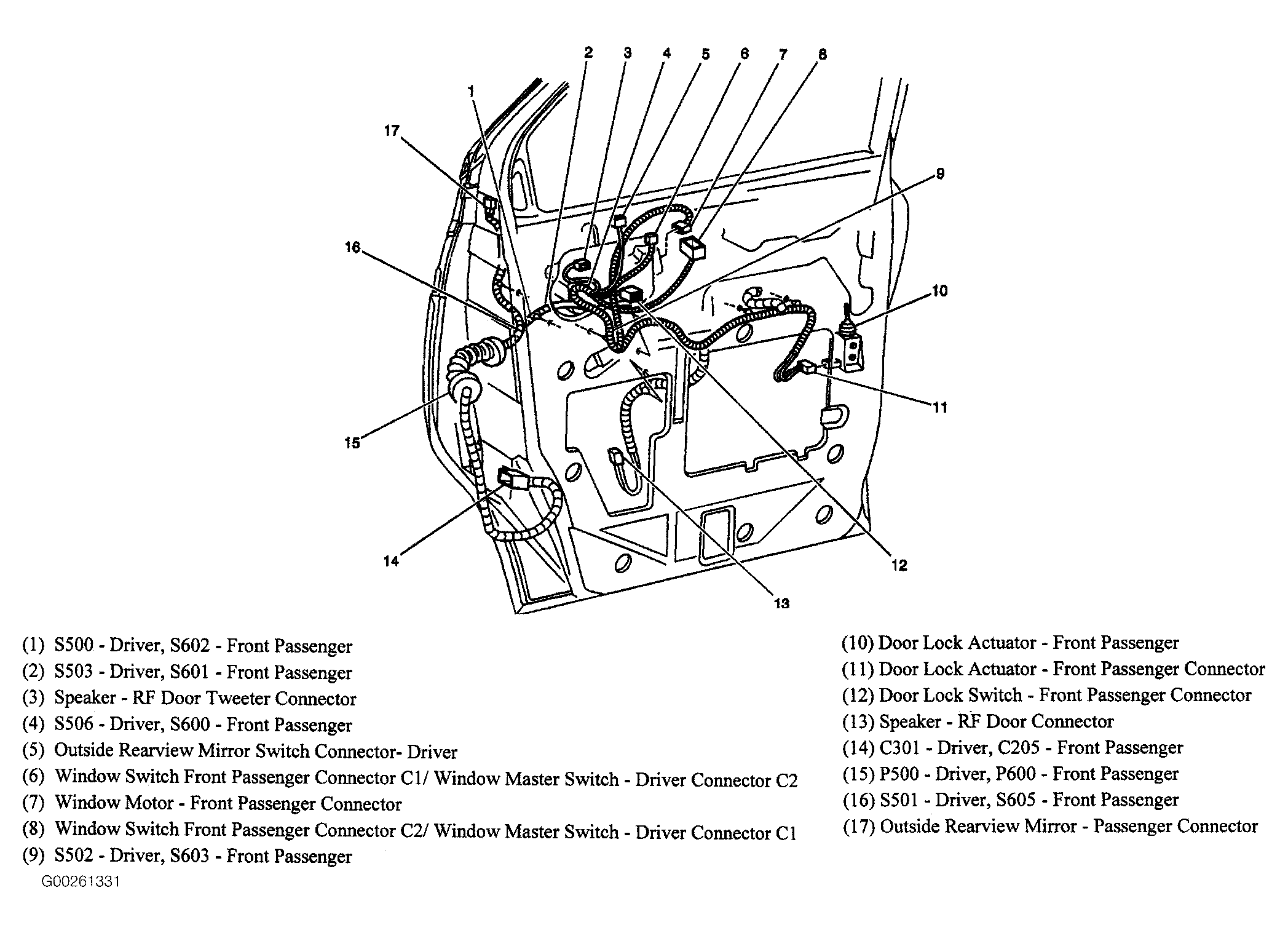

Fig 41: Front Passenger & Driver Doors
Courtesy of GENERAL MOTORS CORP.

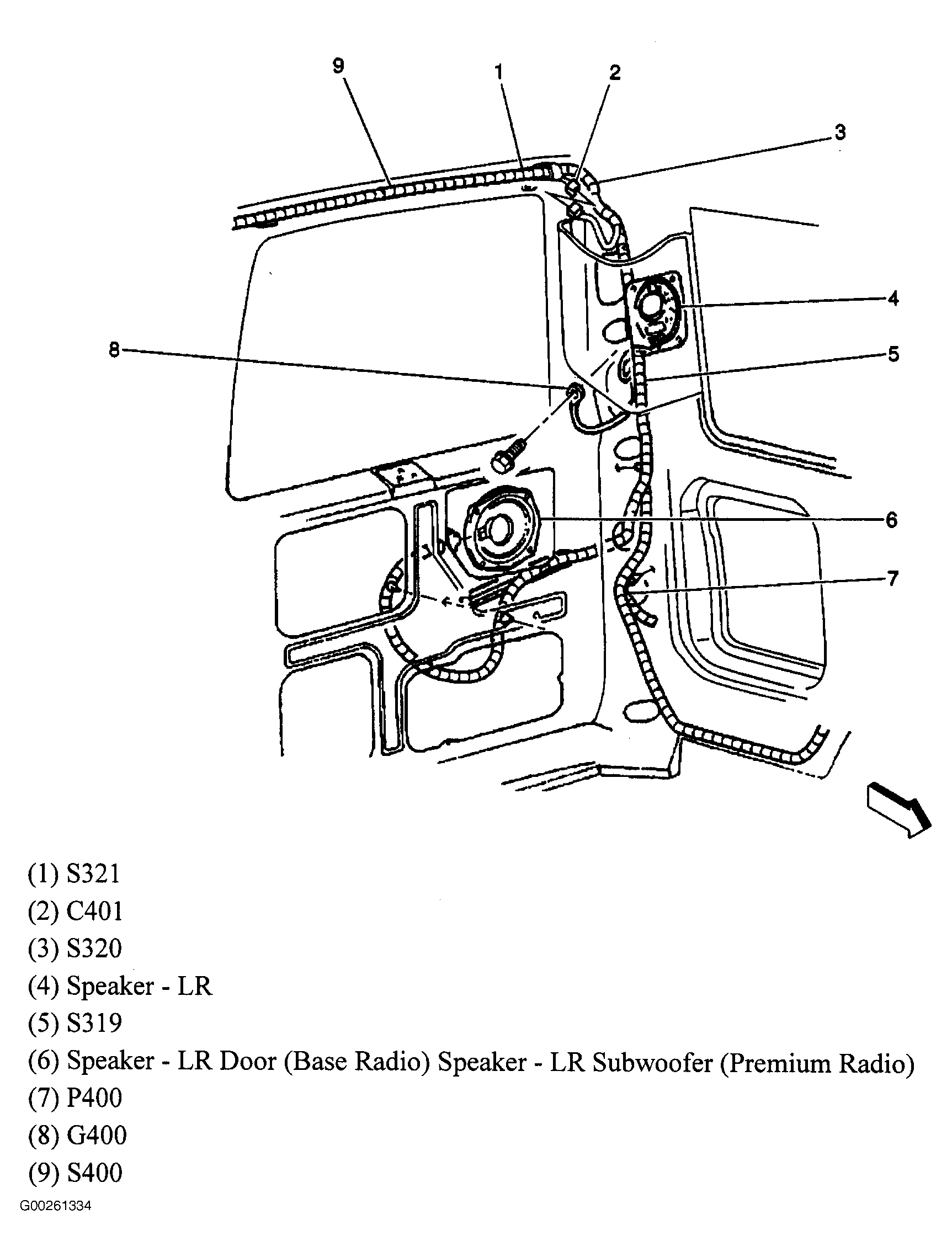

Fig 42: Left Rear Body
Courtesy of GENERAL MOTORS CORP.

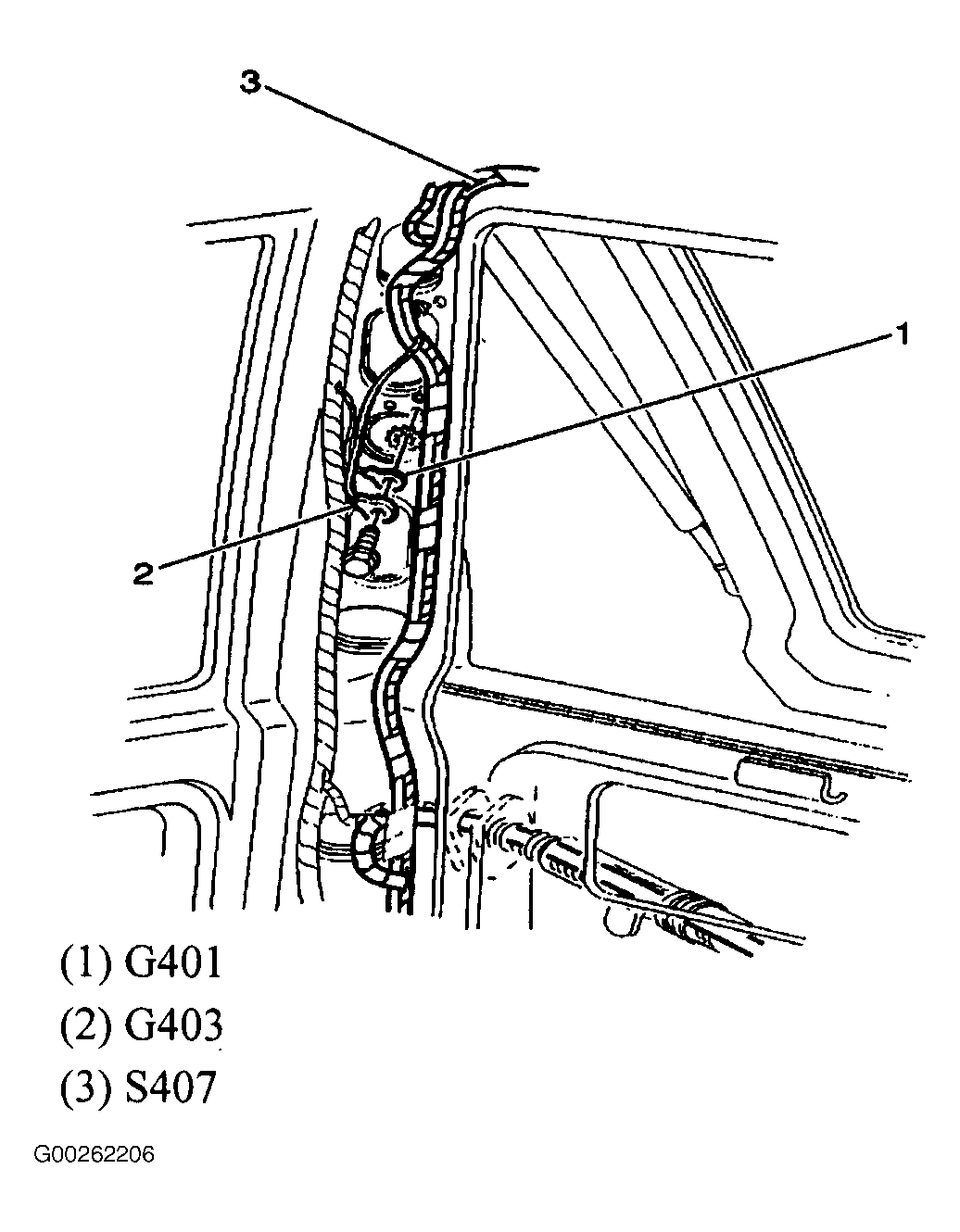

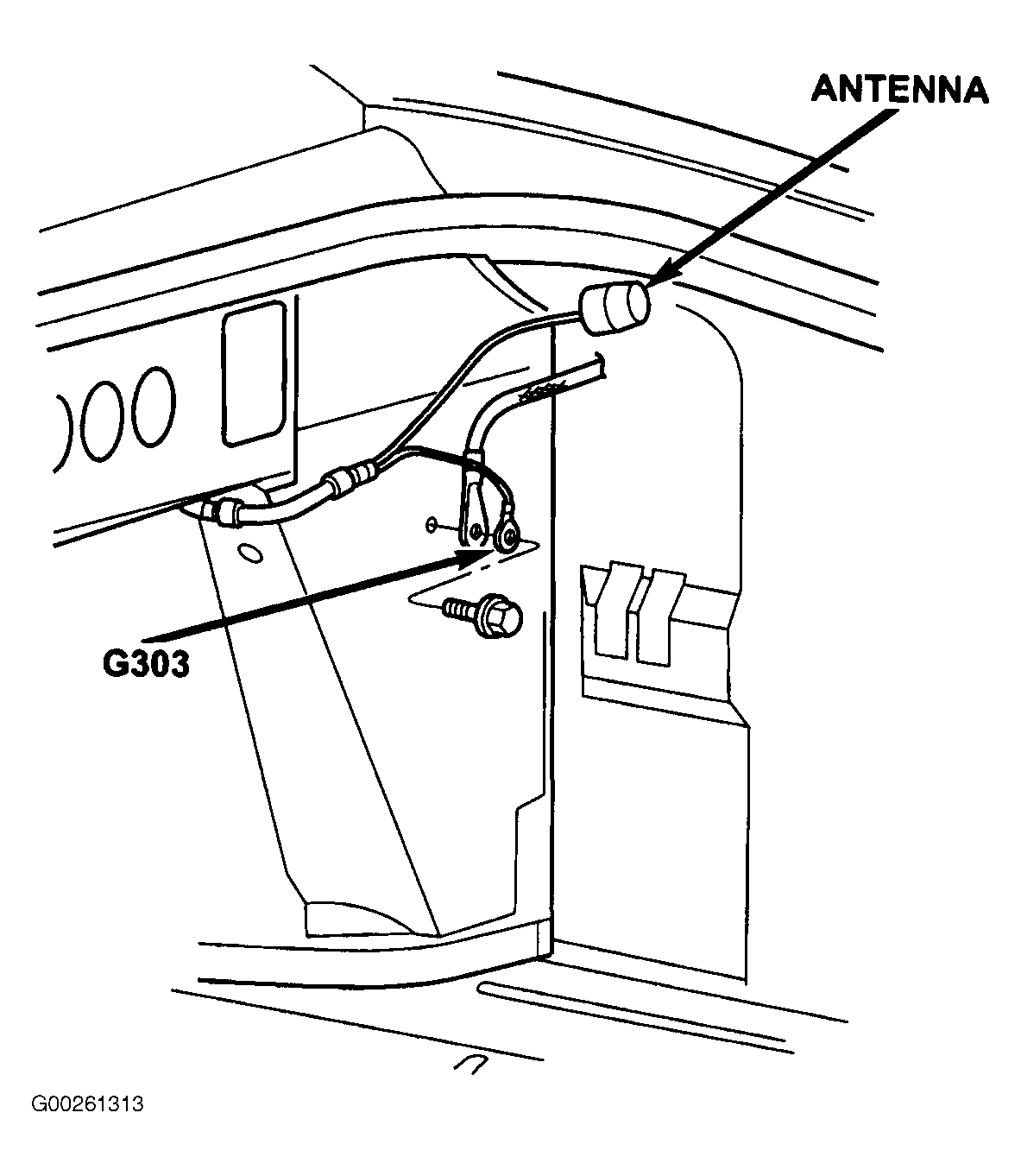

Fig 43: Right "D" Pillar
Courtesy of GENERAL MOTORS CORP.

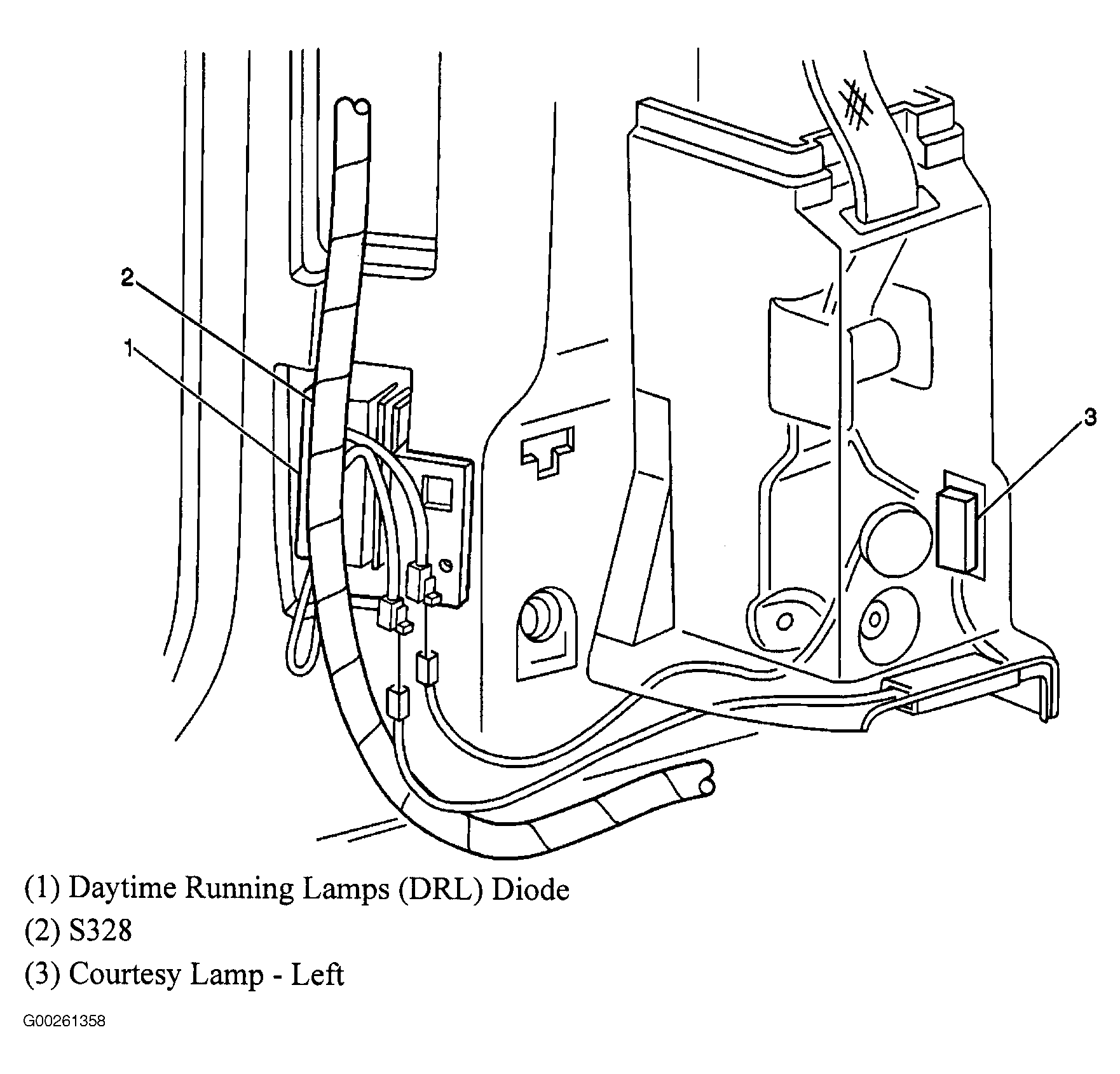

Fig 44: Left "D" Pillar
Courtesy of GENERAL MOTORS CORP.

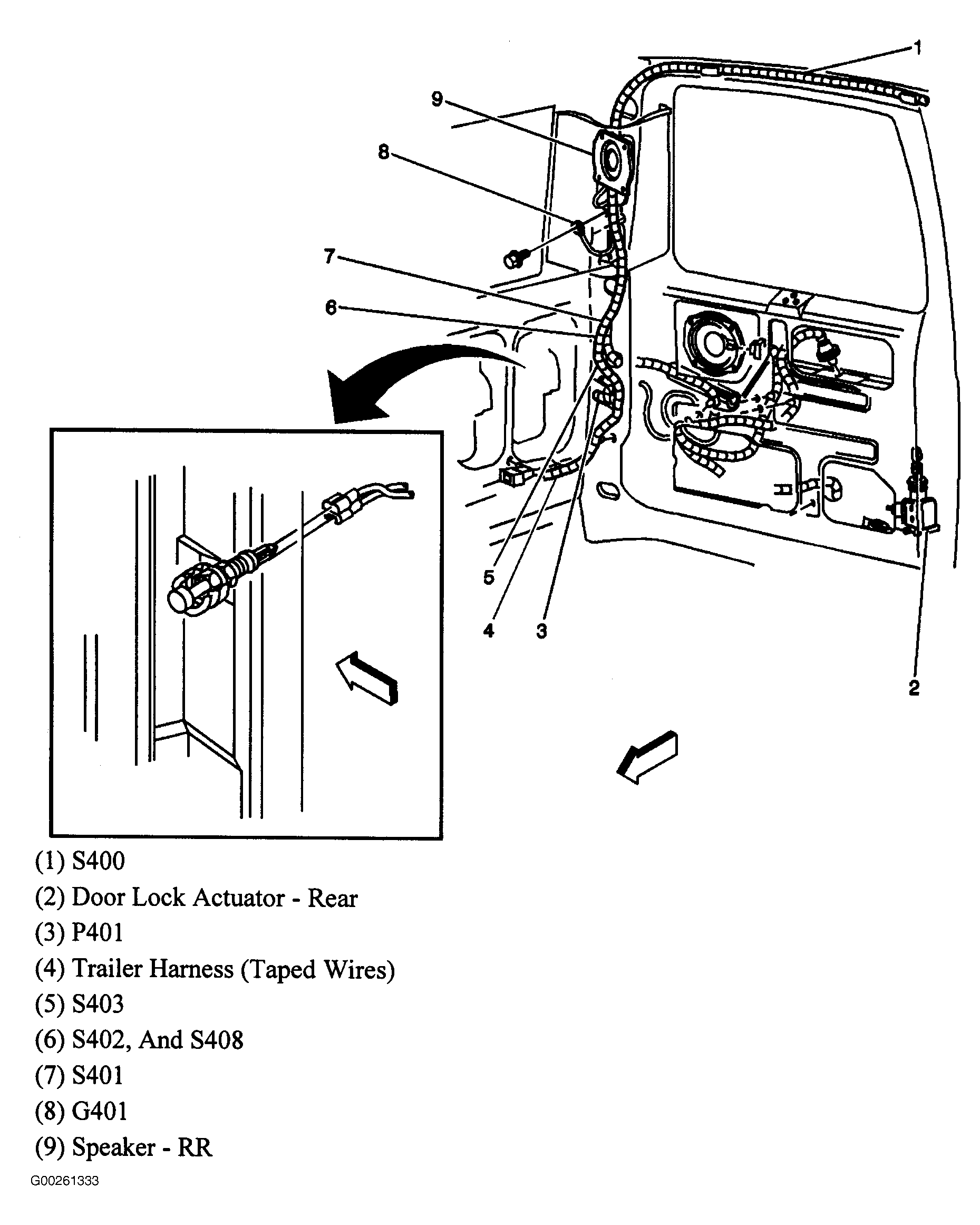

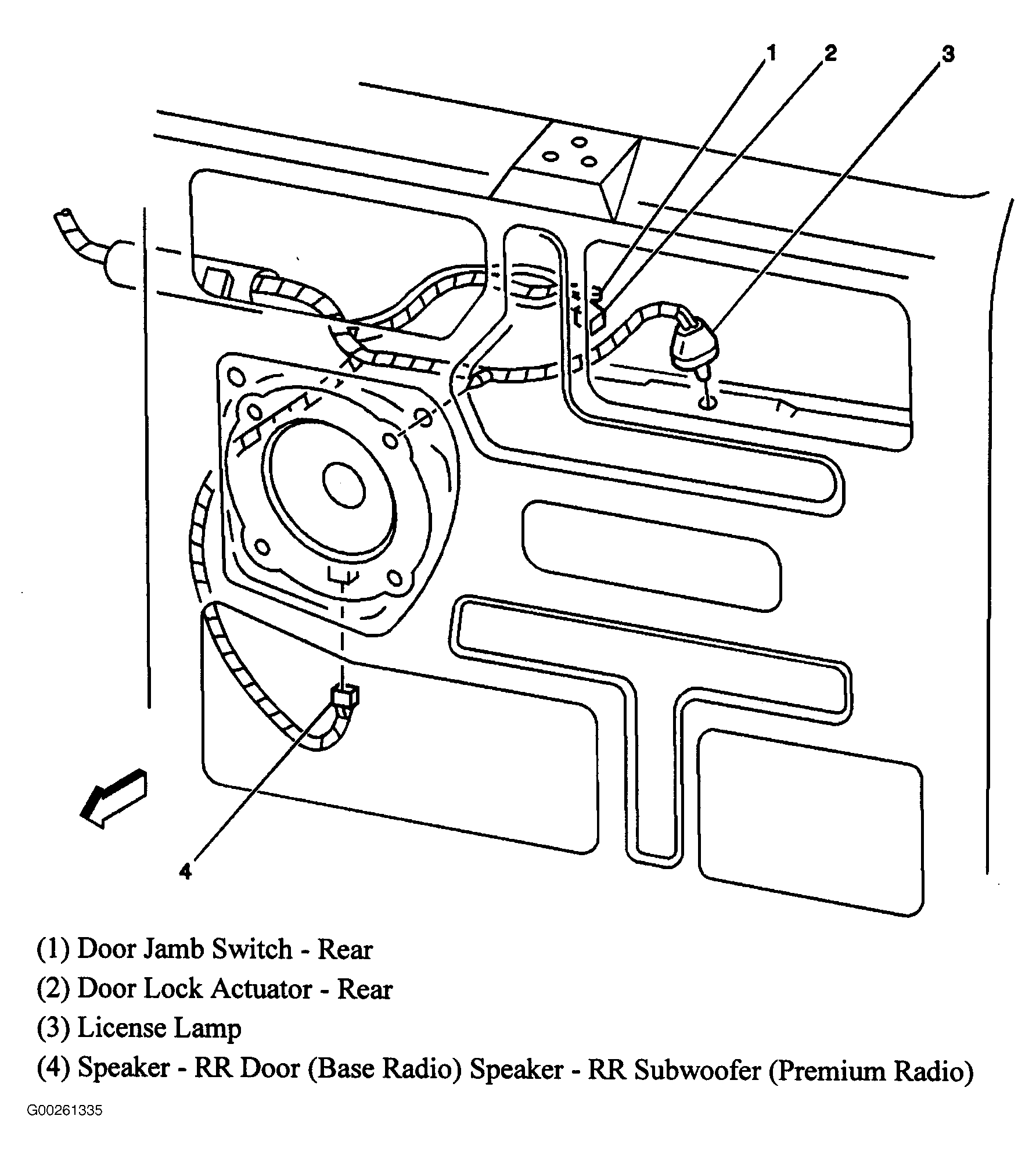

Fig 45: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

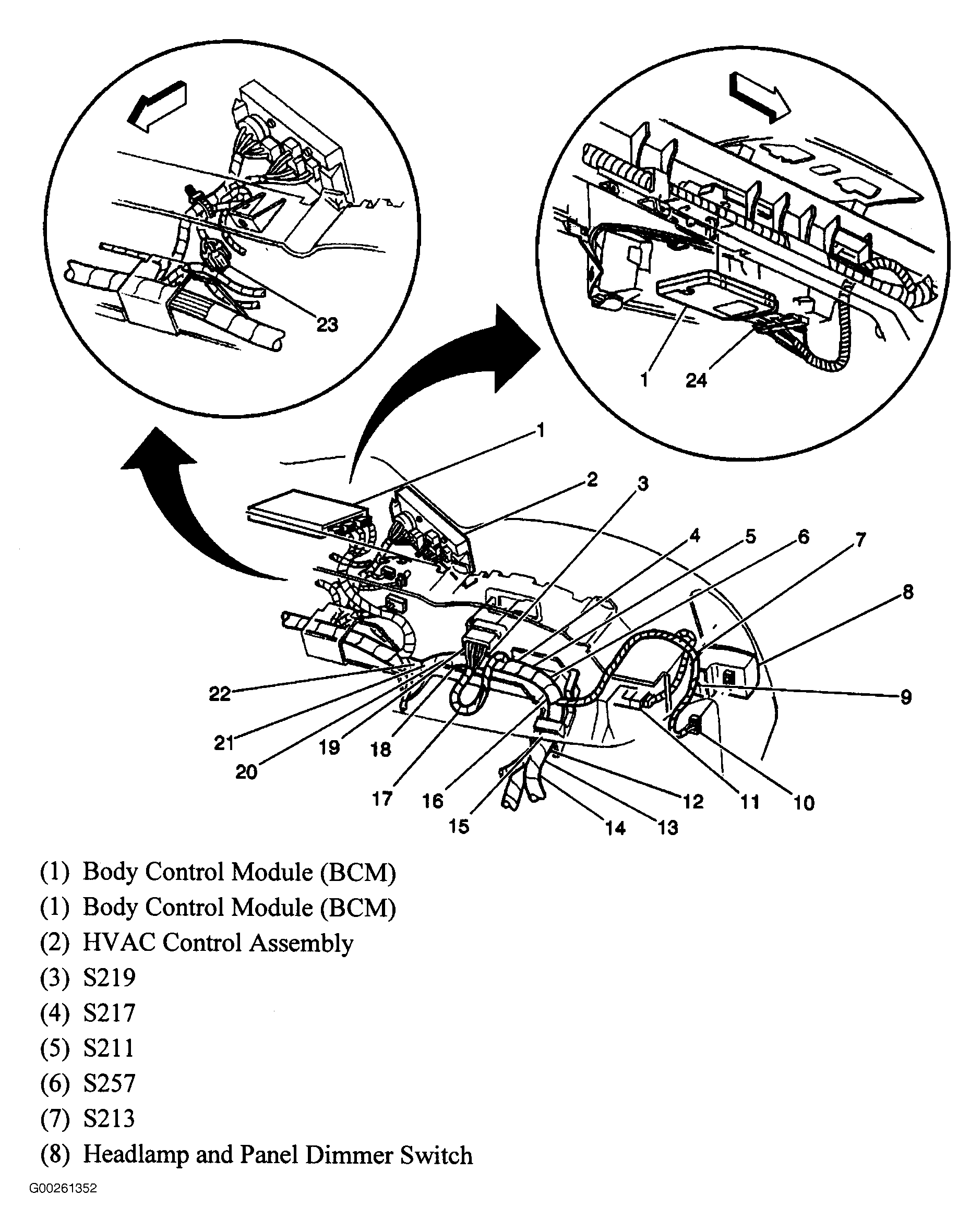

Fig 46: Dash
Courtesy of GENERAL MOTORS CORP.

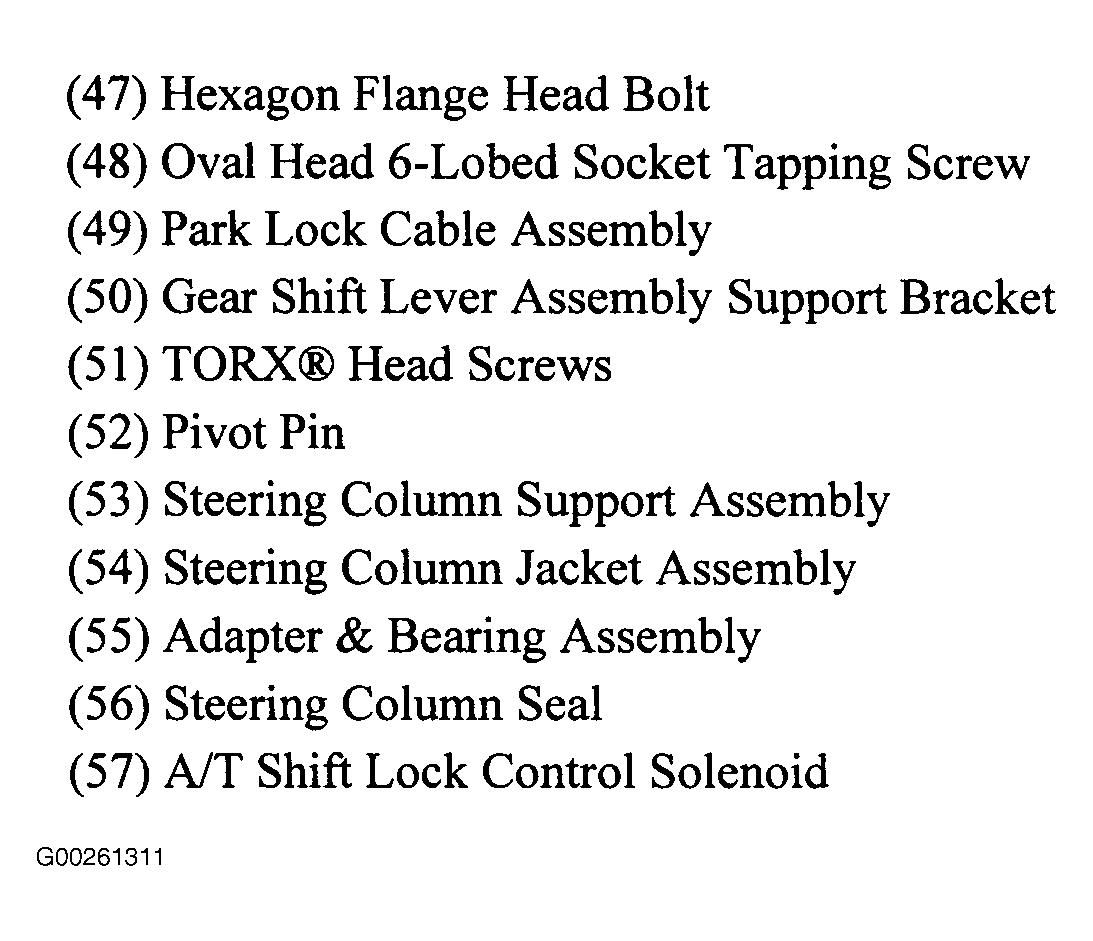

Fig 47: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

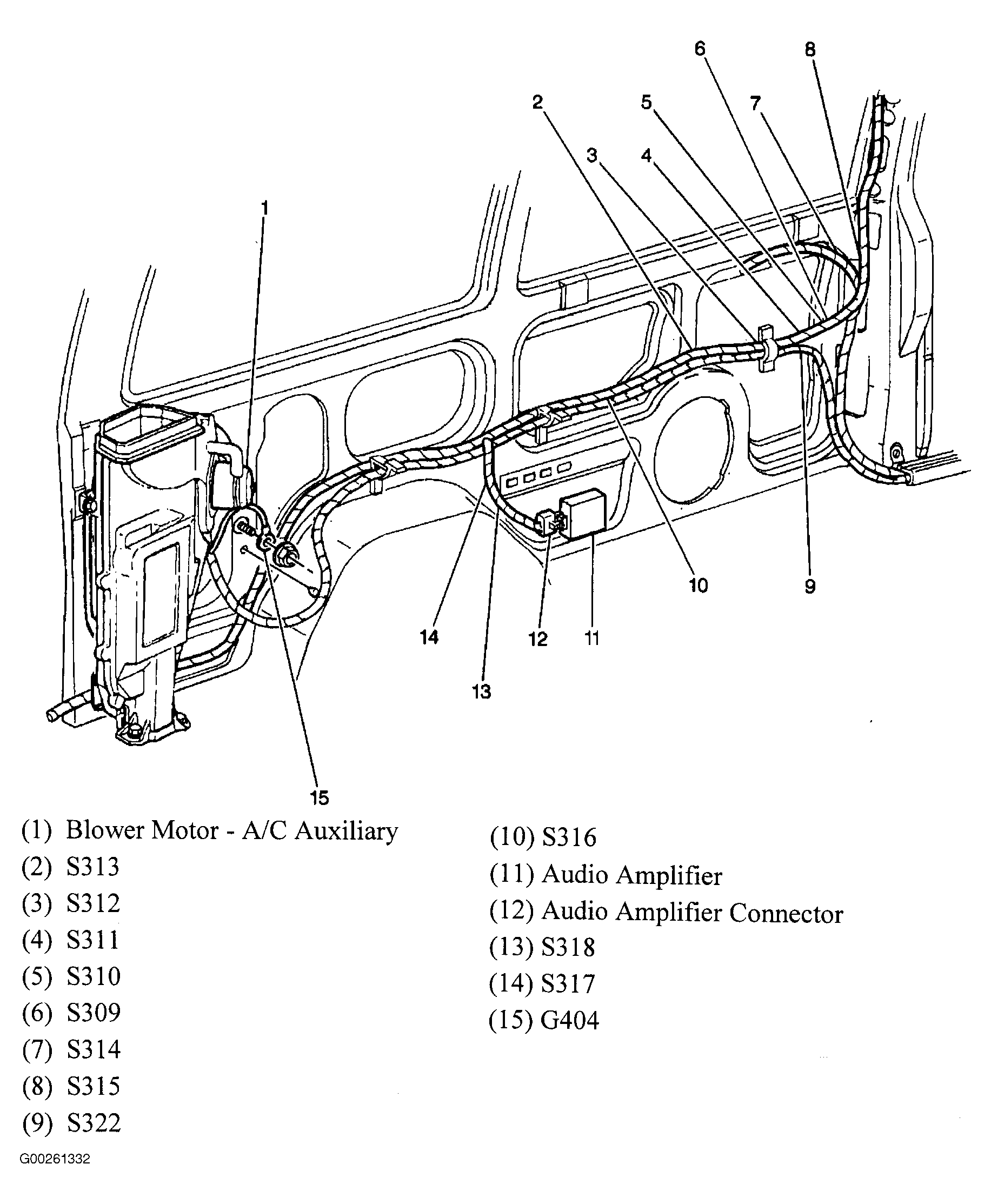

Fig 49: Right Rear Quarterpanel
Courtesy of GENERAL MOTORS CORP.

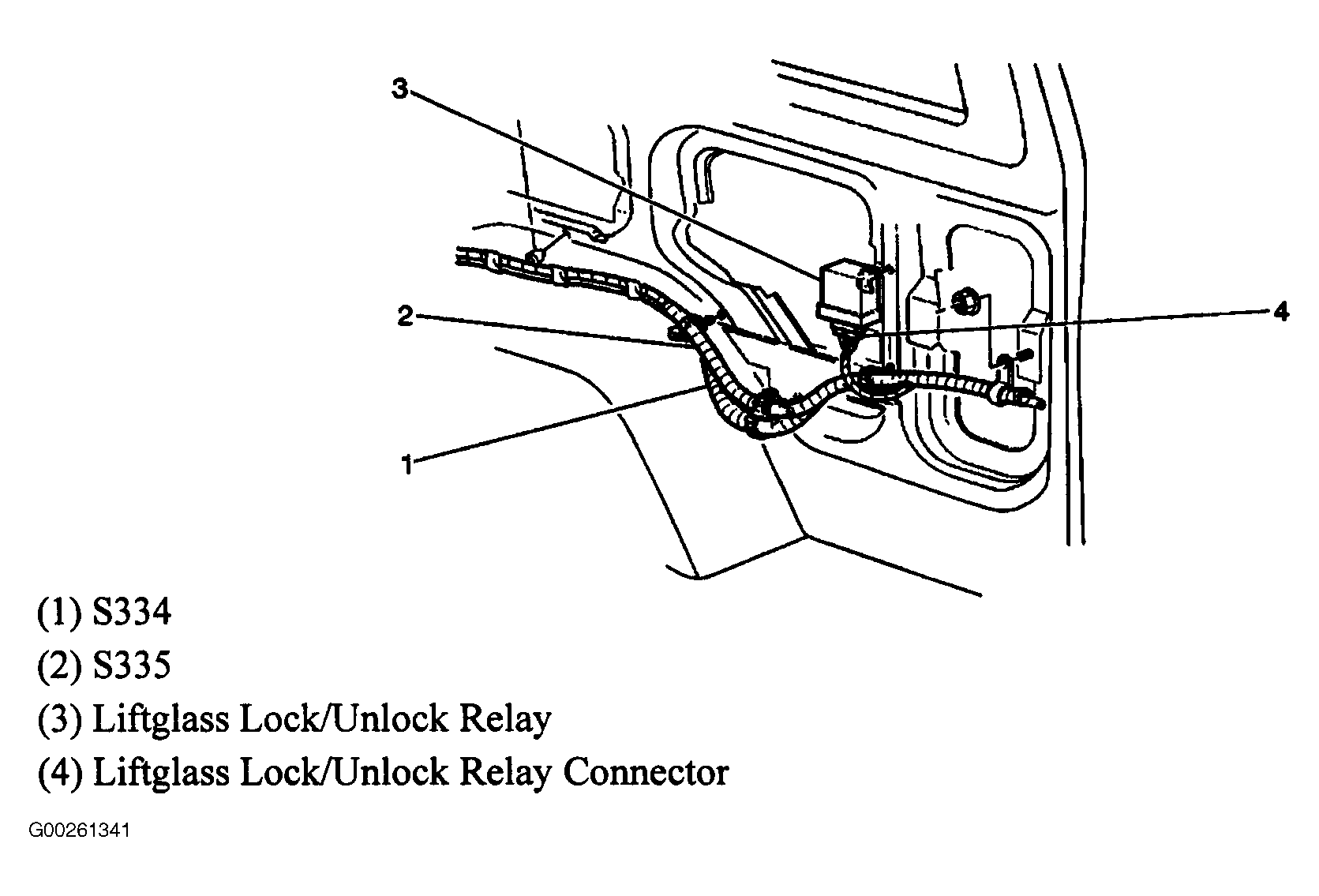

Fig 50: Liftgate
Courtesy of GENERAL MOTORS CORP.

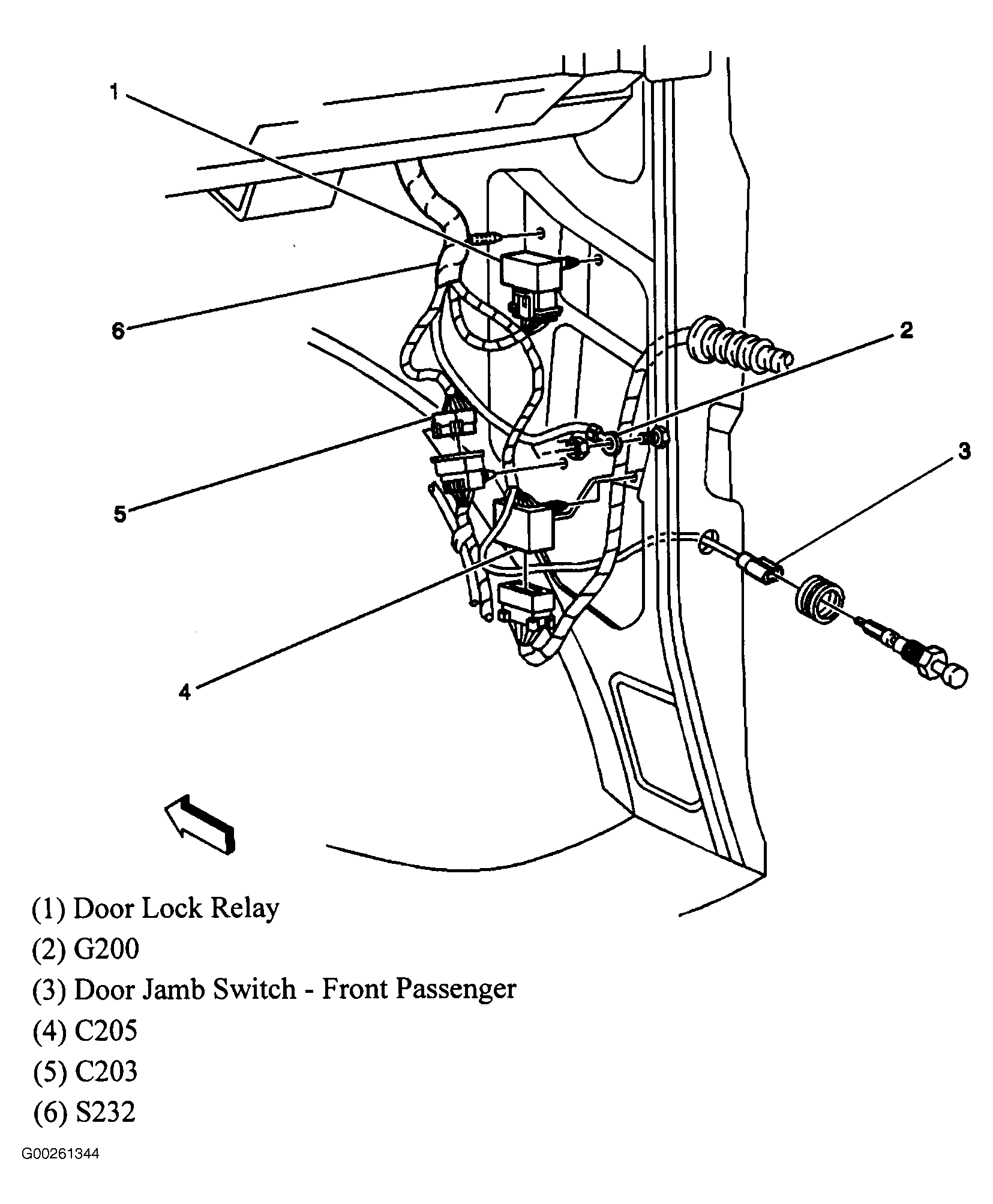

Fig 51: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

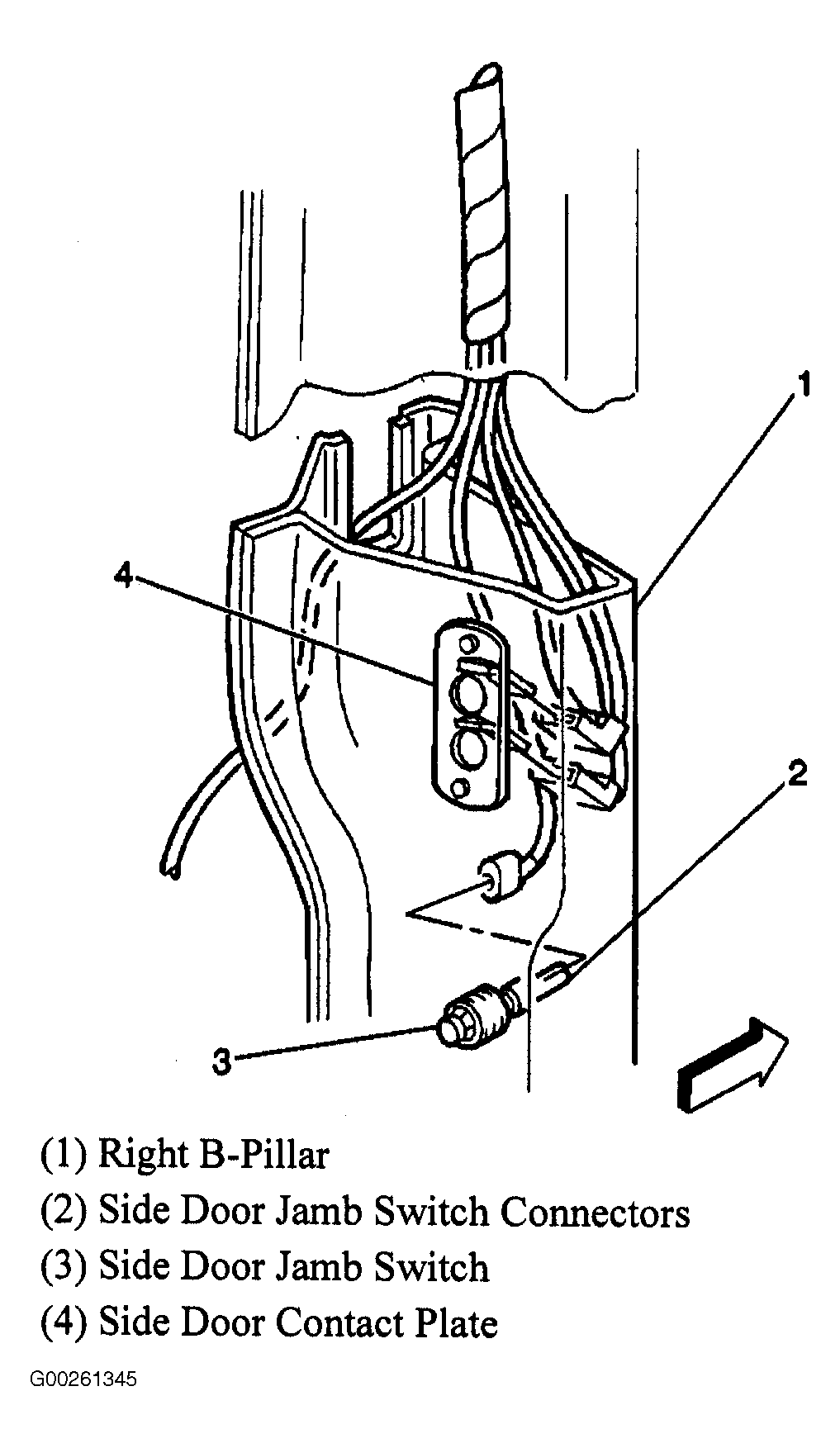

Fig 52: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

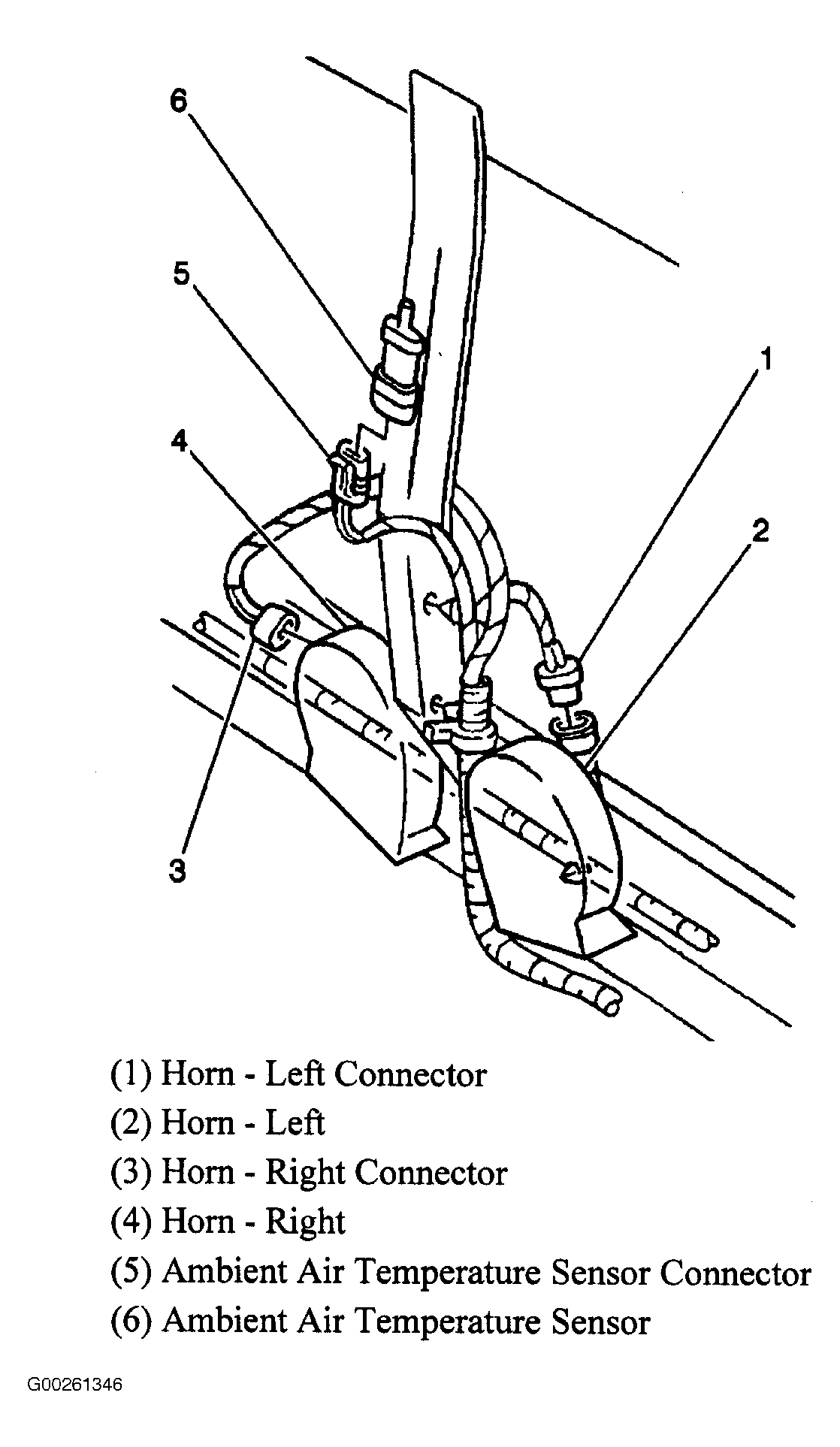

Fig 53: Front Center Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

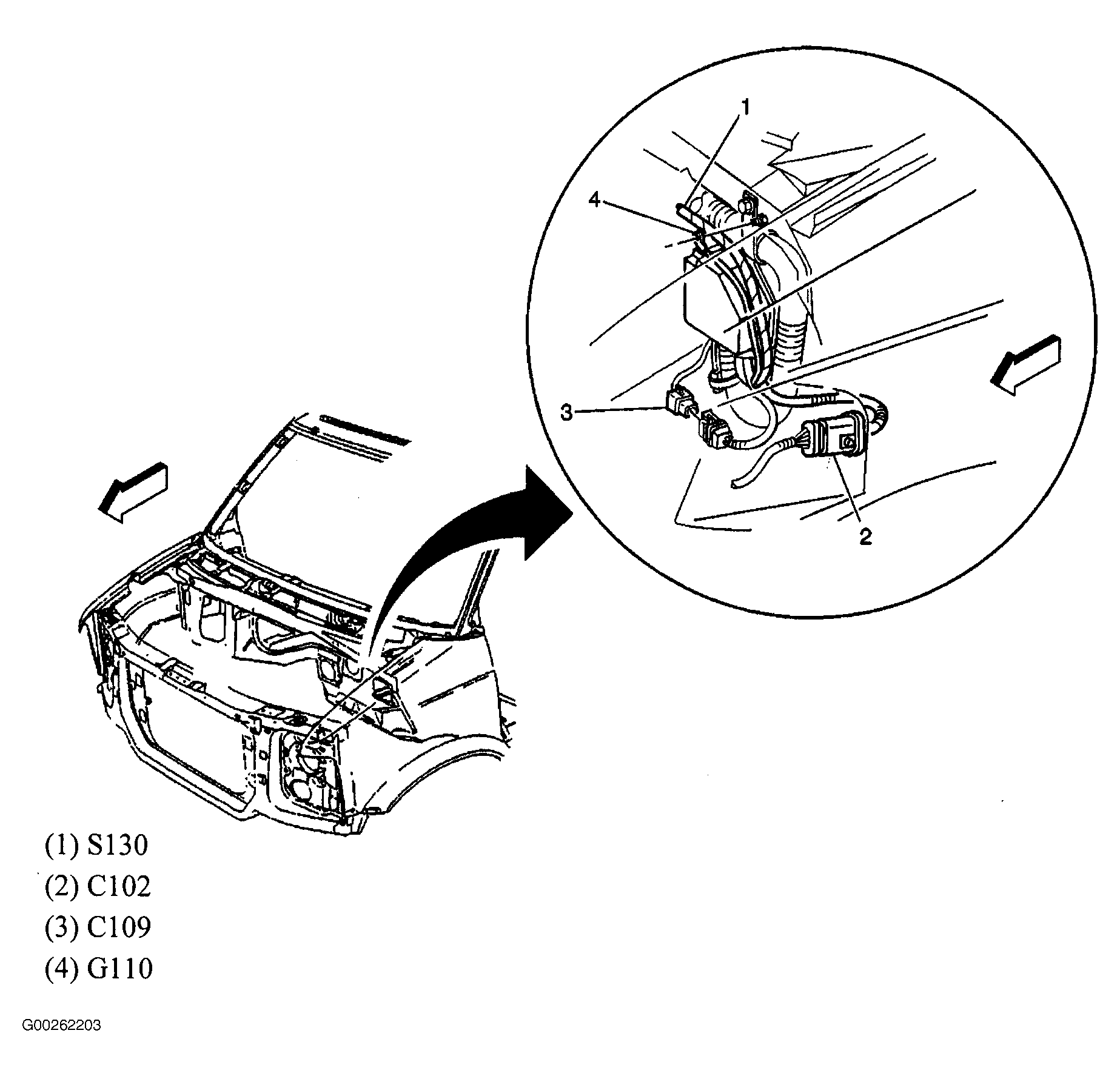

Fig 54: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

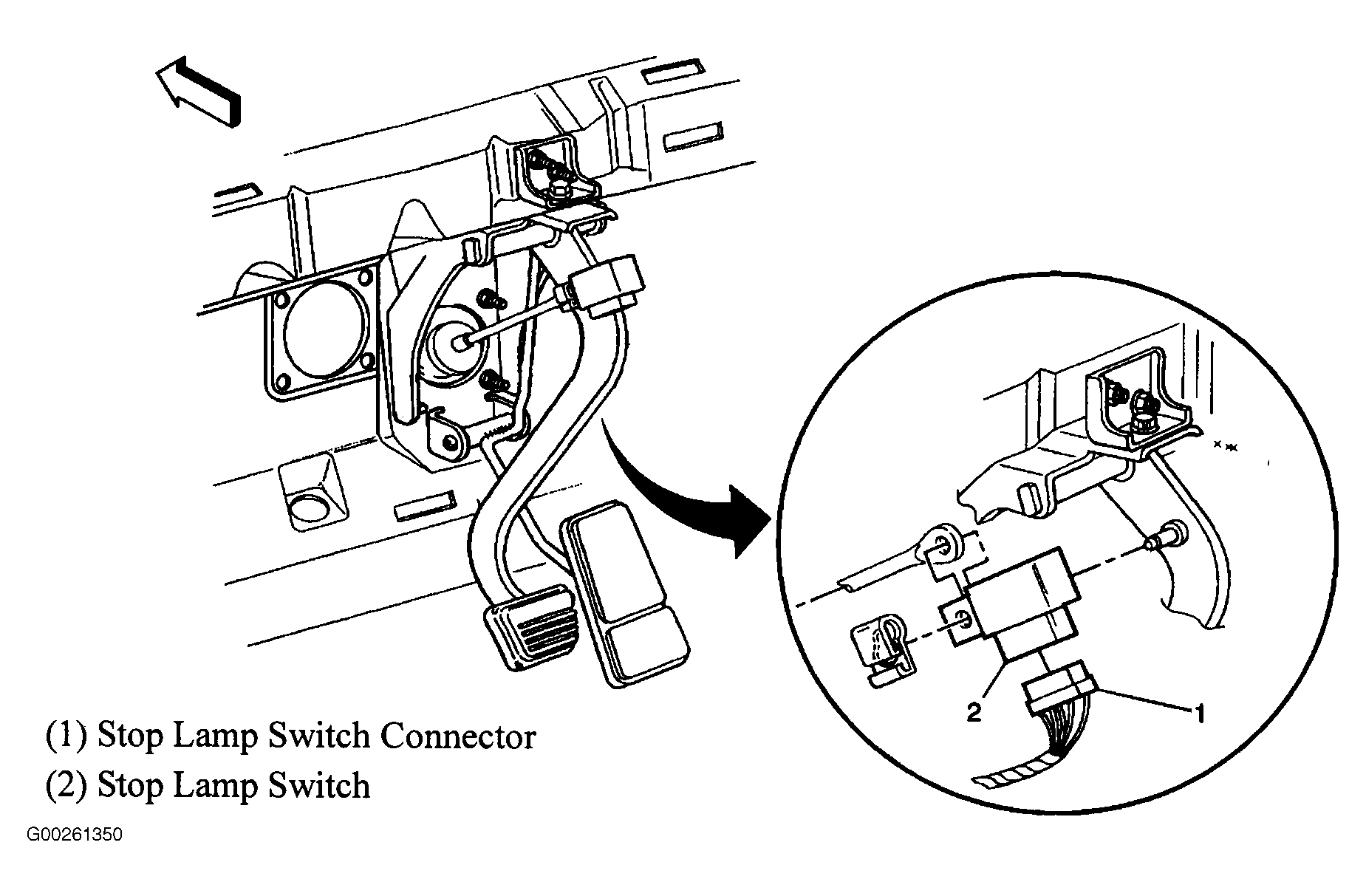

Fig 55: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 56: Behind Left Side Of Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Behind Left Side Of Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

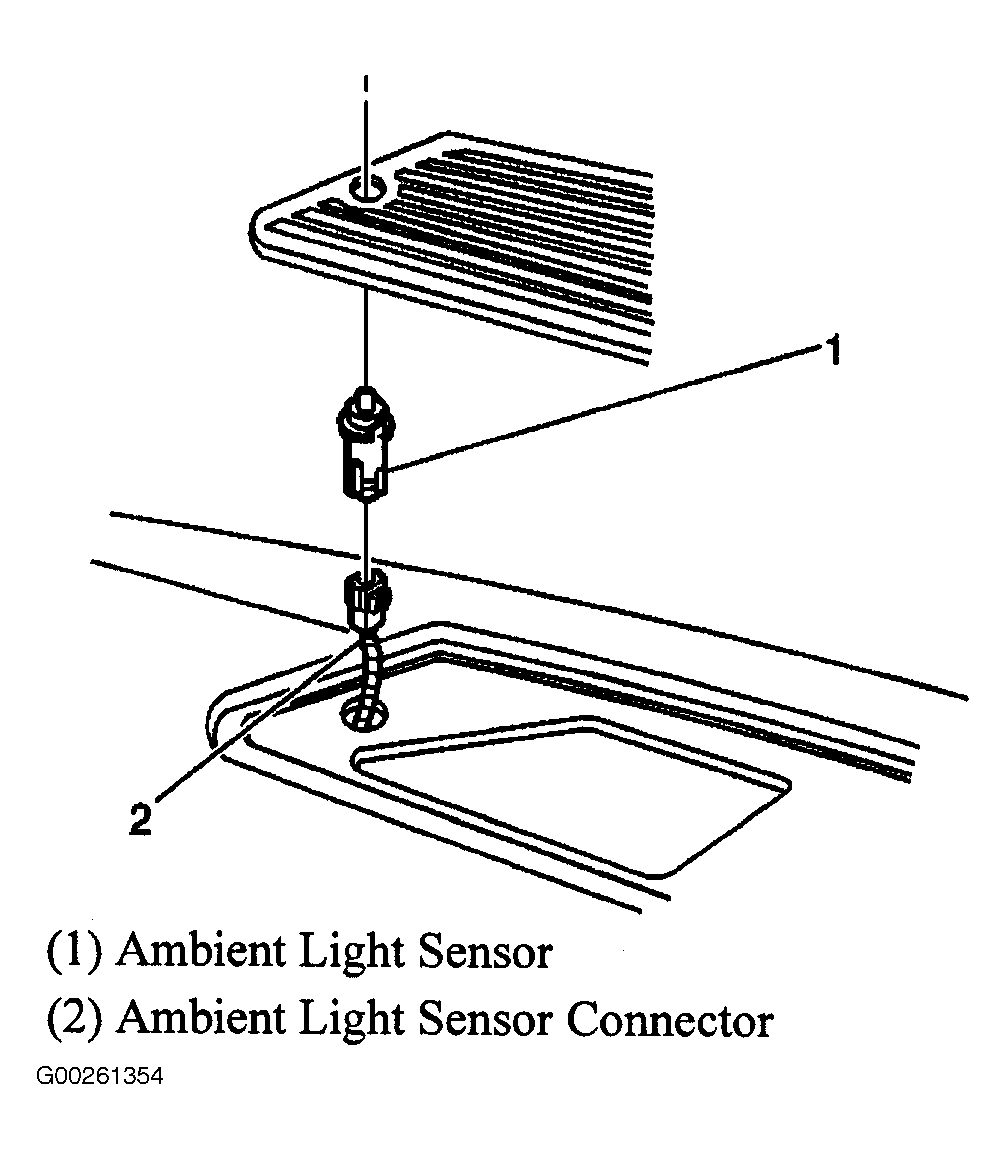

Fig 58: Top Center Of Dash
Courtesy of GENERAL MOTORS CORP.

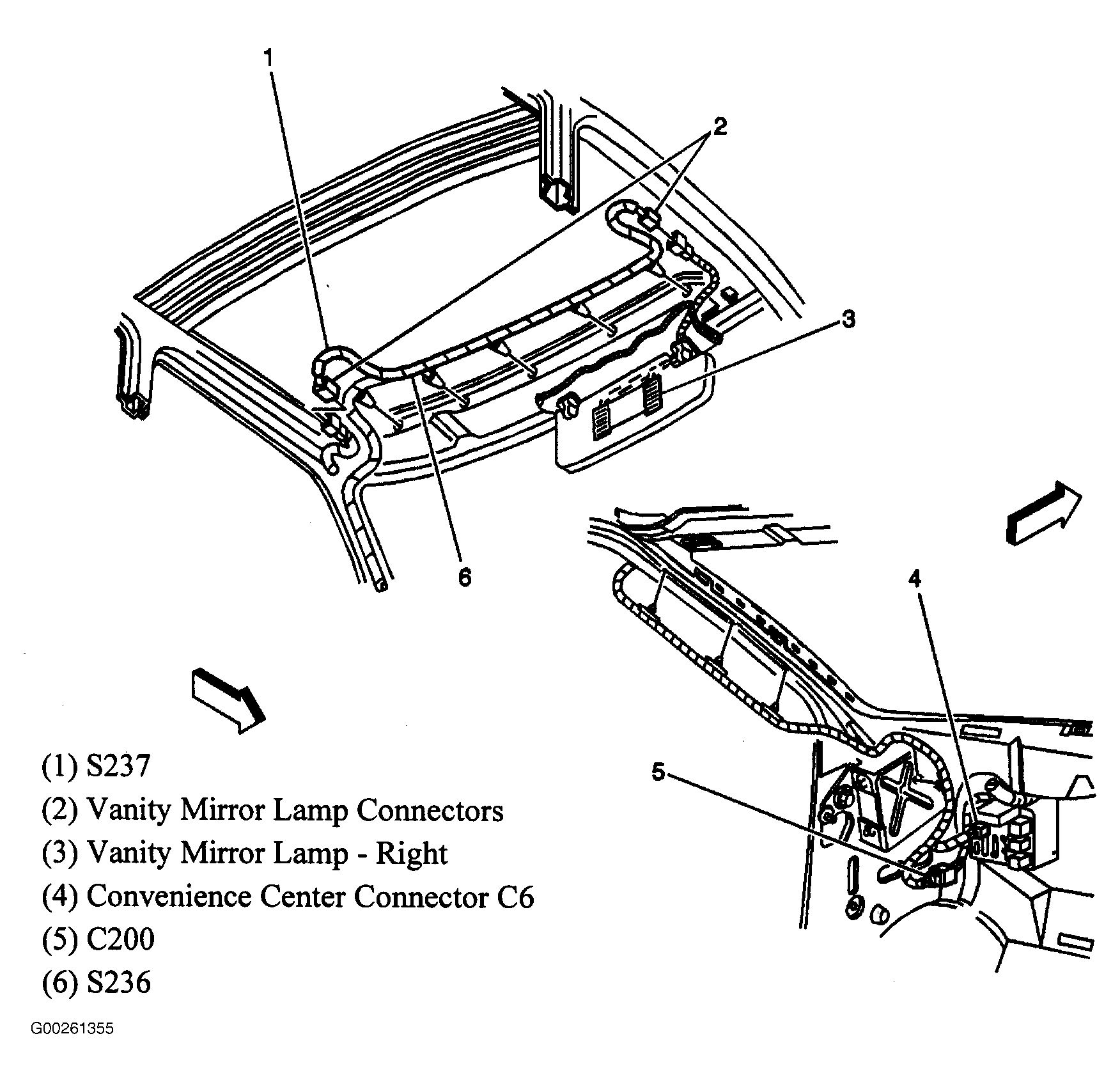

Fig 59: Right Vanity Mirror
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

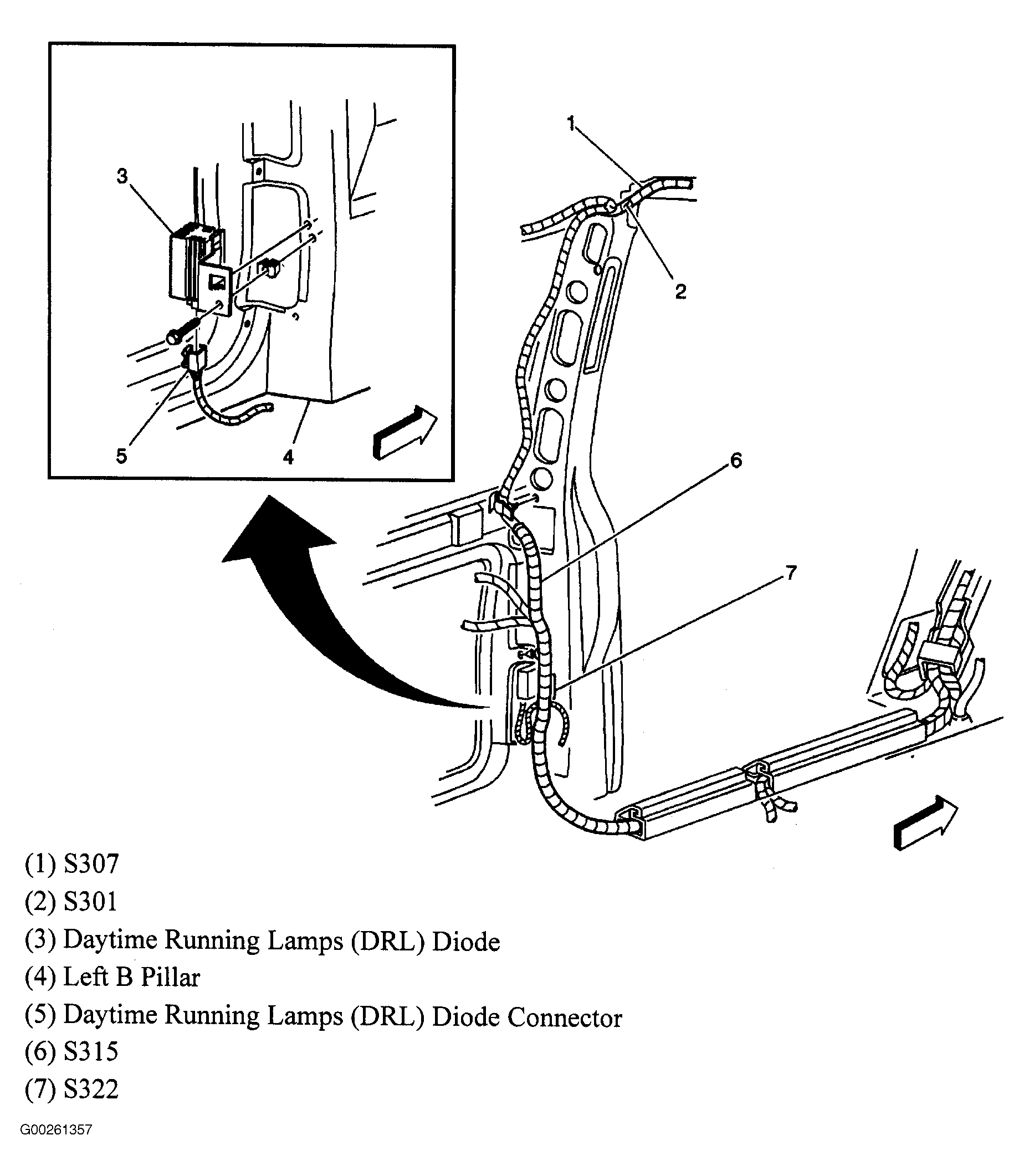

Fig 61: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

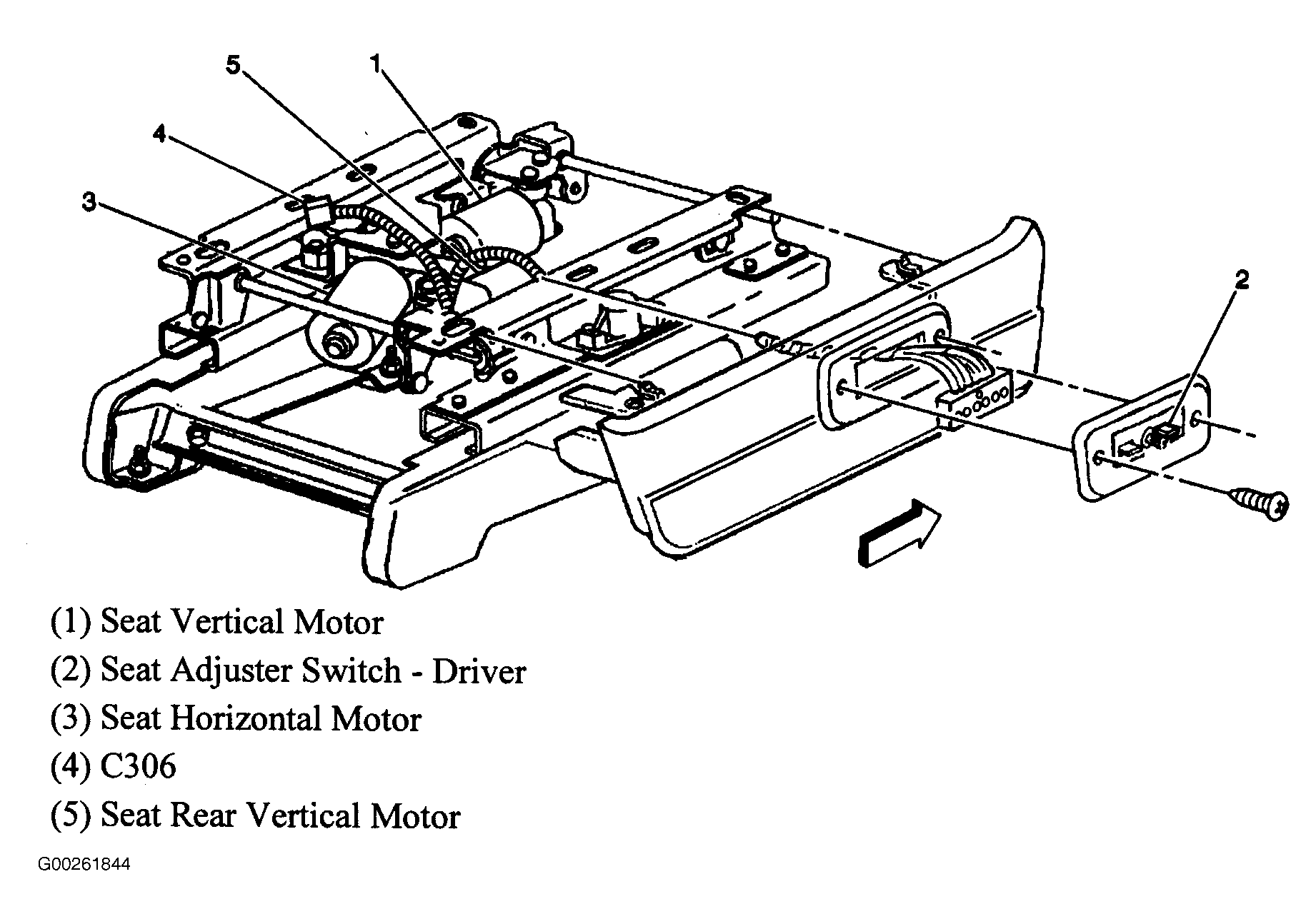

Fig 64: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 65: Convenience Center
Courtesy of GENERAL MOTORS CORP.

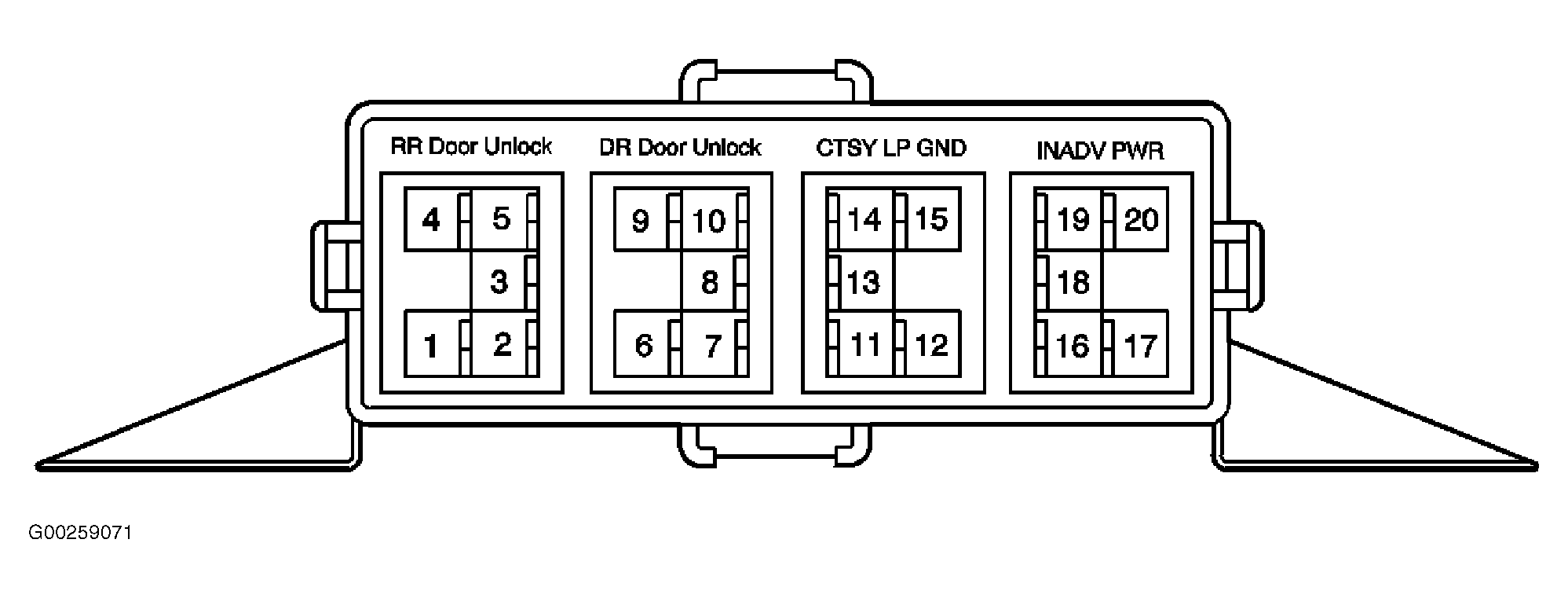

Fig 66: Relay Block No. 1
Courtesy of GENERAL MOTORS CORP.
Fig 67: Relay Block No. 2
Courtesy of GENERAL MOTORS CORP.

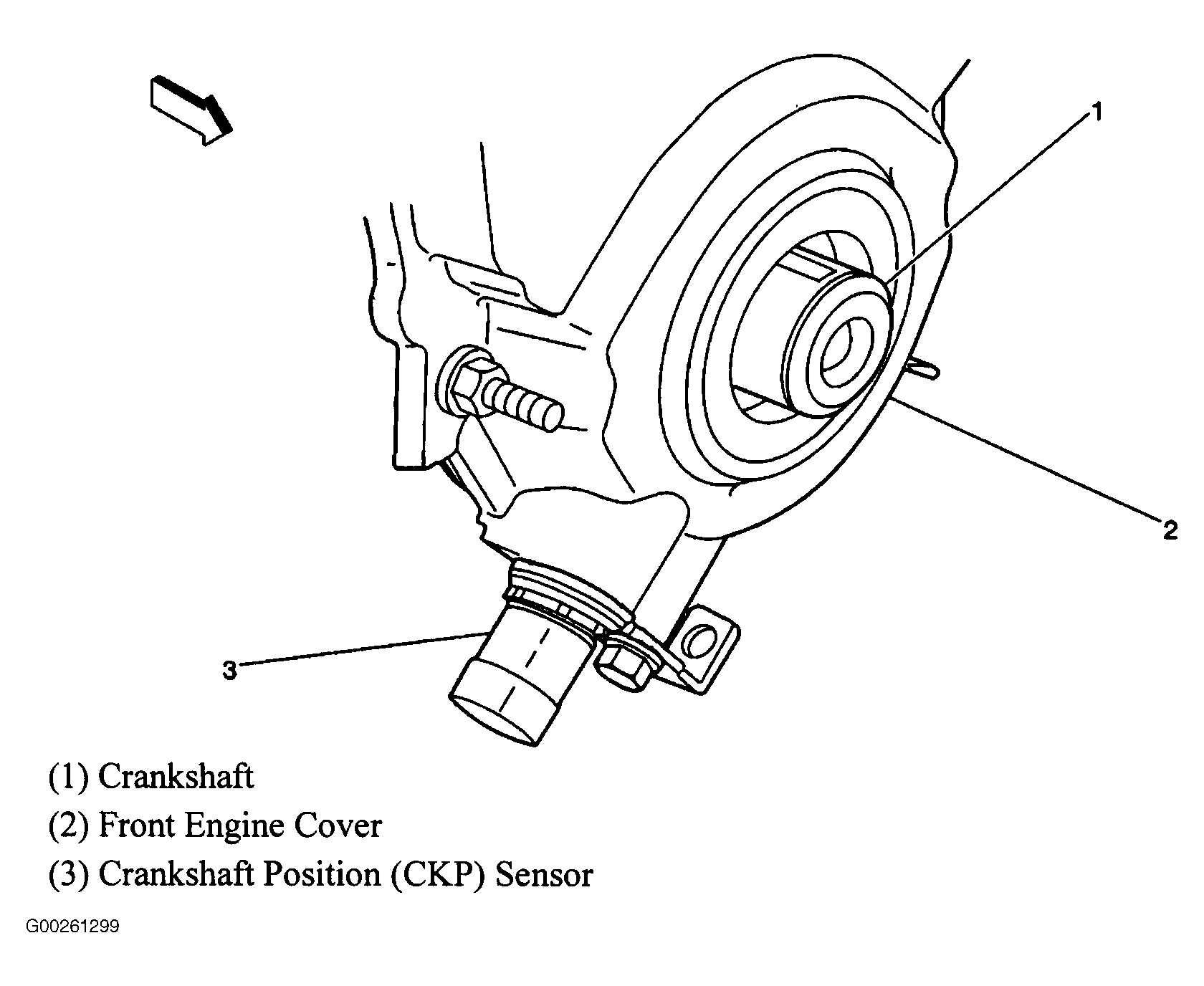

Fig 68: Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 69: Underhood Wiring
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Rear Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Near Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

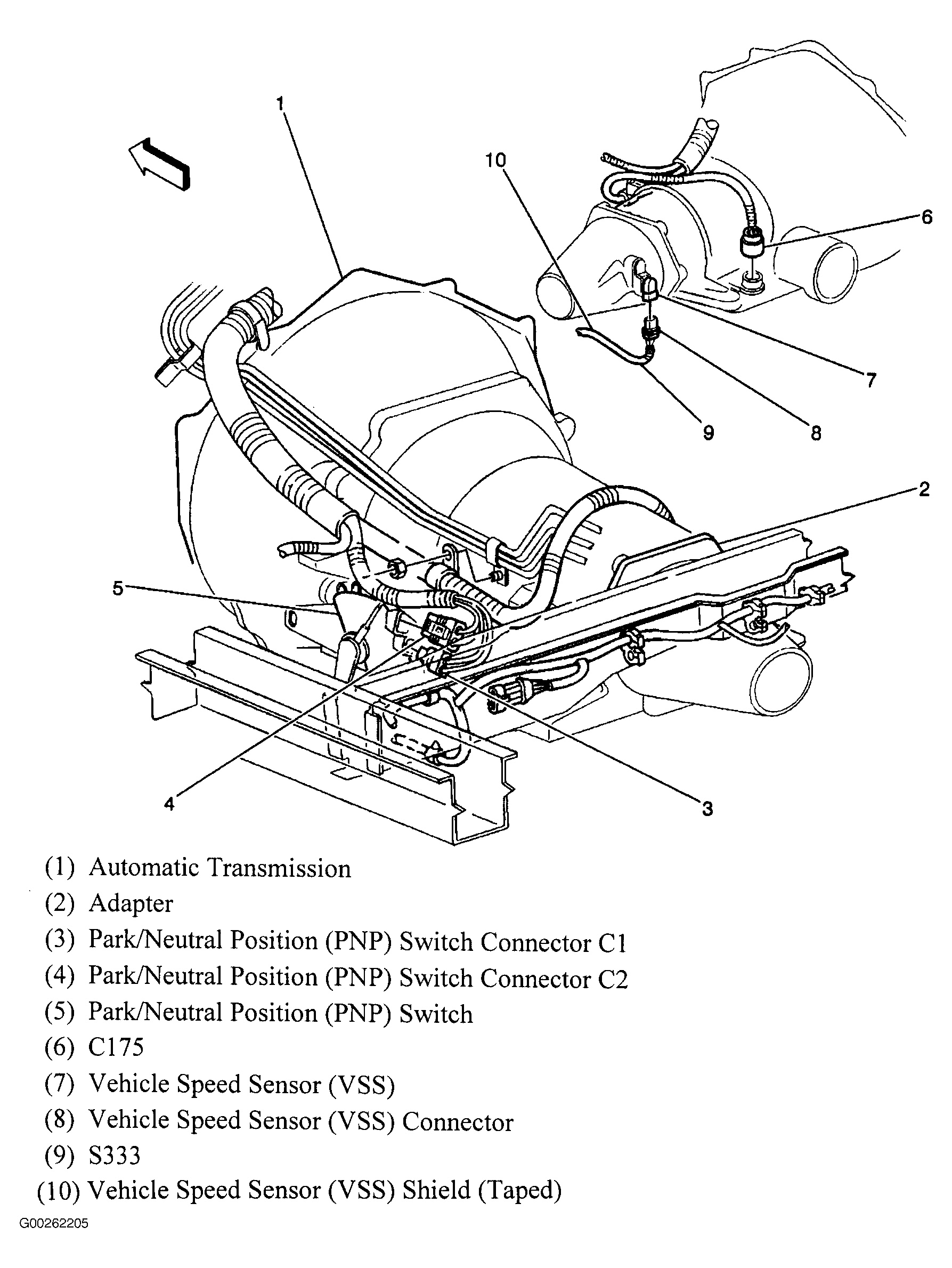

Fig 72: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right "D" Pillar
Courtesy of GENERAL MOTORS CORP.
