Installation Procedure

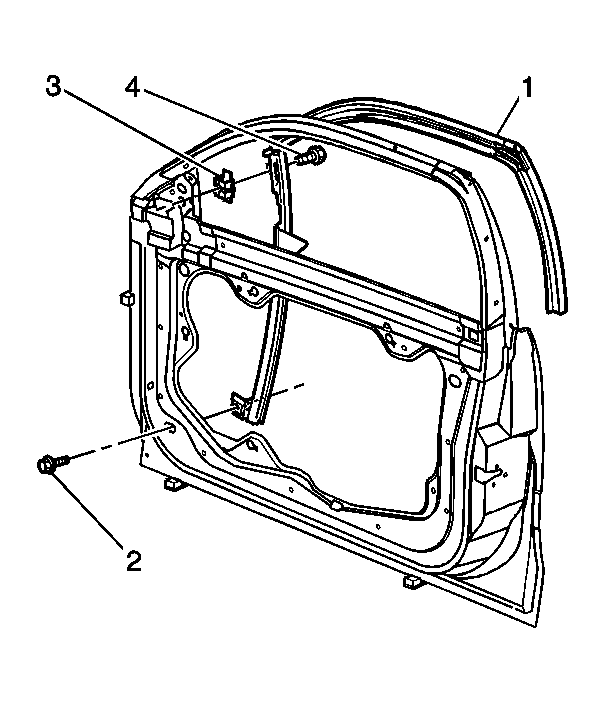

    Fig 1: Identifying Window Channel Bolts
    GM276354Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the window run channel bolts (2, 4) to the window run channel (1).

    Tighten:  Tighten the window run channel bolts to 10 N.m (89 lb in).

  2. Install the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  3. Install the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  4. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  5. Install the outside rearview mirror. Refer to Mirror Replacement  or Mirror Replacement - Remote .
  6. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
