Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Horn System
>>
Component Locator
>>
Horns Component Views
Horns Component Views

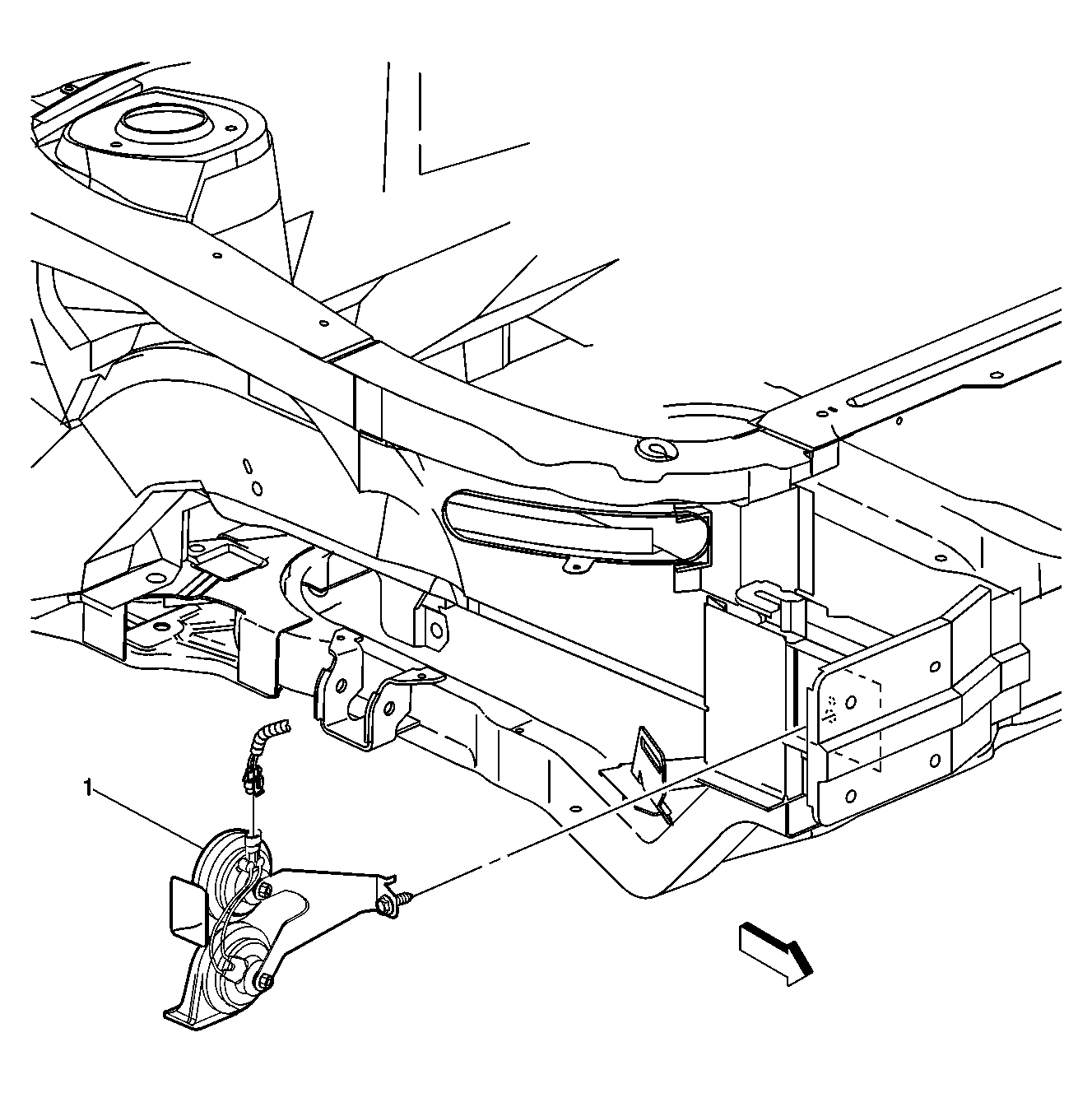

Fig 1: Inside Right Fender Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Horn Assembly

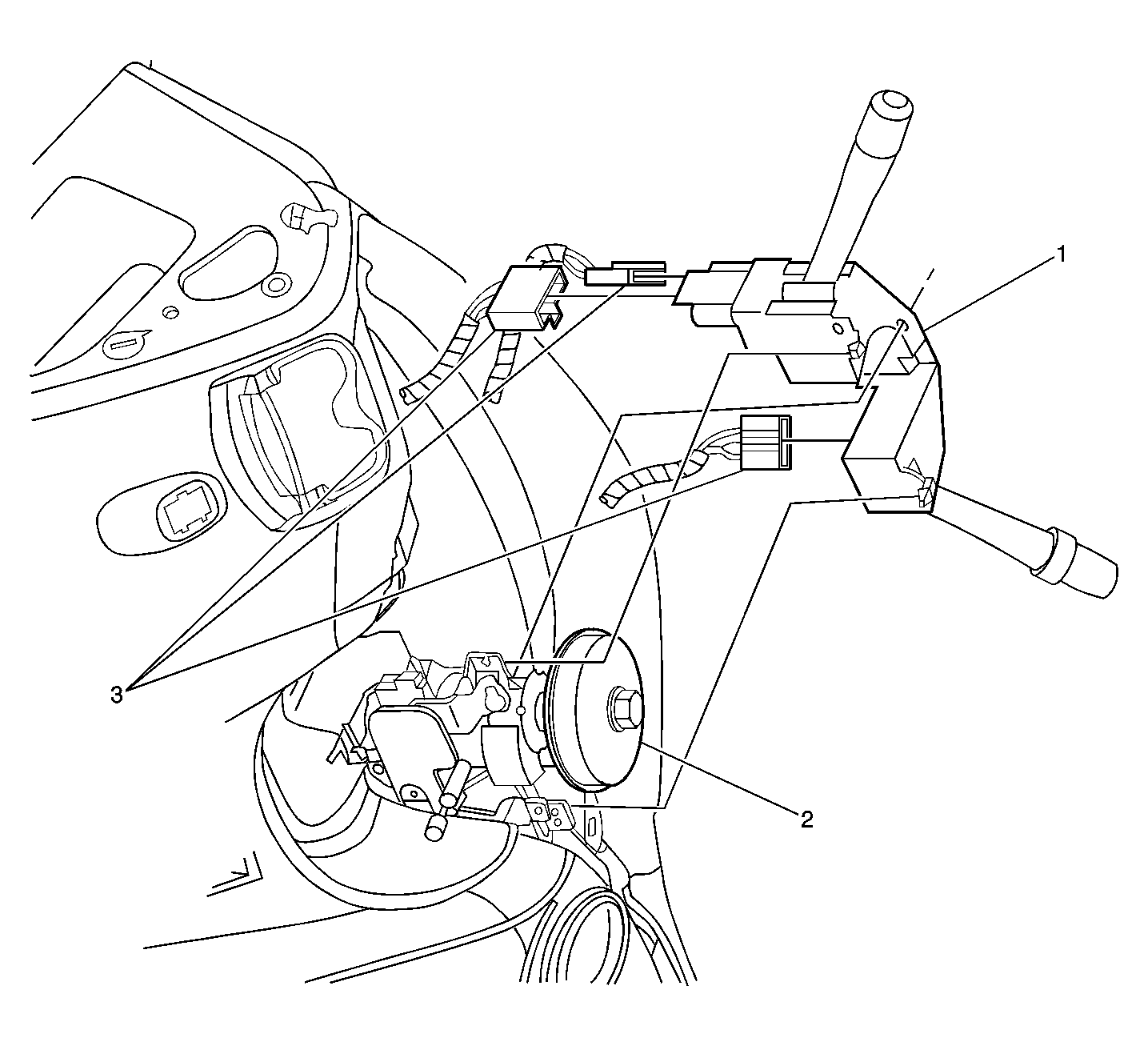

Fig 2: Left Side of the Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Turn Signal/Multifunction Switch
2
Steering Column Assembly
3
Turn Signal/Multifunction Switch Connectors
