Installation Procedure

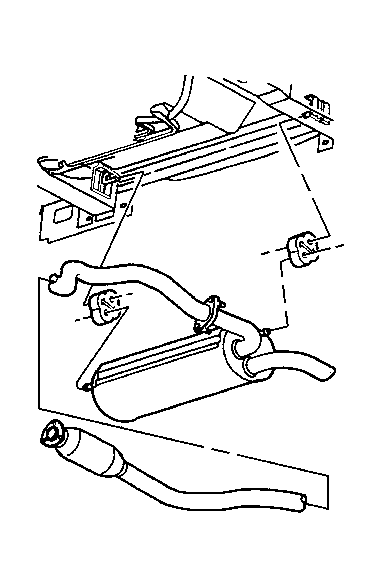

    Fig 1: View of Exhaust Muffler
    GM182075Courtesy of GENERAL MOTORS CORP.
  1. Install the exhaust muffler.
  2. Connect the exhaust muffler rear hanger insulators to the exhaust muffler.

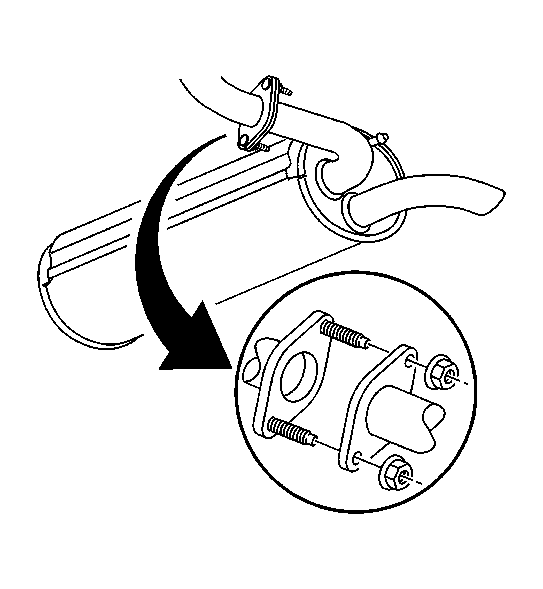

    3. Fig 2: Exploded View of Intermediate Pipe to Muffler Nuts
    GM182083Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the exhaust muffler to the intermediate pipe.

    Tighten:  Tighten the exhaust muffler nuts to 50 N.m (37 lb ft).

  4. Lower the vehicle.
  5. Inspect the exhaust system for leaks and underbody contact.
