Entertainment Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

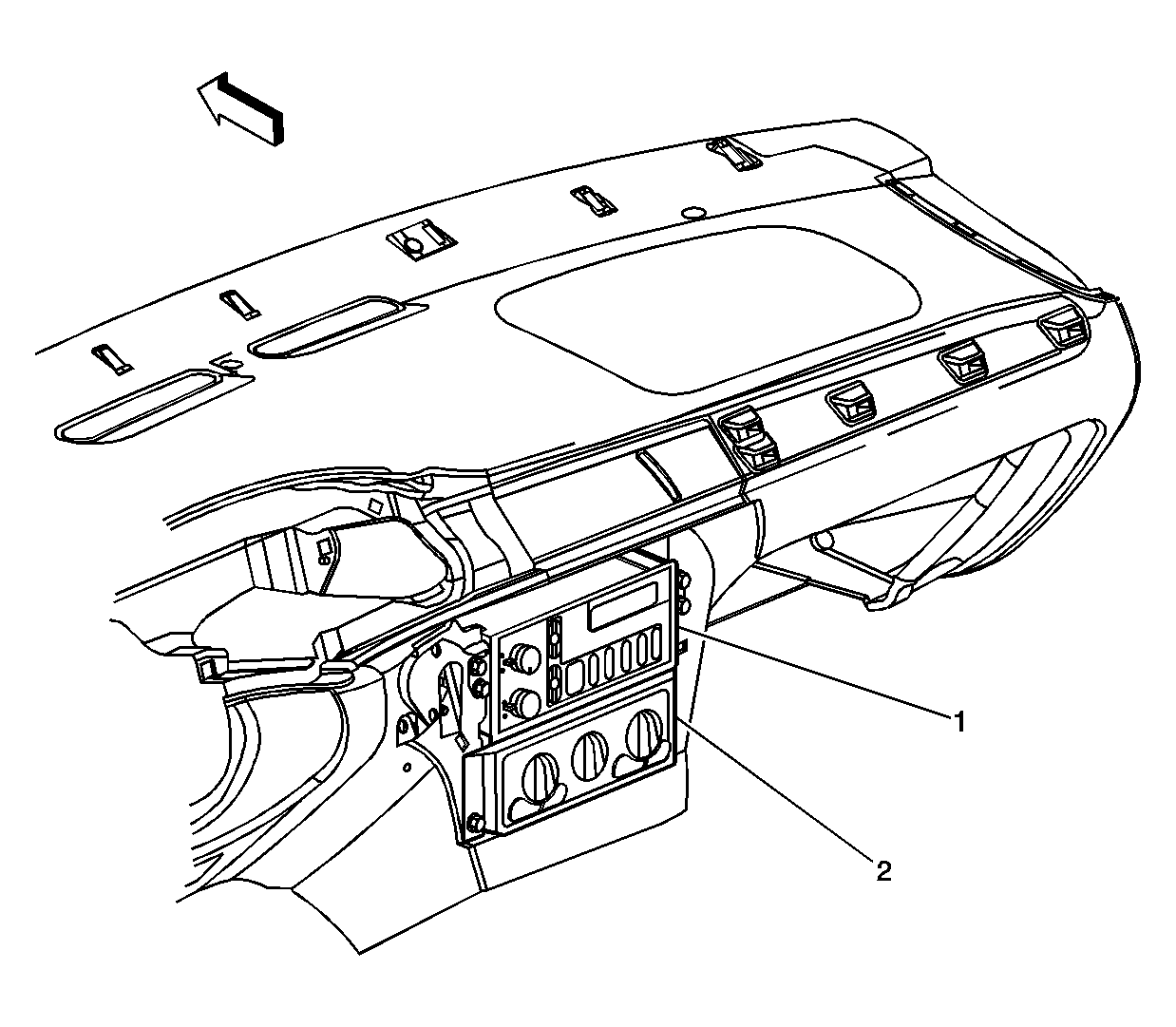

Fig 1: Center of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	HVAC Control Assembly

Fig 2: Right Front of the Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C209

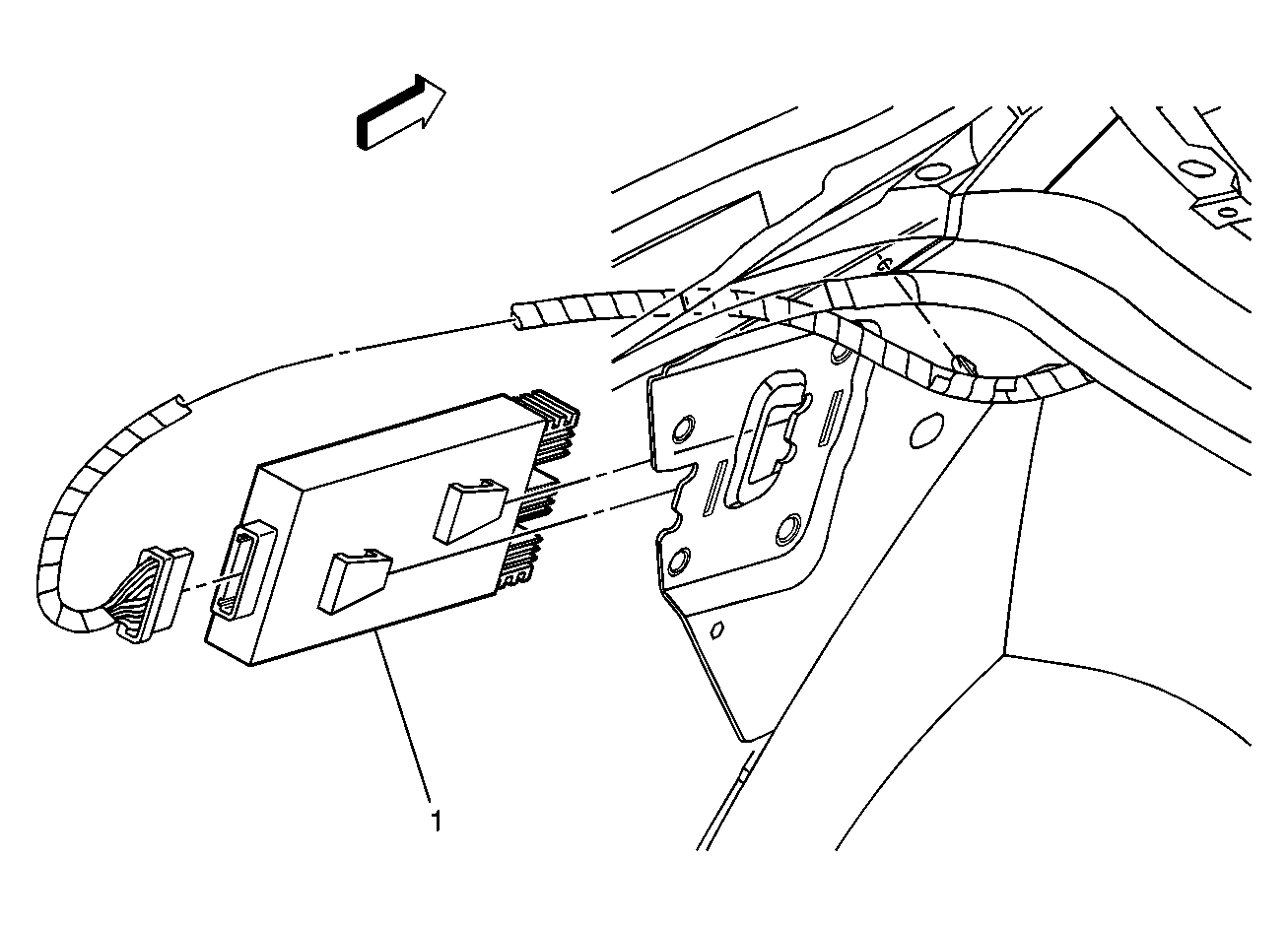

Fig 3: RF of the Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

Fig 4: Front Center of the Roof Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)

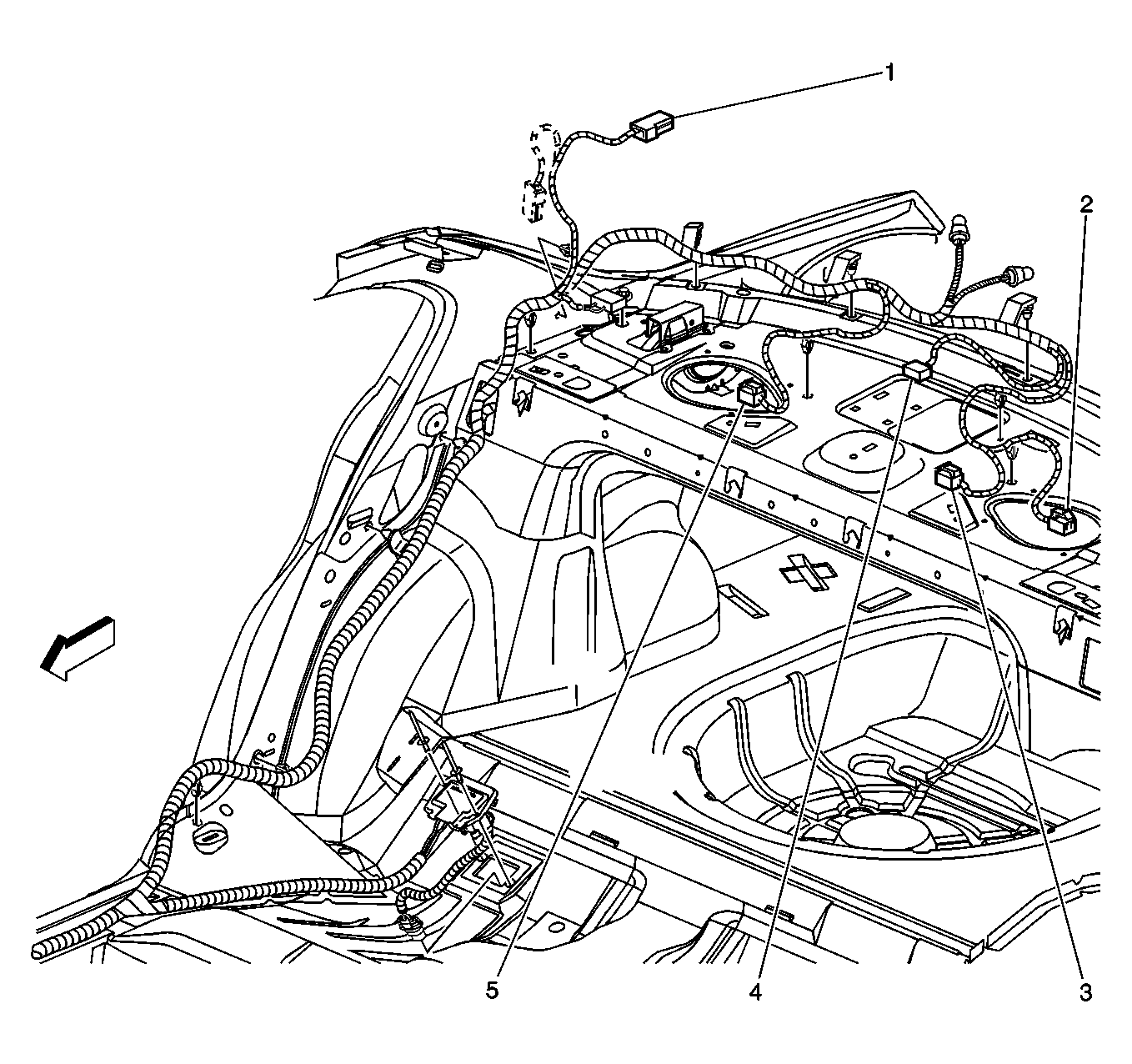

Fig 5: Right Side of the Passenger Compartment, Rear Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector
2	Speaker - LR Connector
3	Rear Compartment Courtesy Lamp Connector
4	Remote Control Door Lock Receiver (RCDLR) Connector
5	Speaker - RR Connector

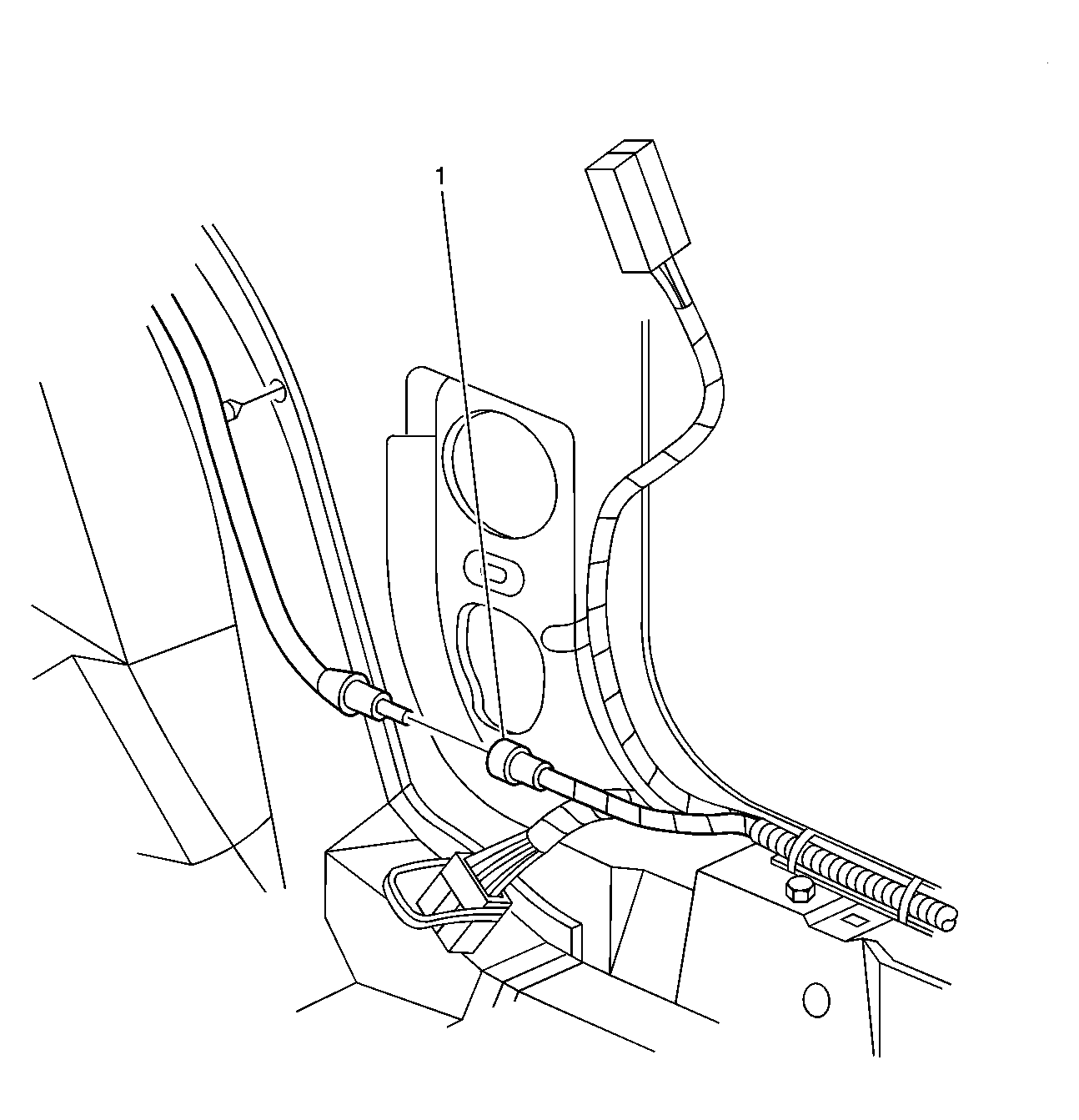

Fig 6: Antenna Choke Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna Choke

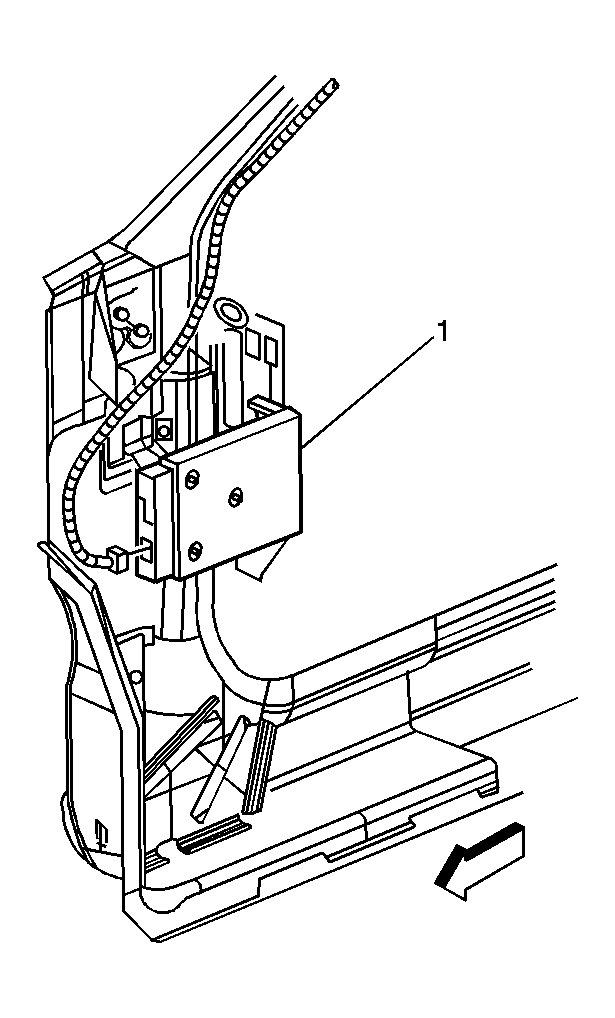

Fig 7: Left C Pillar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna Amplifier Module

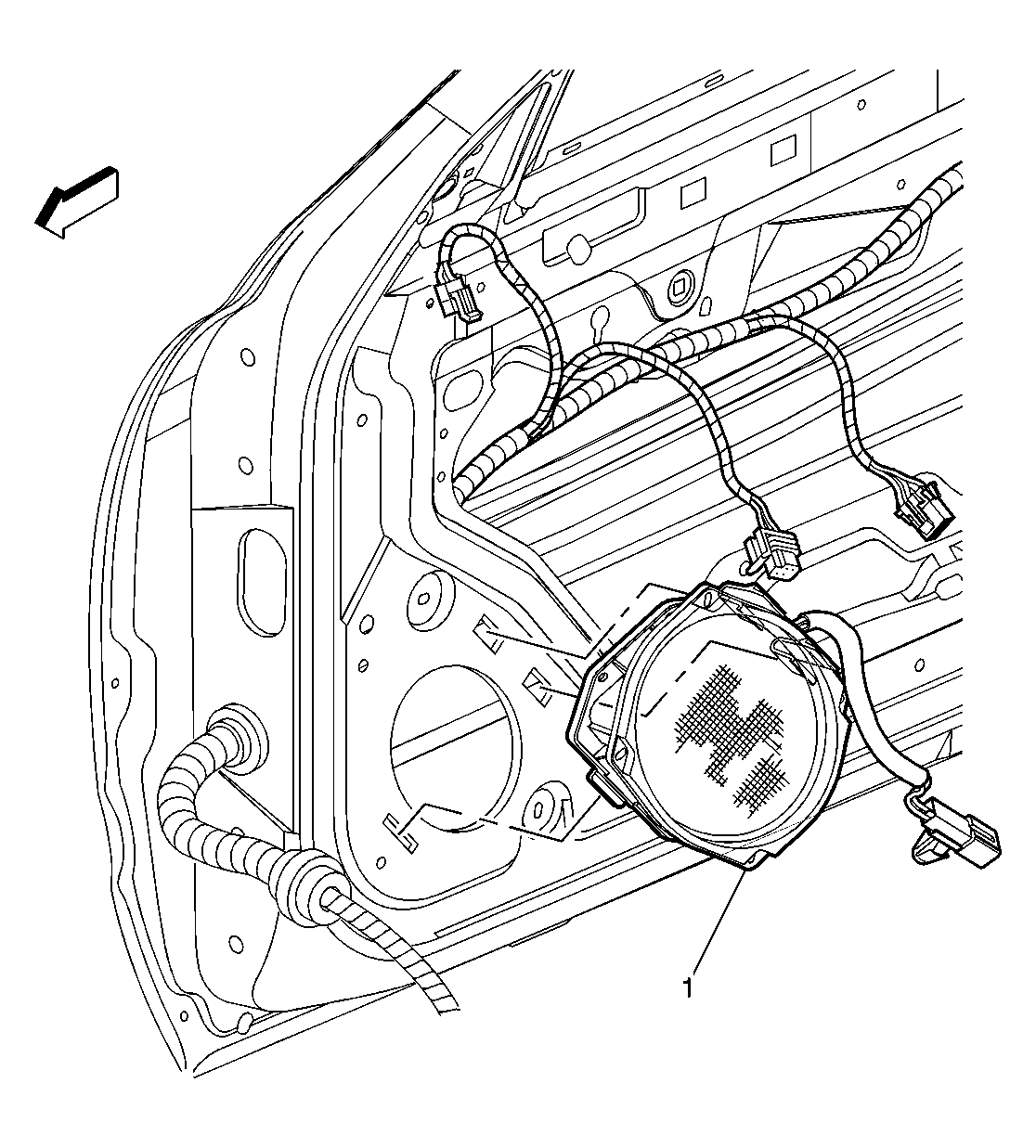

Fig 8: Speaker - RF, LF Similar Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF, LF Similar

Fig 9: Inside the Rear Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (U85)

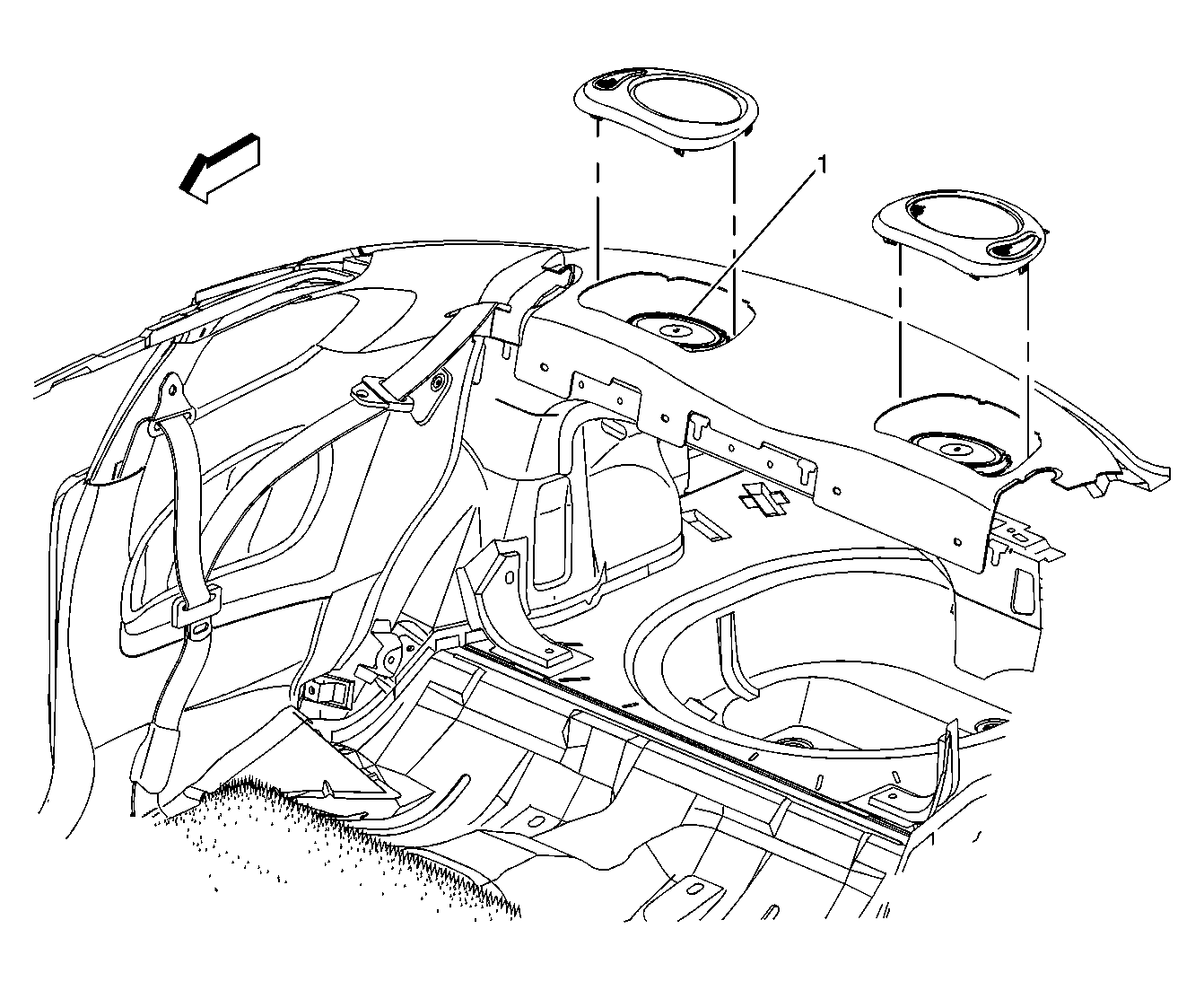

Fig 10: Rear Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR, LR Similar

Fig 11: Speaker - RF Tweeter Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Tweeter
