Electronic Brake Control Module Replacement: Installation

  1. Install the EBCM.

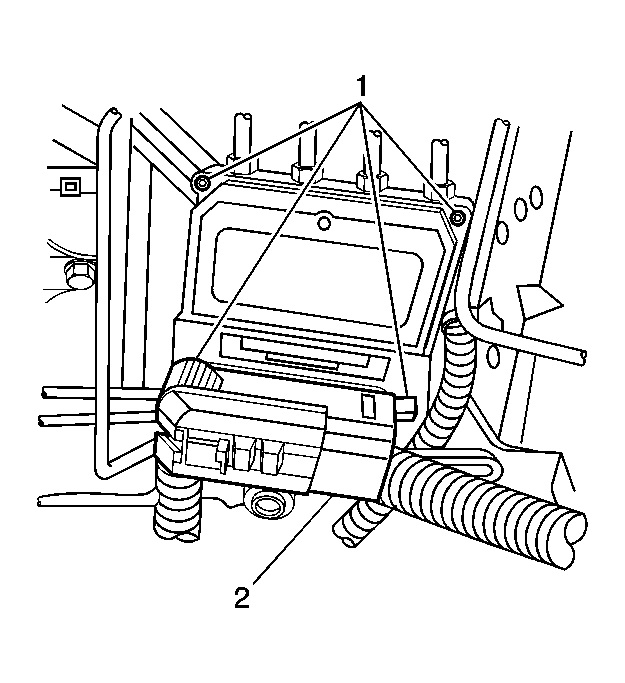

    2. Fig 1: Identifying EBCM, Electrical Connector And Bolts
    GM1537852Courtesy of GENERAL MOTORS CORP.
  2. Install the EBCM attaching bolts (1).

    Tighten:  Tighten the EBCM attaching bolts to 4-6N.m (35-53 lb. in.)

  3. Connect the electronic brake control module (EBCM) electrical connector (2).

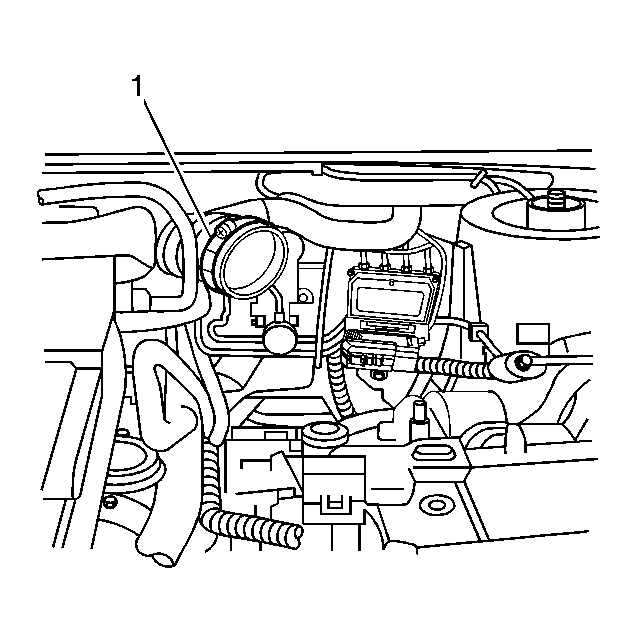

    4. Fig 2: Identifying Air Cleaner Tube
    GM1537851Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner and snorkel assembly.
  5. Connect the air cleaner tube (1).

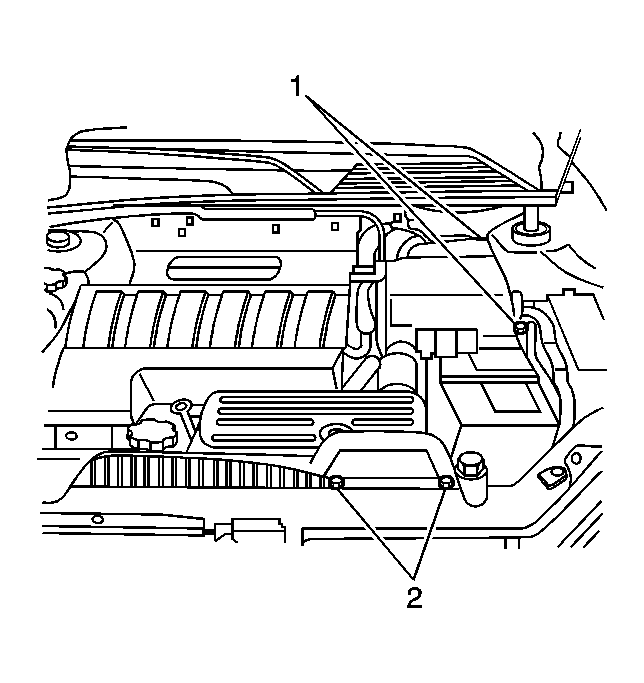

    6. Fig 3: View Of Air Cleaner Housing And Snorkel Bolts
    GM1537850Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner snorkel mounting bolts (2).

    Tighten:  Tighten the air cleaner snorkel mounting bolts to 10N.m (89 lb. in.)

  7. Install the air cleaner housing mounting bolts (1).

    Tighten:  Tighten the air cleaner housing mounting bolts to 10N.m (89 lb. in.)

  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
    9. IMPORTANT: The ABS/TCS indicators should illuminate for four seconds immediately after the ignition has been turn On to show that the ABS self-test is being carried out. If the light does not go Off after this time, it means there may be a problem and the ABS/TCS may not operate.
  9. Turn the ignition ON and verify operation of ABS lamp.
  10. Using a scan tool, check for DTCs. Erase all history DTCs.
