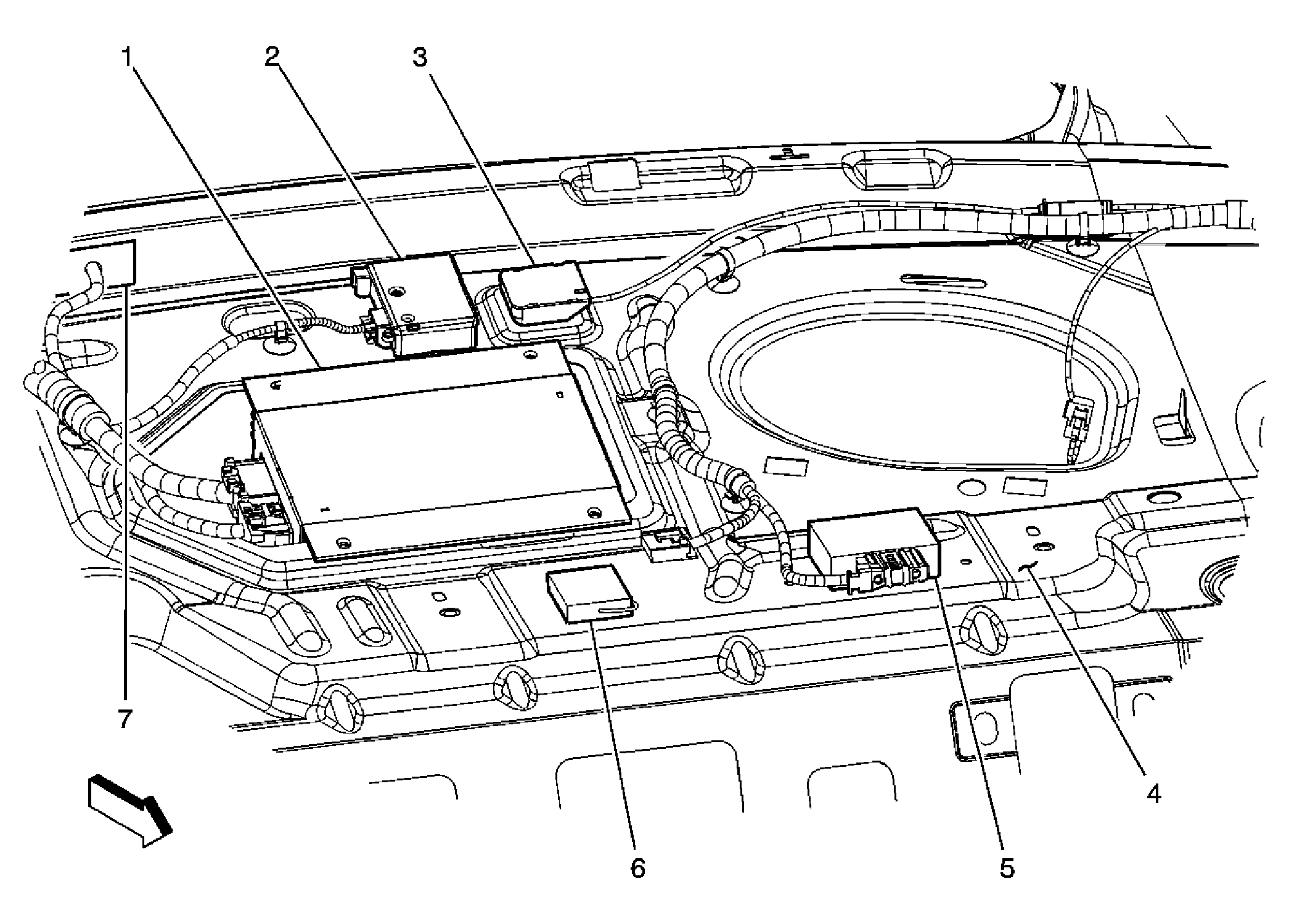

Keyless Entry Component Views
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Audio Amplifier |
| 2 |
Remote Control Door Lock Receiver (RCDLR) |
| 3 |
Navigation Antenna |
| 4 |
Rear Window Shelf |
| 5 |
Rear Parking Assist (RPA) Module |
| 6 |
Electronic Compass Module |
| 7 |
Rear Compartment Courtesy Lamp |
