Navigation System Component Views
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module |
| 2 |
Instrument Panel Cluster (IPC) |
| 3 |
Sunload Twilight Sensor |
| 4 |
Speaker - Front Center (UQA) |
| 5 |
Hazard Switch |
| 6 |
Inflatable Restraint I/P Module |
| 7 |
Radio |
| 8 |
HVAC Control Module |
| 9 |
Auxiliary Power Outlet - Console (A51)/Cigar Lighter (DT4 w/A51) |
| 10 |
Traction Control Switch |
| 11 |
Steering Wheel Controls |
| 12 |
Data Link Connector (DLC) |
| 13 |
Air Temperature Sensor - Inside (CJ2) |
| 14 |
Headlamp Switch |
| 15 |
Turn Signal/Multifunction Switch |
| 16 |
Driver Information Display Switch |
Courtesy of GENERAL MOTORS CORP.

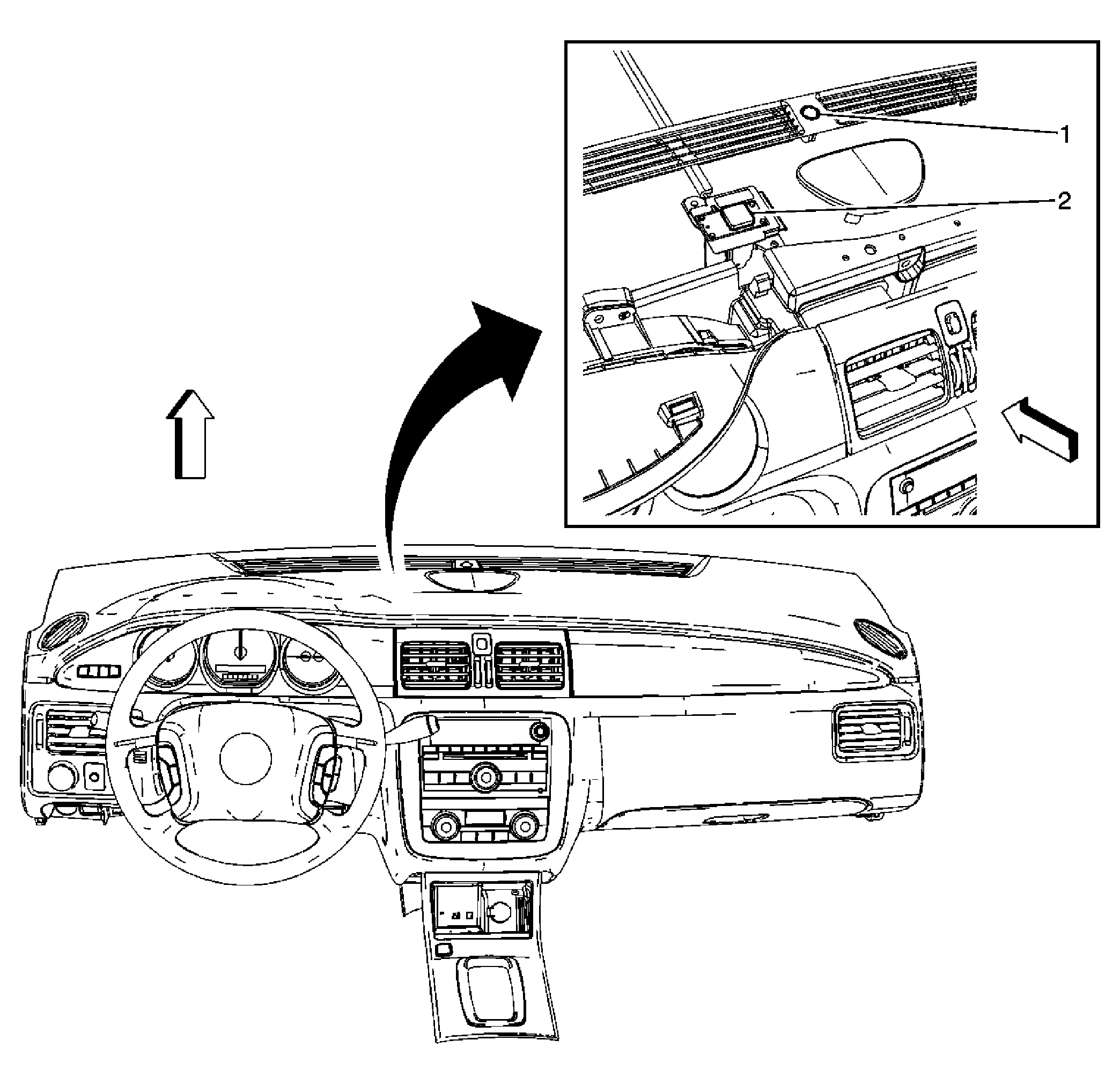

| Callout |
Component Name |
| 1 |
Sunload Twilight Sensor |
| 2 |
Global Positioning System (GPS) Antenna (U3U) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch - Open/Close (CF5) |
| 2 |
Cellular Microphone (UE1, U3U) |
| 3 |
Garage Door Opener Buttons (UG1) |
| 4 |
Cellular Microphone (UE1, U3U) |
| 5 |
Sunroof Switch - Vent (CF5) |
| 6 |
Courtesy Lamp - Overhead Console - Right |
| 7 |
Inside Rearview Mirror |
| 8 |
Courtesy Lamp Switch - Right |
| 9 |
Cellular Microphone (UE1, U3U) |
| 10 |
Garage Door Opener Transmitter (UG1) |
| 11 |
Cellular Microphone (UE1, U3U) |
| 12 |
Courtesy Lamp Switch - Left |
| 13 |
Onstar Button Assembly |
| 14 |
Inflatable Restraint I/P Module Indicator |
| 15 |
Courtesy Lamp Overhead Console - Left |
