Remote Function Component Views
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

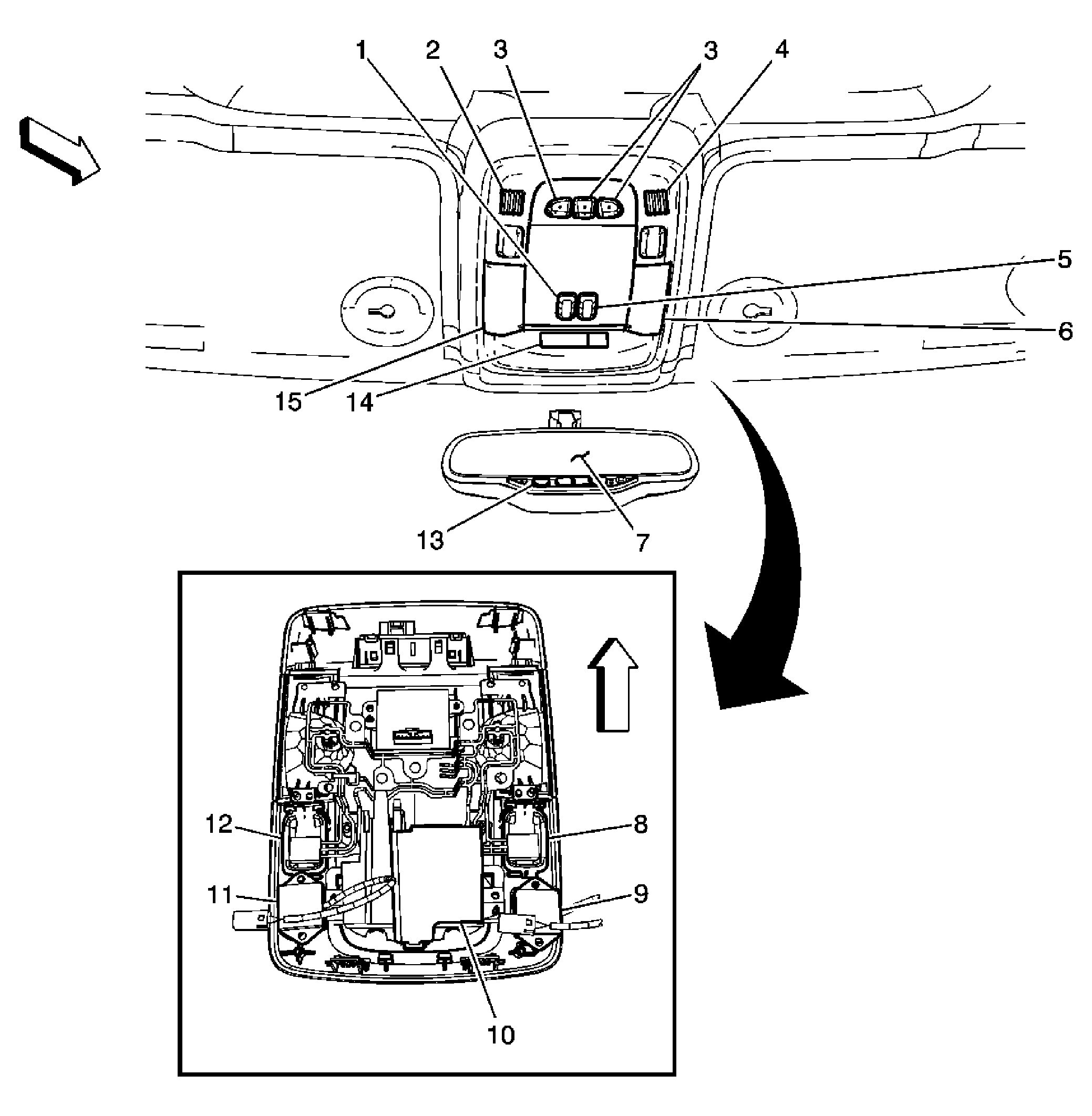

| Callout |
Component Name |
| 1 |
Sunroof Switch-Open/Close (CF5) |
| 2 |
Cellular Microphone (UE1, U3U) |
| 3 |
Garage Door Opener Buttons (UG1) |
| 4 |
Cellular Microphone (UE1, U3U) |
| 5 |
Sunroof Switch-Vent (CF5) |
| 6 |
Courtesy Lamp-Overhead Console-Right |
| 7 |
Inside Rearview Mirror |
| 8 |
Courtesy Lamp Switch-Right |
| 9 |
Cellular Microphone (UE1, U3U) |
| 10 |
Garage Door Opener Transmitter (UG1) |
| 11 |
Cellular Microphone (UE1, U3U) |
| 12 |
Courtesy Lamp Switch-Left |
| 13 |
Onstar Button Assembly |
| 14 |
Inflatable Restraint I/P Module Indicator |
| 15 |
Courtesy Lamp Overhead Console-Left |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Remote Control Door Lock Receiver (RCDLR) |
| 2 |
Rear Park Assist Indicator (UD7) |
| 3 |
Speaker - RR |
| 4 |
Vehicle Communication Interface Module (VCIM) (UE1) |
| 5 |
Amplifier (UQA) |
| 6 |
Rear Compartment Courtesy Lamp |
| 7 |
Speaker - LR |
Courtesy of GENERAL MOTORS CORP.

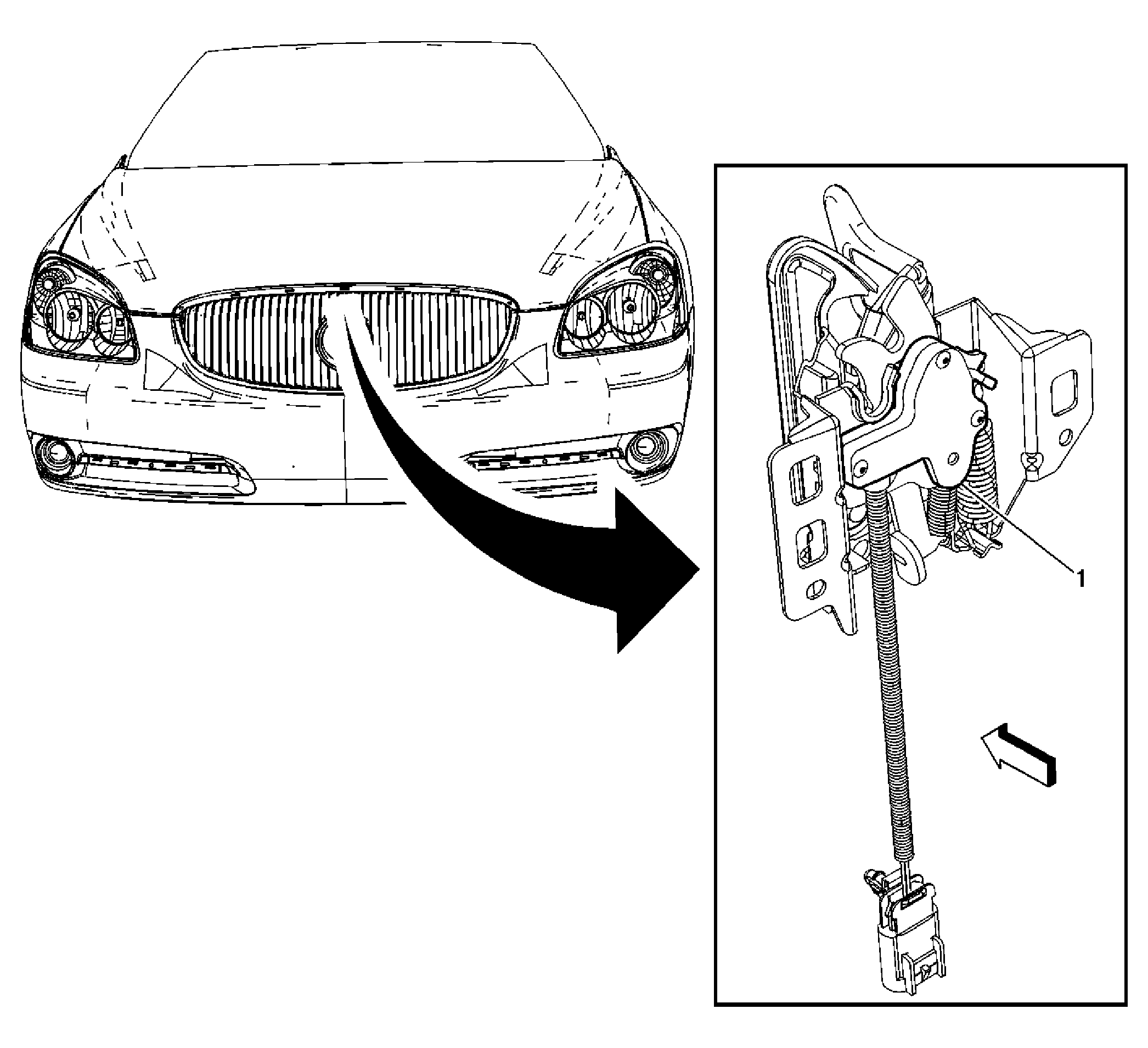

| Callout |
Component Name |
| 1 |
Hood Ajar Switch (AP3/AP8) |
