Removal Procedure

  1. Turn the ignition OFF.
  2. Disconnect the electronic ignition (EI) module harness connector.

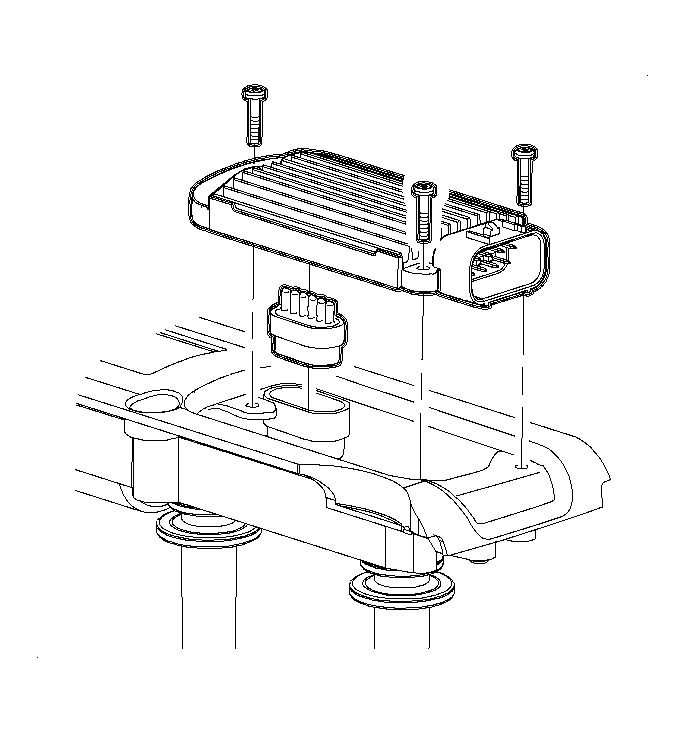

    3. Fig 1: Removing EI Module Attachment Screws And EI Module
    GM896789Courtesy of GENERAL MOTORS CORP.
  3. Remove the EI module attachment screws and the EI module.
