Removal Procedure

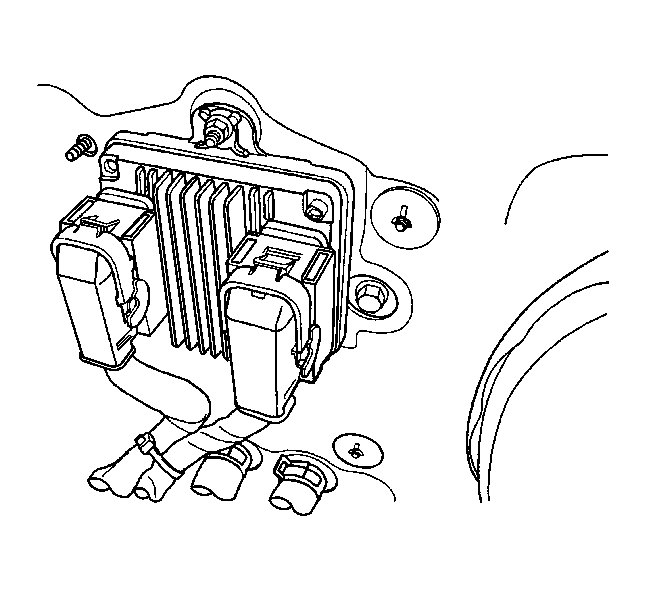

    Fig 1: Identifying ECM
    GM1289499Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the air intake tube and resonator.
  3. Disconnect the engine control module (ECM) connectors from the ECM.
  4. Remove the ECM.
