Home >> Chevrolet >> 2004 >> Optra Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 1.8L (L79) - Repair Instructions >> Repair Instructions >> Intake Air Temperature Sensor Replacement >> Installation Procedure

Installation Procedure

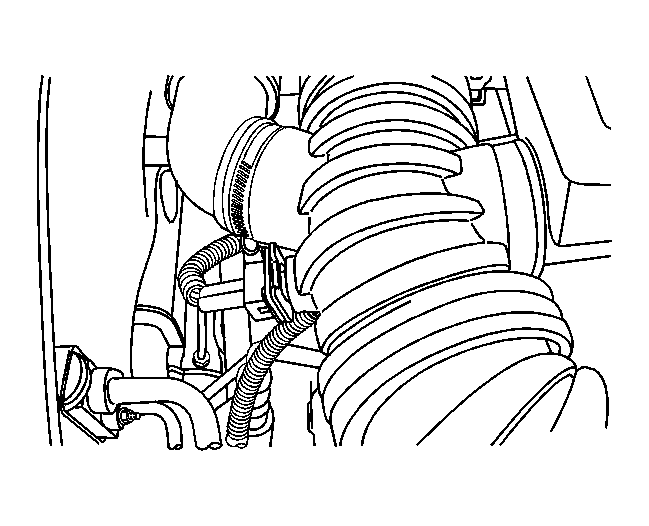

    Fig 1: View Of IAT Sensor And Connector
    GM1289424Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor into the air intake tube.
  2. Connect the IAT connector.
  3. Connect the negative battery cable.
