Entertainment Component Views

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

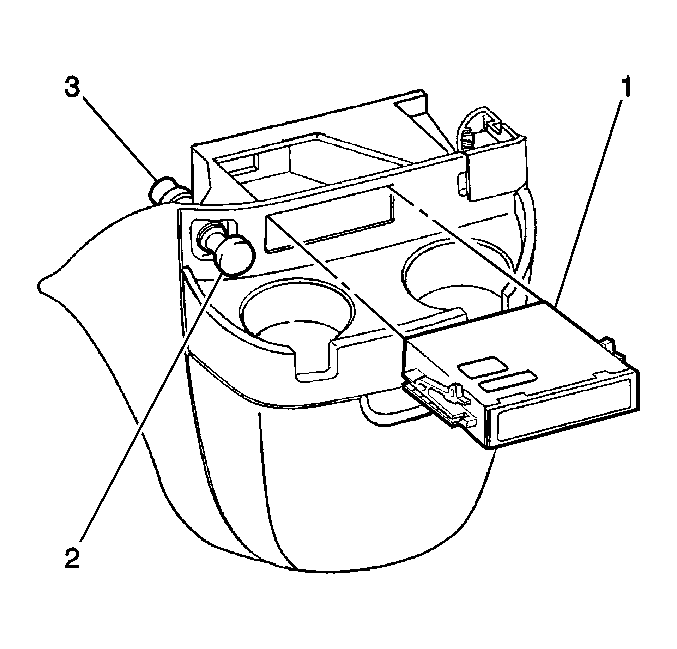

Fig 1: Center Console Component View
GM298017Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Playback Device
2 Cigar Lighter
3 Cigar Lighter Connector

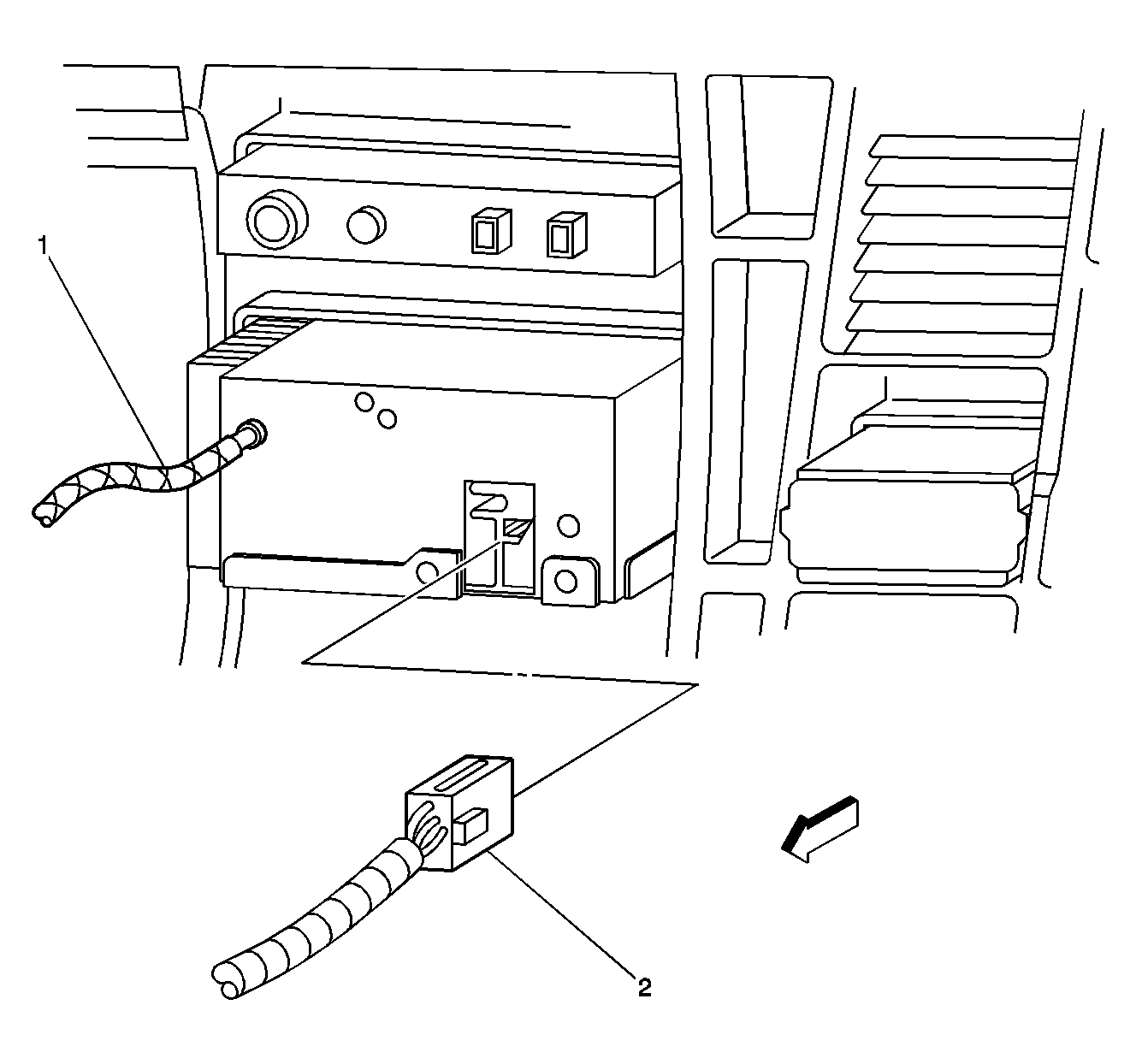

Fig 2: Base Radio Rear Component View Component View
GM781494Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna
2 Radio Connectors C1, C2

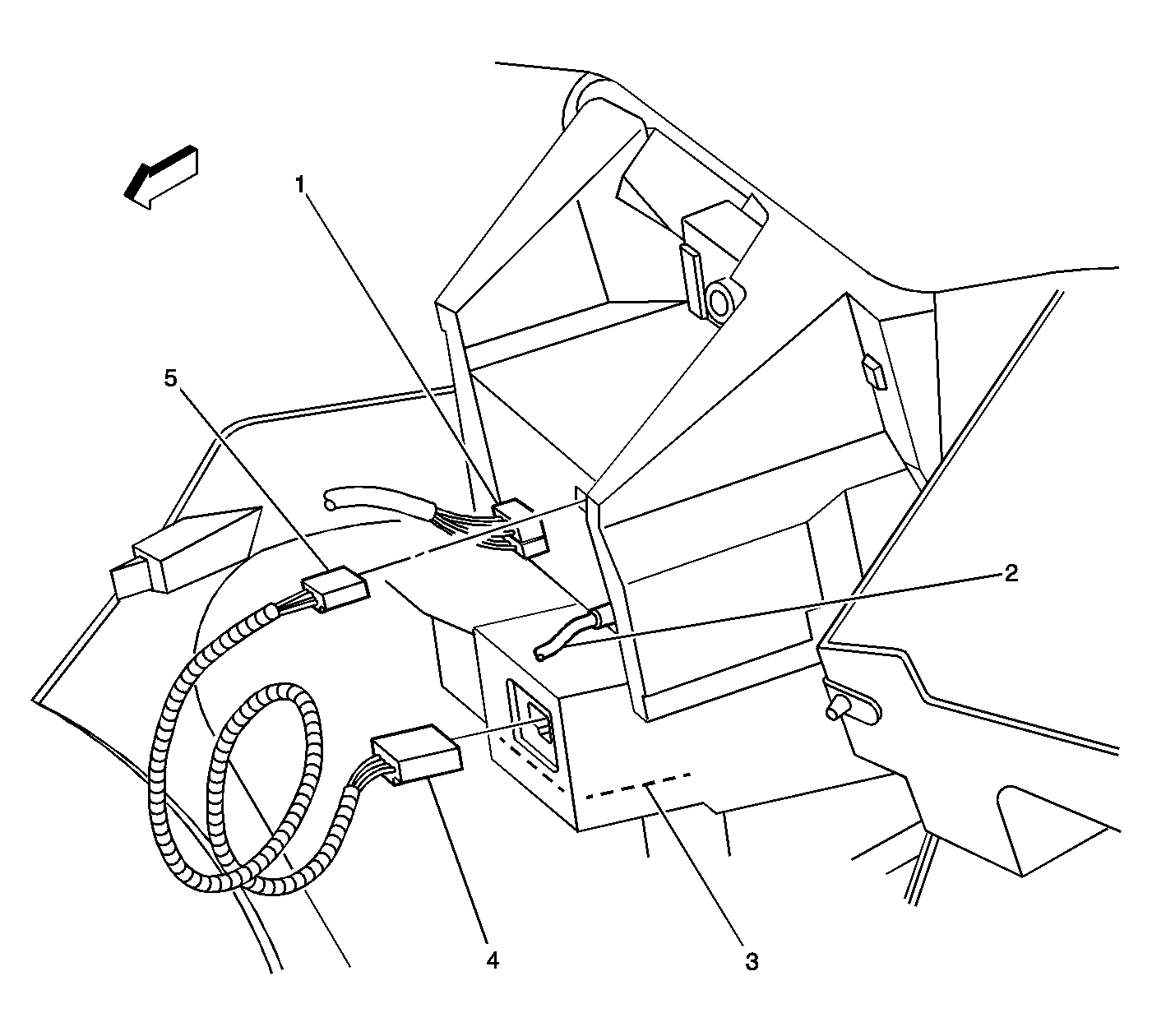

Fig 3: Radio Jumper Harness Location View (Premium Radio) Component View
GM781491Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Connectors C1, C2
2 Radio Antenna
3 Remote Playback Device
4 Remote Playback Device Connector
5 Radio Connector C3

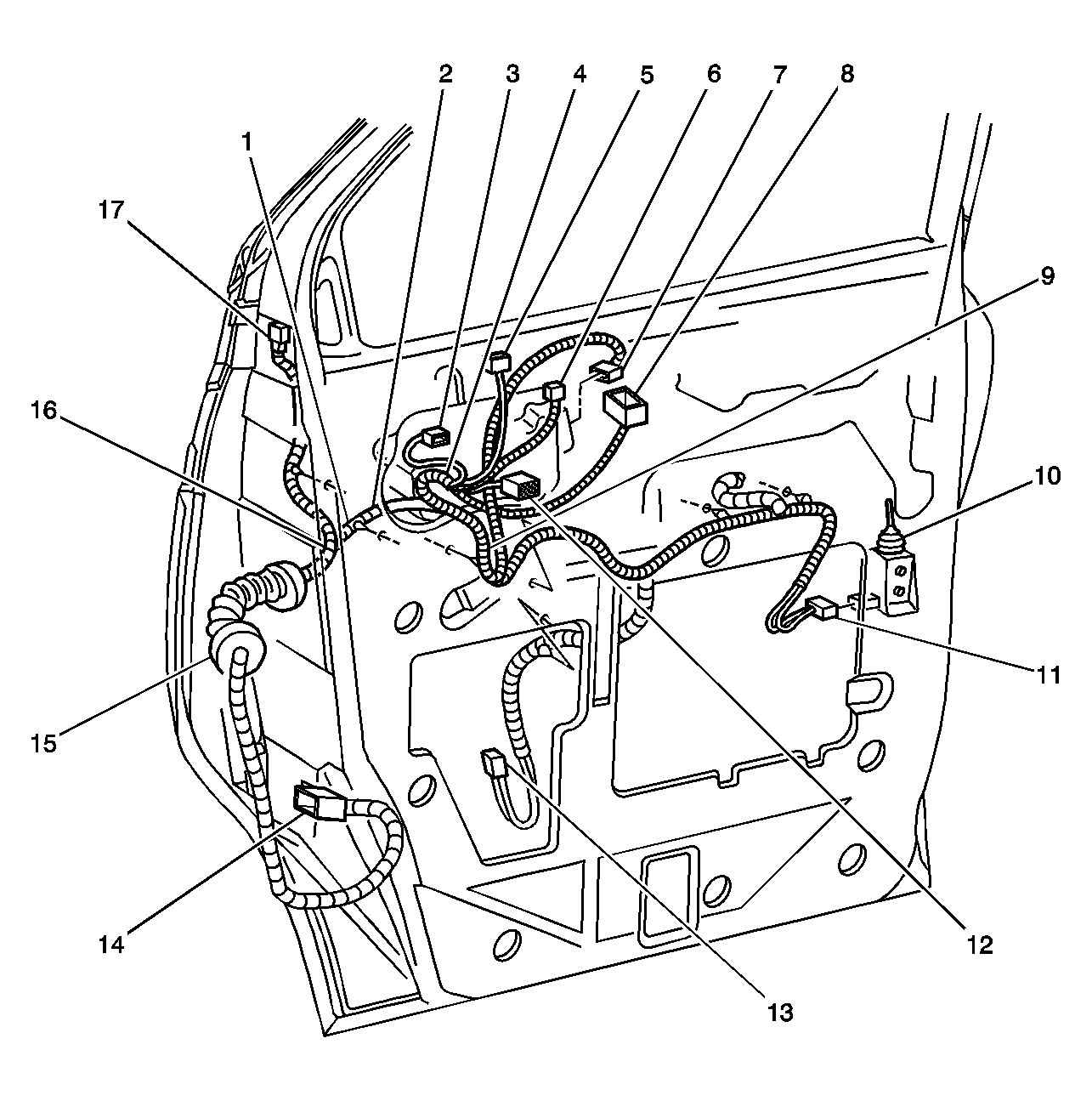

Fig 4: Front Door Wiring (Front Passenger Shown, Driver Opposite) Component View
GM563940Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S500 - Driver, S602 - Front Passenger
2 S503 - Driver, S601 - Front Passenger
3 Speaker - RF Door Tweeter Connector
4 S506 - Driver, S600 - Front Passenger
5 Outside Rearview Mirror Switch Connector- Driver
6 Window Switch Front Passenger Connector C1/Window Master Switch - Driver Connector C2
7 Window Motor - Front Passenger Connector
8 Window Switch Front Passenger Connector C2/Window Master Switch - Driver Connector C1
9 S502 - Driver, S603 - Front Passenger
10 Door Lock Actuator - Front Passenger
11 Door Lock Actuator - Front Passenger Connector
12 Door Lock Switch - Front Passenger Connector
13 Speaker - RF Door Connector
14 C301 - Driver, C205 - Front Passenger
15 P500 - Driver, P600 - Front Passenger
16 S501 - Driver, S605 - Front Passenger
17 Outside Rearview Mirror - Passenger Connector

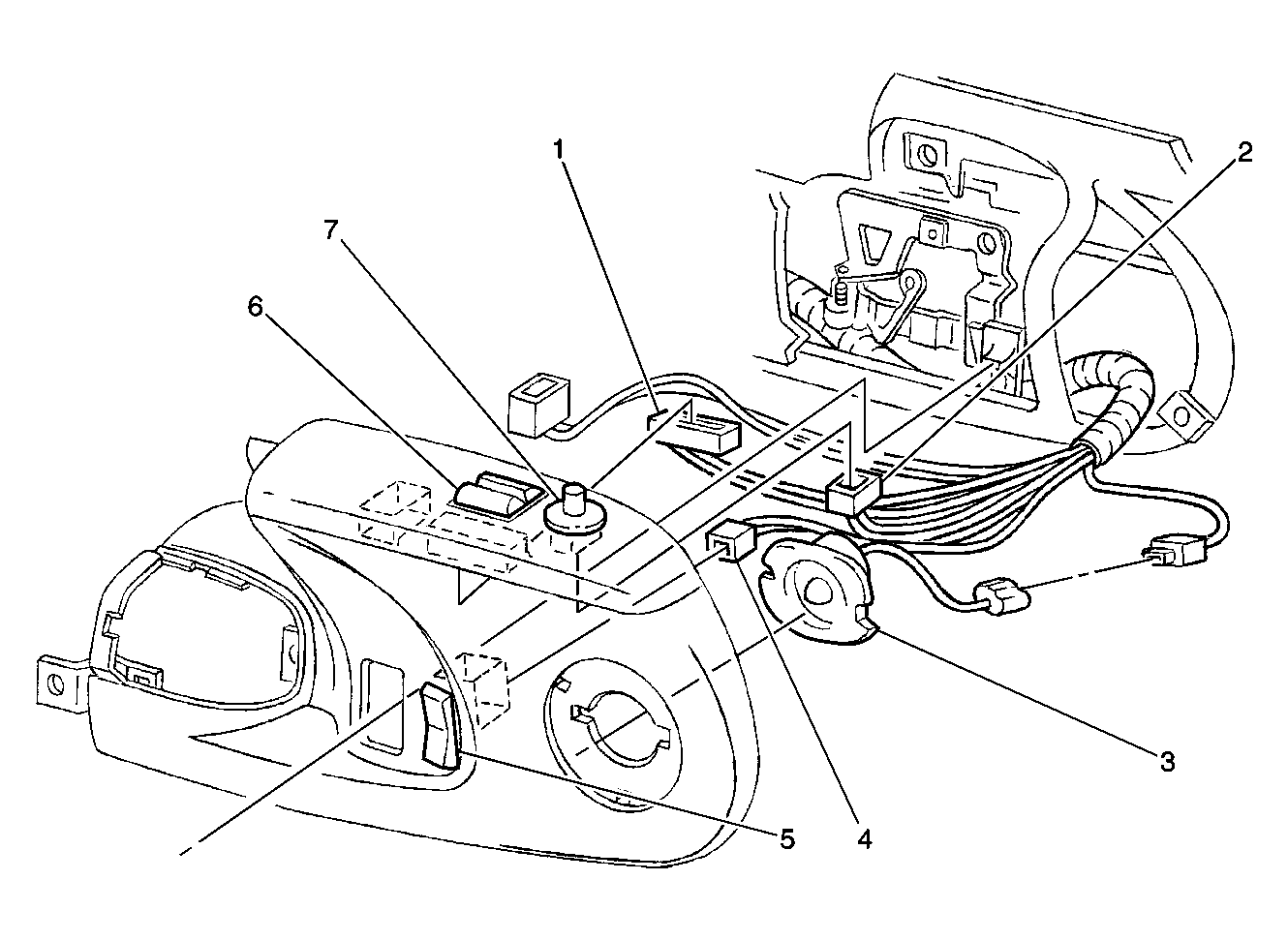

Fig 5: Door Control Switches - Driver Component View
GM297709Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Master Switch - Driver Connector
2 Outside Rearview Mirror Switch Connector
3 Speaker - LF Door Tweeter
4 Door Lock Switch - Driver Connector
5 Door Lock Switch - Driver
6 Window Master Switch - Driver
7 Outside Rearview Mirror Switch

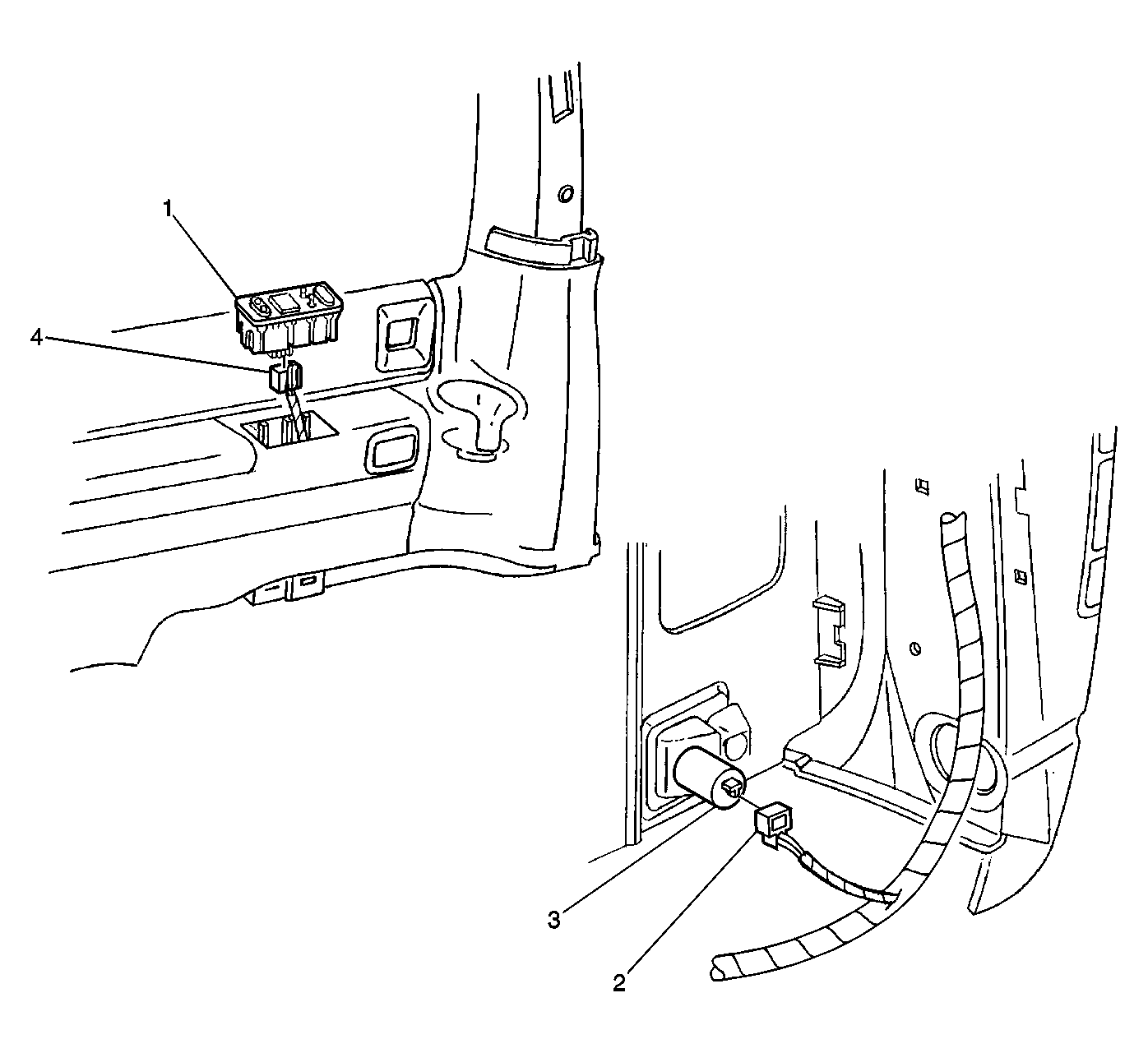

Fig 6: RSA Controller/Auxiliary Power Outlet - Rear Wiring Component View
GM298001Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Audio (RSA) Controller
2 Auxiliary Power Outlet - Rear Connector
3 Auxiliary Power Outlet - Rear
4 Rear Seat Audio (RSA) Controller Connector

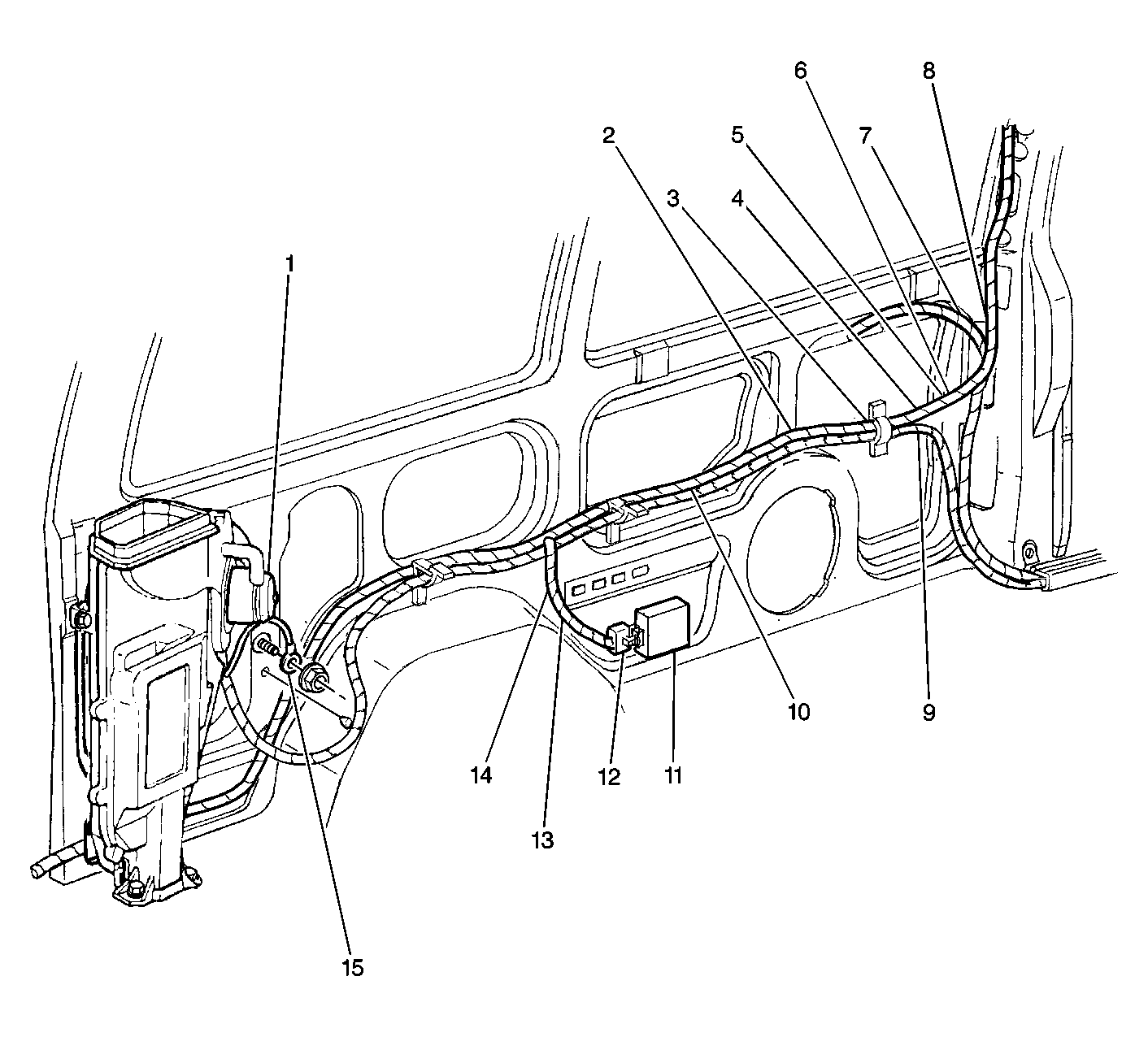

Fig 7: Left Rear Body Harness Component View
GM374528Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor - A/C Auxiliary
2 S313
3 S312
4 S311
5 S310
6 S309
7 S314
8 S315
9 S322
10 S316
11 Audio Amplifier
12 Audio Amplifier Connector
13 S318
14 S317
15 G404

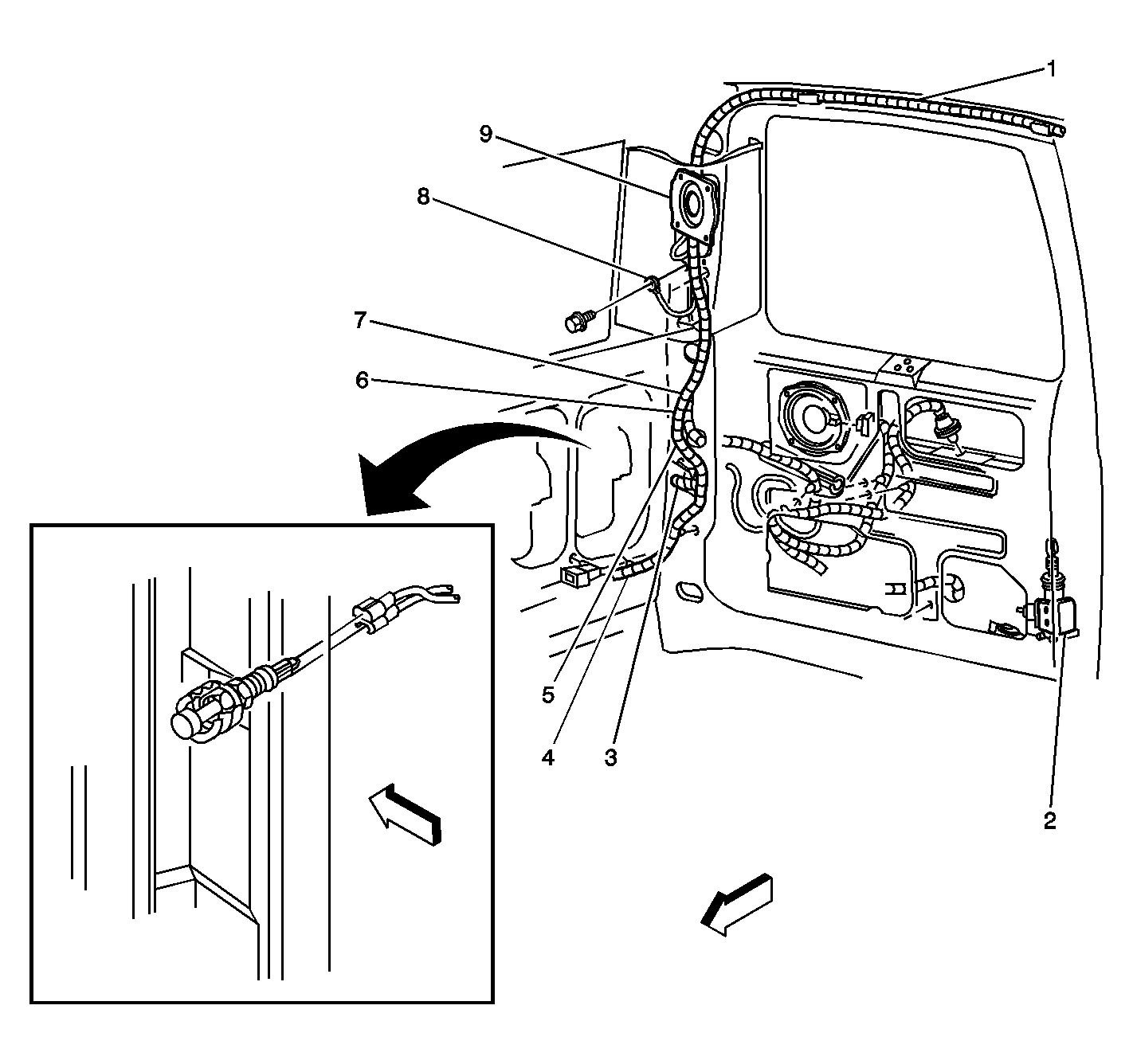

Fig 8: Right D Pillar Wiring Component View
GM582016Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S400
2 Door Lock Actuator - Rear
3 P401
4 Trailer Harness (Taped Wires)
5 S403
6 S402, And S408
7 S401
8 G401
9 Speaker - RR

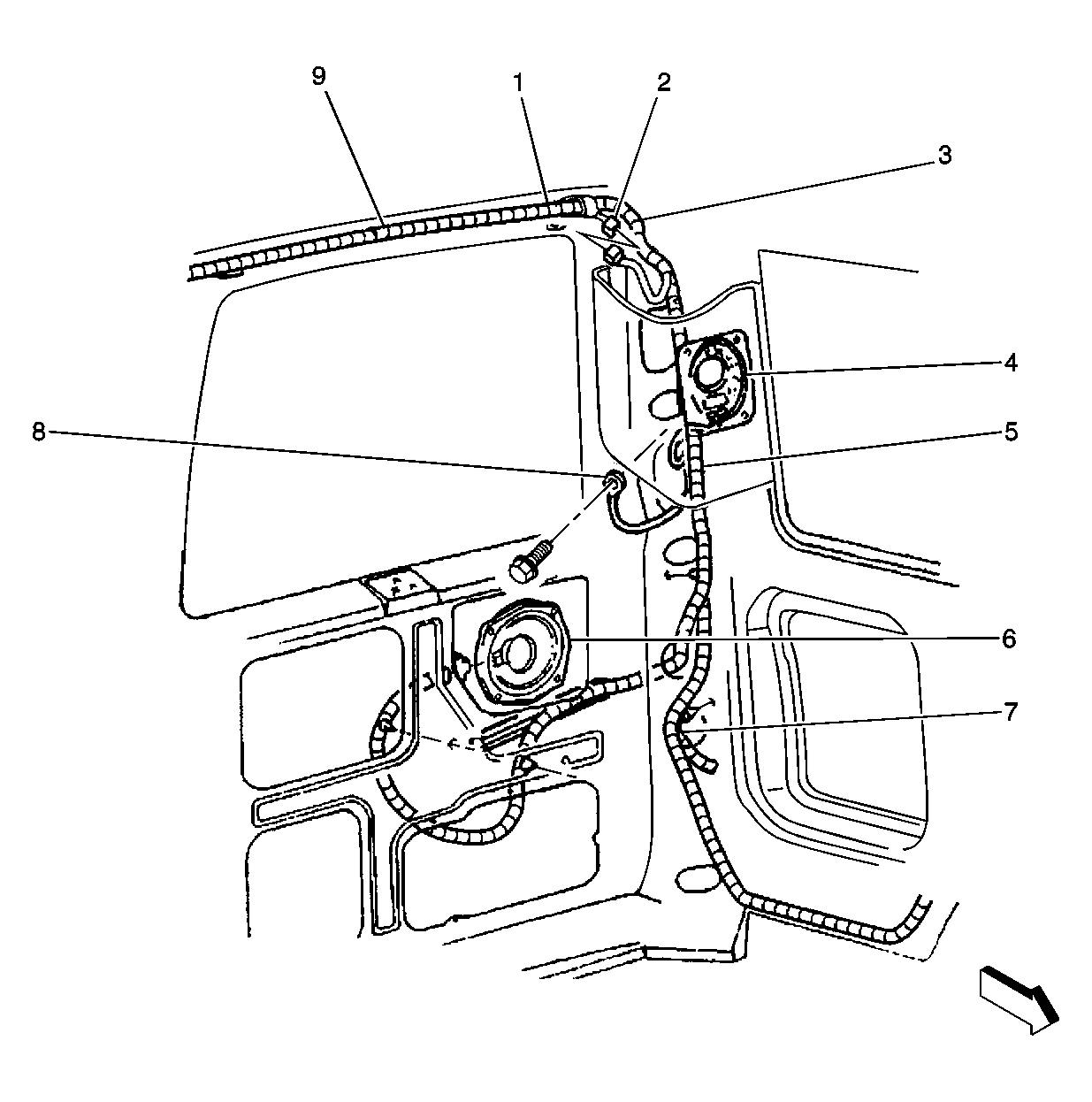

Fig 9: Left D Pillar Wiring Component View
GM597963Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S321
2 C401
3 S320
4 Speaker - LR
5 S319
6 Speaker - LR Door (Base Radio) Speaker - LR Subwoofer (Premium Radio)
7 P400
8 G400
9 S400

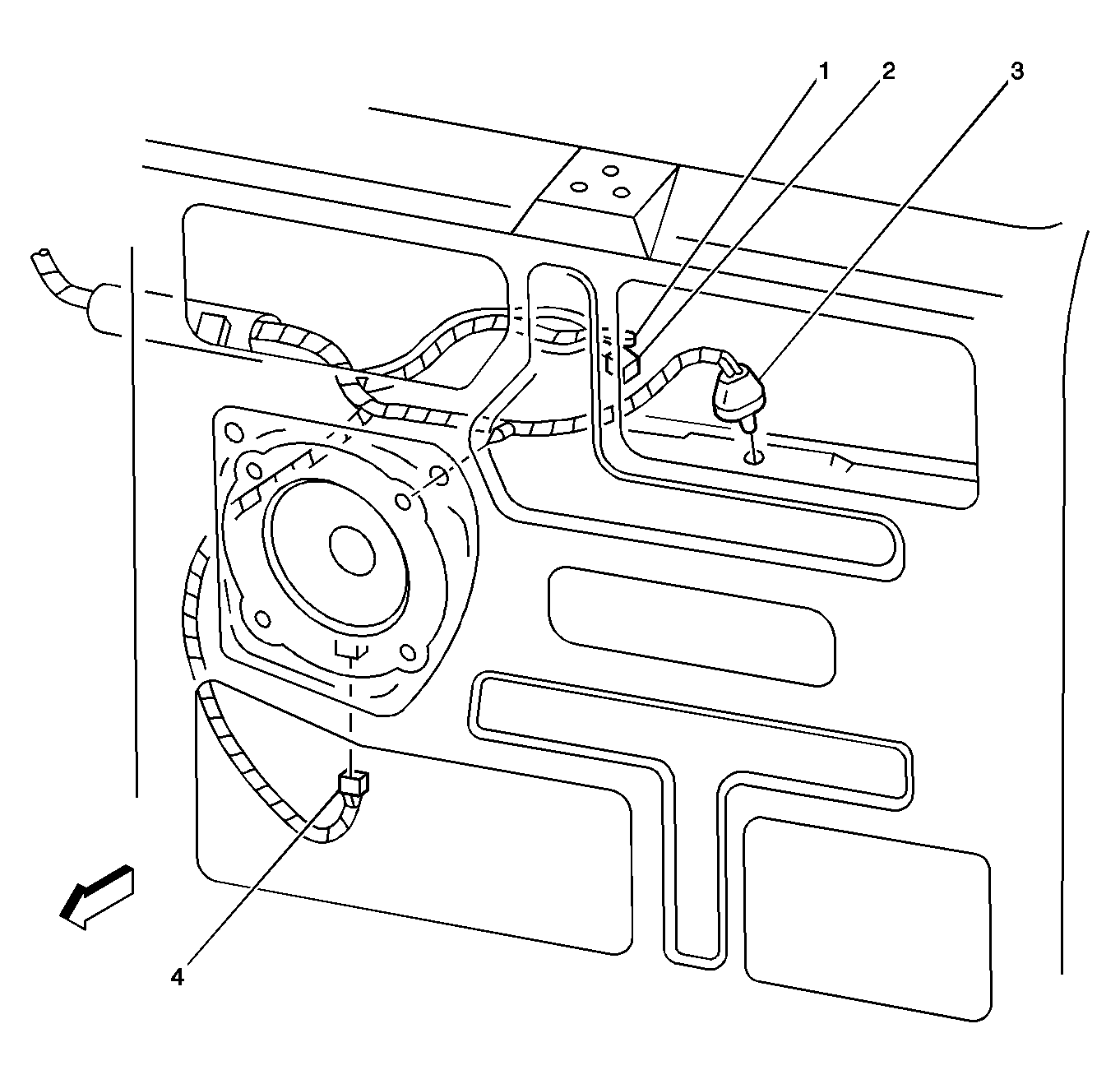

Fig 10: Door Location View - RR Component View
GM781527Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Jamb Switch - Rear
2 Door Lock Actuator - Rear
3 License Lamp
4 Speaker - RR Door (Base Radio) Speaker - RR Subwoofer (Premium Radio)
