Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the remote keyless entry module to the carrier.
  2. Install the remote keyless entry module screws to the bracket (3).

    Tighten:  Tighten the remote keyless entry module screws to the bracket (3) to 2 N.m (18 lb in).

  3. Connect the remote keyless entry antenna (2) to the receiver (5).

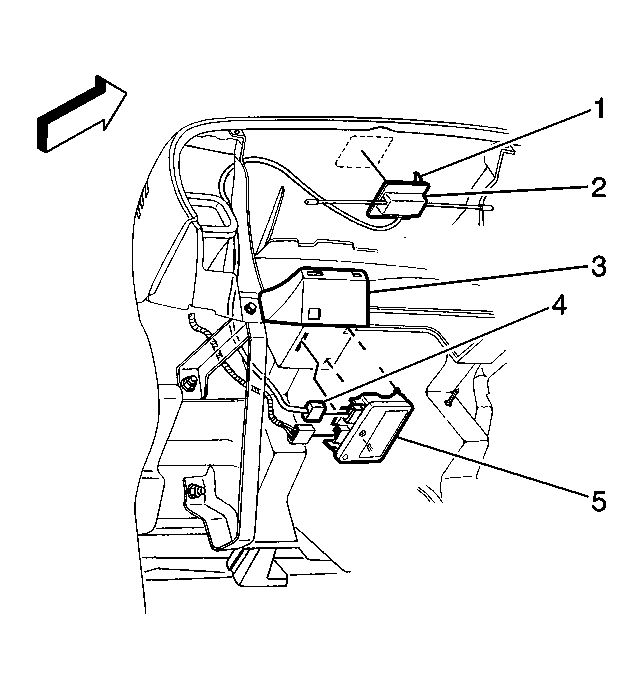

    Fig 1: Locating Remote Keyless Entry Antenna
    GM506272Courtesy of GENERAL MOTORS CORP.
  4. Connect the remote keyless entry electrical connector (4) to the receiver (5).
  5. Install the left knee bolster. Refer to Knee Bolster Replacement - Left in Instrument Panel, Gages, and Console.
  6. Reprogram the transmitter. Refer to Transmitter Programming .
  7. Verify that the system operates properly.
