Installation Procedure

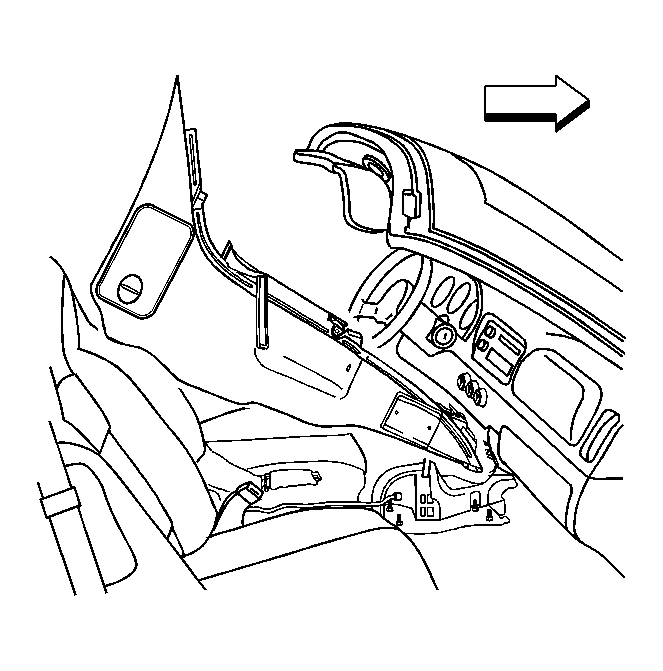

    Fig 1: View of Rear Console
    GM1174591Courtesy of GENERAL MOTORS CORP.
  1. Lift up on the rear of the console and install into the vehicle.

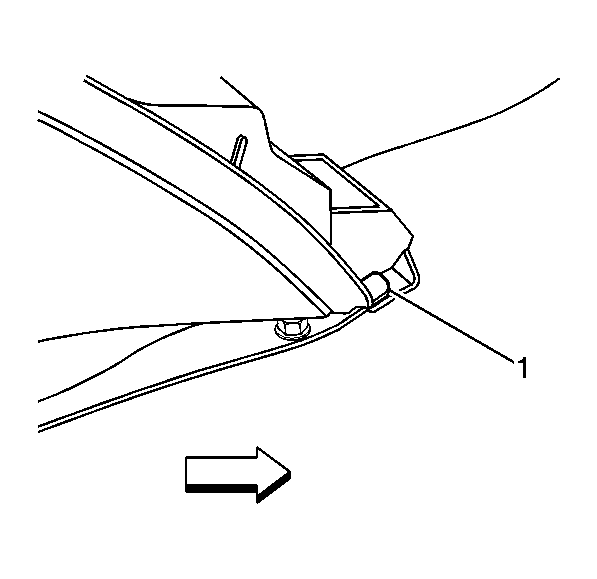

    2. Fig 2: Identifying Console Front Retaining Tabs
    GM1174608Courtesy of GENERAL MOTORS CORP.
  2. Hold the console and move rearward of vehicle to engage the front retaining tabs (1).
  3. Position the park brake lever to the full DOWN position.
  4. Move the gearshift into the LOW position.

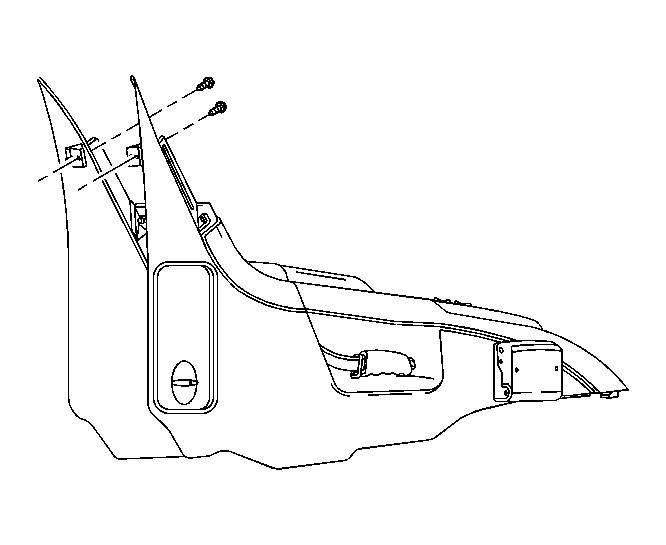

    5. Fig 3: Identifying Screws Near Body Control Module
    GM1195800Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the 2 upper screws located near the body control module.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  6. Install the console upper trim plate. Refer to Trim Plate Replacement - Console Upper .
