Removal Procedure

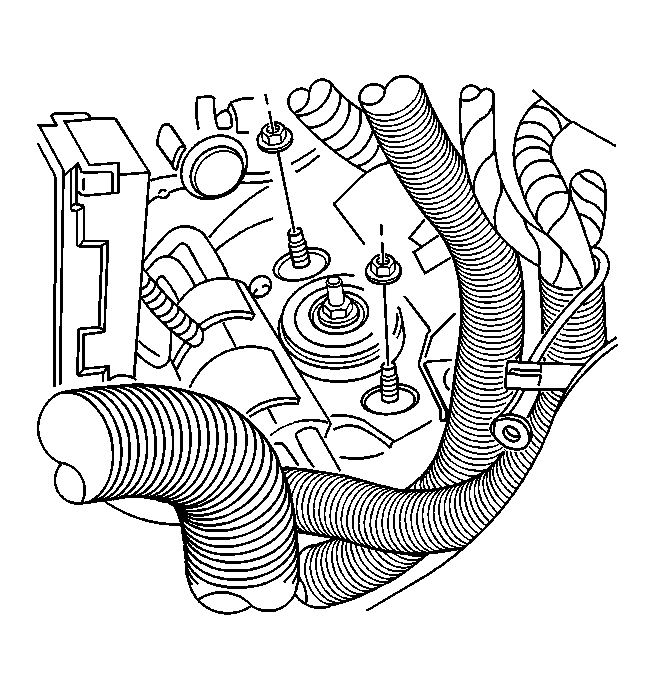

Fig 1: View Of Shock Module Upper Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the shock module upper retaining nuts.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tire and Wheels.

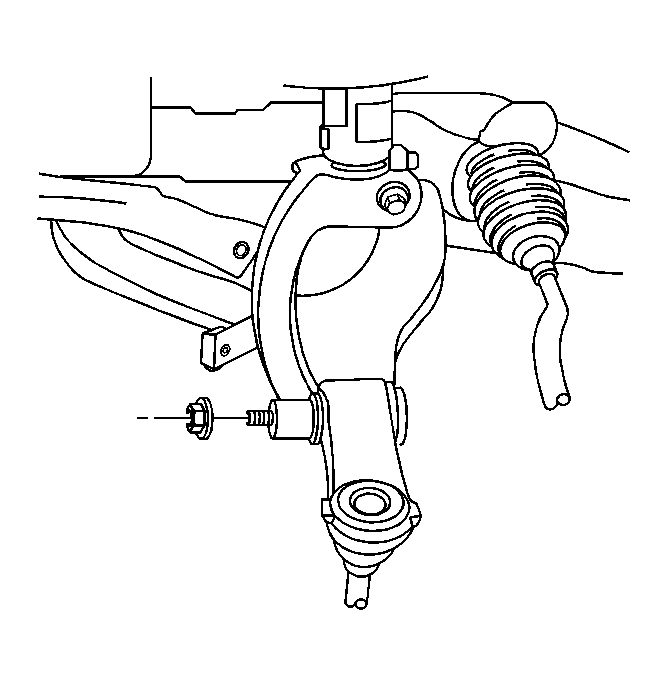

Fig 2: View Of Shock Module Yoke Lower Mounting Nut

Courtesy of GENERAL MOTORS CORP.

Remove the shock module yoke to lower control arm retaining nut.

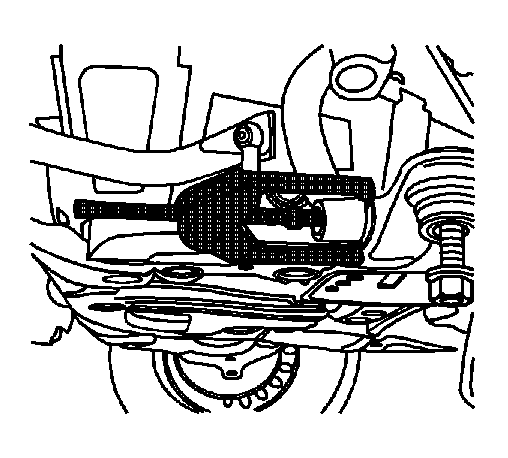

Fig 3: Disconnecting Shock Module Yoke From Lower Control Arm

Courtesy of GENERAL MOTORS CORP.

Remove the shock module yoke from the lower control arm using J 24319-B .

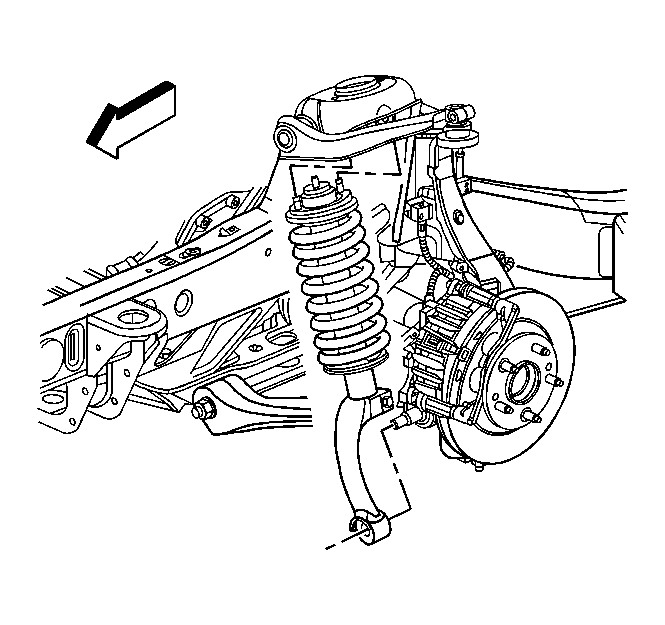

Fig 4: View Of Shock Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs.

Remove the shock module from the shock tower and lower control arm.
