Installation Procedure

  1. Install the quarter window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the plastic retainers to the air outlet molding. Replace with new retainers as needed.
  3. Install the air outlet molding to the vehicle. Ensure that the plastic retainers are completely engaged.
  4. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

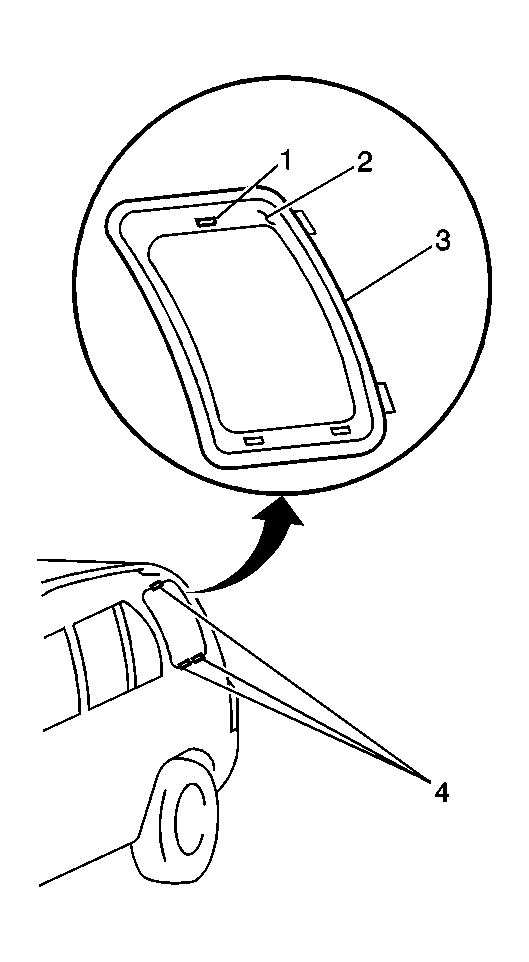

    5. Fig 1: View Of Quarter Window, Molding & Retainer - Male Ends
    GM488784Courtesy of GENERAL MOTORS CORP.
