Home >> Chevrolet >> 2004 >> Tracker RWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Repair Instructions >> Lamp Driver Module Replacement >> Installation Procedure

Installation Procedure

  1. Install the LDM (1) to the printed circuit.
  2. Install the Instrument Cluster Assembly (2). Refer to Instrument Panel Cluster (IPC) Replacement in Instrument Panel, Gages and Console.
  3. Perform Diagnostic System Check - ABS .

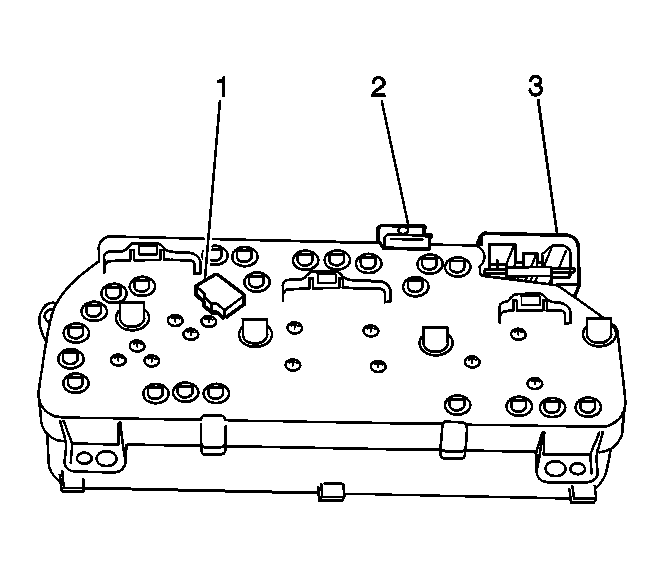

    4. Fig 1: View Of LDM & Instrument Cluster Assembly
    GM479380Courtesy of GENERAL MOTORS CORP.
