Engine Electrical Component Views

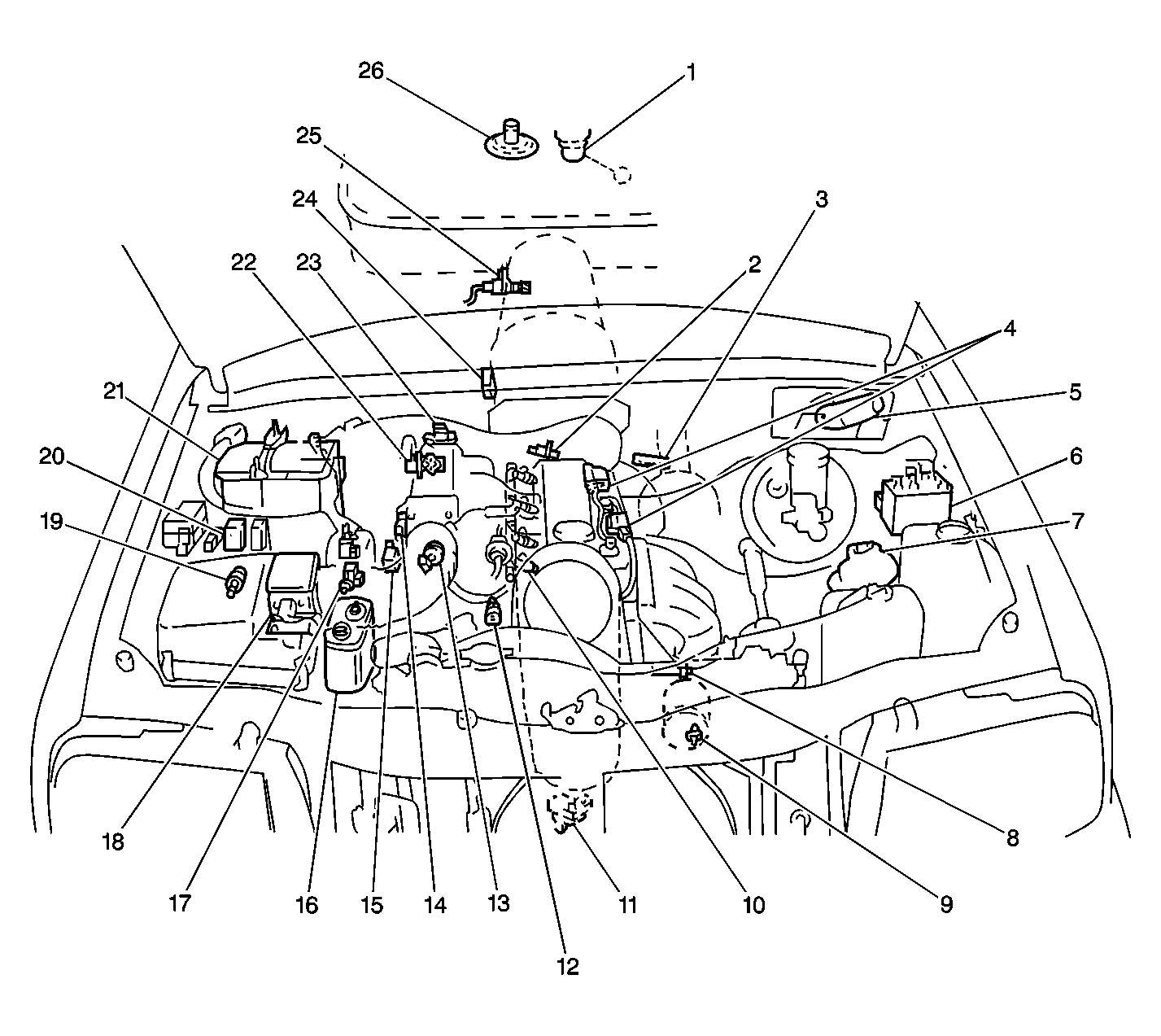

| Callout | Component Name |
|---|---|
| 1 | Fuel Sender Assembly |
| 2 | Camshaft Position (CMP) Sensor |
| 3 | Heated Oxygen Sensor 2 (HO2S2) |
| 4 | Ignition Coils |
| 5 | Front Wiper Motor |
| 6 | Electronic Brake Control Module (EBCM) |
| 7 | Cruise Control Servo |
| 8 | Heated Oxygen Sensor 1 (HO2S1) |
| 9 | Power Steering Pressure Switch |
| 10 | Fuel Injectors |
| 11 | Crankshaft Position (CKP) Sensor |
| 12 | Engine Coolant Temperature (ECT) Sensor |
| 13 | Intake Air Control (IAC) Valve |
| 14 | Throttle Position (TP) Sensor |
| 15 | EVAP Canister Purge Valve |
| 16 | EVAP Canister |
| 17 | EVAP Canister Vent Solenoid |
| 18 | Mass Air Flow (MAF) Sensor |
| 19 | Intake Air Temperature (IAT) Sensor |
| 20 | A/C Condenser Fan Relay |
| 21 | Battery |
| 22 | Exhaust Gas Recirculation (EGR) Valve |
| 23 | Manifold Absolute Pressure (MAP) Sensor |
| 24 | Transmission Range Switch |
| 25 | Vehicle Speed Sensor |
| 26 | Fuel Tank Pressure Sensor |

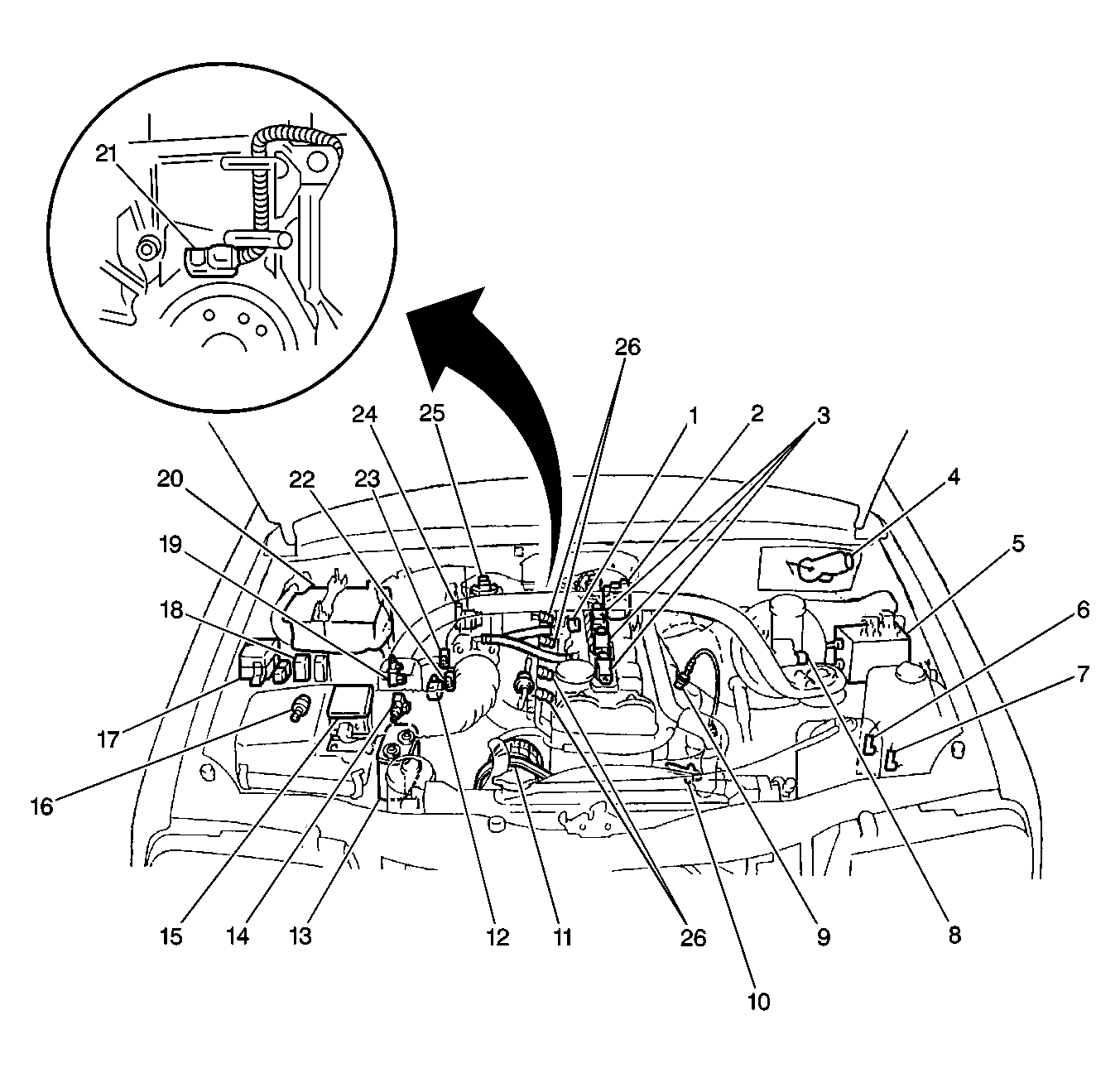

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Temperature (ECT) Sensor |
| 2 | Camshaft Position (CMP) Sensor |
| 3 | Ignition Coils |
| 4 | Front Wiper Motor |
| 5 | Electronic Brake Control Module (EBCM) |
| 6 | Front Washer Pump |
| 7 | Rear Washer Pump |
| 8 | Brake Fluid Level Switch |
| 9 | Heated Oxygen Sensor 1 (HO2S1) |
| 10 | Heated Oxygen Sensor 2 (HO2S2) |
| 11 | Power Steering Pressure Switch |
| 12 | EVAP Canister Purge Valve |
| 13 | EVAP Canister |
| 14 | EVAP Canister Vent Solenoid |
| 15 | Mass Air Flow (MAF) Sensor |
| 16 | Intake Air Temperature (IAT) Sensor |
| 17 | Fuse Block |
| 18 | A/C Condenser Fan Relay |
| 19 | EVAP Tank Pressure Control Solenoid Valve |
| 20 | Battery |
| 21 | Crankshaft Position (CKP) Sensor |
| 22 | Intake Air Control (IAC) Valve |
| 23 | Throttle Position (TP) Sensor |
| 24 | Exhaust Gas Recirculation (EGR) Valve |
| 25 | Manifold Absolute Pressure (MAP) Sensor |
| 26 | Fuel Injectors |

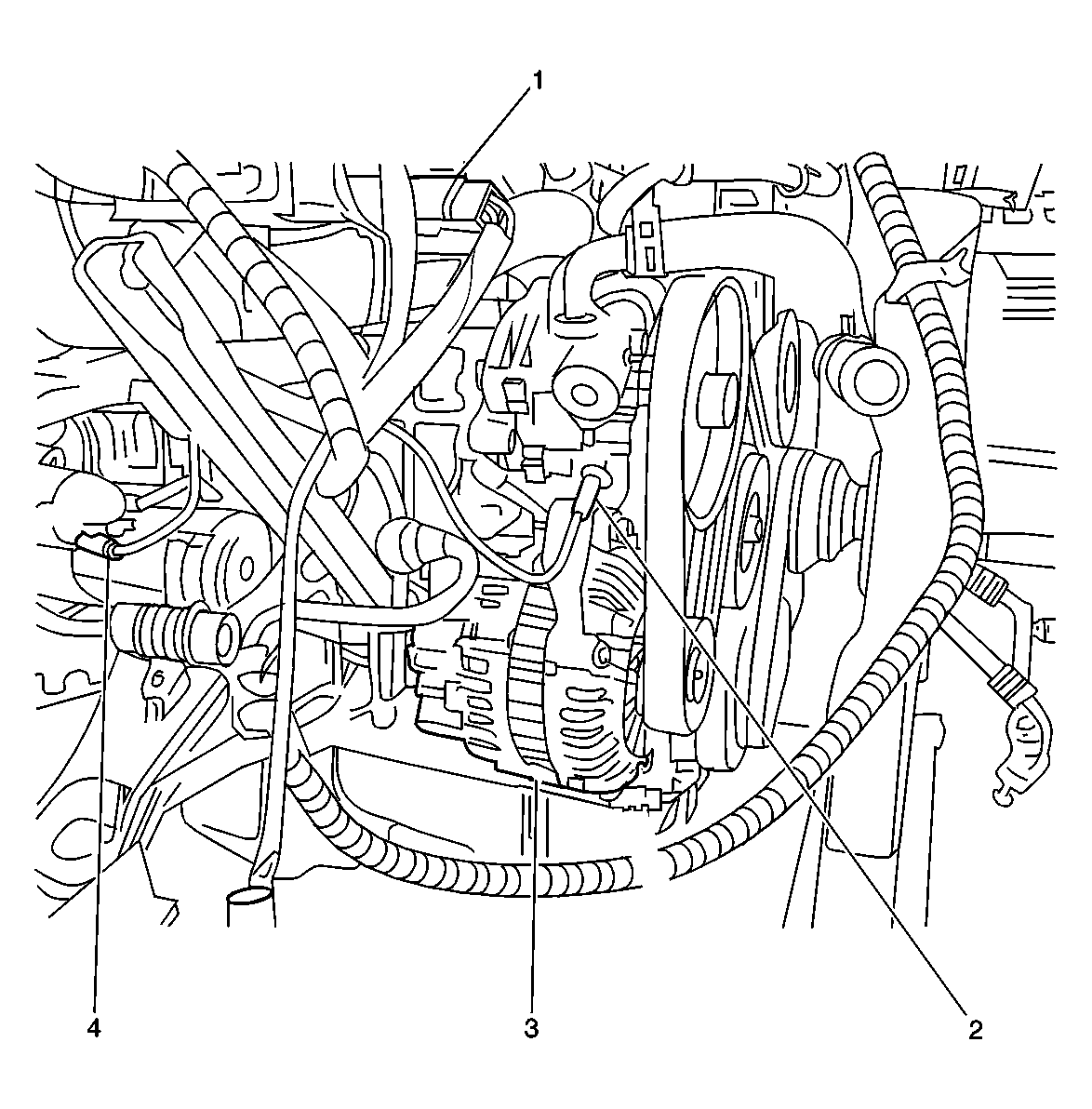

| Callout | Component Name |
|---|---|
| 1 | Intake Air Control (IAC) Valve |
| 2 | Power Steering Pressure Switch |
| 3 | Generator |
| 4 | Starter Motor |
| Callout | Component Name |
|---|---|
| 1 | Fuel Level Sensor |
| 2 | TP Sensor |
| 3 | MAF Sensor |
| 4 | CMP Sensor |
| 5 | PSP Switch |
| 6 | HO2S Bank 1 Sensor 1 |
| 7 | ECT Sensor |
| 8 | CKP Sensor |
| 9 | IAT Sensor |
| 10 | HO2S Bank 2 Sensor 1 |
| 11 | MAP Sensor |
| 12 | VSS |
| 13 | Fuel Tank Pressure Sensor |

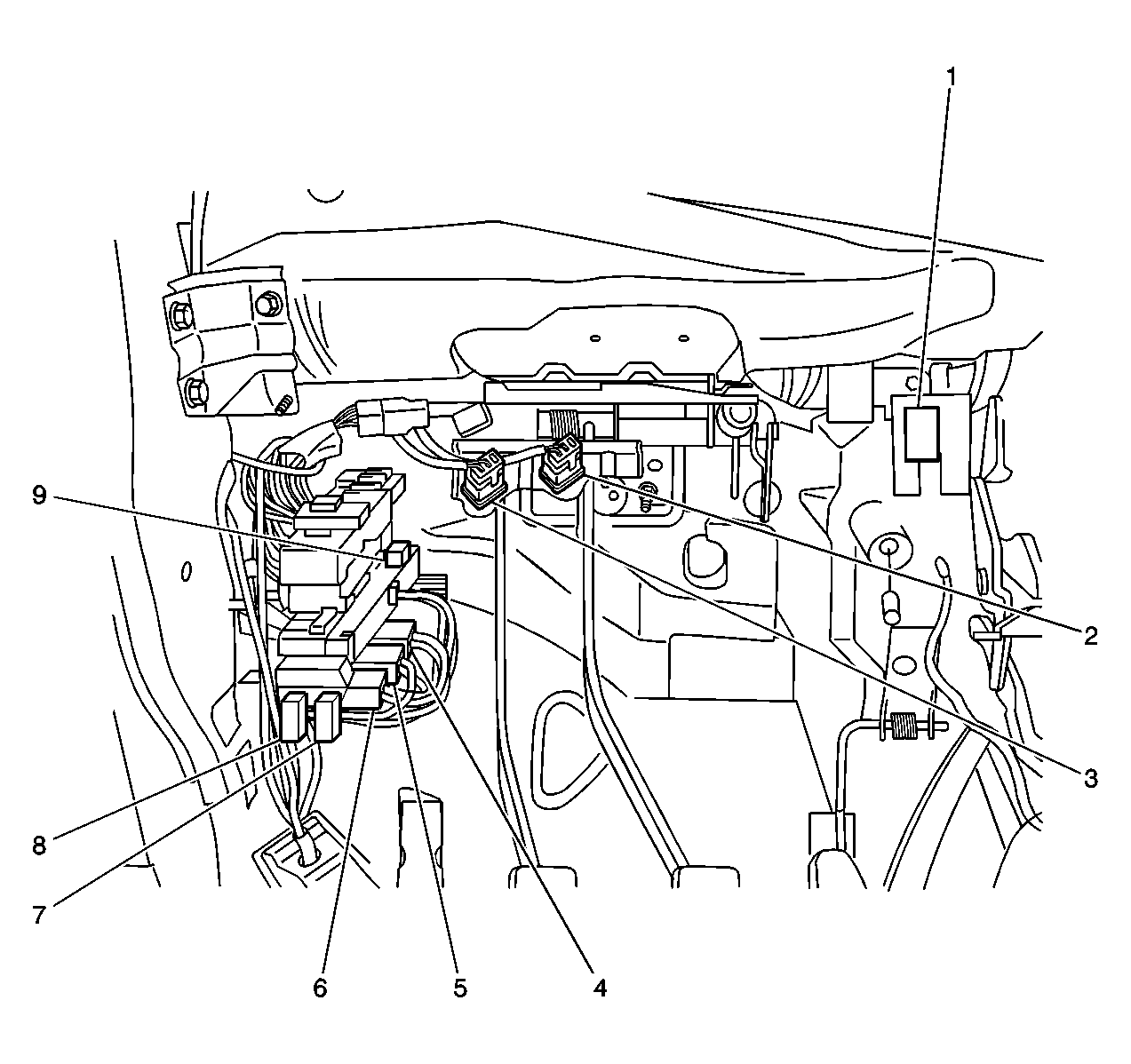

| Callout | Component Name |
|---|---|
| 1 | Daytime Running Lamps (DRL) Control Module |
| 2 | Stoplamp Switch |
| 3 | Clutch Pedal Position (CPP) Switch |
| 4 | C204 |
| 5 | C205 |
| 6 | C213 |
| 7 | Fuel Pump Relay |
| 8 | Main Relay |
| 9 | Tail Relay |
