Installation Procedure

  1. Install the multifunction alarm (1) to the rear of the instrument cluster (2). Secure the alarm with the retainer.
  2. Install the instrument cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  3. Connect the negative battery cable.

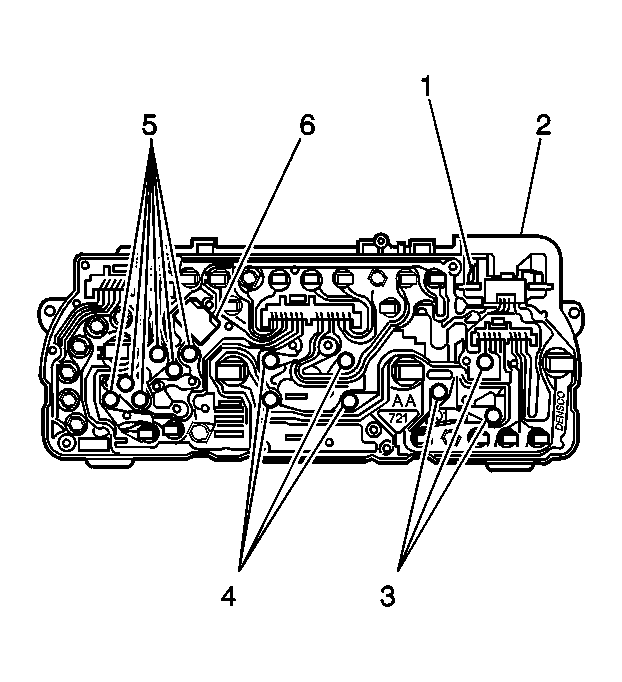

    4. Fig 1: View Of Back Of Instrument Cluster
    GM478155Courtesy of GENERAL MOTORS CORP.
