Transfer Case Control Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.

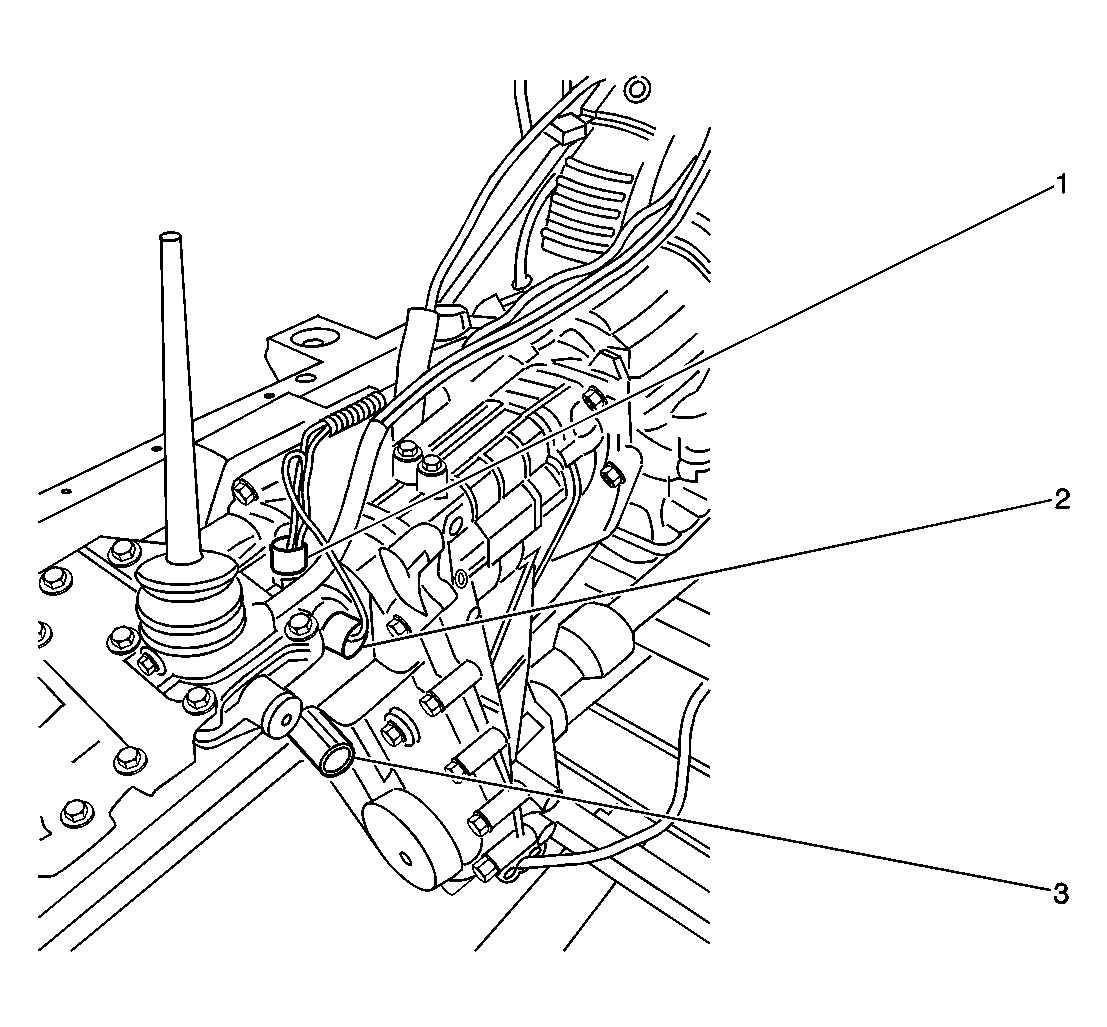

| Callout |
Component Name |
| 1 |
Four Wheel Drive Switch |
| 2 |
Four Wheel Drive Low Switch |
| 3 |
Vehicle Speed Sensor |
Courtesy of GENERAL MOTORS CORP.

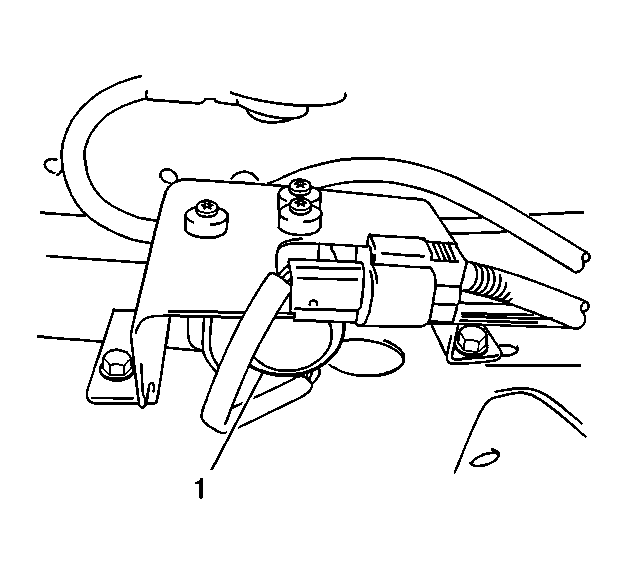

| Callout |
Component Name |
| 1 |
Front Drive Axle Actuator Pump |
