Transfer Case Control Connector End Views
WARNING: This page is about a different variant/trim than selected.
Four Wheel Drive Switch Low Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | ORN/WHT | Four Wheel Drive Low Signal |
| 2 | BLK | Ground - G201 |
Four Wheel Drive Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK/ORN | Four Wheel Drive Signal |
| 2 | BLK | Ground - G201 |

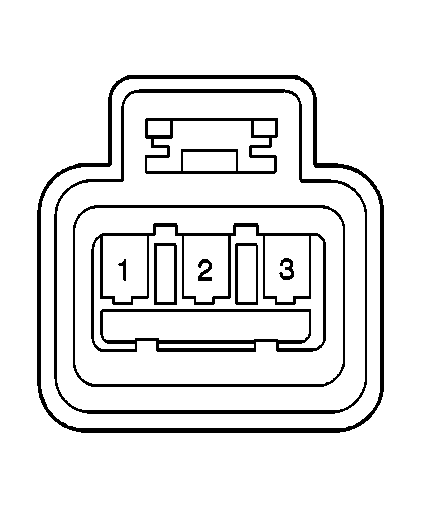

Front Drive Axle Actuator Pump Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PNK | Axle Actuator Control Signal - Low |
| 2 | BLK | Ground G-105 |
| 3 | RED | Axle Actuator Control Signal - High |
