Installation Procedure

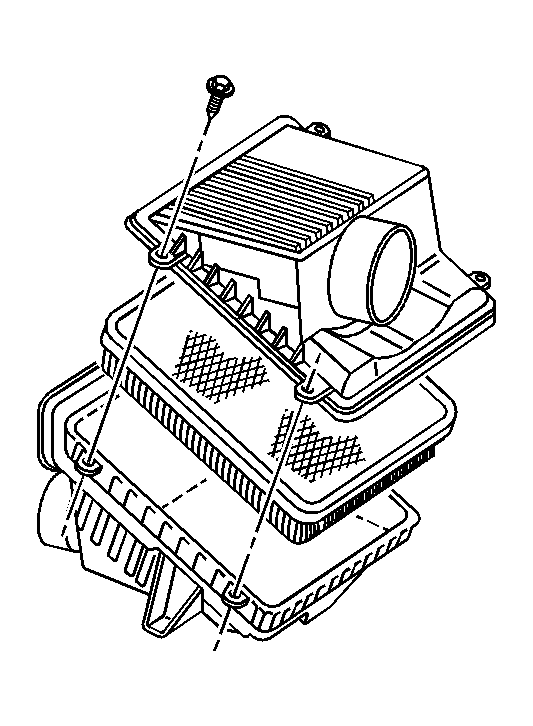

    Fig 1: View Of Air Cleaner Housing Cover, Screws & Air Filter Element
    GM858229Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element.
  2. Install the air cleaner housing cover.
  3. Tighten the air cleaner housing cover screws until snug.
    4. Fig 2: View Of MAF/IAT Sensor Electrical Connectors
    GM750582Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAF/IAT sensor electrical connector (3).
  5. Install the intake air resonator. Refer to Intake Air Resonator Replacement .
