Installation Procedure

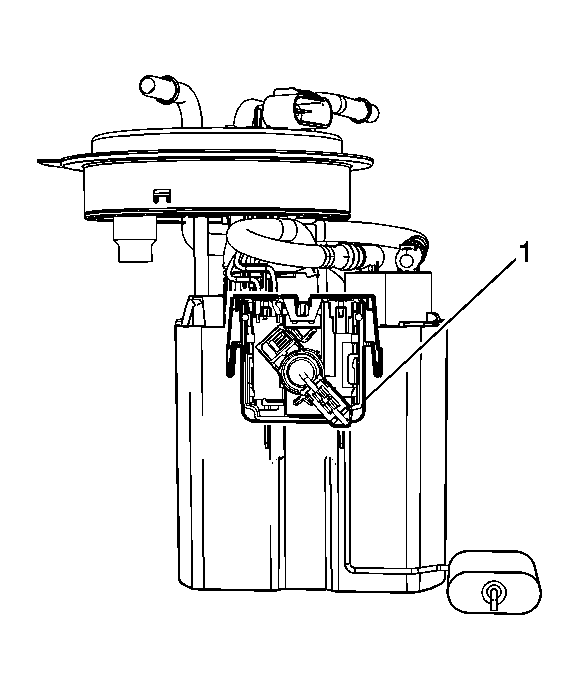

    Fig 1: View Of Fuel Level Sensor (Front Tank)
    GM1332907Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (1).
  2. Connect the level sensor electrical connector.
  3. Install the sending unit. Refer to Fuel Sender Assembly Replacement (Front Tank)  or Fuel Sender Assembly Replacement (Rear Tank) .
