Installation Procedure

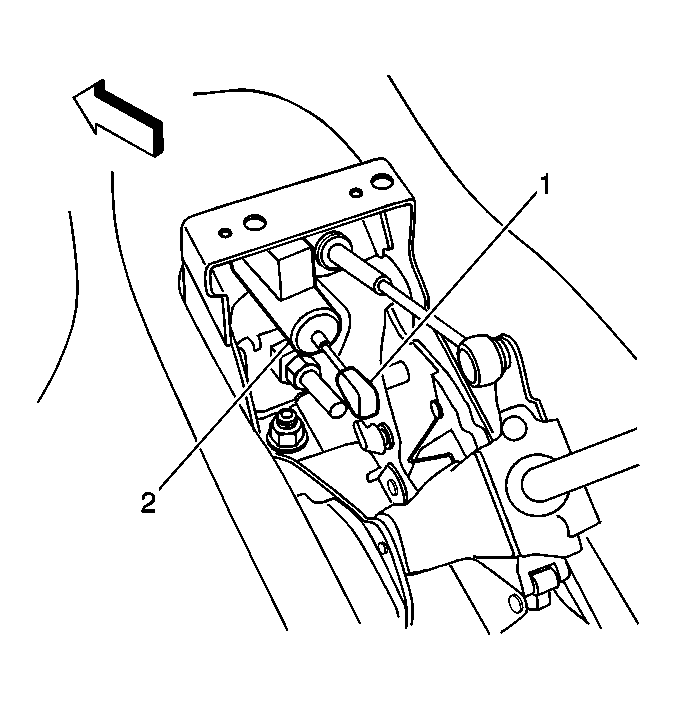

    Fig 1: View Of A/T Shift Lock Control & Pivot Points
    GM442716Courtesy of GENERAL MOTORS CORP.
  1. Install the upper clip of the AT shift lock control onto the upper pivot point, and the lower clip onto the lower pivot point.
  2. Install the center console. Refer to Console Replacement in Instrument Panel, Gages, and Console.
  3. Connect the electrical connector to the AT shift lock control.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
