SIR Component Views

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver (DG7)
3	Speaker - LF Door Tweeter (UQ3)
4	Window Motor (A31) - Driver
5	Outside Rearview Mirror Switch (DG7)
6	Door Lock Switch (AU3) - Driver
7	Window Switch (A31) - Driver
8	Inflatable Restraint Side Impact Module (SIS) - Left (ASF)
9	Door Latch (AU3) - Driver

Fig 2: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch (AU3) - Passenger
3	Inflatable Restraint Side Impact Module (SIS) - Right (ASF)
4	Door Lock Switch (AU3) - Passenger
5	Window Switch (A31) - Passenger
6	Speaker - RF Door Tweeter (UQ3)
7	Outside Rearview Mirror - Passenger (DG7)

Fig 3: Steering Wheel and Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right (UK3/K34)
6	Horn Switchs
7	Steering Wheel Controls - Left (UK3/K34)
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid (MN5)

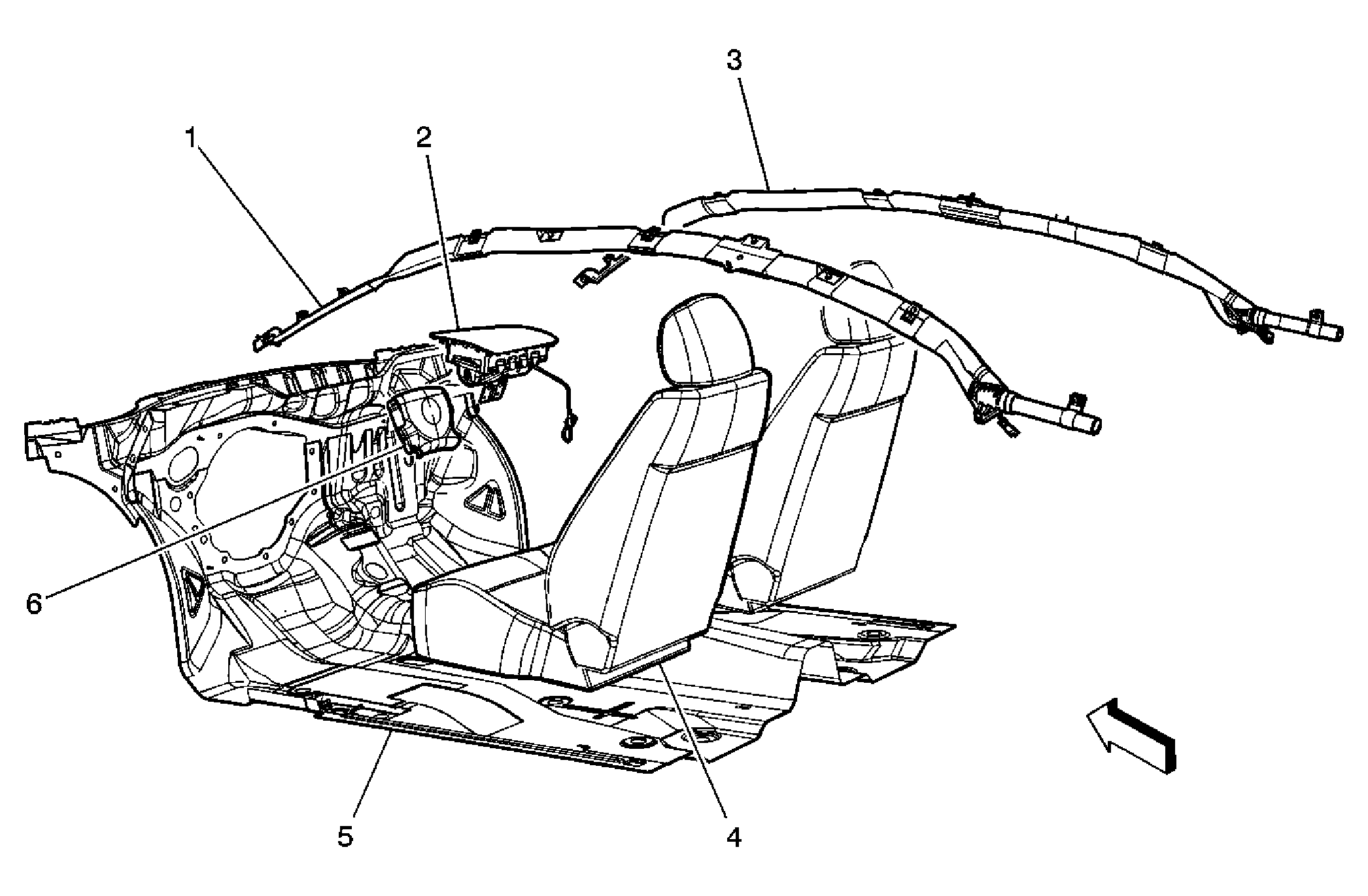

Fig 4: Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (ASF)
4	Driver Seat
5	Floor Pan
6	Inflatable Restraint I/P Module

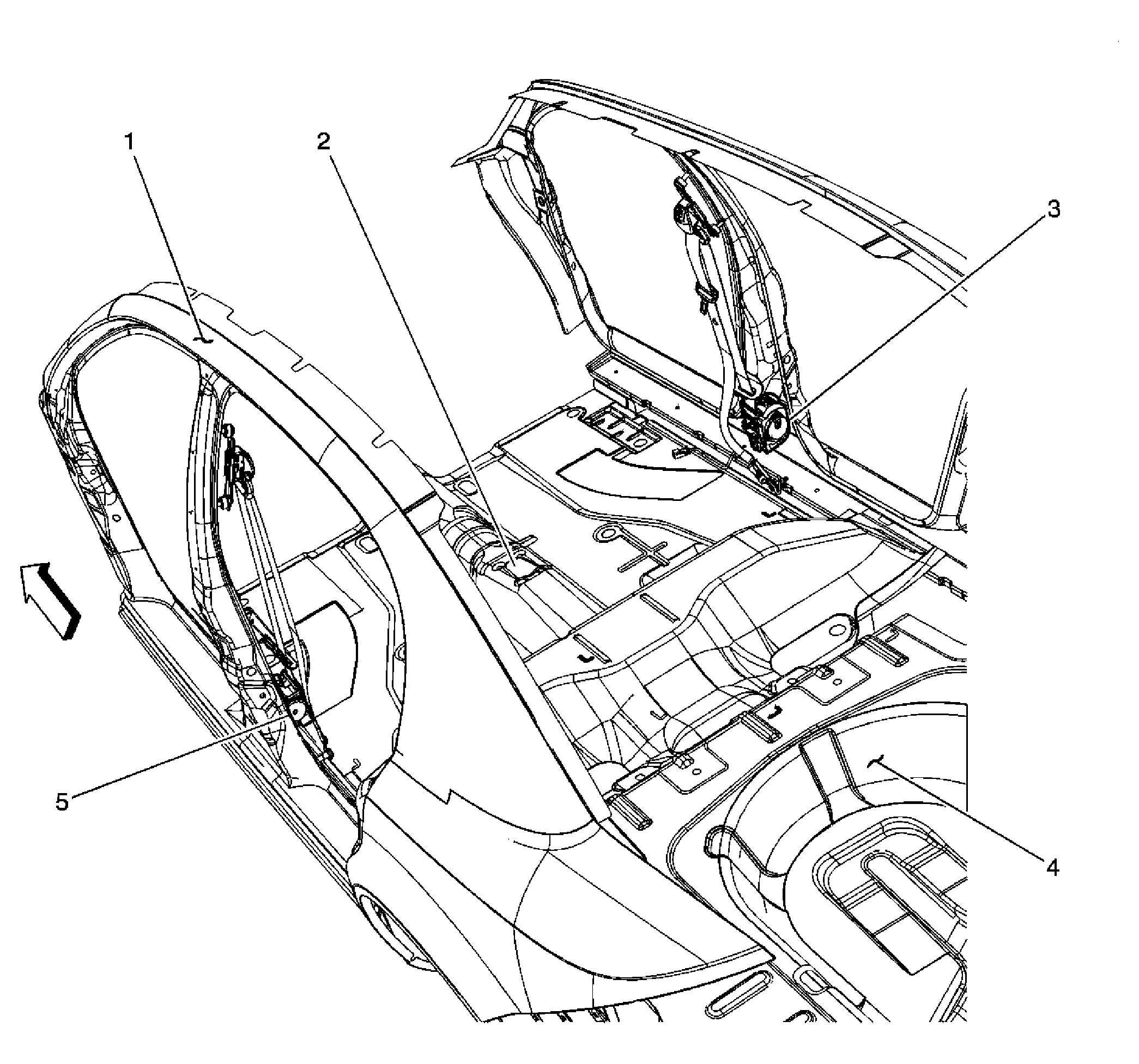

Fig 5: Seat Belt Pretensioners - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Body Panel
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
3	Seat Belt Pretentioner - RF
4	Floor Panel
5	Seat Belt Pretentioner - LF

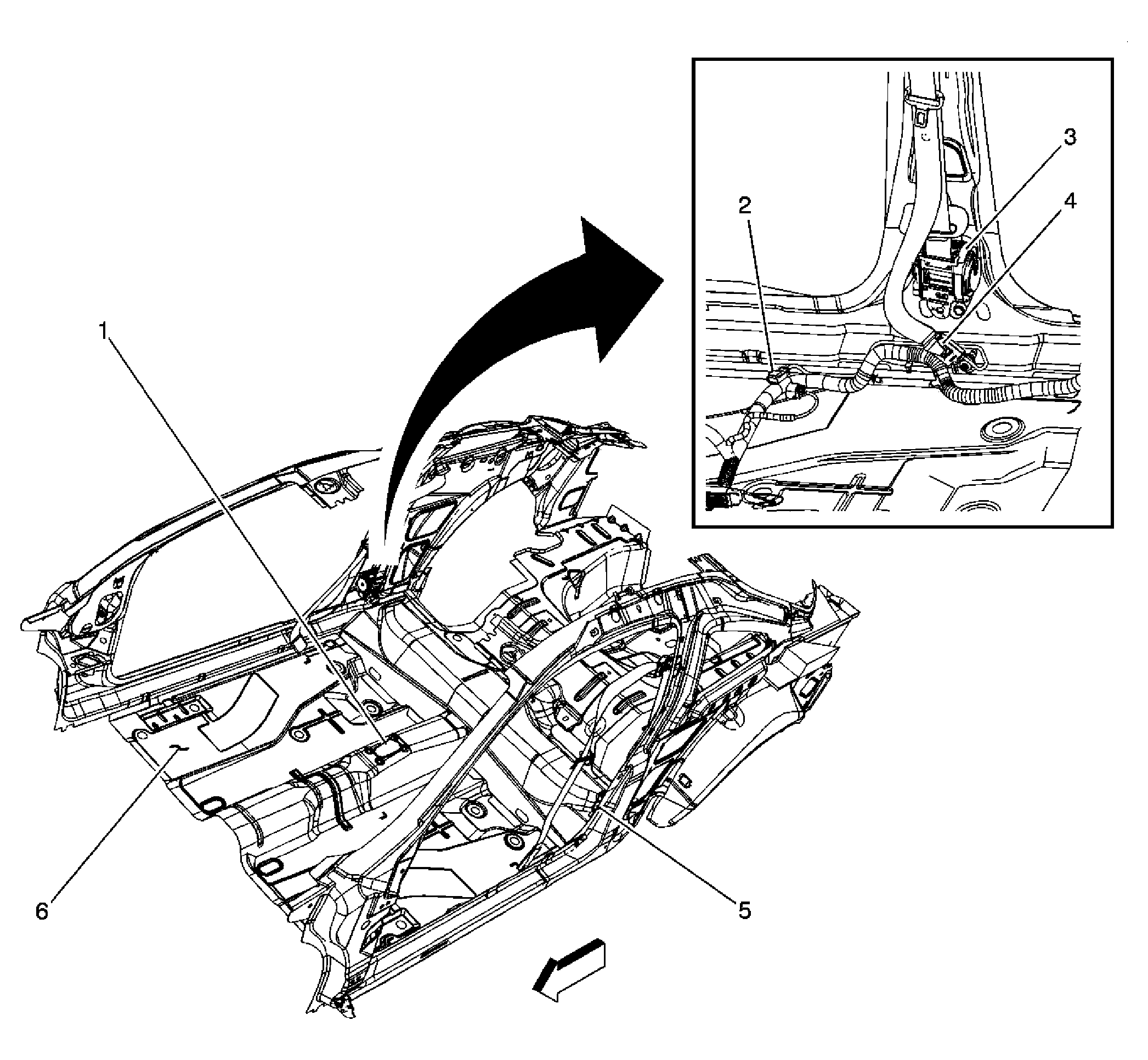

Fig 6: Seat Belt Pretensioners - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Seat Belt Tension Sensor Pigtail Connector
3	Seat Belt Pretentioner - RF
4	Seat Belt Tension Sensor
5	Seat Belt Pretentioner - LF
6	Floor Panel

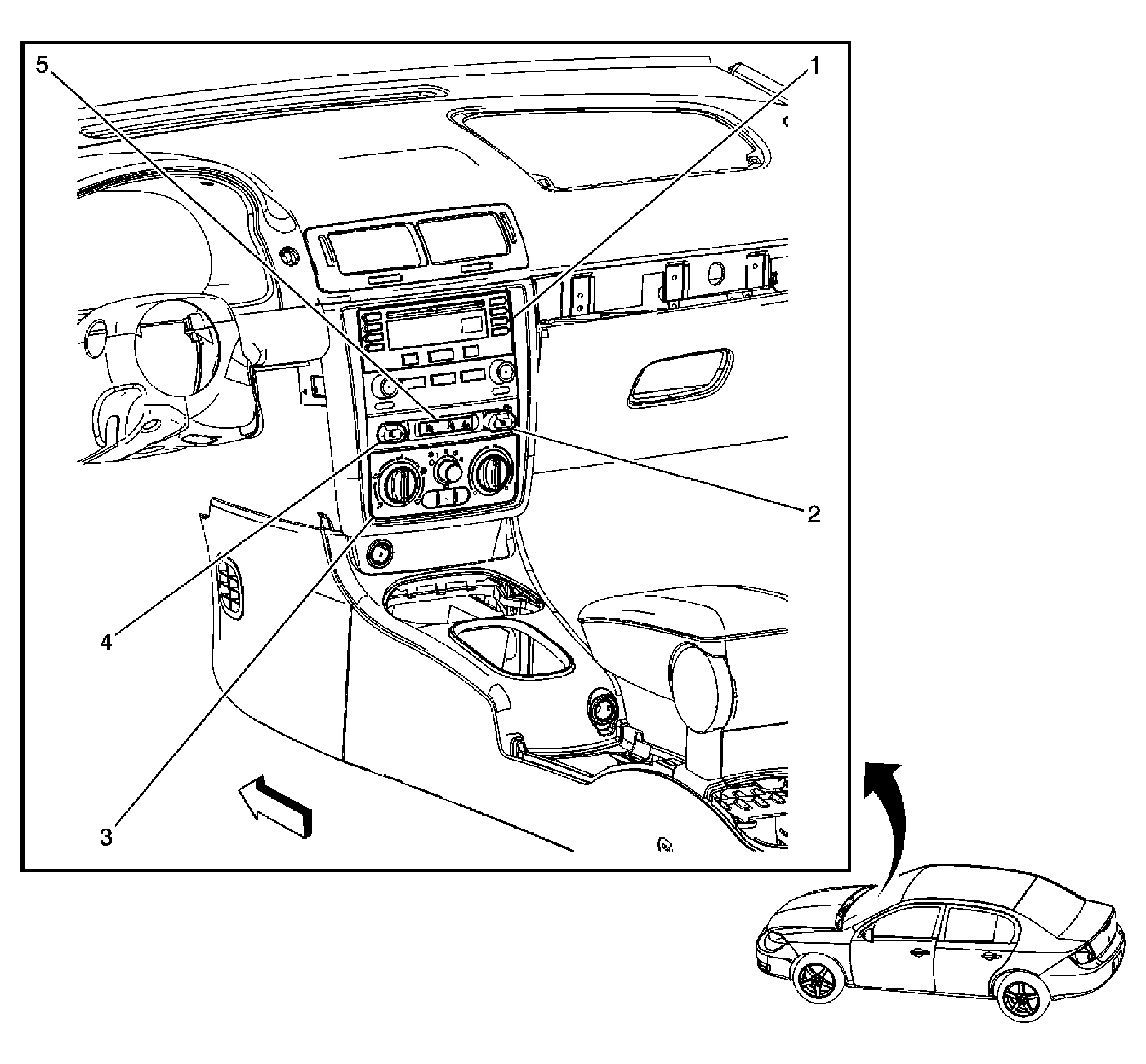

Fig 7: Passenger Presence System (PPS) Components 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Heated Seat Switch-Passenger (KA1)
3	HVAC Control Module
4	Heated Seat Switch-Driver (KA1)
5	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator

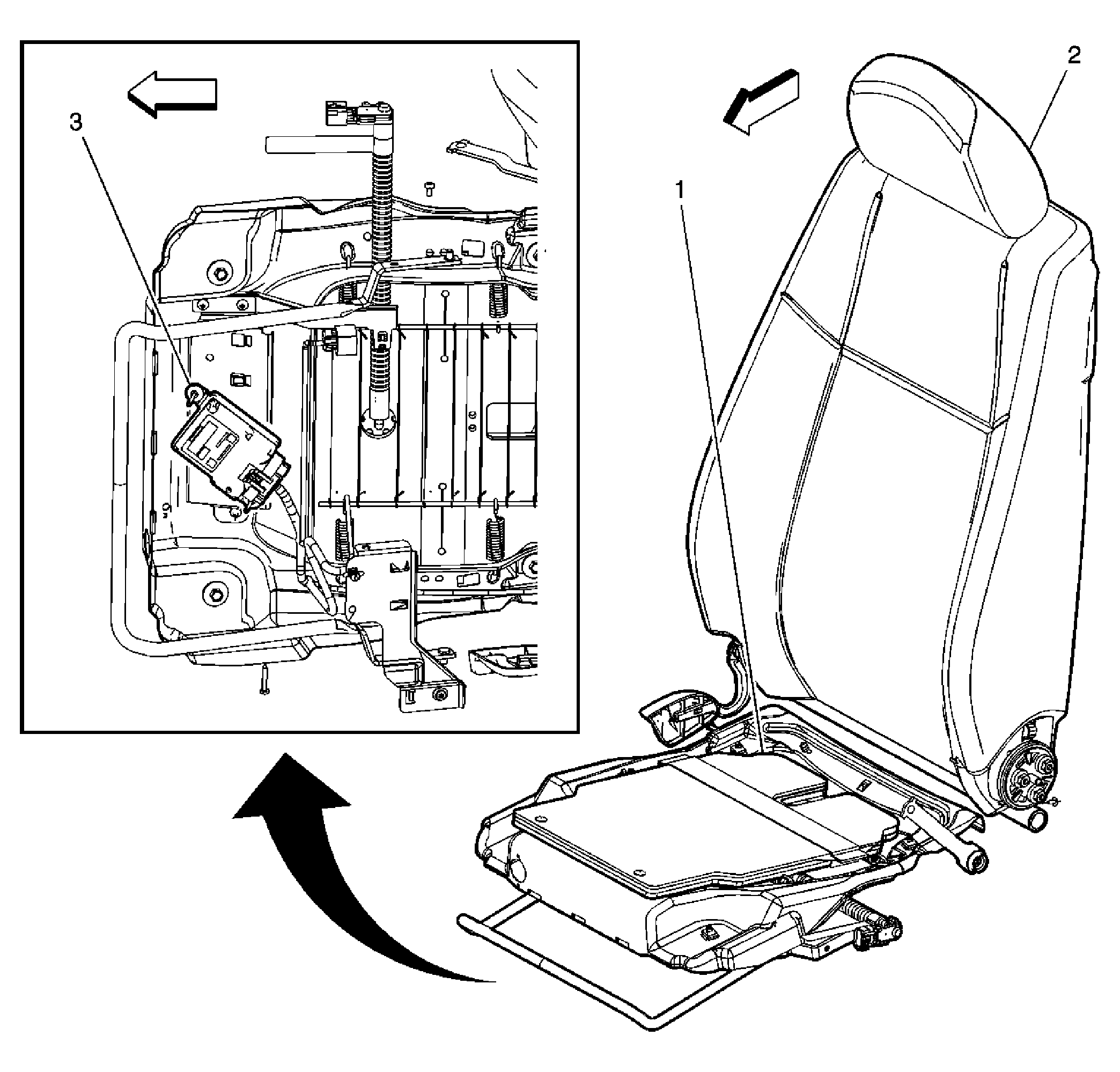

Fig 8: Passenger Presence System (PPS) Components 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	Front Passenger Seat
3	Inflatable Restraint Front Passenger Presence System (PPS) Module

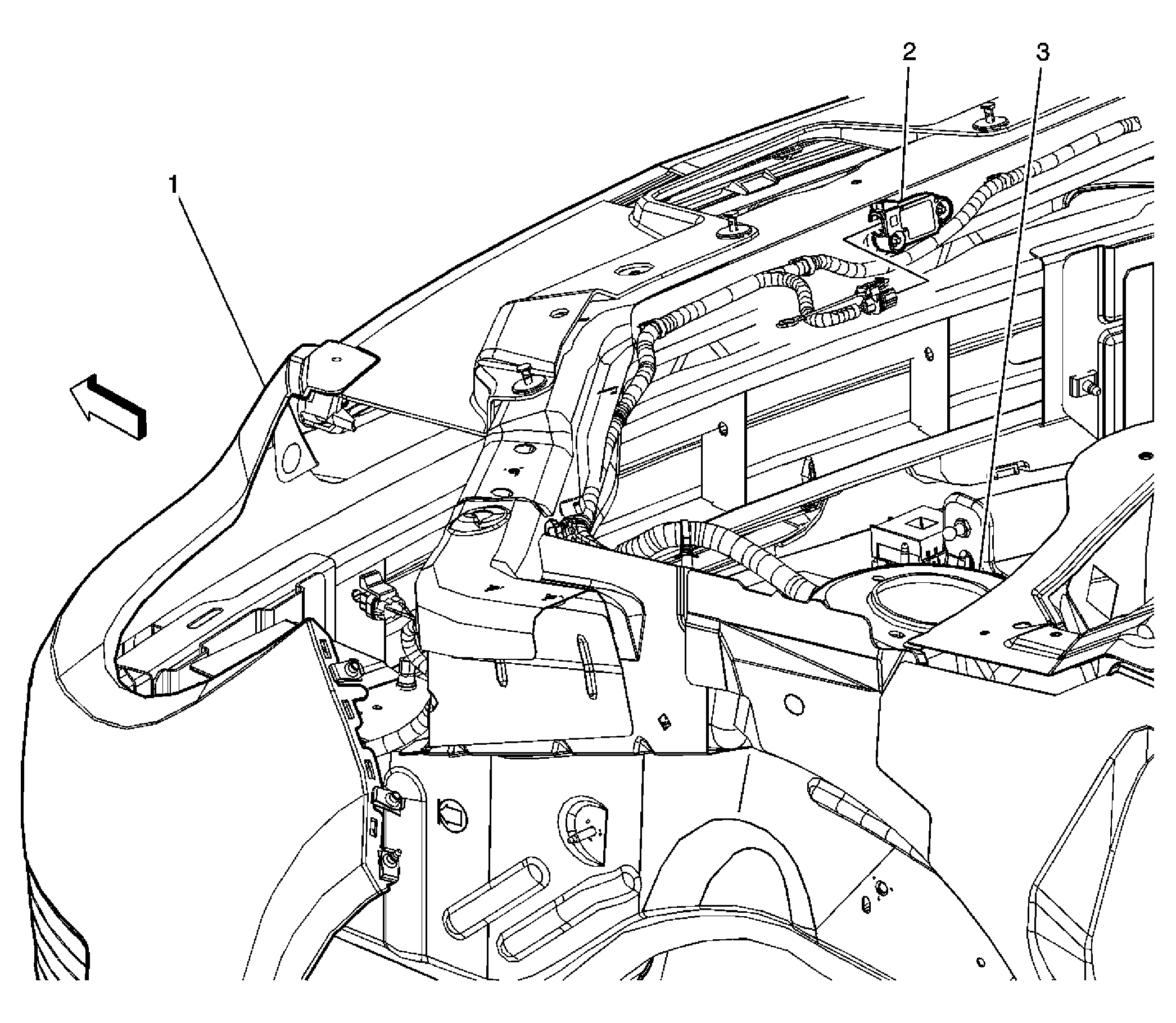

Fig 9: Front End Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Sensor
3	LF Strut Tower
