Inflatable Restraint Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

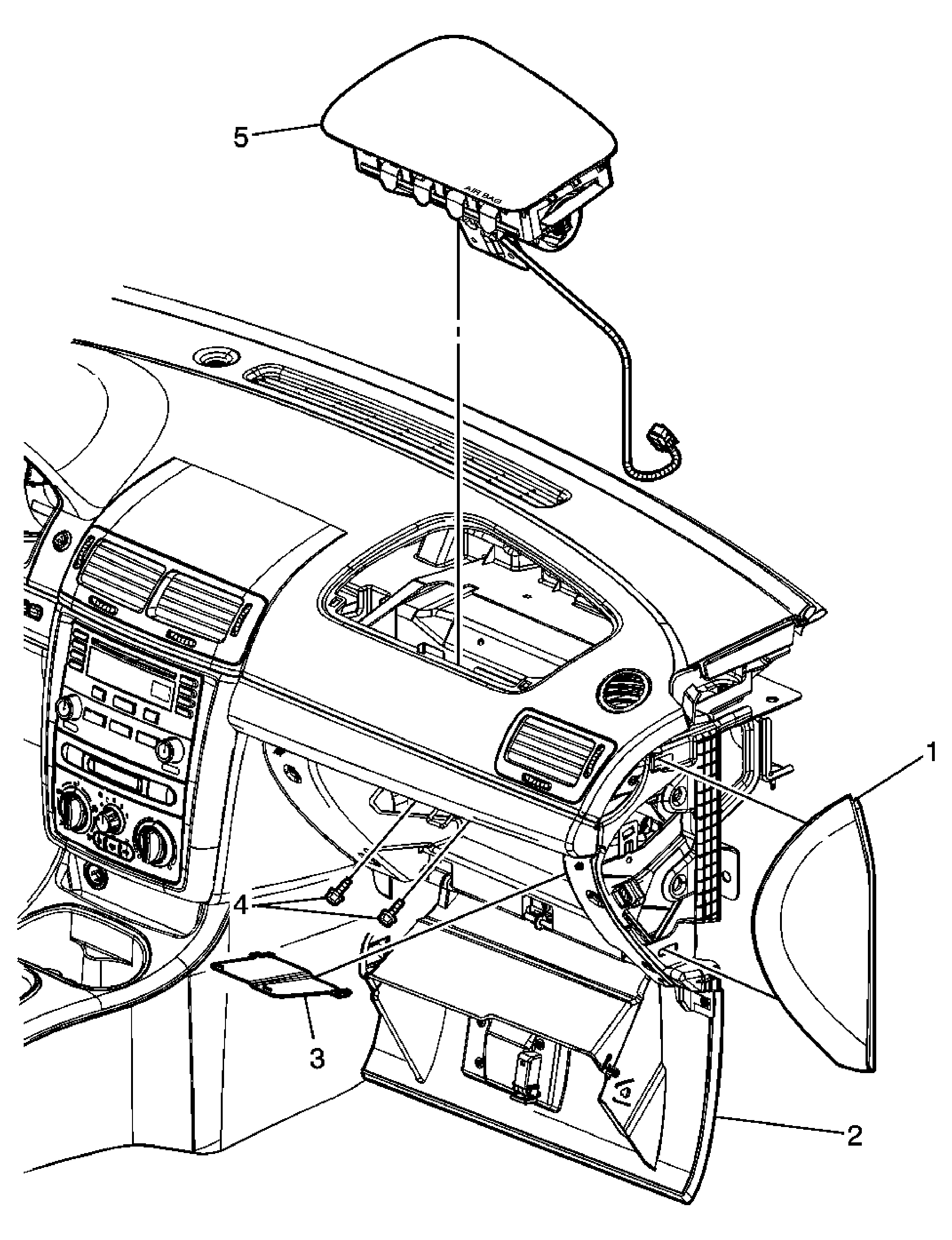

Fig 1: Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . CAUTION: Refer to SIR Caution . Preliminary Procedures: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Instrument Panel Trim Plate
2	Instrument Panel Compartment Assembly Tip: Squeeze the inner compartment sides together in order to lower the door past the down stops.
3	Instrument Panel Compartment Accessory Hole Cover
4	Instrument Panel Inflatable Restraint Module Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
5	Instrument Panel Inflatable Restraint Module Tip: Remove the connector position assurance (CPA) retainer. Disconnect the electrical connector. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required period. Refer to Inflator Module Handling and Scrapping .
