Instrument Panel Inflatable Restraint Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

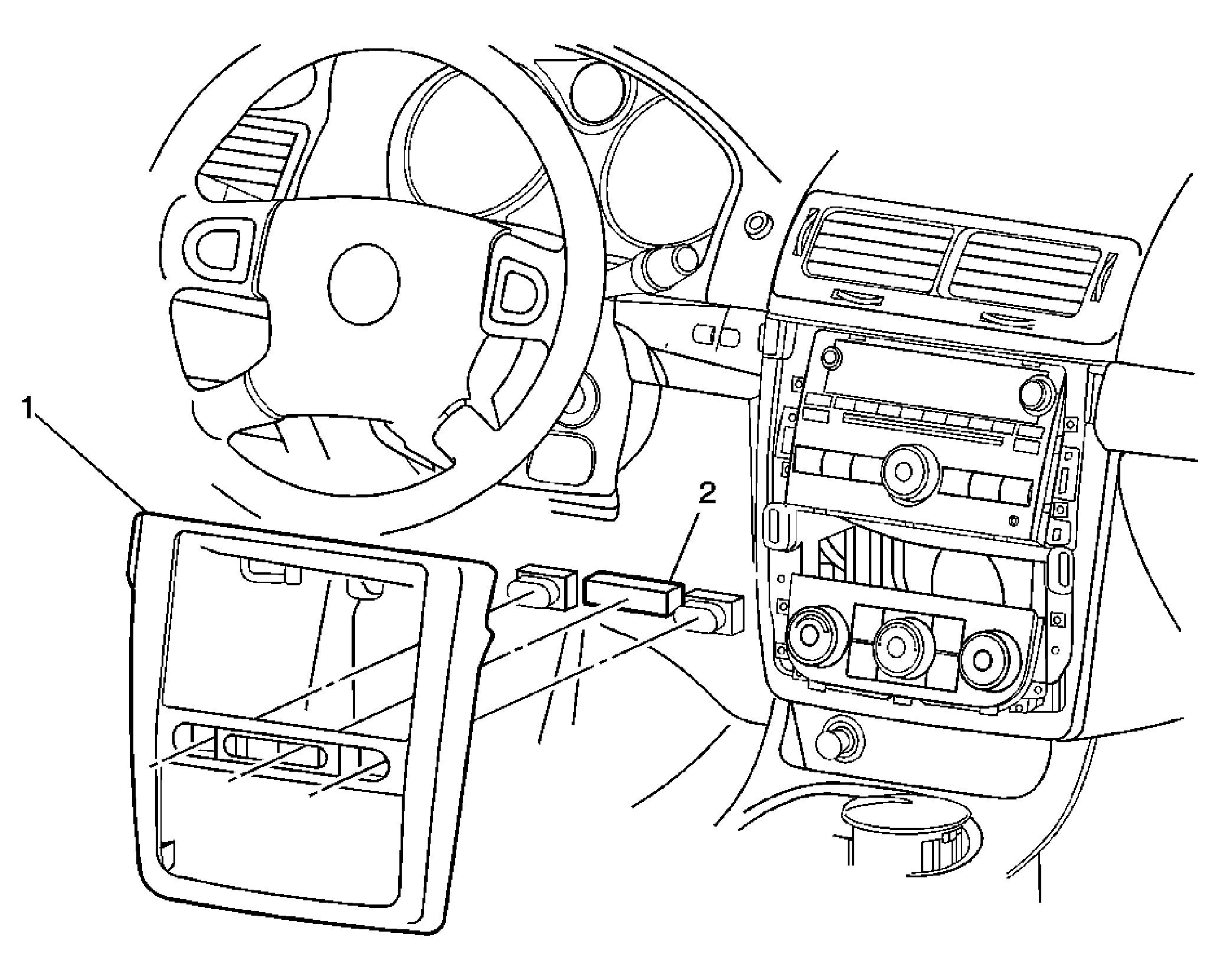

Fig 1: Indicator Replacement - Inflatable Restraint IP Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Center Trim Panel Replacement . Tip: Disconnect the electrical connector.
2	Instrument Panel Inflatable Restraint Indicator Tip: Disconnect the electrical connector.
