Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

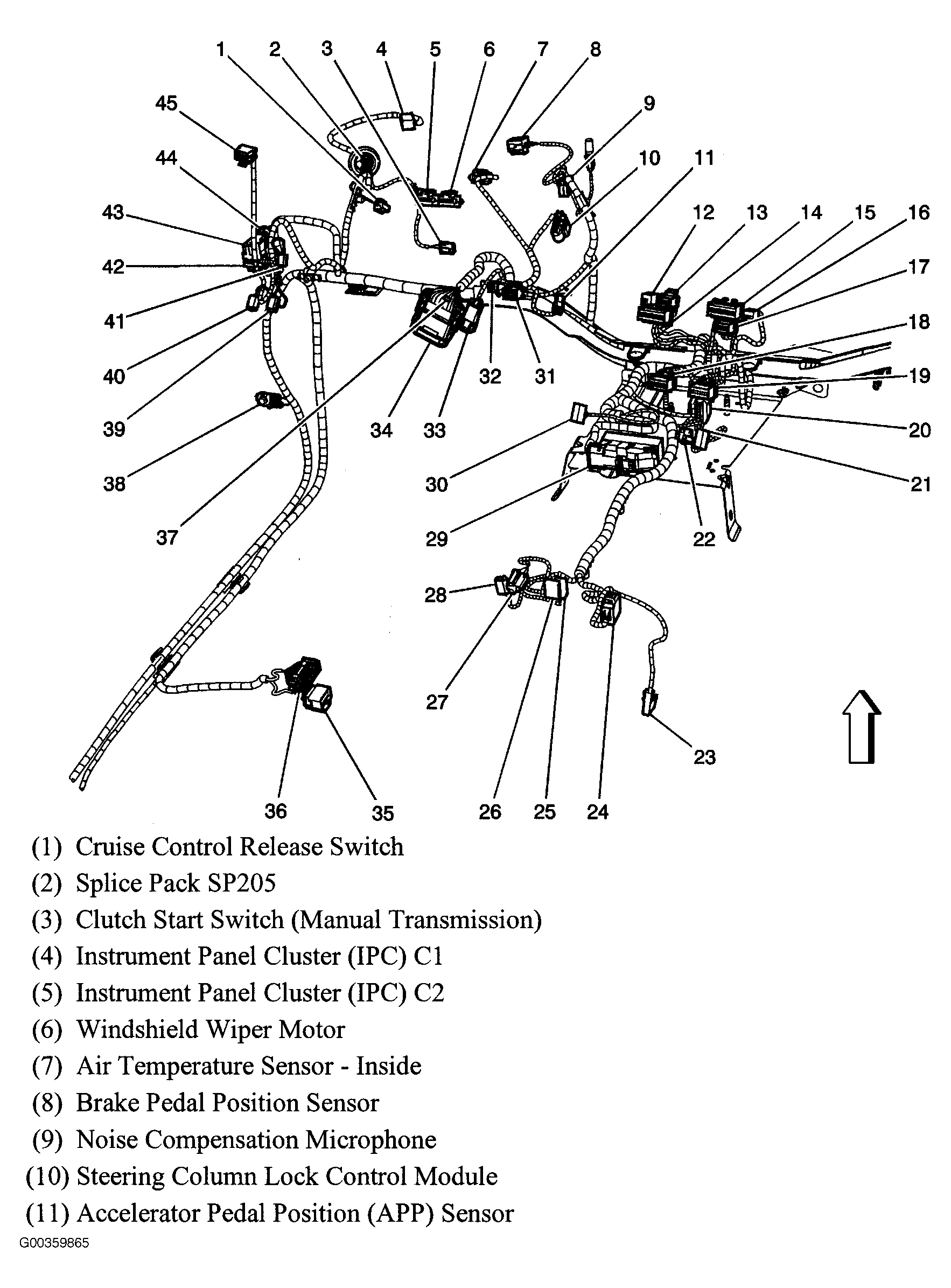

Fig 1: Dash & Console (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

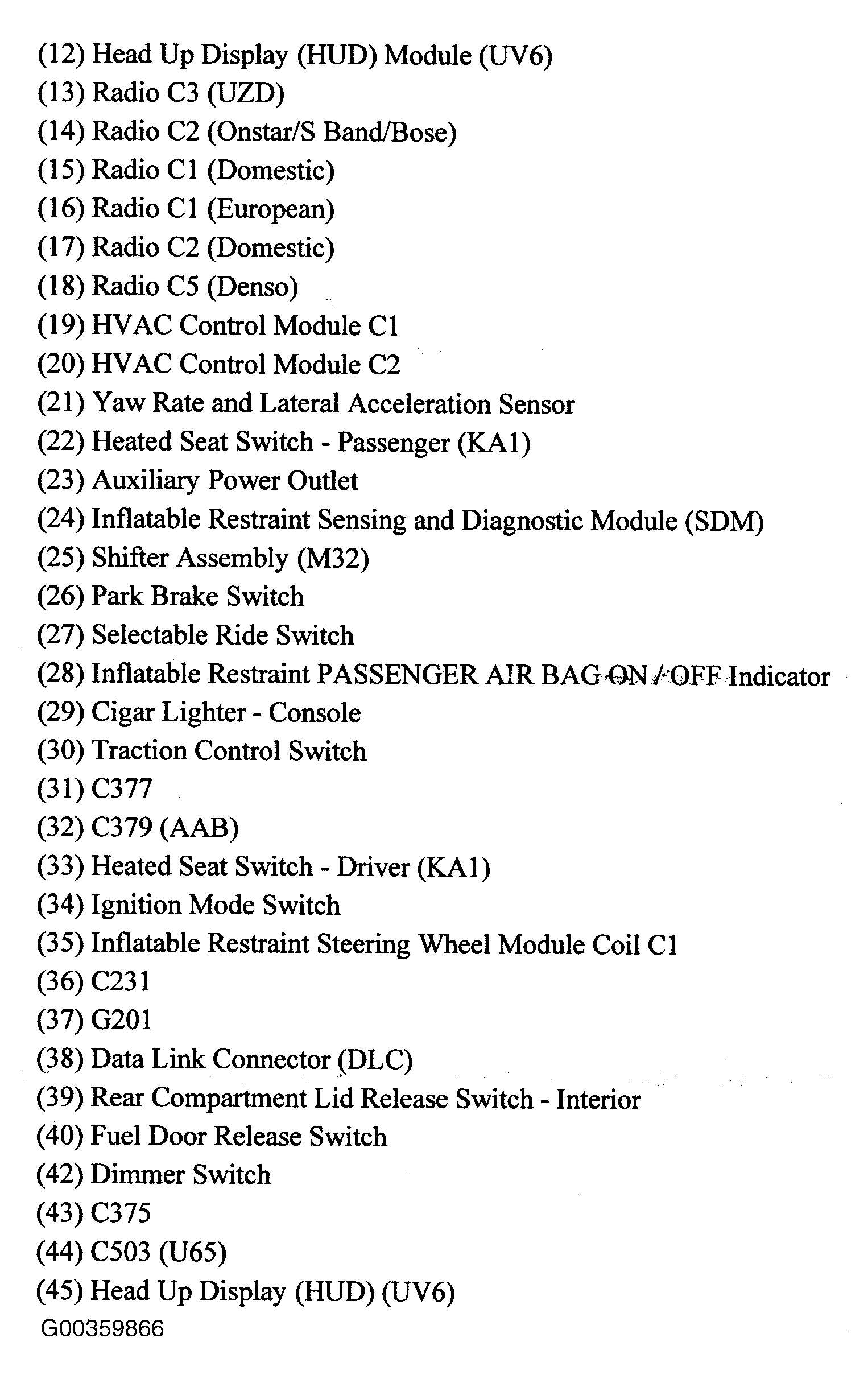

Fig 2: Dash & Console (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: ABS/Brake Component Overview
Courtesy of GENERAL MOTORS CORP.
Fig 4: Wheels
Courtesy of GENERAL MOTORS CORP.

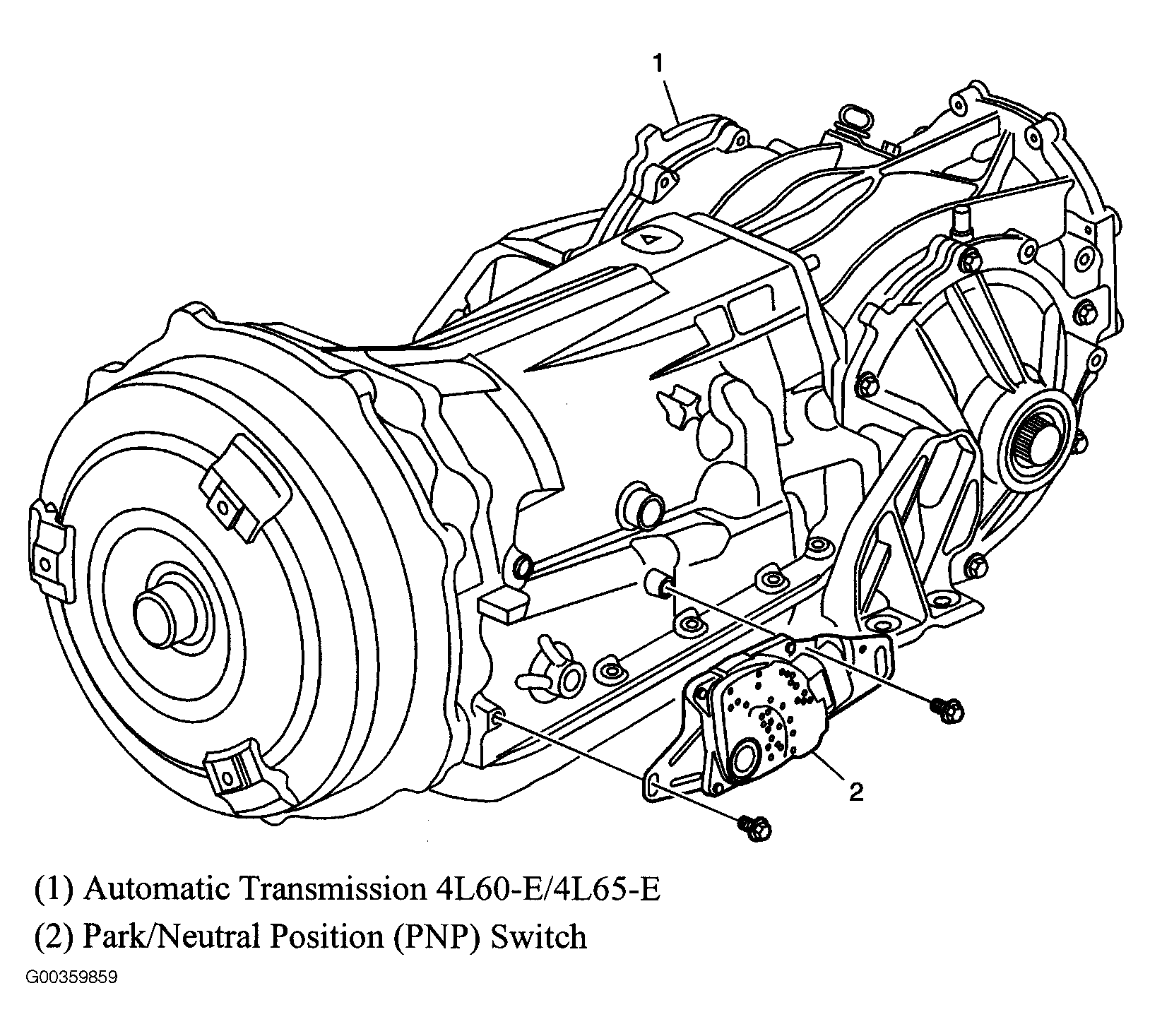

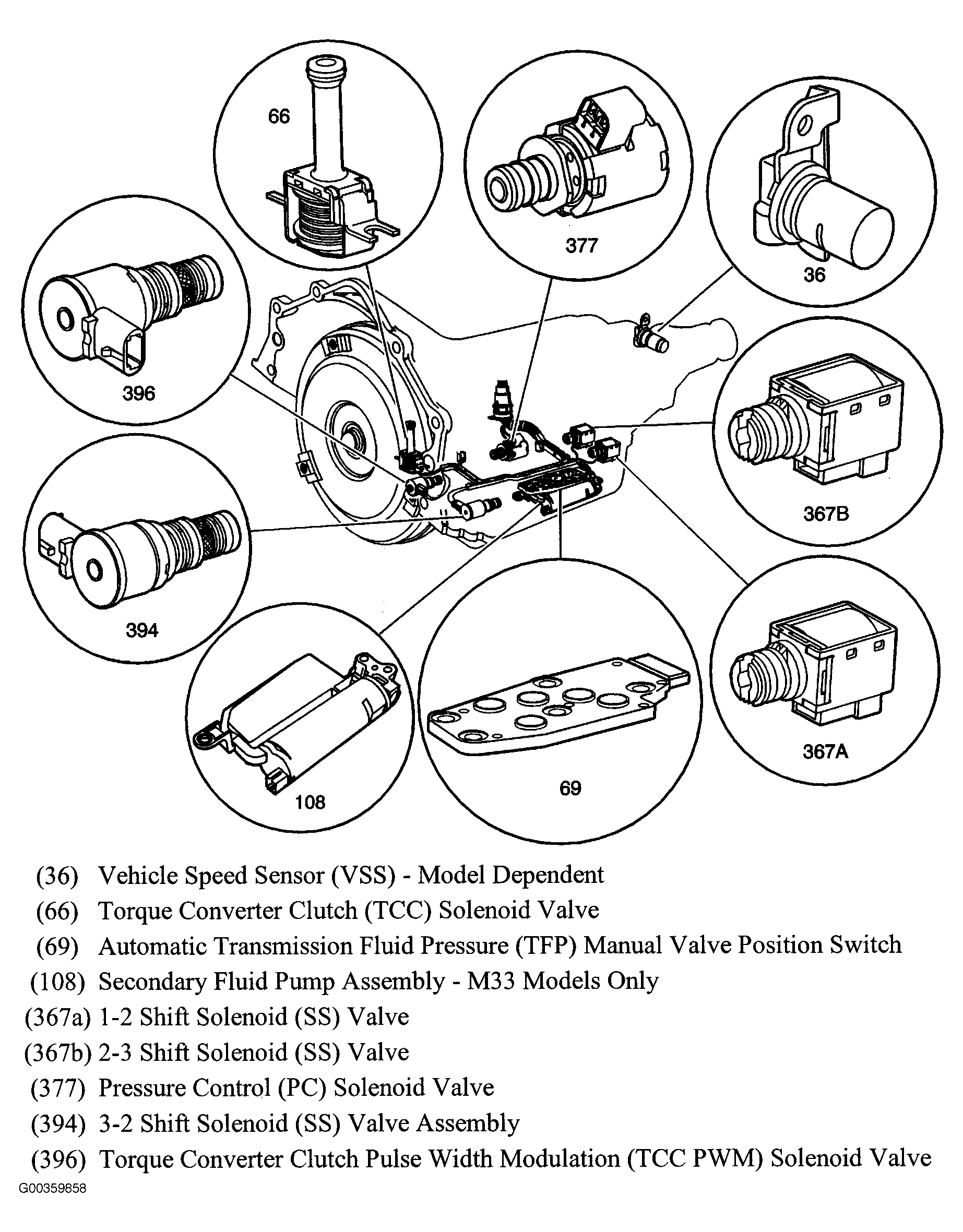

Fig 5: Automatic Transmission Component Overview
Courtesy of GENERAL MOTORS CORP.

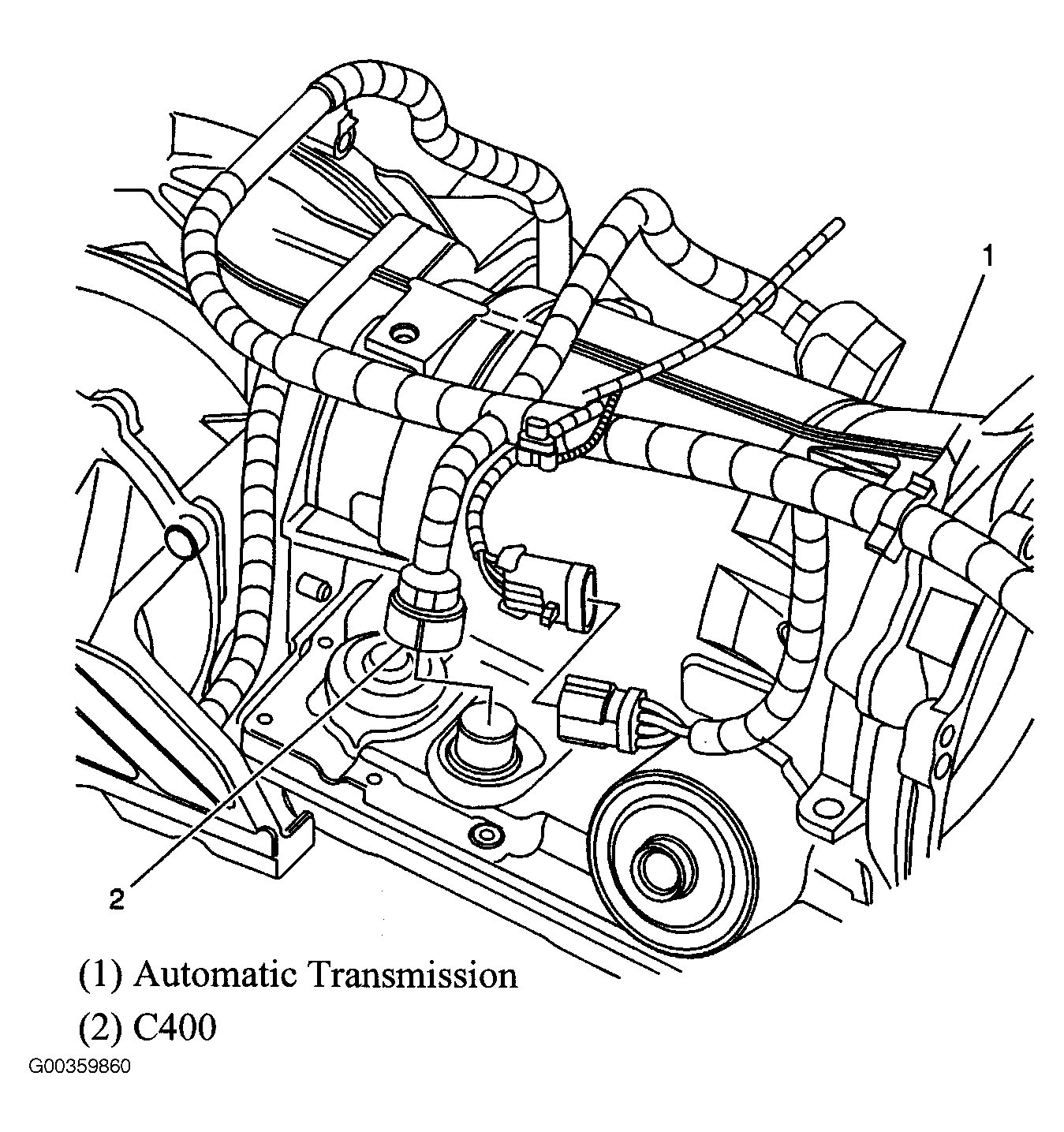

Fig 6: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 7: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

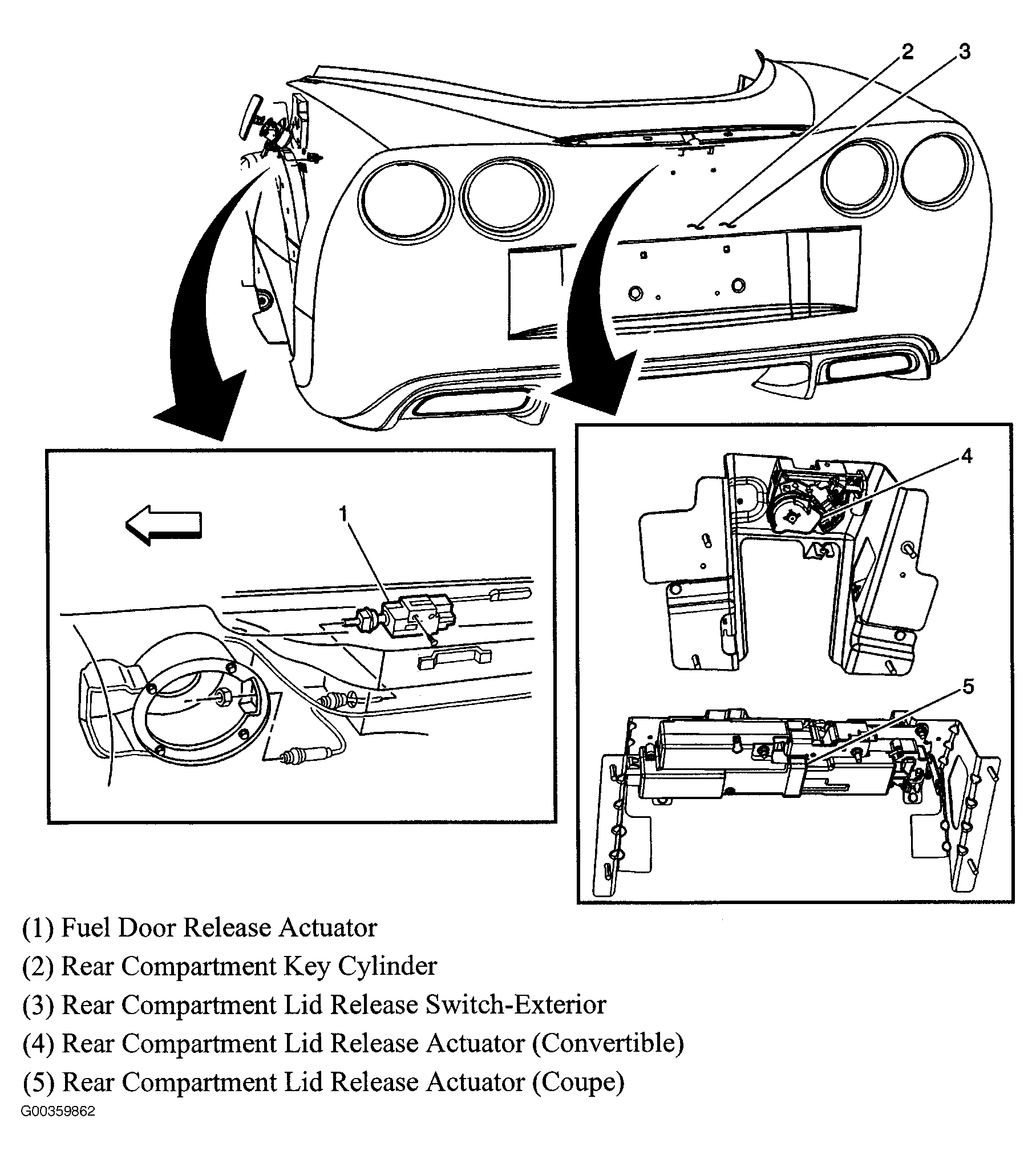

Fig 8: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 9: Cellular Communication Components
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Side Of Dash & Console
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Side Of Dash & Console
Courtesy of GENERAL MOTORS CORP.
Fig 12: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 15: Suspension Components
Courtesy of GENERAL MOTORS CORP.

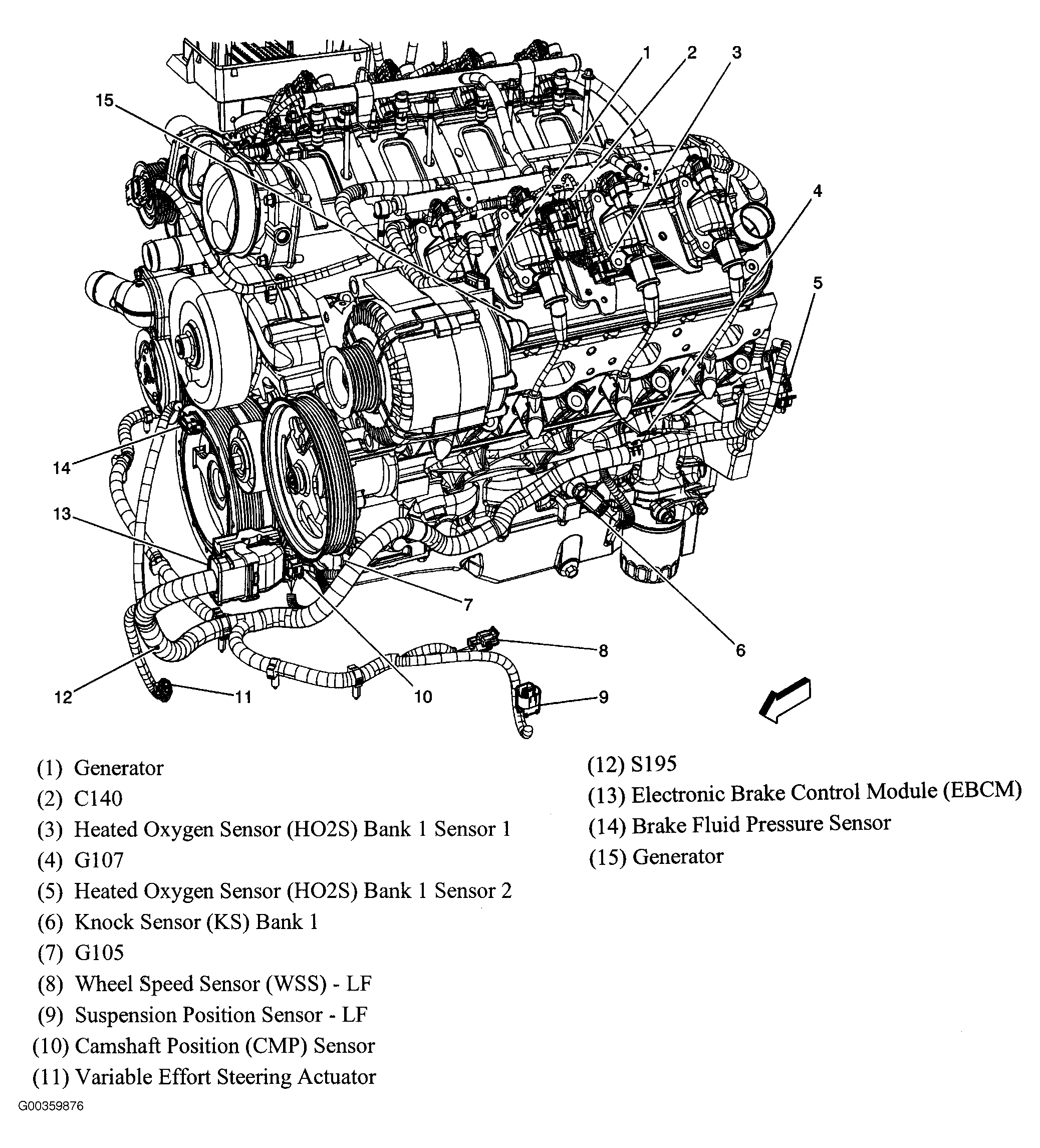

Fig 16: Right Side Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

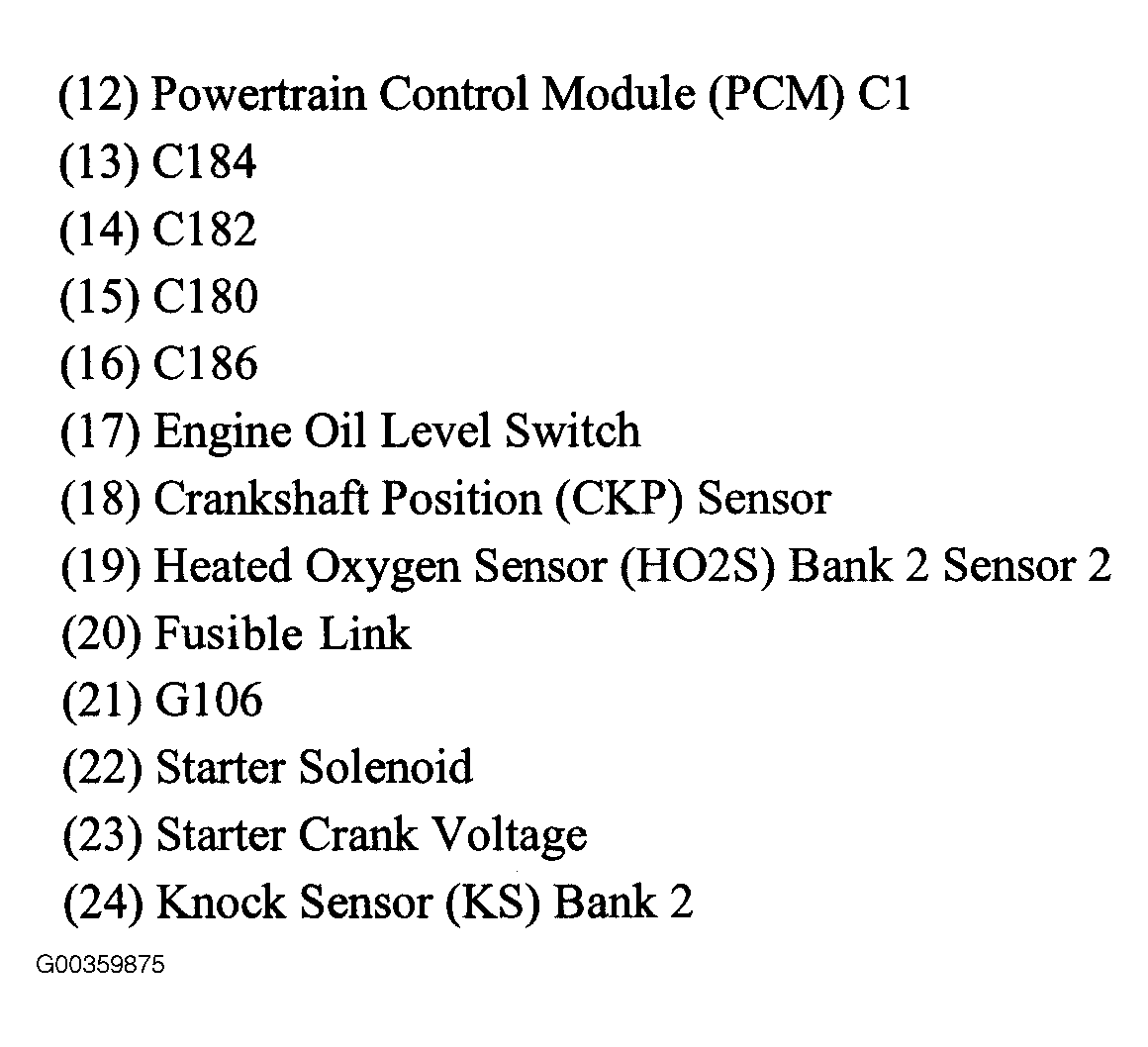

Fig 17: Right Side Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 19: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

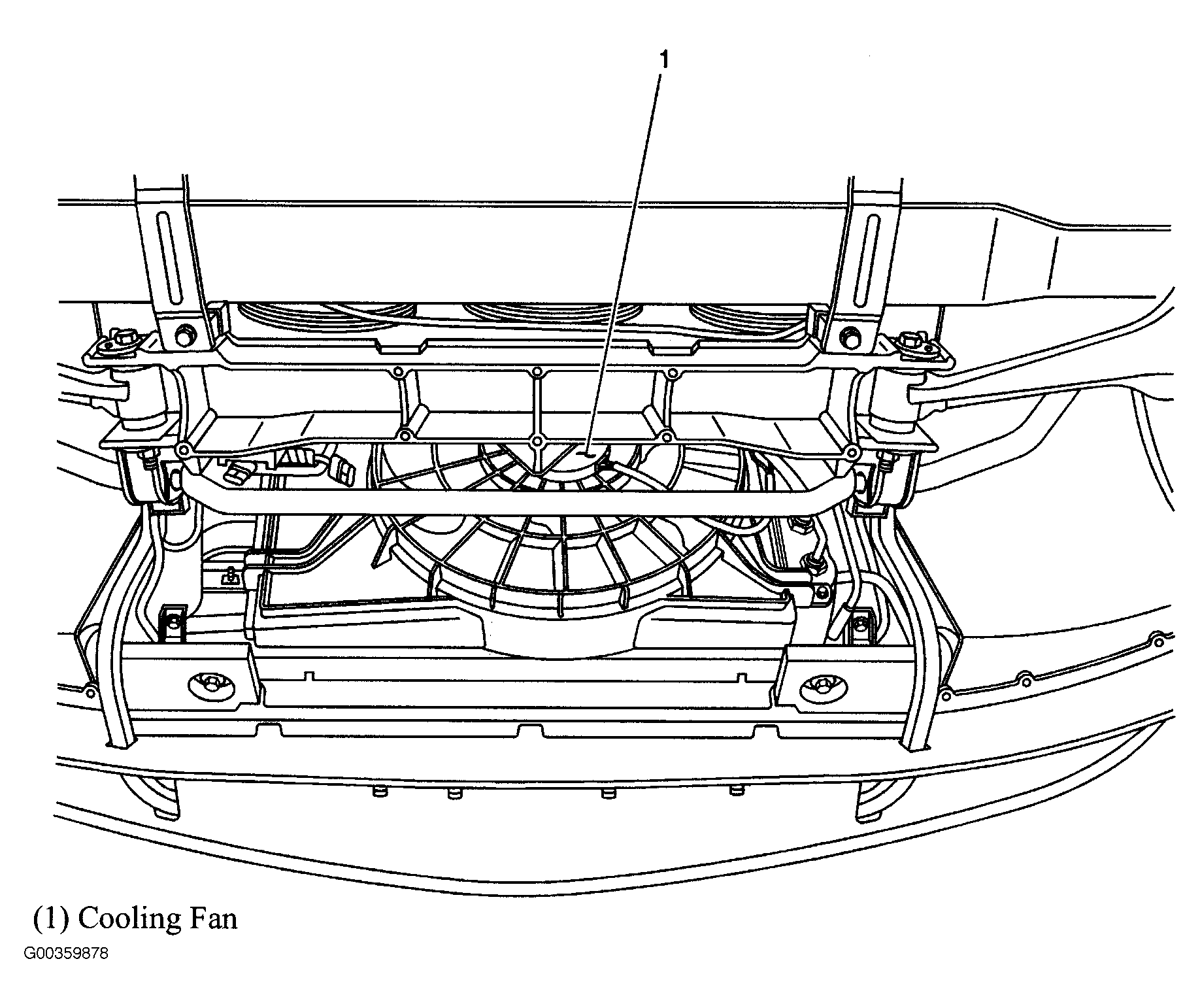

Fig 20: Behind Radiator
Courtesy of GENERAL MOTORS CORP.
Fig 21: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 22: HVAC
Courtesy of GENERAL MOTORS CORP.

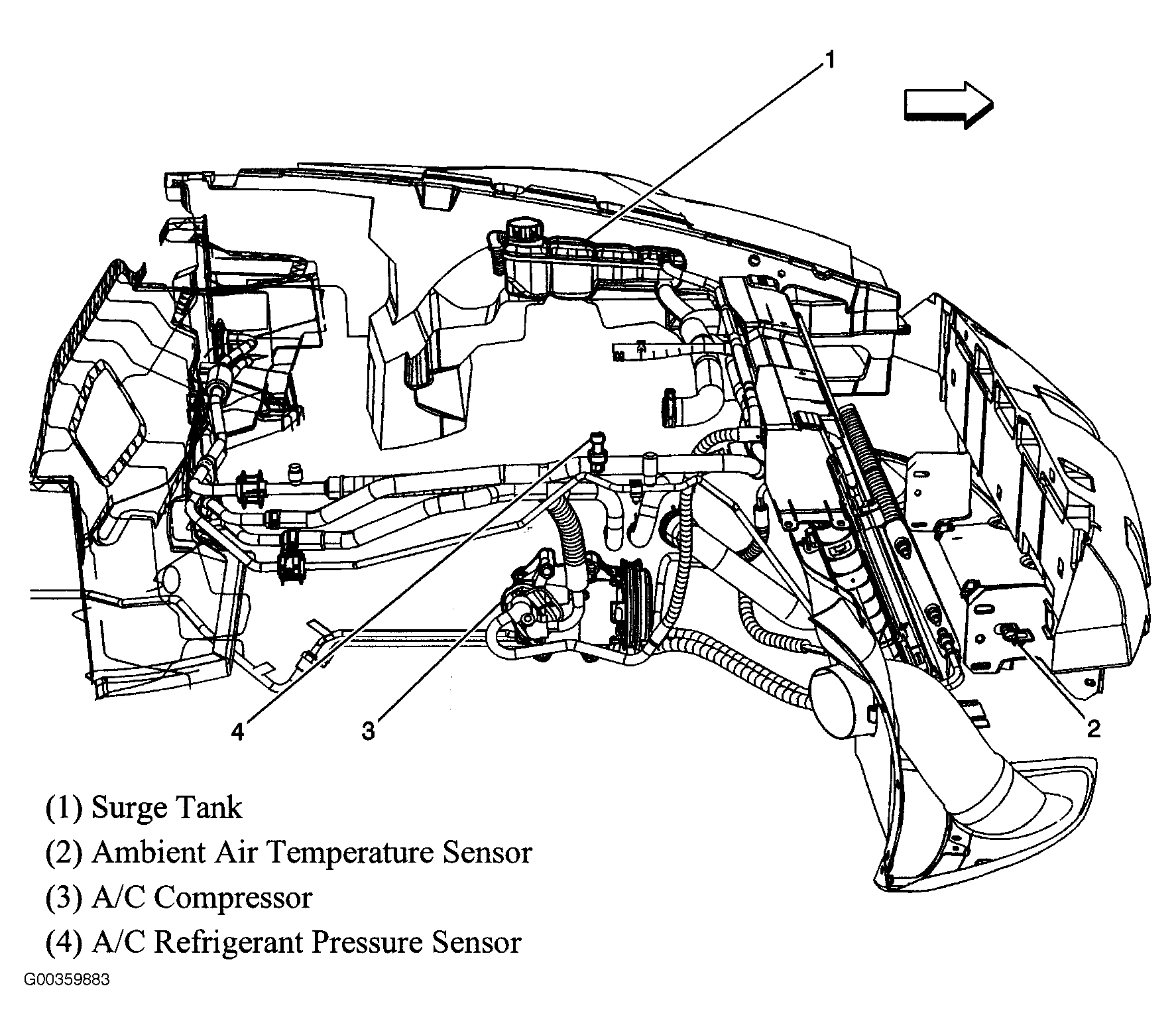

Fig 23: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

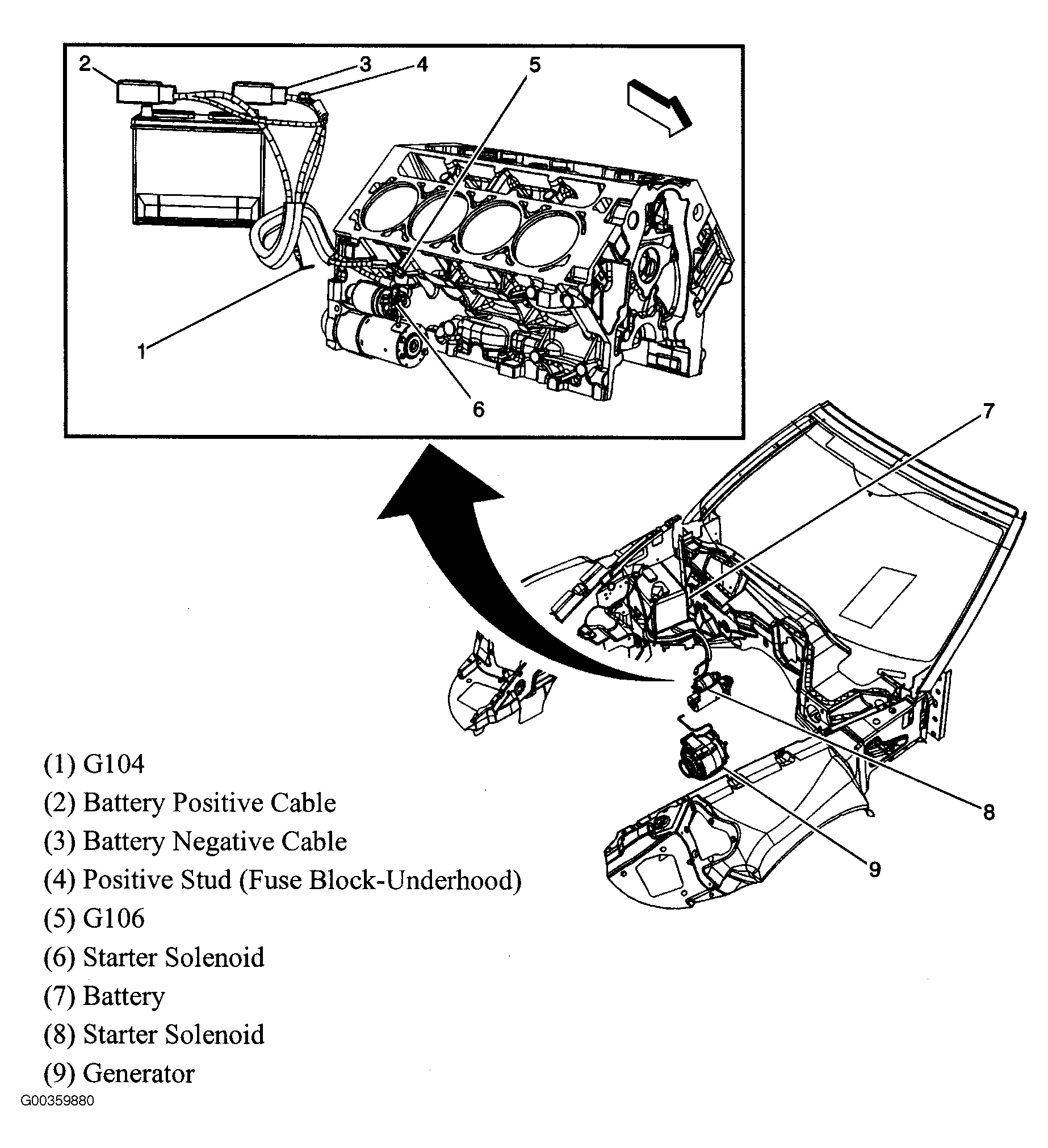

Fig 24: Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

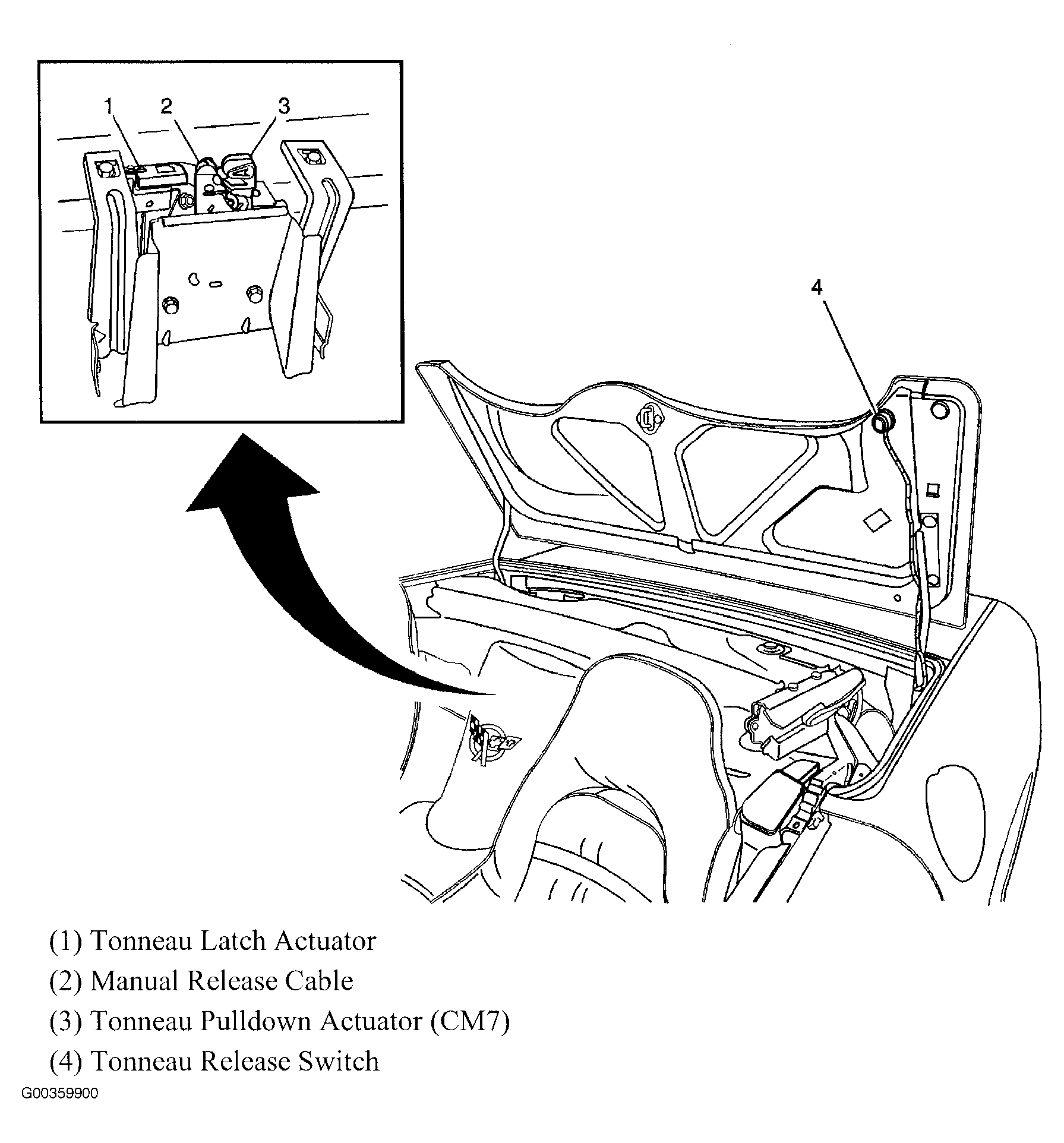

Fig 28: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

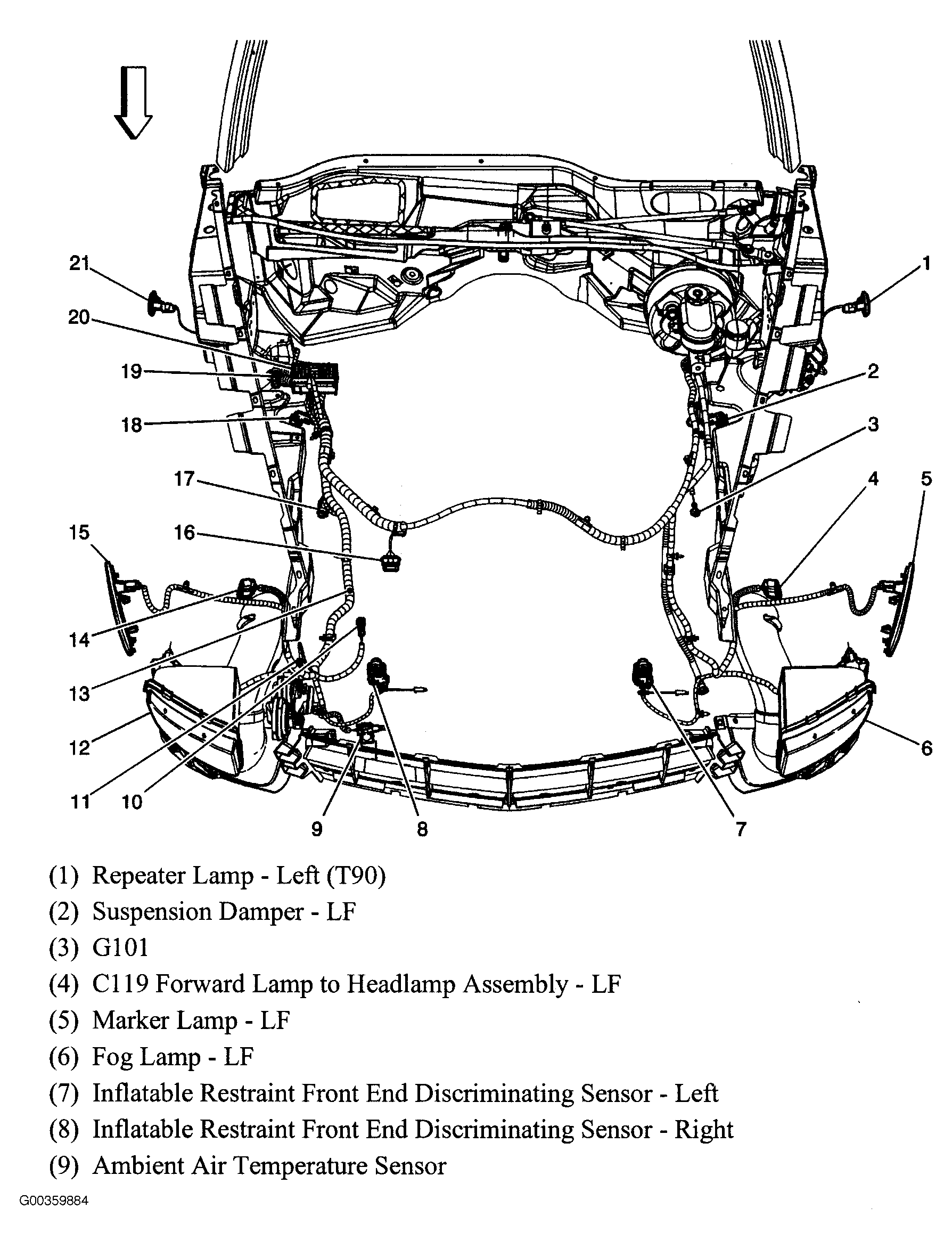

Fig 29: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

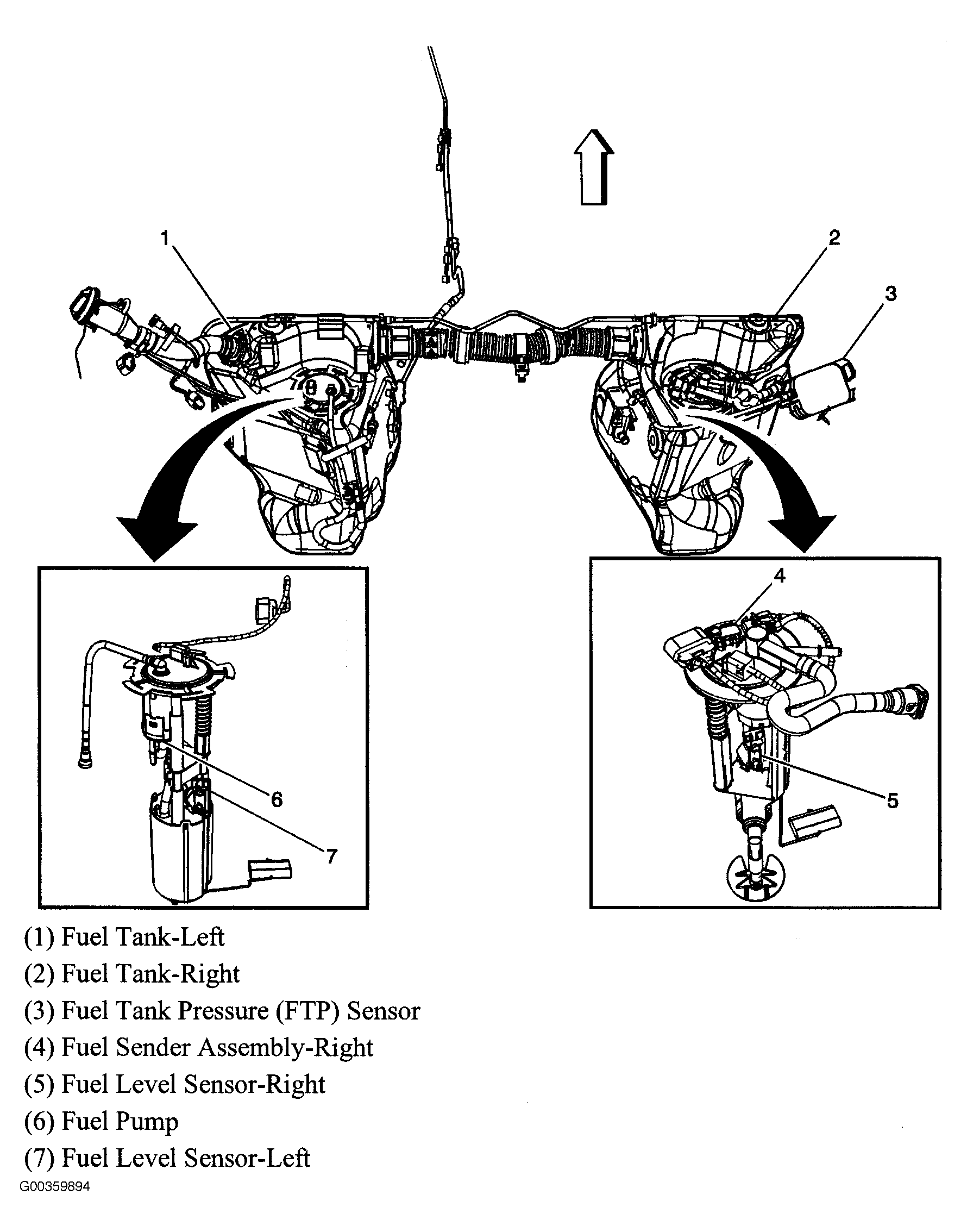

Fig 30: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 31: Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 34: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

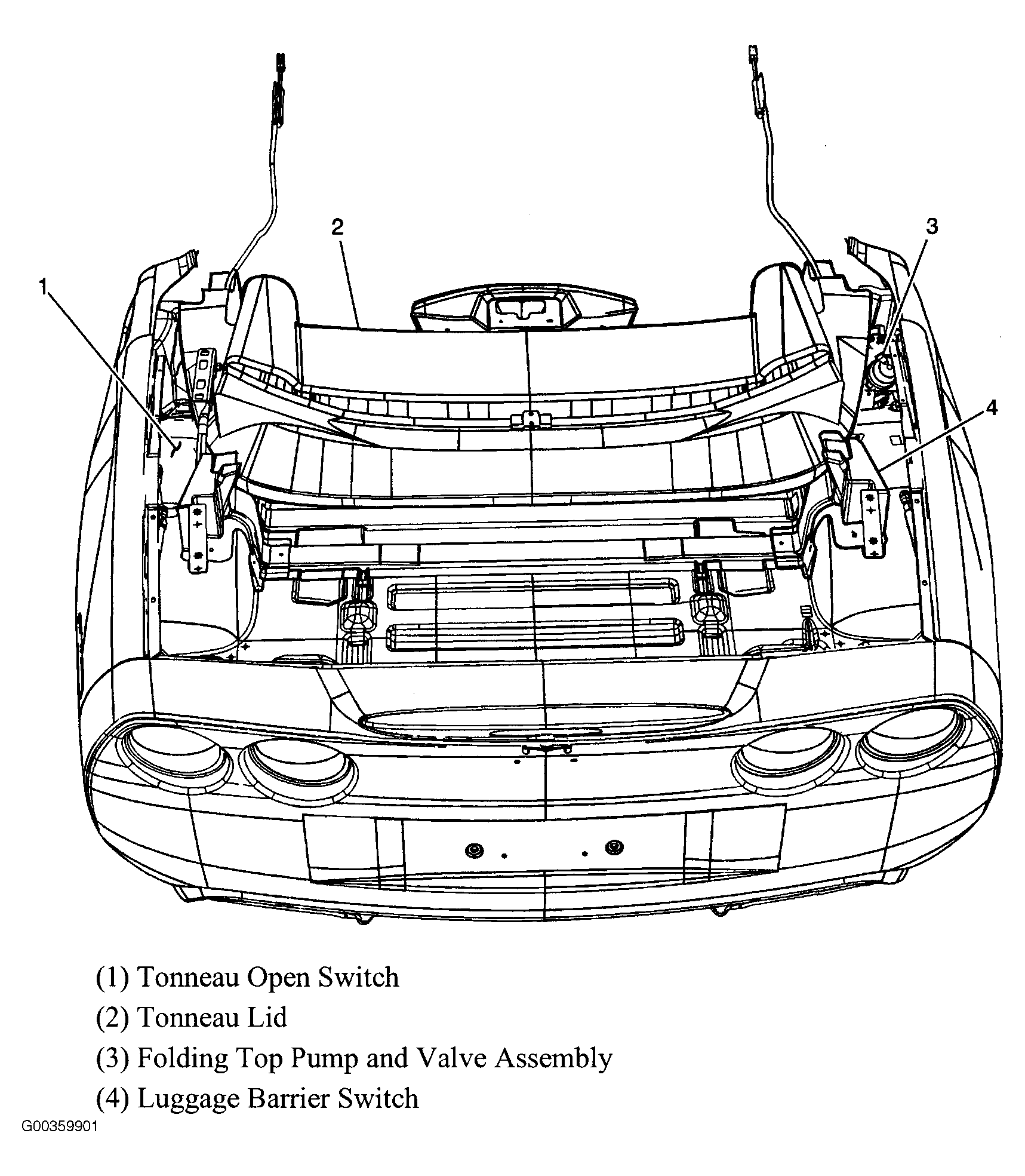

Fig 35: Folding Top Components
Courtesy of GENERAL MOTORS CORP.
Fig 36: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 37: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 38: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Behind Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 40: Floor Shifter
Courtesy of GENERAL MOTORS CORP.
Fig 41: Steering Components
Courtesy of GENERAL MOTORS CORP.
Fig 42: Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 43: Wiper Washer Components
Courtesy of GENERAL MOTORS CORP.
Fig 44: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 46: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Upper Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Under Vehicle - Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 50: Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 51: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.

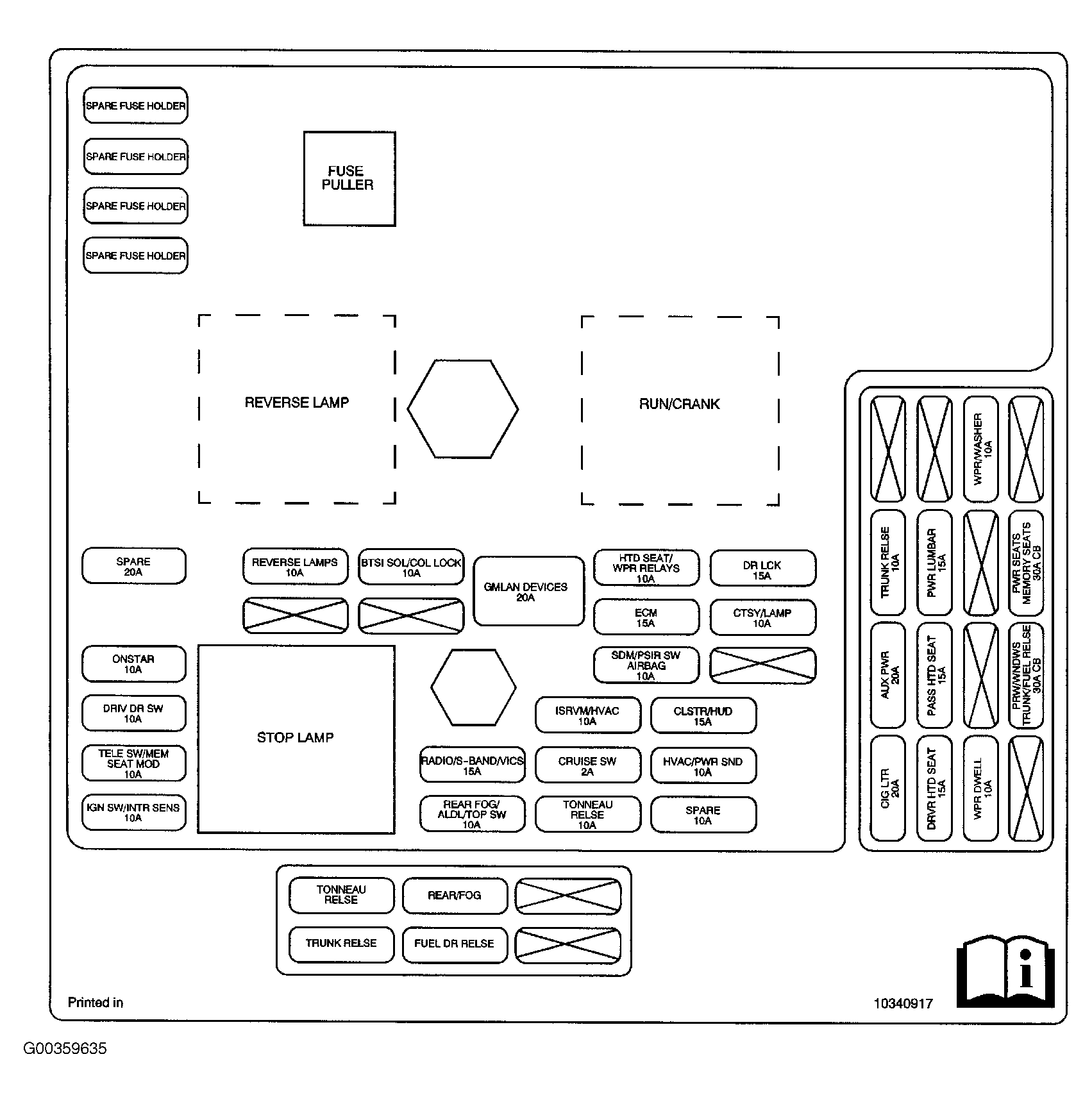

Fig 52: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

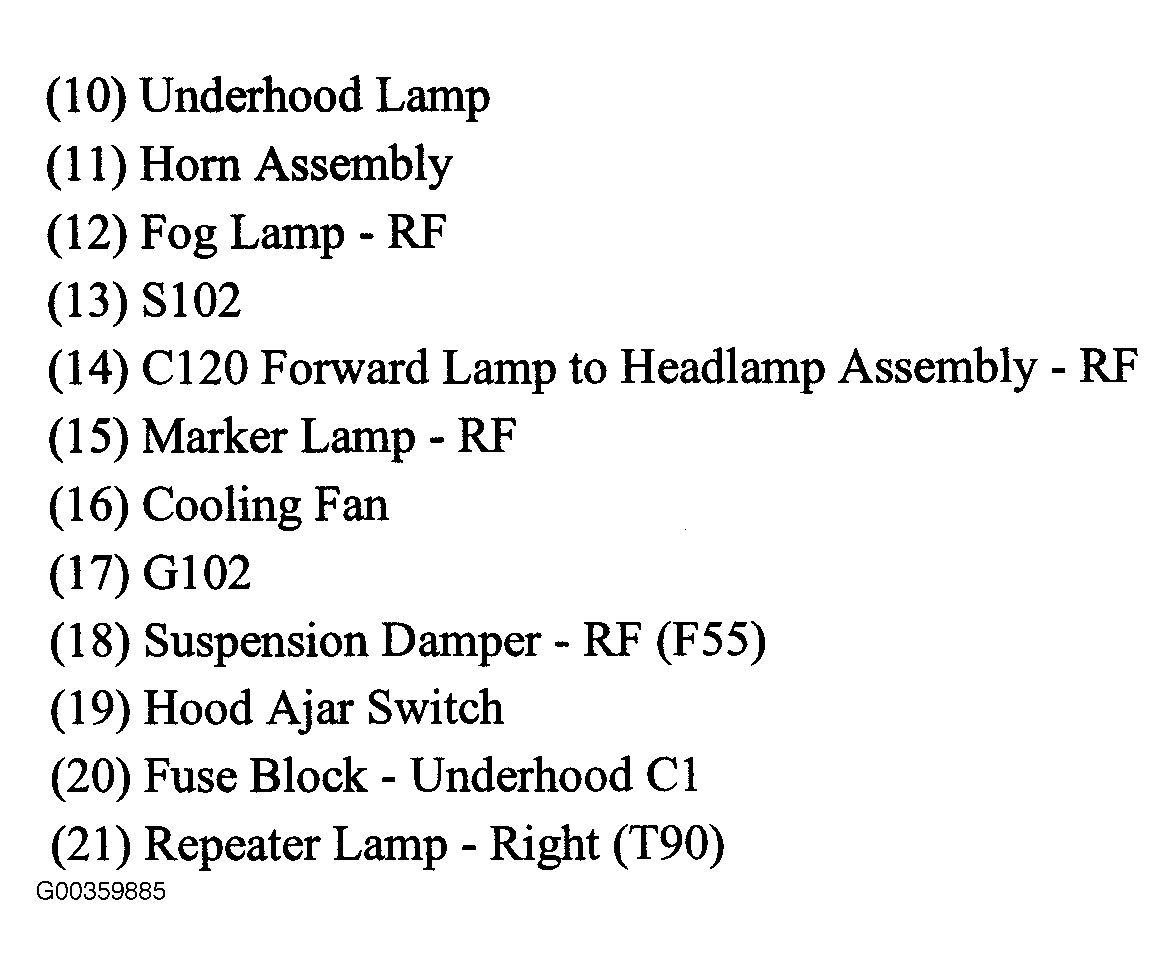

Fig 53: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
