Installation Procedure

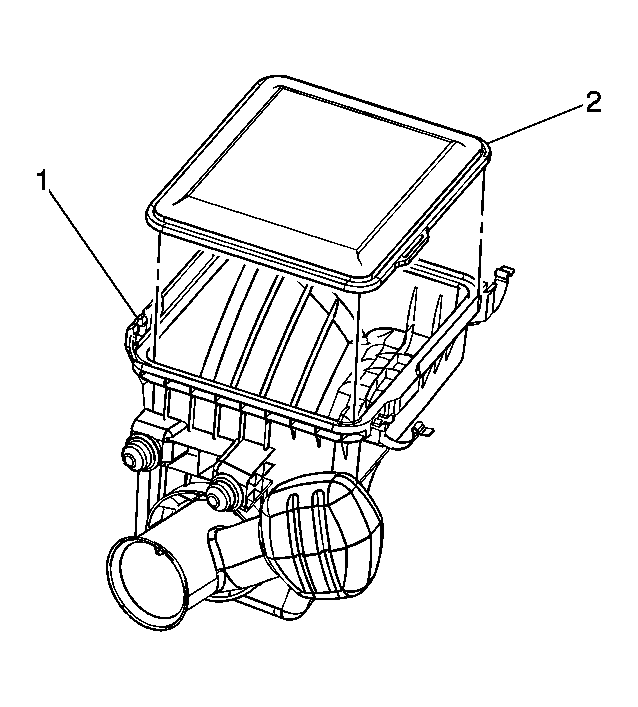

    Fig 1: View Of Air Cleaner Element
    GM1421117Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element (2) into the lower housing (1).

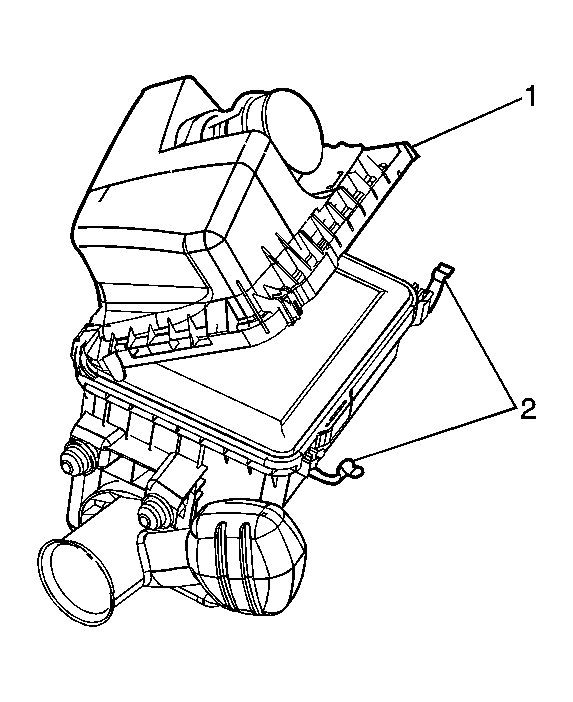

    2. Fig 2: Removing/Installing Air Cleaner Assembly Lid
    GM1421116Courtesy of GENERAL MOTORS CORP.
  2. Install the air cleaner assembly lid (1) by first engaging the hinge then lower the cover into the closed position.
  3. Fasten the clamps (2) on the side of the air cleaner assembly.
    4. Fig 3: View Of MAF Sensor Electrical Connector
    GM1325638Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAF sensor electrical connector.
  5. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
