Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the throttle body studs if previously removed.

    Tighten:  Tighten the throttle body stud to 6 N.m (53 lb in).

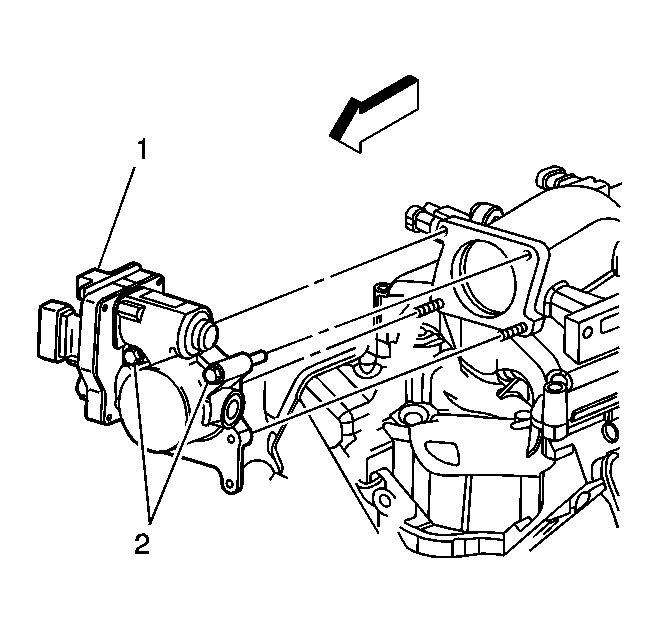

    2. Fig 1: View Of Throttle Body & Bolts
    GM1087819Courtesy of GENERAL MOTORS CORP.
  2. Install the throttle body (1) to the intake manifold
  3. Install the throttle body bolts.

    Tighten:  Tighten the throttle body-to-intake manifold bolts to 10 N.m (89 lb in).

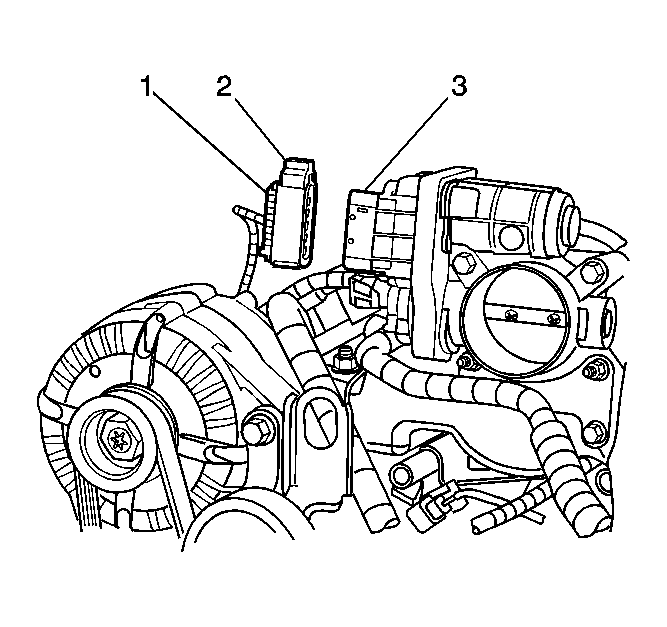

    4. Fig 2: View Of TAC Module, Electrical Connector & Connector Lock
    GM1317314Courtesy of GENERAL MOTORS CORP.
  4. Connect the TAC module electrical connector (1) to the TAC module (3) then press down the connector lock (2) in order to secure the TAC module electrical connector.
  5. Install the heater outlet pipe. Refer to Heater Pipe Replacement - Outlet in Engine Cooling.
  6. Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
