Trim Height Specifications

Trim Height Specifications

Application	Specification
Application	Metric	English
Front Curb Bumper Height (A)	412 mm +/- 25 mm	16.22 in +/- 0.98 in
Rear Curb Bumper Height (B)	429 mm +/- 25 mm	16.89 in +/- 0.98 in
Front Body Height (J)	255 mm +/- 15 mm	10.04 in +/- 0.59 in
Rear Body Height (K)	271 mm +/- 15 mm	10.67 in +/- 0.59 in
Front Suspension Height (Z)	16 mm +/- 10 mm	0.63 in +/- 0.39 in
Rear Suspension Height (D)	10 mm +/- 10 mm	0.39 in +/- 0.39 in
The front curb height A (represented as (a) on the figure) is measured at a distance (c) 362 mm (14.25 in) from the center line of the vehicle. The rear curb height B (represented as (b) on the figure) is measured at a distance (d) 362 mm (14.25 in) from the center line of the vehicle. The front body height J (J) is measured at a distance (a) 445 mm (17.5 in) rearward from the center line of the front wheel. The rear body height K (K) is measured at a distance (a) 447 mm (17.6 in) in front of the center line of the rear wheel. The rear suspension D Height is the difference (D=a-b) measured as a horizontal line thru the center of the cradle attachment bolt (a) and the center of the knuckle attachment bolt (b). ***All measurements are taken with a full tank of gas.

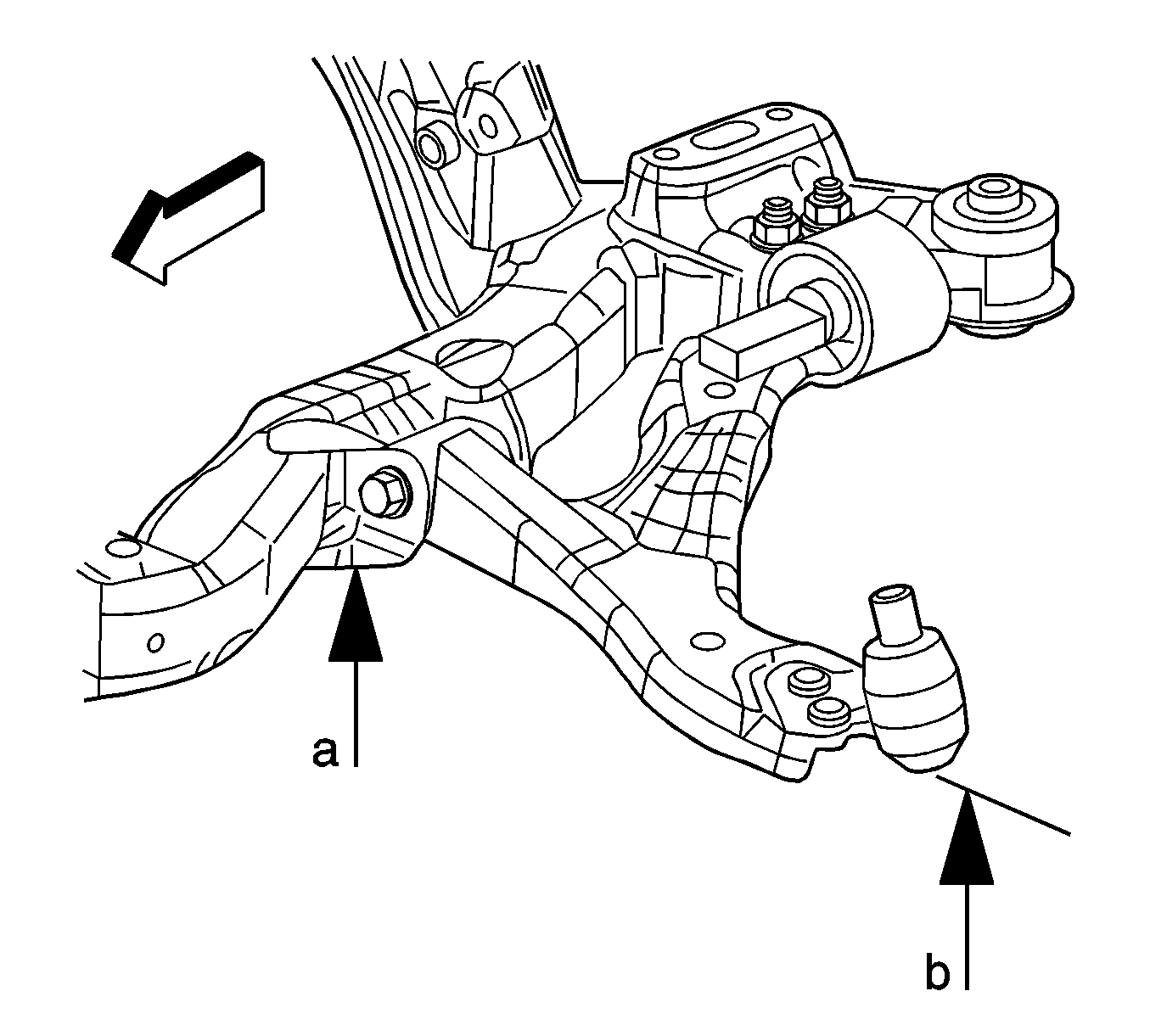

Fig 1: Measuring Z Height

GM1616905

Courtesy of GENERAL MOTORS CORP.

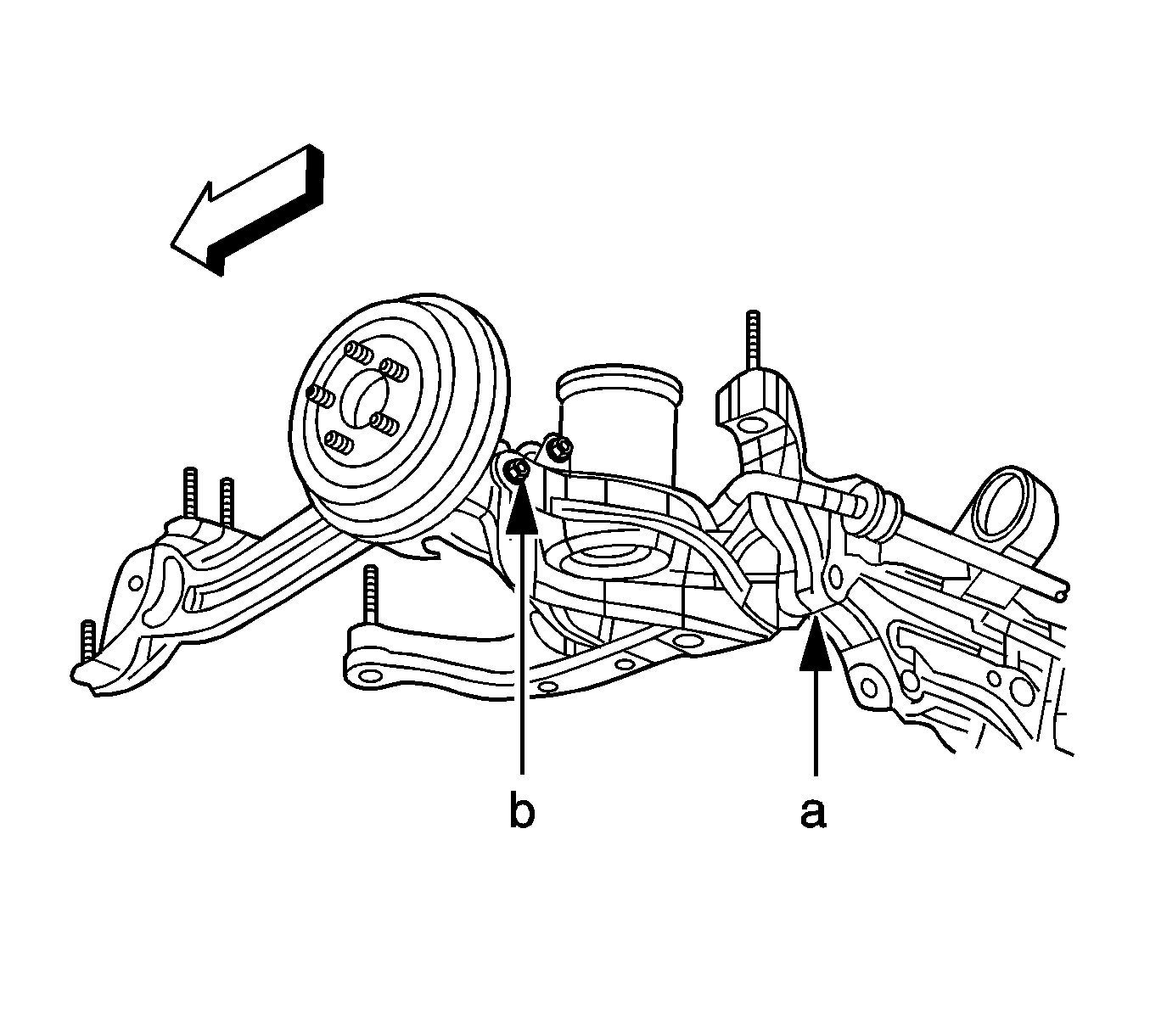

Fig 2: Measuring D Height

GM1616908

Courtesy of GENERAL MOTORS CORP.

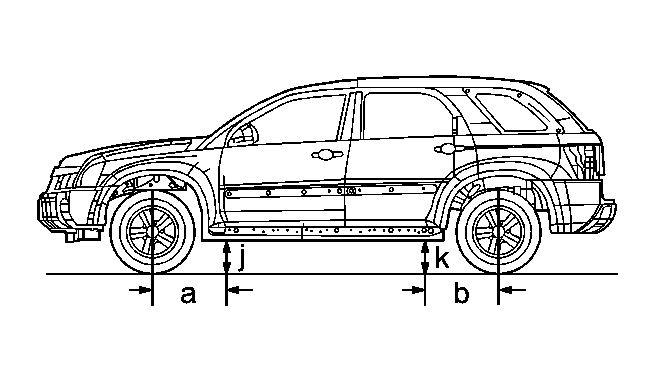

Fig 3: Measuring J Or K Height

GM1616909

Courtesy of GENERAL MOTORS CORP.

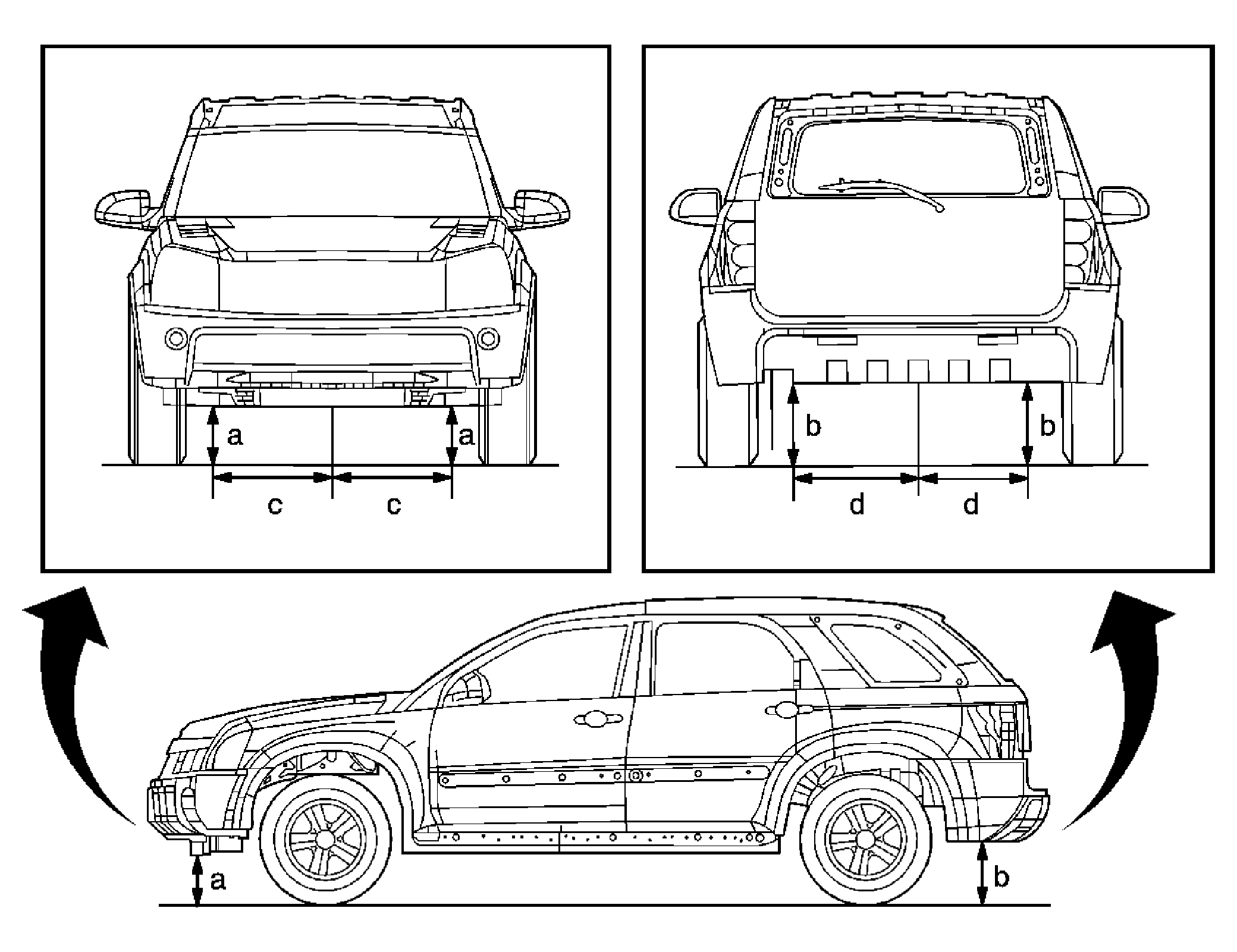

Fig 4: Measuring A Or B Height

GM1616911

Courtesy of GENERAL MOTORS CORP.
