Home >> Chevrolet >> 2005 >> Optra5 Base, Automatic >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Wheel And Column >> Repair Instructions >> Steering Wheel Control Switch Assembly Replacement >> Installation Procedure

Installation Procedure

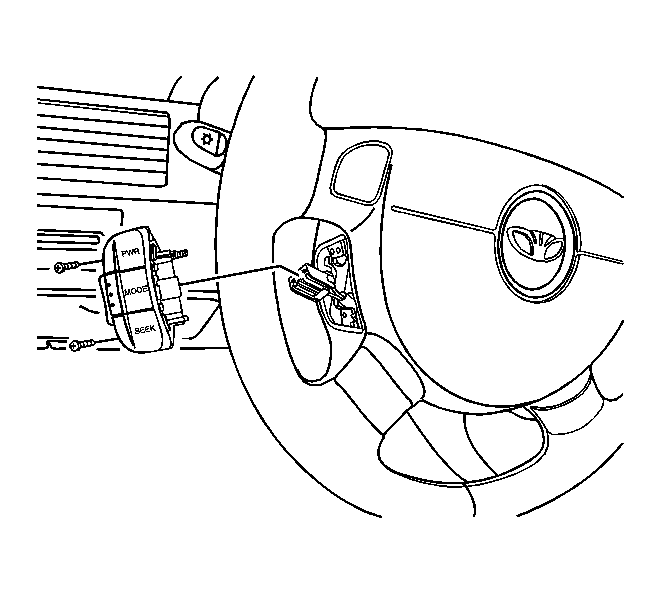

    Fig 1: View Of Steering Wheel Control Switch Assembly
    GM1308874Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the audio remote controller with the screws.
  2. Connect the negative battery cable.
