Installation Procedure

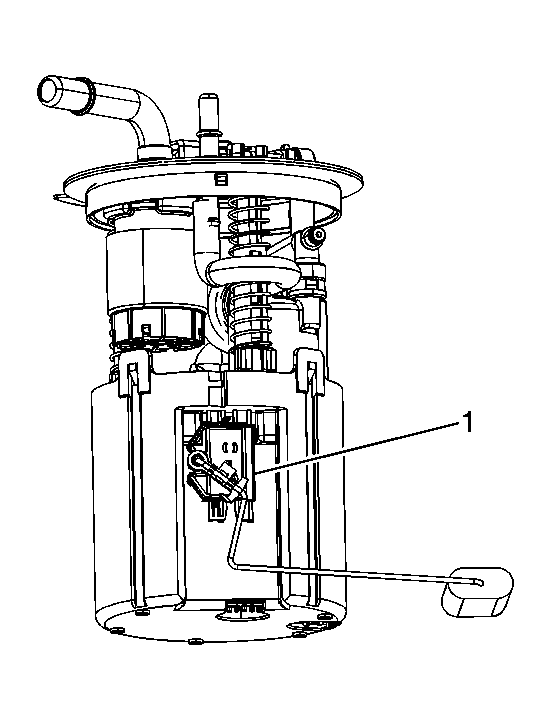

    Fig 1: Locating Fuel Level Sensor
    GM1474427Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (1) to the fuel sender assembly.
  2. Connect the electrical connector to the fuel level sensor.
  3. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
