Home >> Chevrolet >> 2005 >> Venture LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - 3.4L - Introduction >> Repair Instructions >> Intake Air Temperature (IAT) Sensor Replacement >> Installation Procedure

Installation Procedure

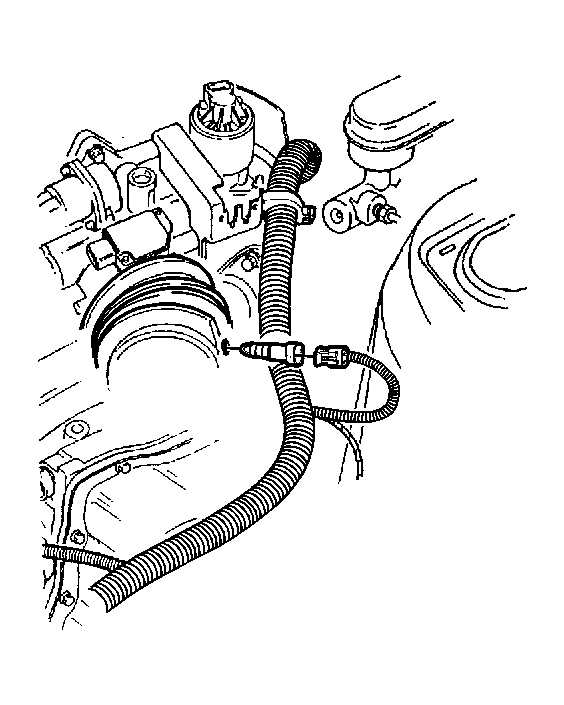

    Fig 1: Removing/Installing Intake Air Temperature (IAT) Sensor
    GM12347Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor (snap into place).
  2. Connect the IAT sensor electrical connector.
