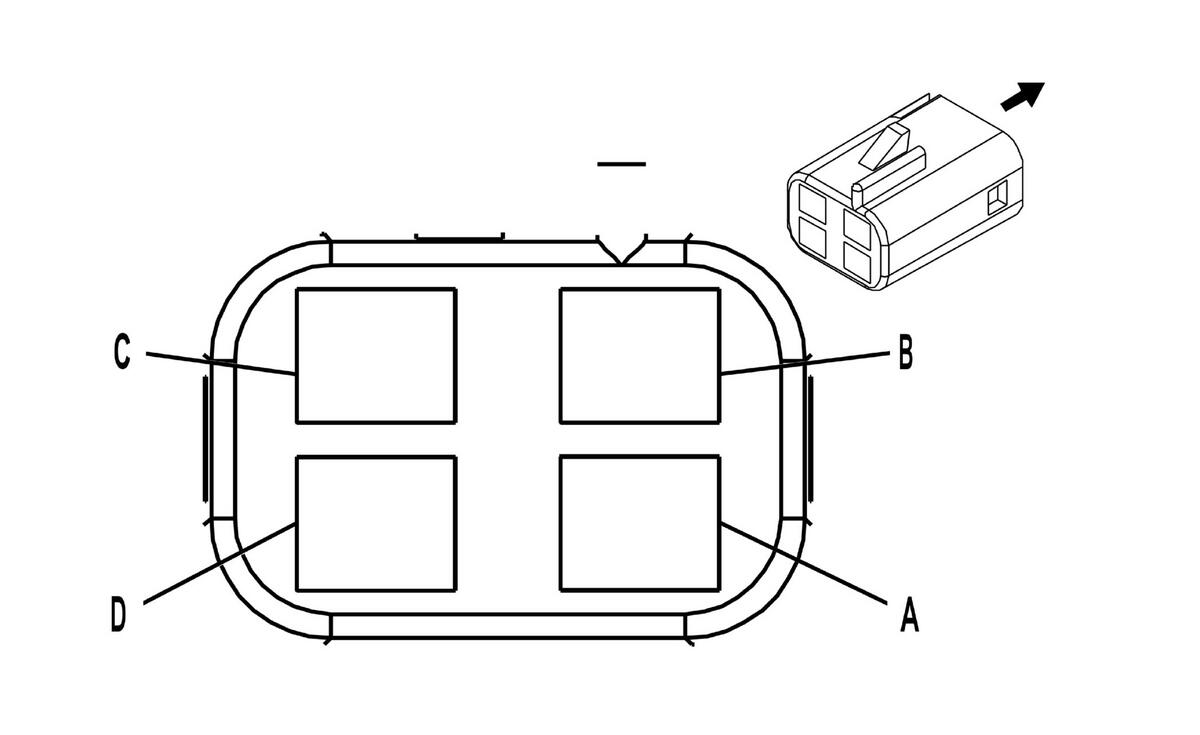

Automatic Transmission Shift Lock Control Connector

A/T Shift Lock Control Solenoid

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		OEM: 12047785 Service: 12102900 4-Way F Metri-Pack 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	GY	8	Instrument Panel Lamp Supply Voltage (1)
B	D-GN/WH	1135	Brake Transmission Shift Interlock Solenoid Supply Voltage
C	D-GN/WH	1932	Shift Select Switch Park Signal
D	BK	1250	Ground
