Keyless Entry Component Views

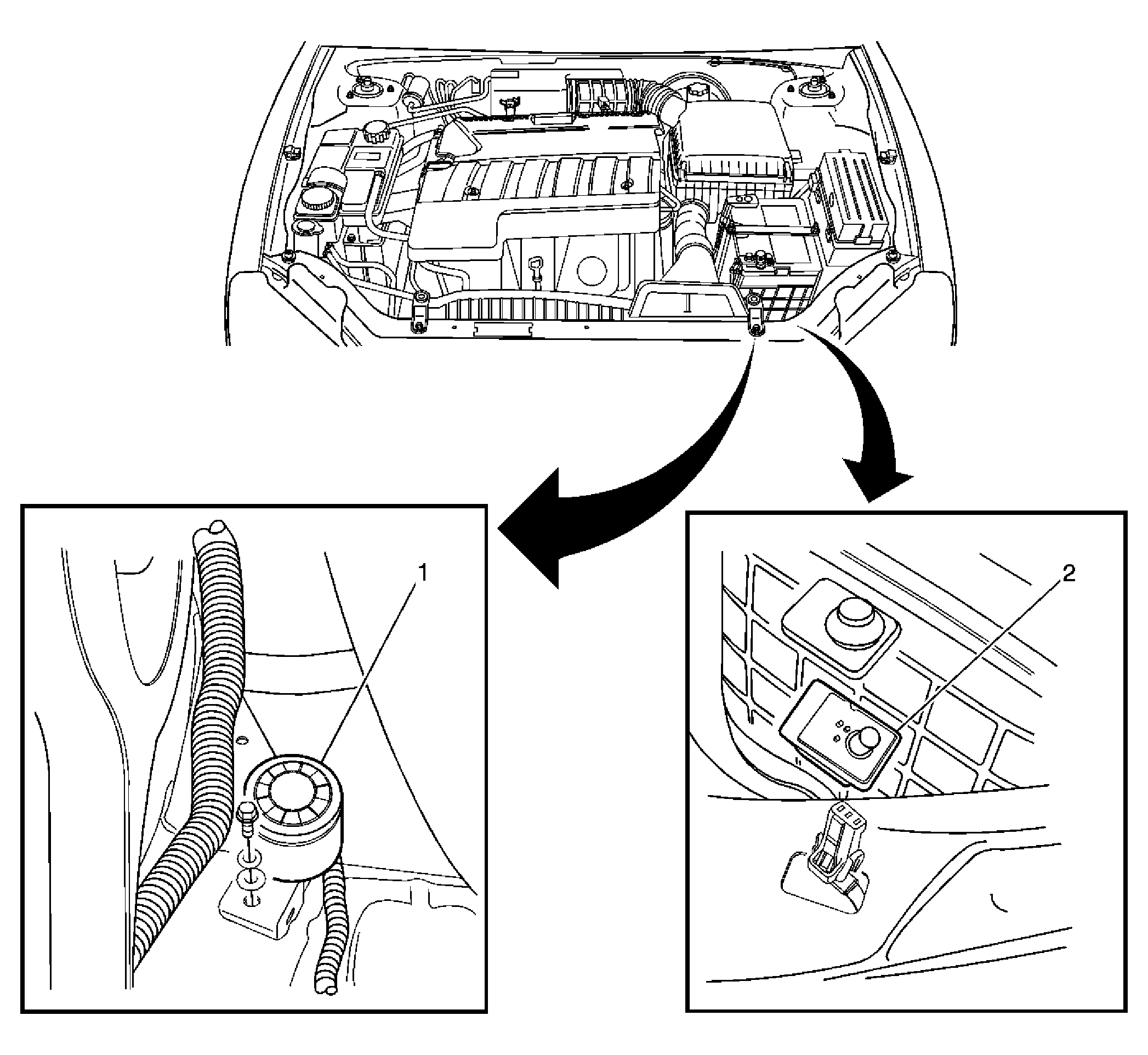

Fig 1: View Of Theft Deterrent Alarm and Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Alarm
2	Hood Ajar Switch

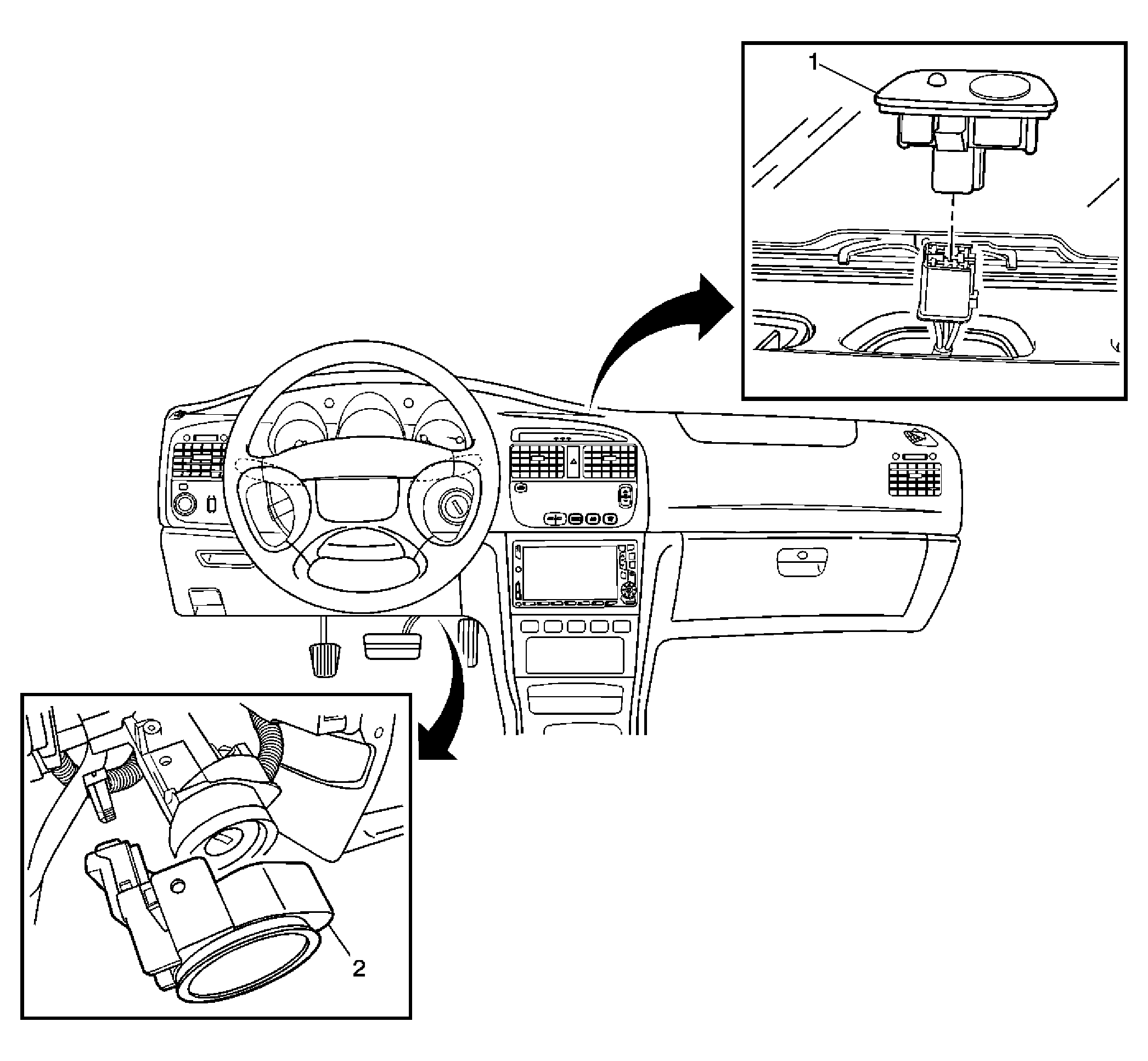

Fig 2: View Of Theft Deterrent Control Module And Security Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Security Indicator
2	Theft Deterrent Control Module

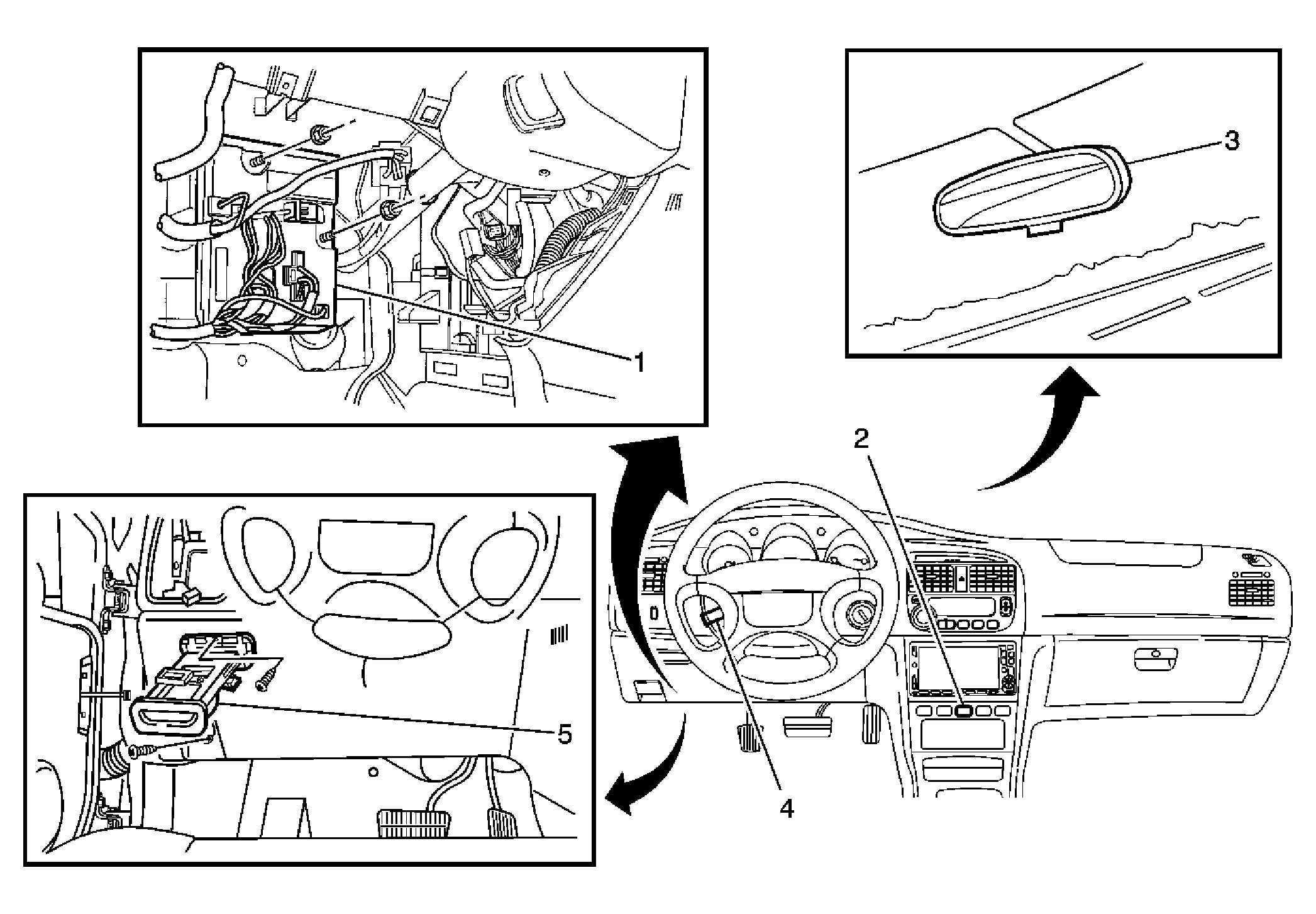

Fig 3: Body Control Module (BCM), Defogger Switch and Eletrochonic Mirror

Courtesy of GENERAL MOTORS CORP.
