Keyless Entry Connector End Views

Body Control Module (A) (PE4)

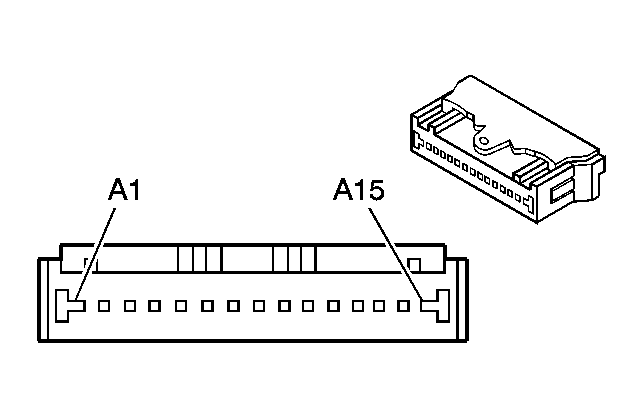

GM1497814Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 98625-2001
  • 15-Way HDX SR Mod Fram W/ Lever (GY)
Pin Wire Color Circuit No. Function
A1-A2 - - Not Used
A3 OG/BK 164 Power Window Switch Driver Up Signal
A4 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal
A5 L-BU 195 Door Unlock Control
A6 L-BU/WH 194 Door Lock Control
A7 D-GN/BK 2905 Serial Data
A8 BN 126 Left Front Door Open Switch Signal
A9 WH 156 Courtesy Lamp Control
A10 D-BU/WH 65 Power Window Switch Drivers Express Down Signal
A11 BN 41 Ignition 2 Voltage
A12 D-BU 165 Driver Window Switch Driver Down Signal
A13 PK/D-BU 638 Power Window Motor Driver Down Control
A14 - - Not Used
A15 PK/BK 109 Hood Ajar Switch Signal
Body Control Module (B) (PE3)

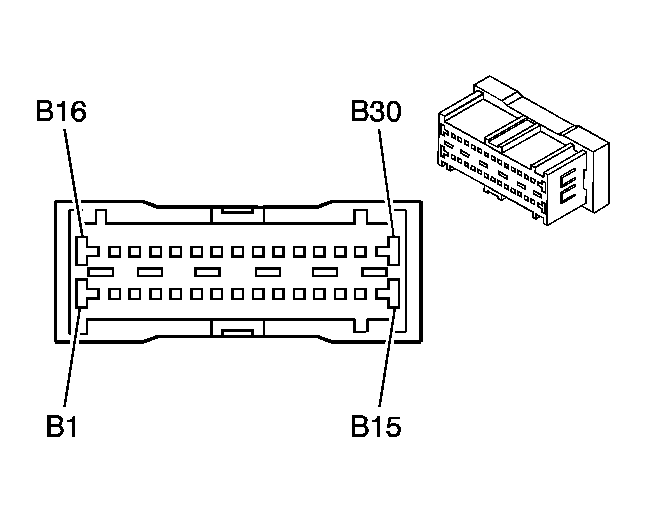

GM1497815Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 98631-2001
  • 30-Way HDX ModFram W/O Lev std WrEx (GY)
Pin Wire Color Circuit No. Function
B1 GY 191 Windshield Wiper Switch Pulse Delay Signal
B2 BN/WH 1434 Immobilizer Signal
B3 L-GN 1435 Immobilizer Signal
B4-B7 - - Not Used
B8 BN/WH 309 Right Pack Lamp Supply Voltage (North America)
WH 3080 Battery Saver Light 1 (Except North America)
B9 - - Not Used
B10 WH 4080 Tail Relay (Except North America)
1080 Light 1 Signal
B11 D-GN/WH 900 Key Cylinder Lamp Control
B12 D-GN/WH 817 Vehicle Speed Signal (2.0L) (Except North America)
B13 D-BU/WH 1315 Right Front Turn Signal Lamp
B14 L-BU/WH 1314 Left Front Turn Supply Voltage
B15 BN/WH 193 Rear Defog Relay Control
B16-B17 - - Not Used
B18 PU 1697 Turn/Hazard Module Signal
B19 D-GN 905 Serial Data
B20 YE/BK 749 Security Indicator Control
B21 - - Not Used
B22 YE/BK 1436 Immobilizer Signal
B23 L-GN 80 Key Ignition Switch Signal
B24 - - Not Used
B25 RD 228 Windshield Washer Pump Control
B26 BK/WH 351 Immobilizer Signal
B27 BN/WH 238 Seat Belt Switch Left
B28 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
B29 - - Not Used
B30 L-BU 263 Rear Compartment Lid Ajar Switch Signal
Body Control Module (C) (PP2)

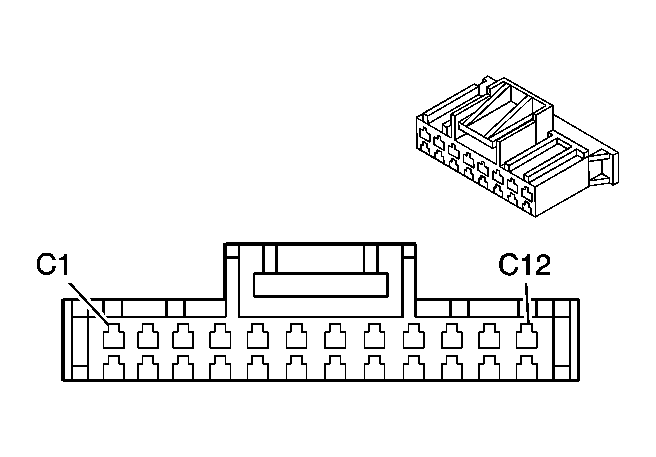

GM1497822Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FCI 211 PC 122S0017
  • 12-Way Connector (BK)
Pin Wire Color Circuit No. Function
C1 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
C2 D-BU 107 Interior Lamps Control
C3 L-BU 97 Windshield Wiper Switch MIST/OFF/LOW Signal
C4 D-BU 15 Right Turn Signal Lamp Supply Voltage
C5 - - Not Used
C6 D-BU/WH 1165 Power Window Switch Drivers Express Up Signal
C7 - - Not Used
C8 L- BU 14 Left Turn Signal Lamp Supply Voltage
C9 - - Not Used
C10 OG/WH 1164 Power Window Switch Drivers Express Down Signal
C11 BN 253 Trunk Release Relay Control
C12 YE 261 Siren Control
Body Control Module (D) (PP1)

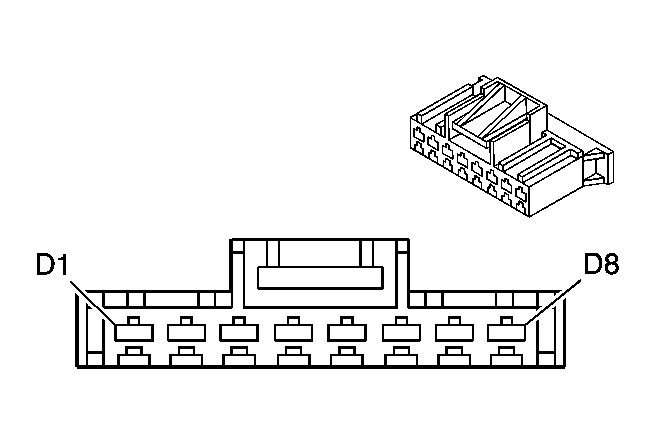

GM1497835Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • FCI 211 PC 083S0017
  • 8-Way Connector (BK)
Pin Wire Color Circuit No. Function
D1 BK 450 Ground
D2 - - Not Used
D3 PK 339 Ignition 1 Voltage
D4 BK 450 Ground
D5 BN 294 Door Lock Actuator Unlock Control
D6 GY 295 Door Lock Actuator Lock Control
D7 PU 1293 Rear Defog Element Supply Voltage
D8 PU 293 Rear Defog Element Supply Voltage
Body Control Module (E) (PP5)

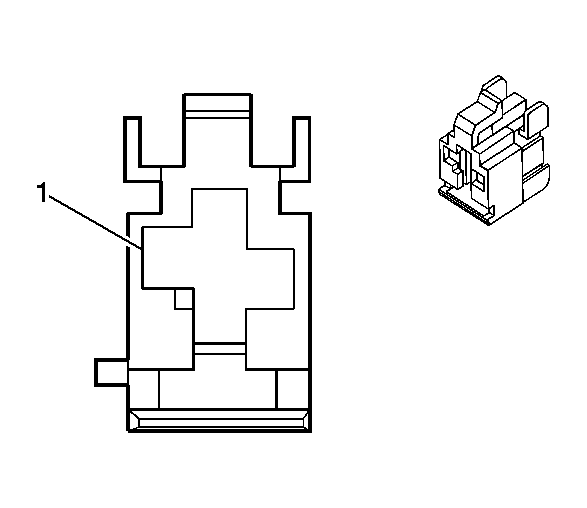

GM1497836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • UTA 321600157
  • 1-Way Connector (BK)
Pin Wire Color Circuit No. Function
E1 RD 142 Battery Positive Voltage
