Communication Interface Module Replacement

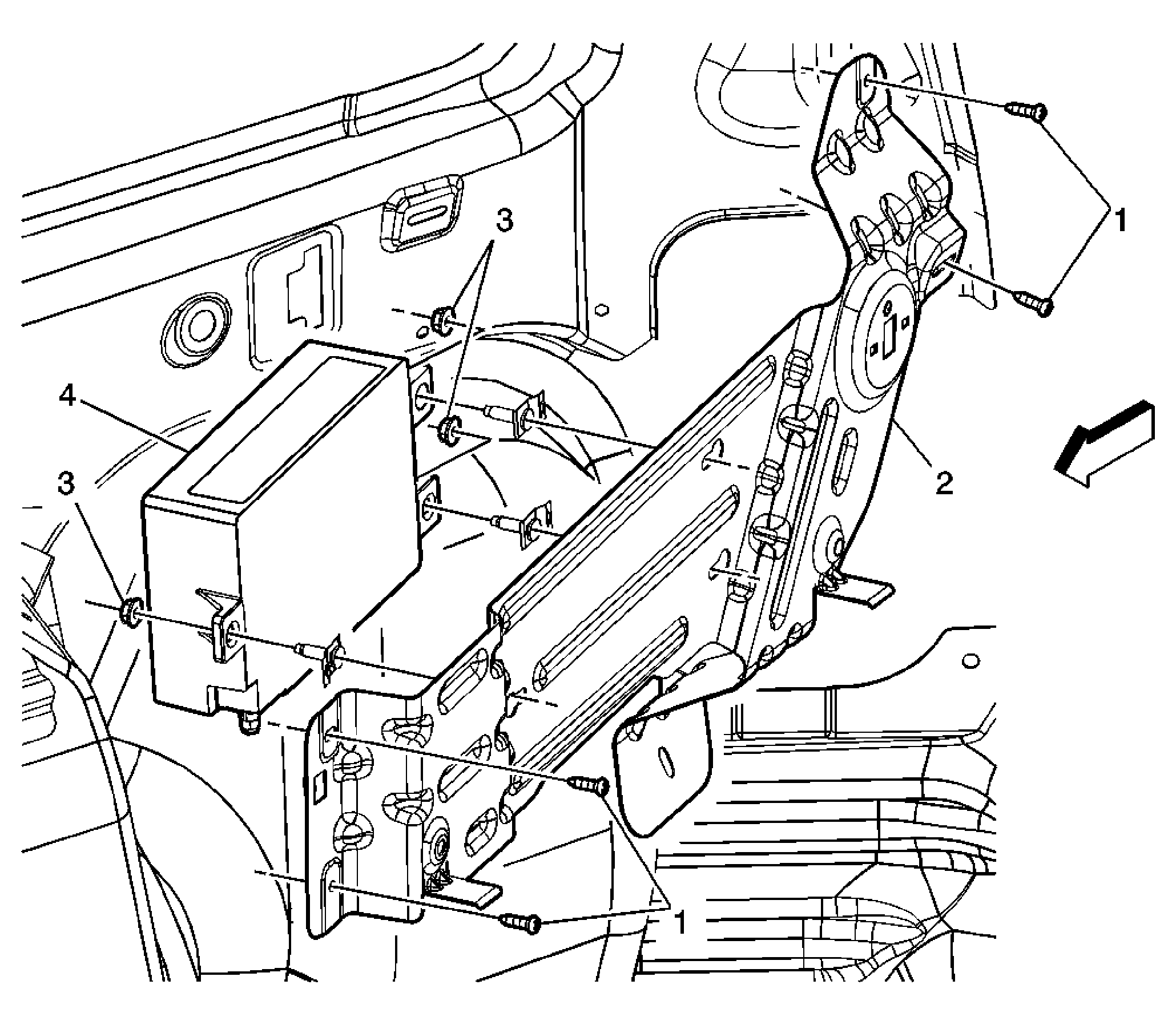

Fig 1: Communication Interface Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear seat. Refer to Seat Replacement - Rear . Remove the right rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower .
1	Screw, Quarter Inner Trim Panel Bracket (Qty: 4) Tighten: 10 N.m (89 lb in)
2	Bracket, Quarter Inner Trim Panel
3	Nut, Communication Interface Module (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Module, Communication Interface Tip: Disconnect the electrical connector. Reprogram the communication Interface module after installation. Refer to Control Module References .
