ABS Component Views

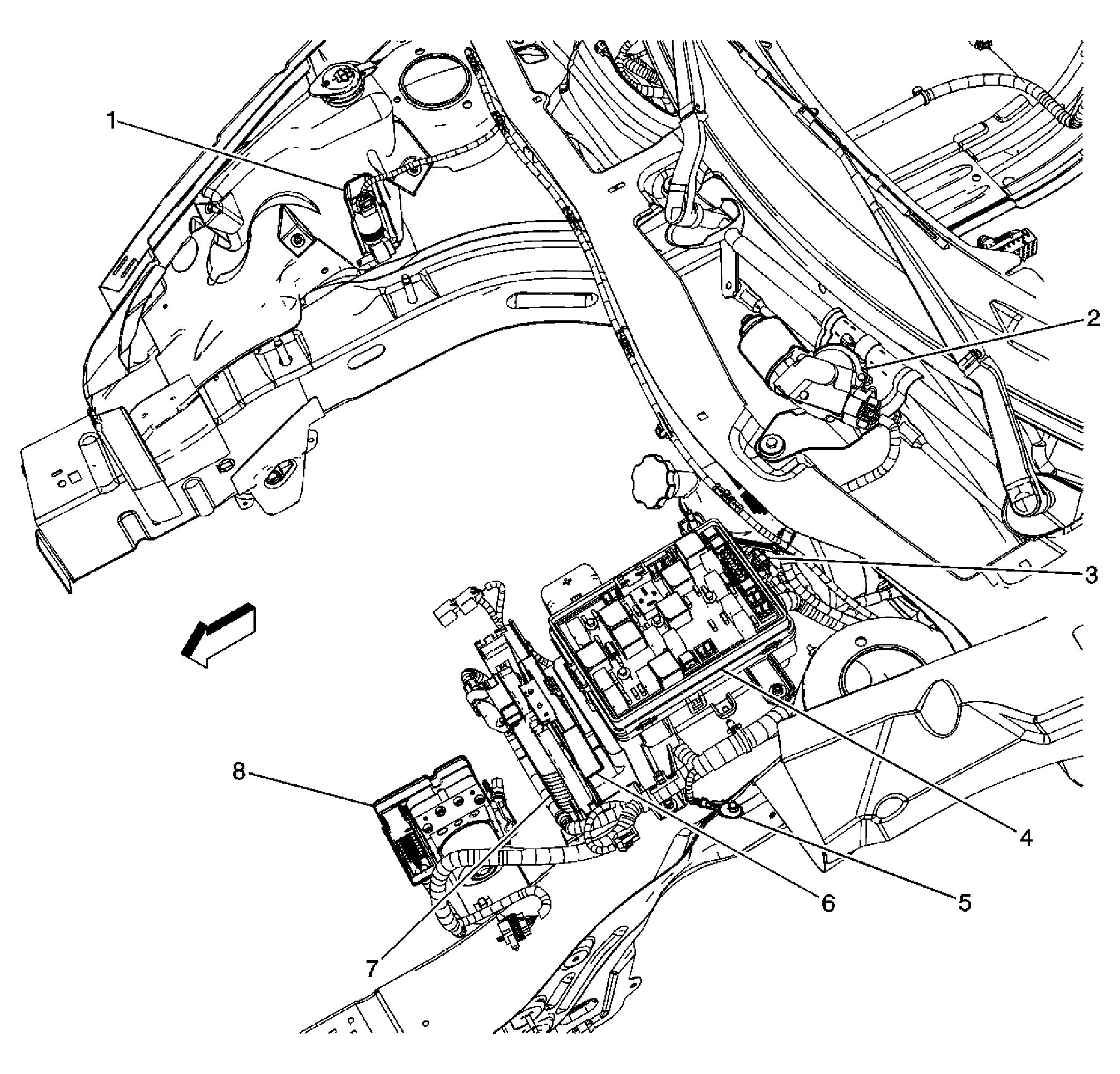

Fig 1: LF of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Wiper Motor Assembly
3	Brake Fluid Level Switch
4	Fuse Block - Underhood
5	G111
6	Transmission Control Module (TCM) (MN5)
7	Engine Control Module (ECM)
8	Electronic Brake Control Module (EBCM)

Fig 2: Front Left Side Of Vehicle (JM4/JL9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LF, RF Similar

Fig 3: RR Frame & Underbody (JM4/JL9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406
2	Wheel Speed Sensor (WSS) - RR, LR Similar
