Power Outlet Component Views

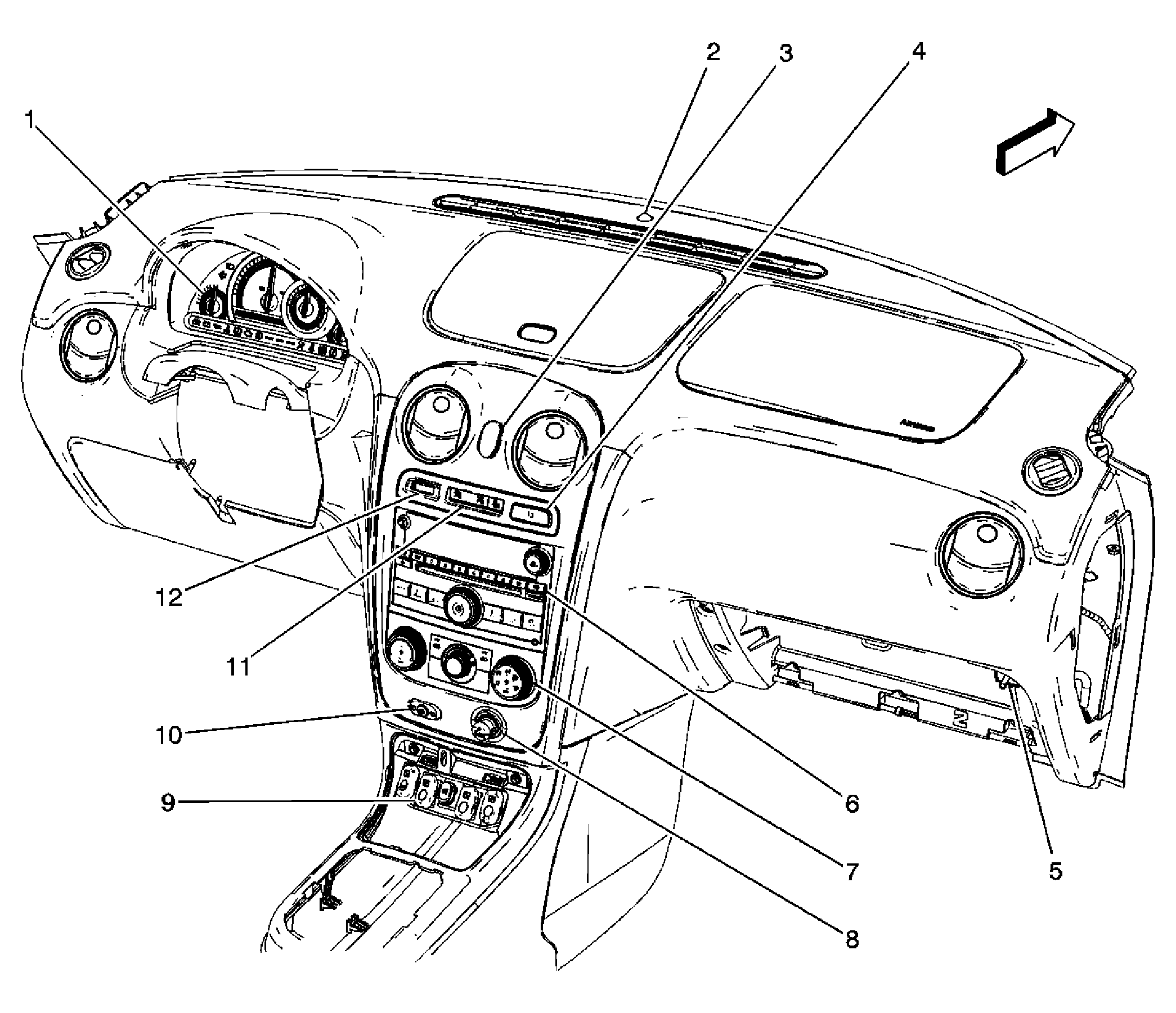

Fig 1: I/P Components

GM1652110

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Fog Lamp Switch (T37)
5	I/P Compartment
6	Radio
7	HVAC Control Assembly
8	Cigar Lighter (DT4)
9	Master Window Switch
10	Rear Wiper / Washer Switch
11	Inflatable Restraint Passenger Air Bag ON / OFF Indicator
12	Instrument Panel (I/P) Dimmer Switch

Fig 2: Auxiliary Power Outlet

GM1670179

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Console
2	Auxiliary Power Outlet - Console
