Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

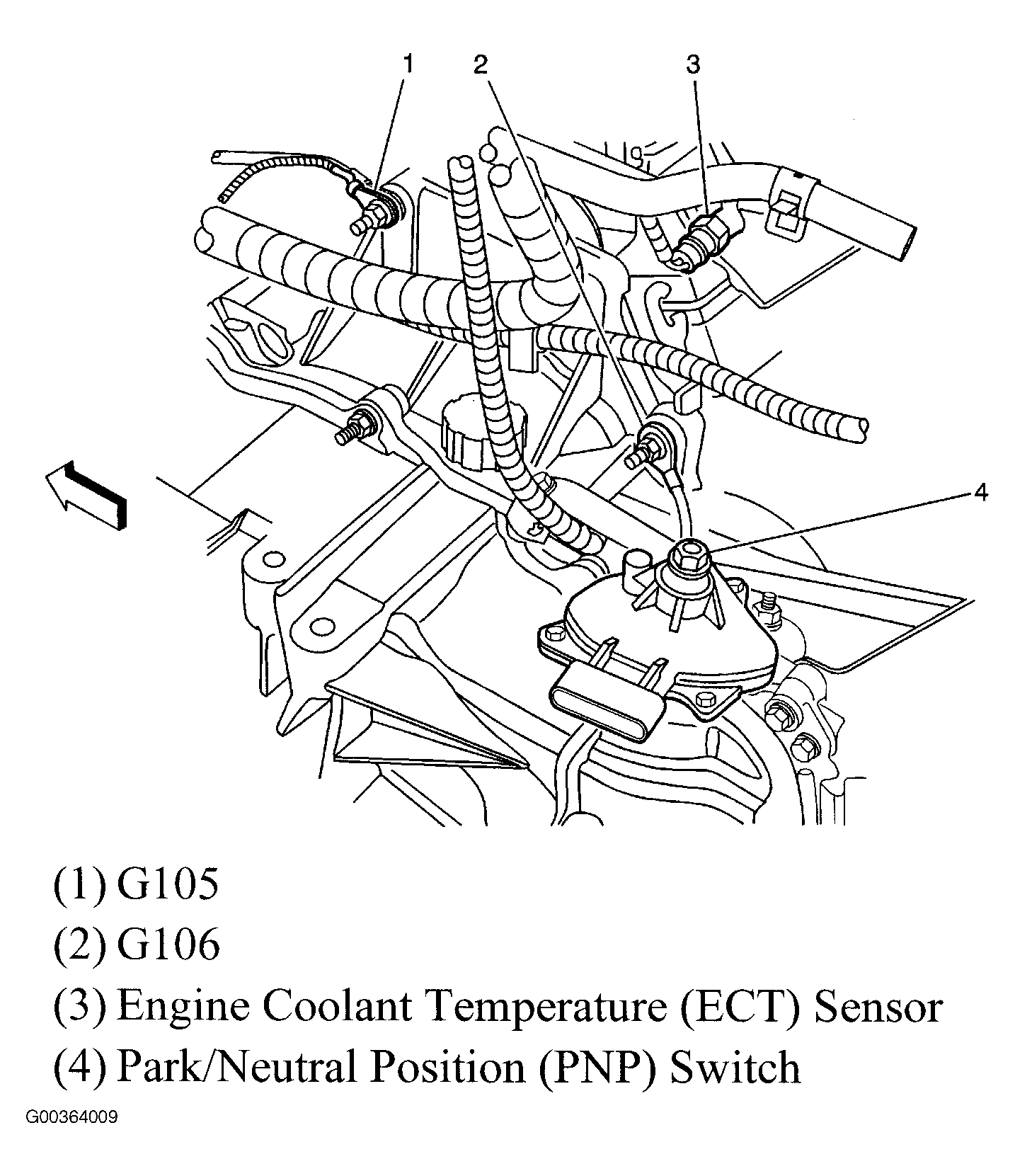

Fig 1: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 2: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Quarterpanel (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 5: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 6: Lower Right Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Lower Right Front Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 13: Behind Front Grille
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 18: Behind Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Front Of Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Top Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Lower Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Under Right Rear Of Vehicle (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Right Side Of Engine (3.5L Shown, 3.9L Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 36: Console Shifter
Courtesy of GENERAL MOTORS CORP.
Fig 37: Transmission (4T40/4T45-E)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 39: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Rear Of Passenger Compartment (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Right Rear Of Passenger Compartment (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Vehicle Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Vehicle Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Lower Dash
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear Roof Rail (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Right Rear Side Of Rear Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.

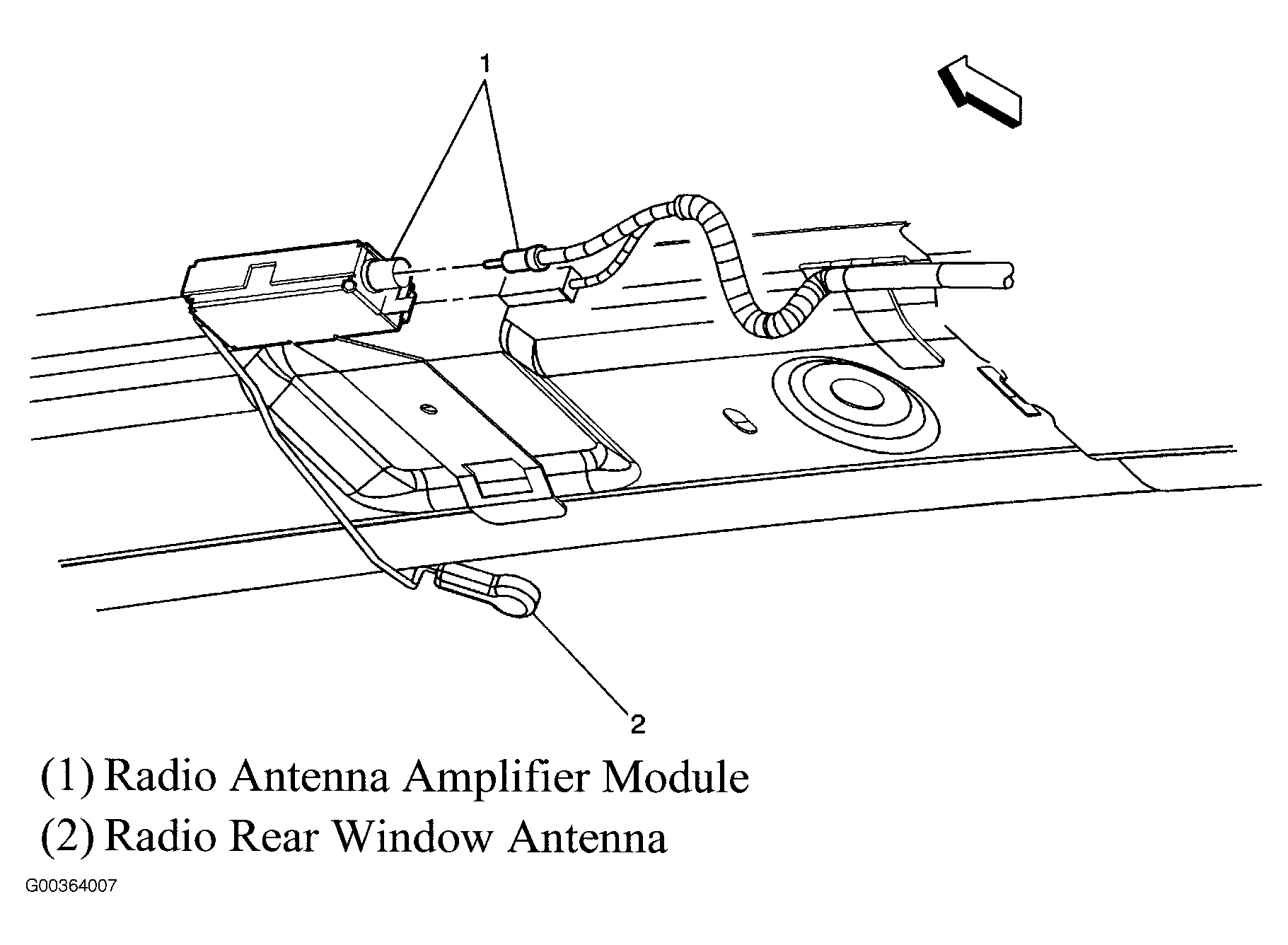

Fig 53: Rear Package Shelf (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Rear Compartment Lid (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Hatch (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 58: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 59: Rear Of Sunroof
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 61: Left Front Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Top Left Side Of Engine (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Behind Headlight
Courtesy of GENERAL MOTORS CORP.
Fig 66: Top Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 69: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Front Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Front Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Front Sill Plate
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Front Sill Plate
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Rear Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 75: Right Rear Door Jamb
Courtesy of GENERAL MOTORS CORP.
Fig 76: Behind Right Headlamp
Courtesy of GENERAL MOTORS CORP.
Fig 77: Behind Left Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 78: Under Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Rear Quarterpanel (Extended Sedan)
Courtesy of GENERAL MOTORS CORP.

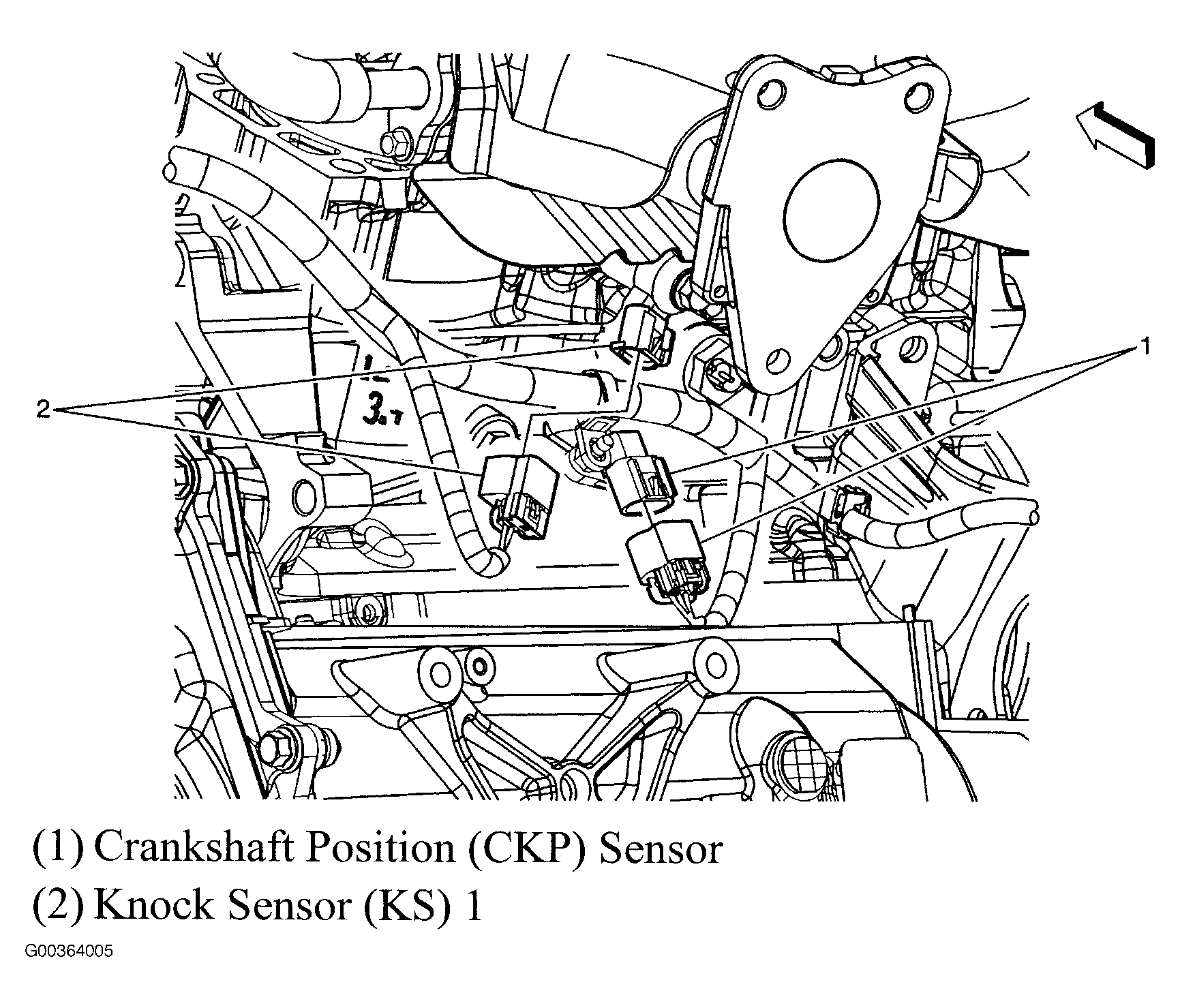

Fig 80: Left Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Rear Of Catalytic Converters (3.5L & 3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right Side Of Engine (3.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 84: Rear Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Lower Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Transmission (4T65-E)
Courtesy of GENERAL MOTORS CORP.
Fig 87: Rear Roof Rail (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 89: Top Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
