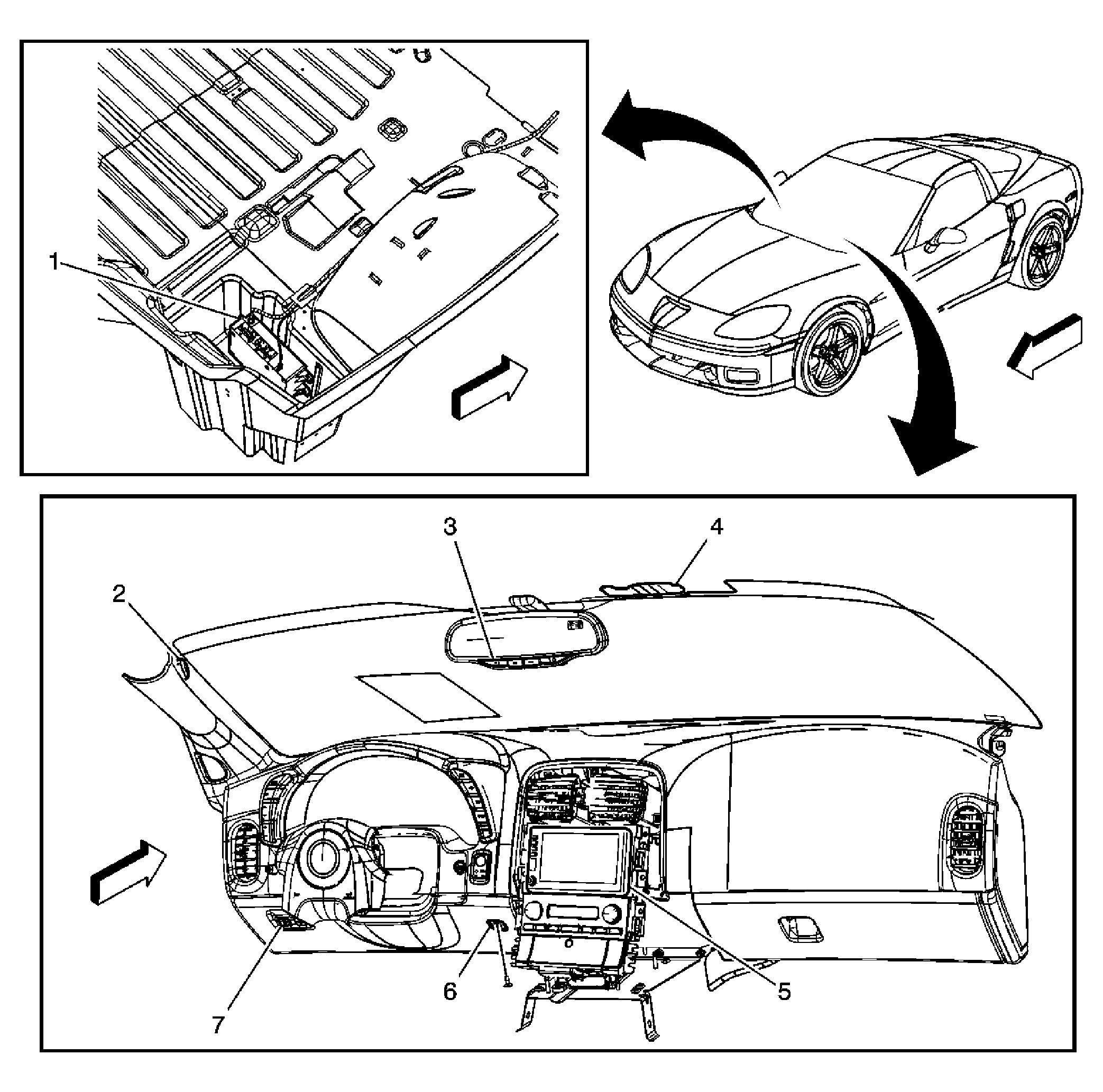

Cellular Communication Component Views
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM) (UE1) |
| 2 |
Cellular Microphone |
| 3 |
Inside Rearview Mirror |
| 4 |
Cellular and Navigational Antenna (UE1) |
| 5 |
Radio |
