Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the amplifier to the electrical multi-use bracket and connect the electrical leads to the amplifier.

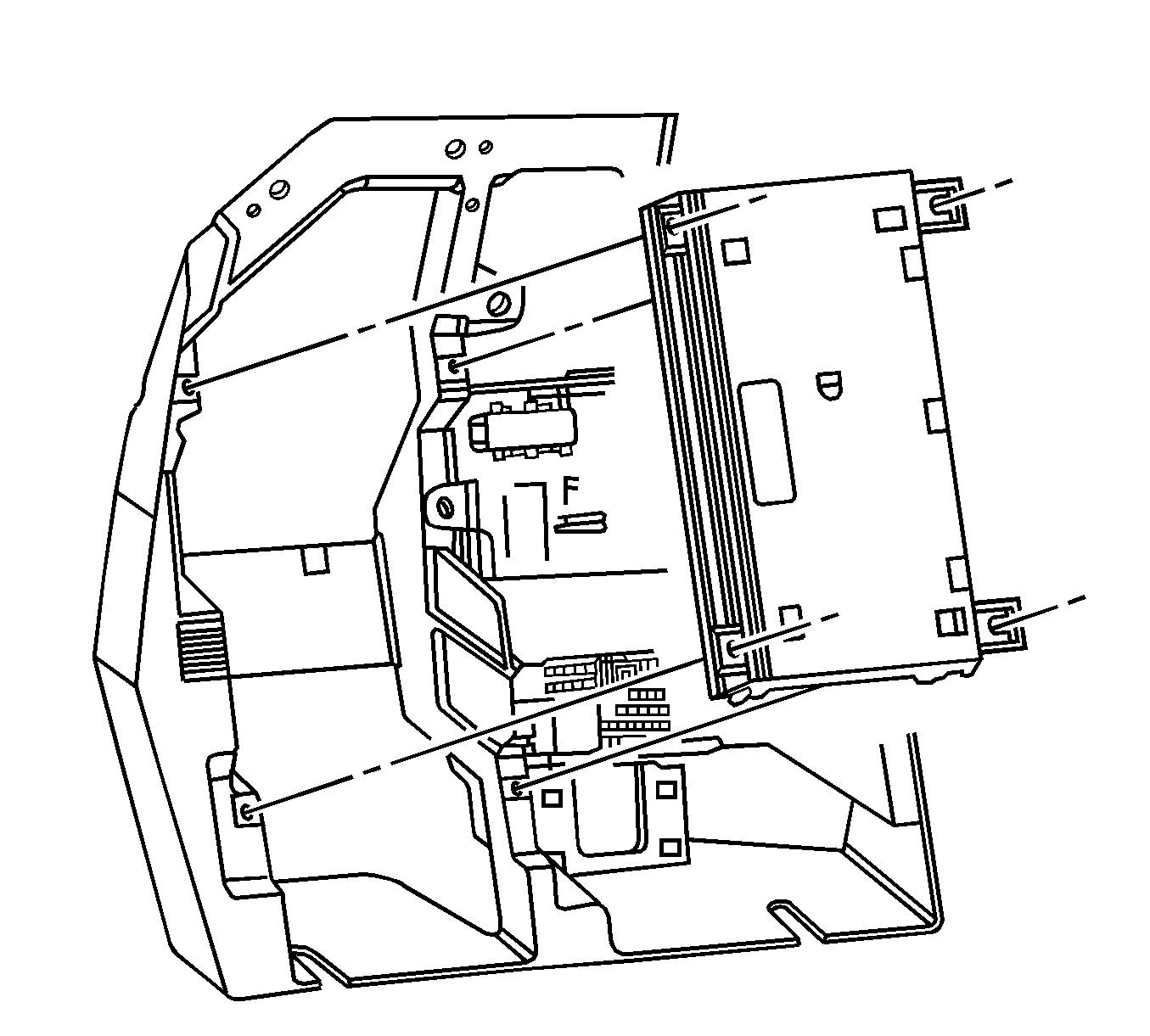

    Fig 1: View Of Electrical Multi-Use Bracket
    GM1237174Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 4 amplifier retaining screws to the bracket.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  3. Install the carpet to cover the instrument panel (I/P) electrical center.
