Remote Function Component Views (Notchback)

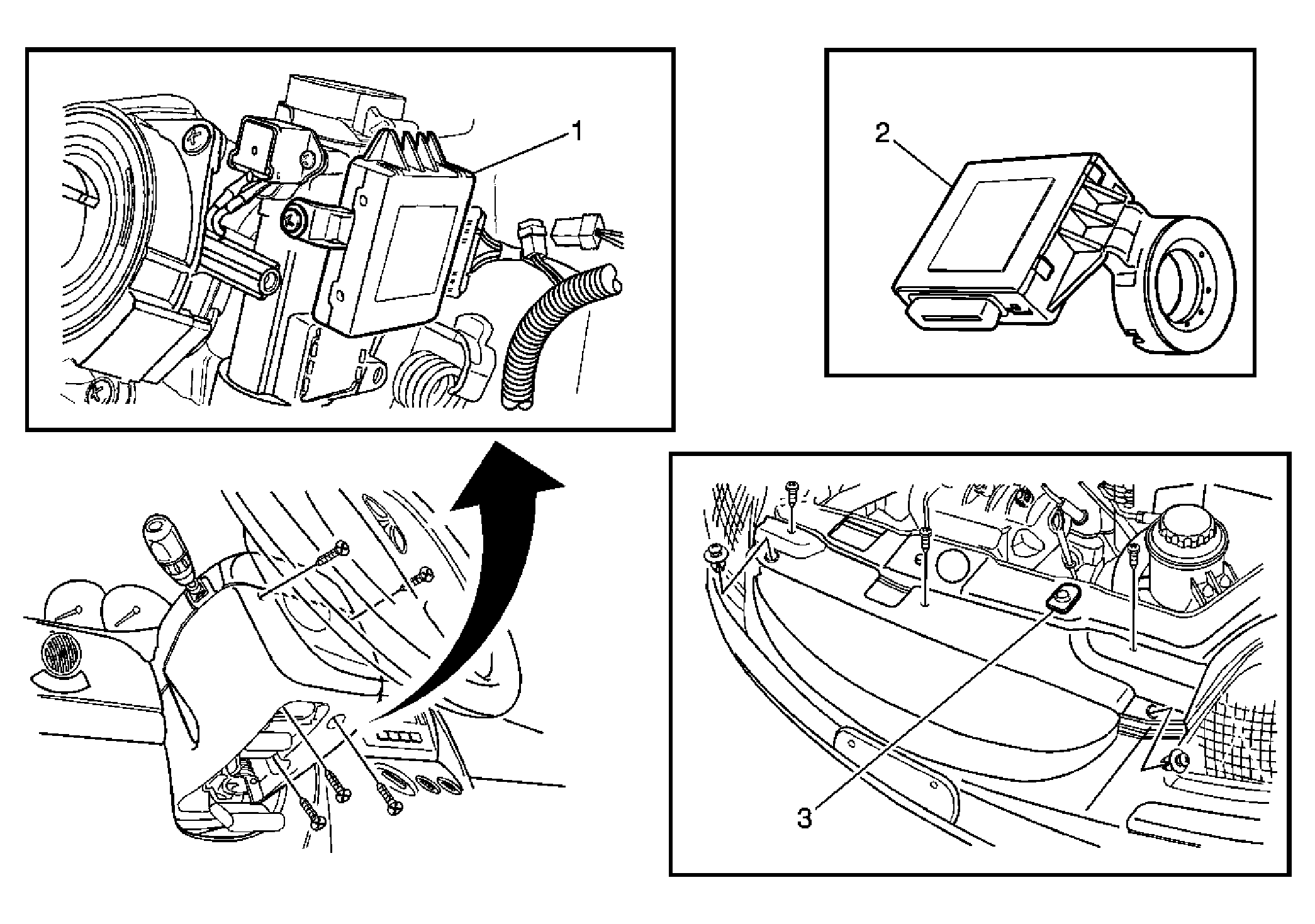

Fig 1: Vehicle Theft Deterrent System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module
2	Theft Deterrent Control Module (removed)
3	Hood Ajar Switch

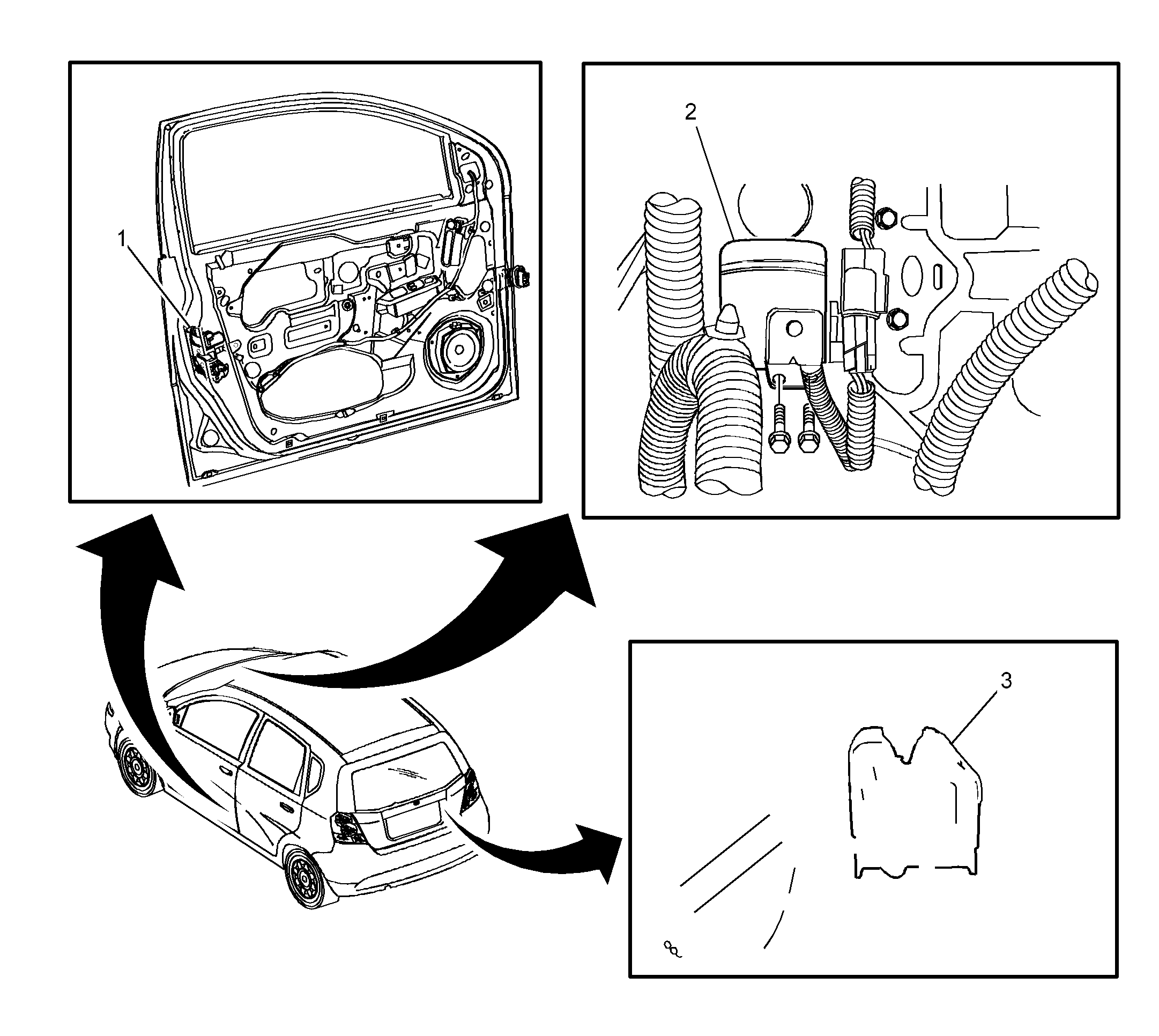

Fig 2: Content Theft Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Left - Right Similar
2	Theft Deterrent Alarm
3	Lock Cylinder Switch - Rear Compartment Lid
