Home >> Chevrolet >> 2007 >> Aveo Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Repair Instructions >> Remote Control Door Lock Receiver Replacement >> Installation Procedure

Installation Procedure

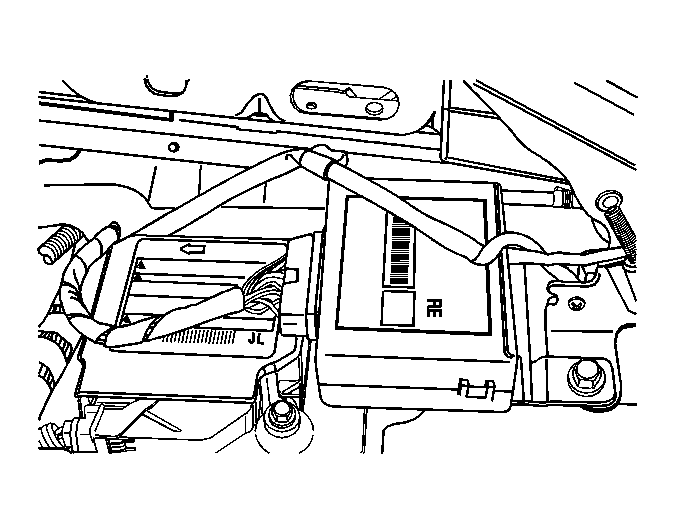

    Fig 1: View of Control Module/Receiver
    GM1252096Courtesy of GENERAL MOTORS CORP.
  1. Install the control module/receiver on its mounting bracket.
  2. Connect the control module/receiver electrical connector.
  3. Install the floor console. Refer to Front Floor Console Replacement .
  4. Connect the negative battery cable.
