Shift Lock Control Component Views

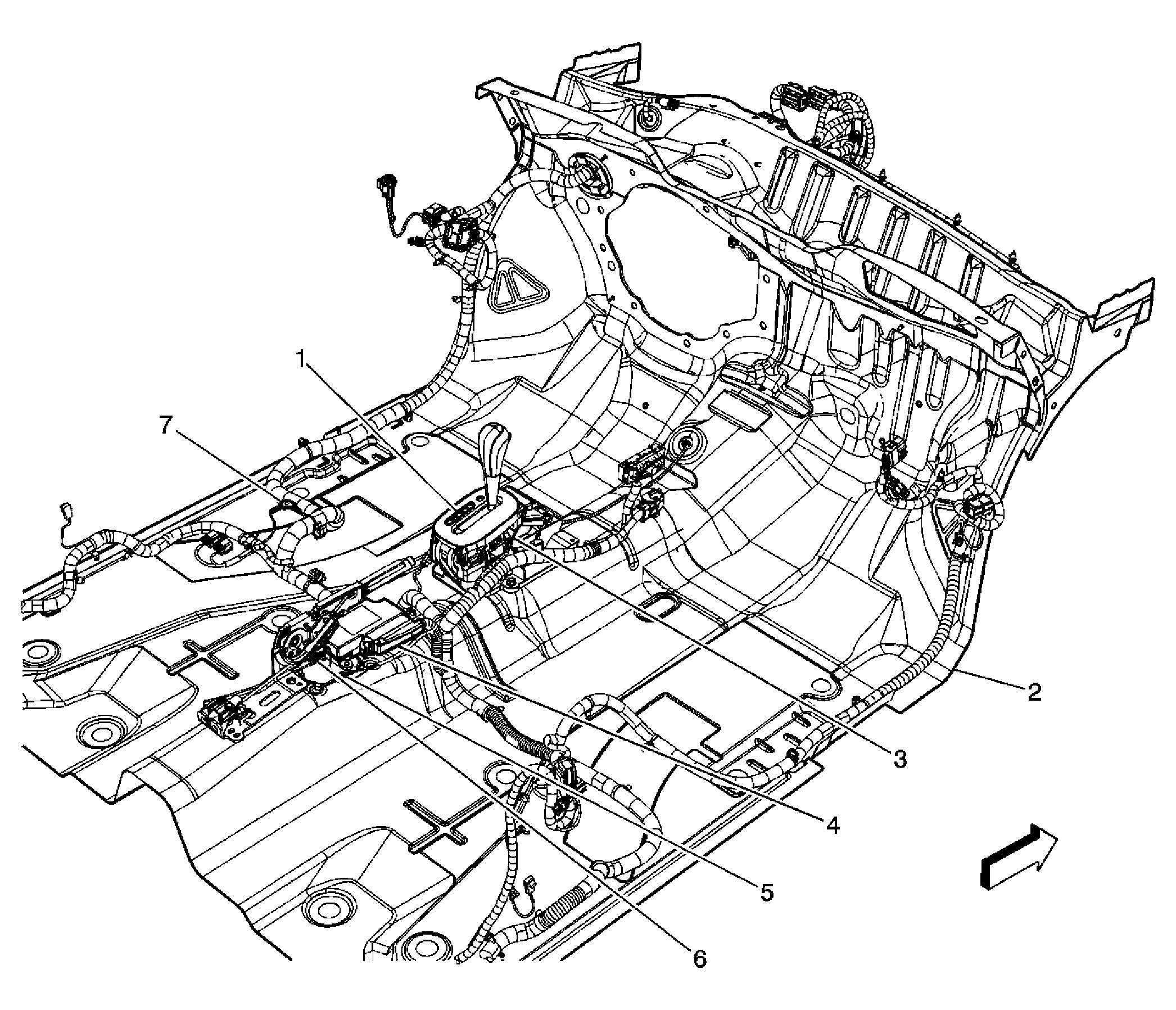

Fig 1: Floor Panel Components and Grounds

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shift Light
2	Floor Pan
3	A/T Shift Lock Control Solenoid (MN5)
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	G306
6	Park Brake Switch
7	G301
