Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: ABS/Brake Component Overview

G00359856

Courtesy of GENERAL MOTORS CORP.

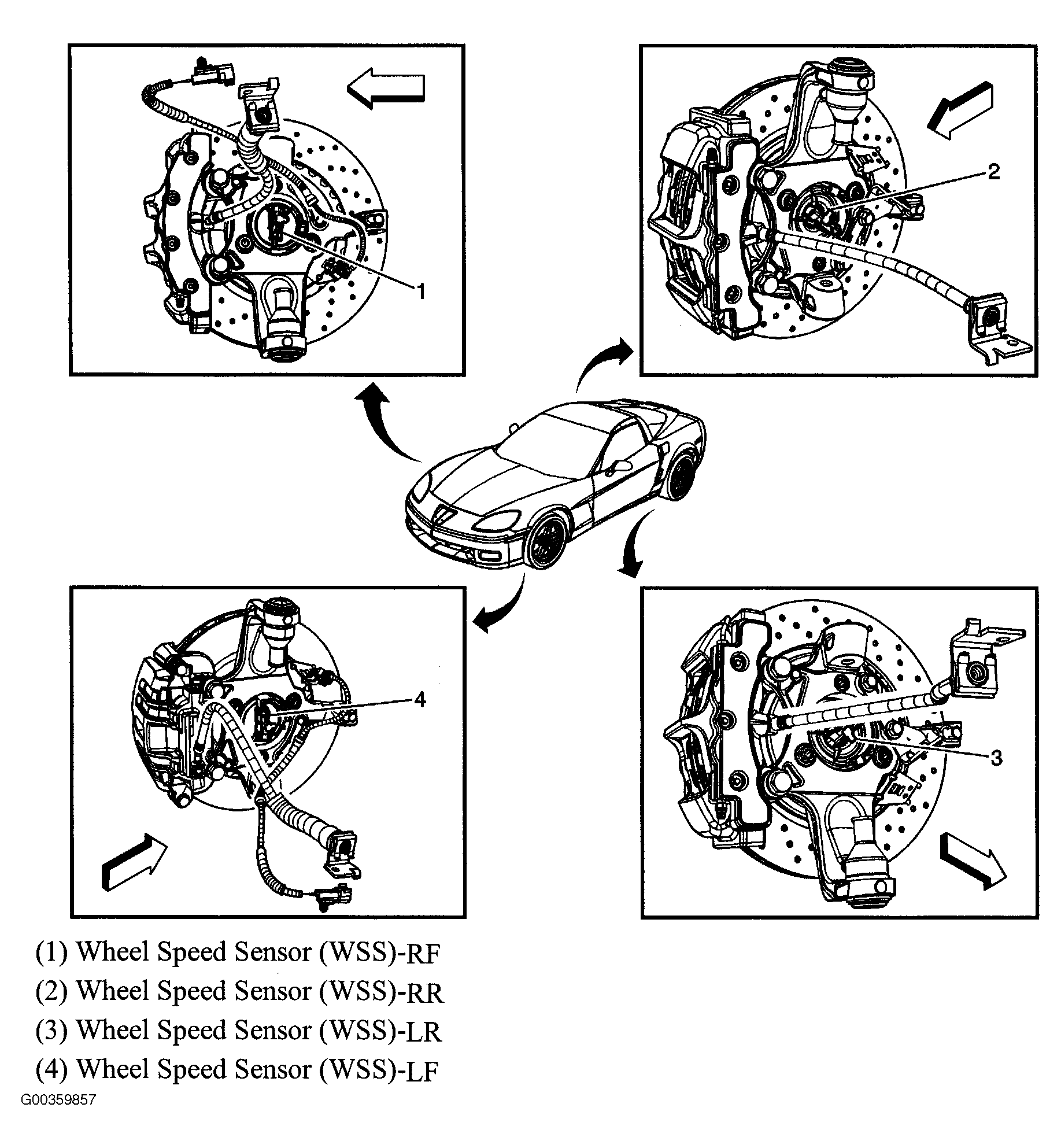

Fig 2: Wheels

G00359857

Courtesy of GENERAL MOTORS CORP.

Fig 3: Under Left Side Of Dash

G00359867

Courtesy of GENERAL MOTORS CORP.

Fig 4: Driver Door

G00359869

Courtesy of GENERAL MOTORS CORP.

Fig 5: Passenger Door

G00359871

Courtesy of GENERAL MOTORS CORP.

Fig 6: Suspension Components

G00359872

Courtesy of GENERAL MOTORS CORP.

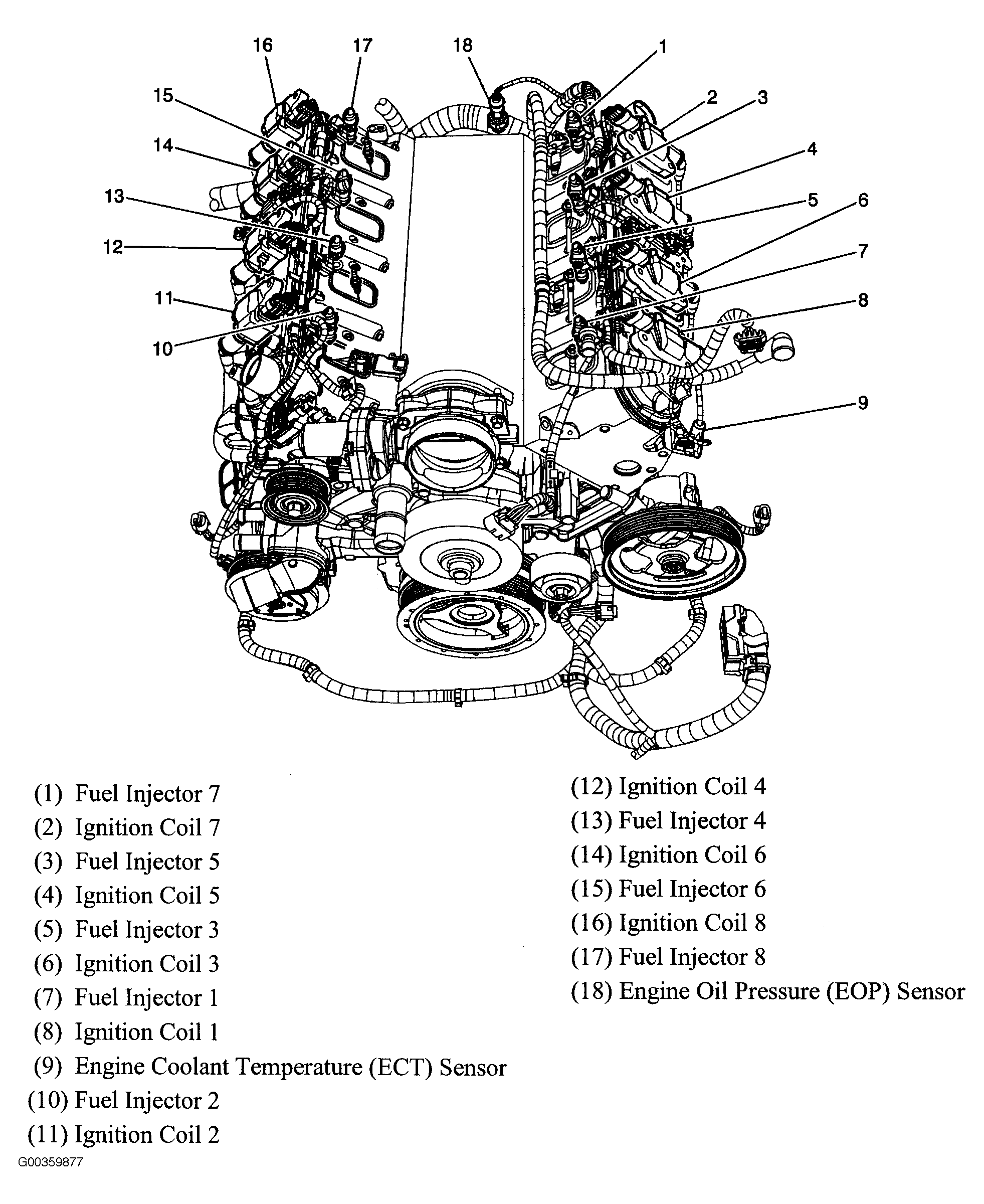

Fig 7: Top Of Engine (6.0L)

G00359877

Courtesy of GENERAL MOTORS CORP.

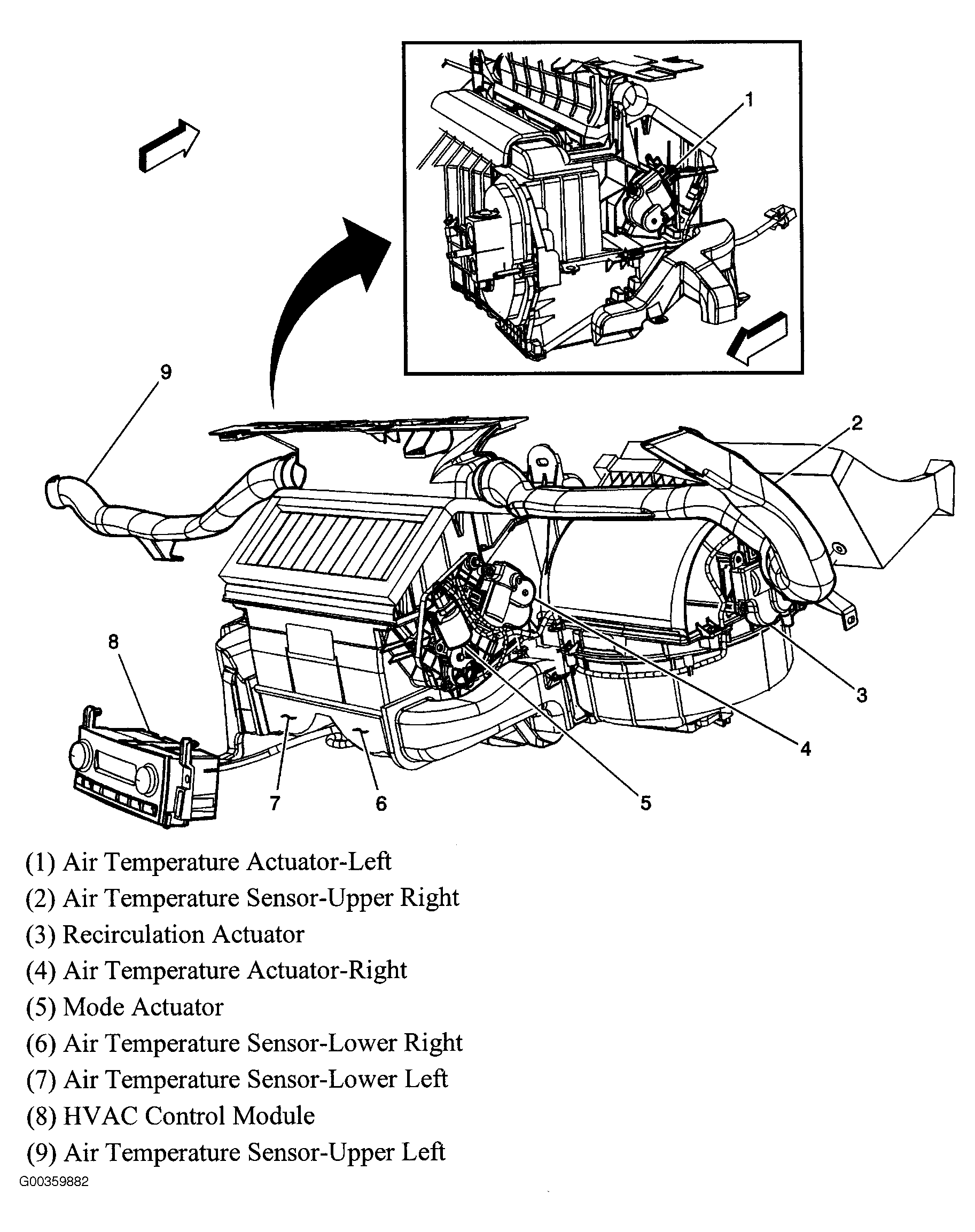

Fig 8: HVAC

G00359882

Courtesy of GENERAL MOTORS CORP.

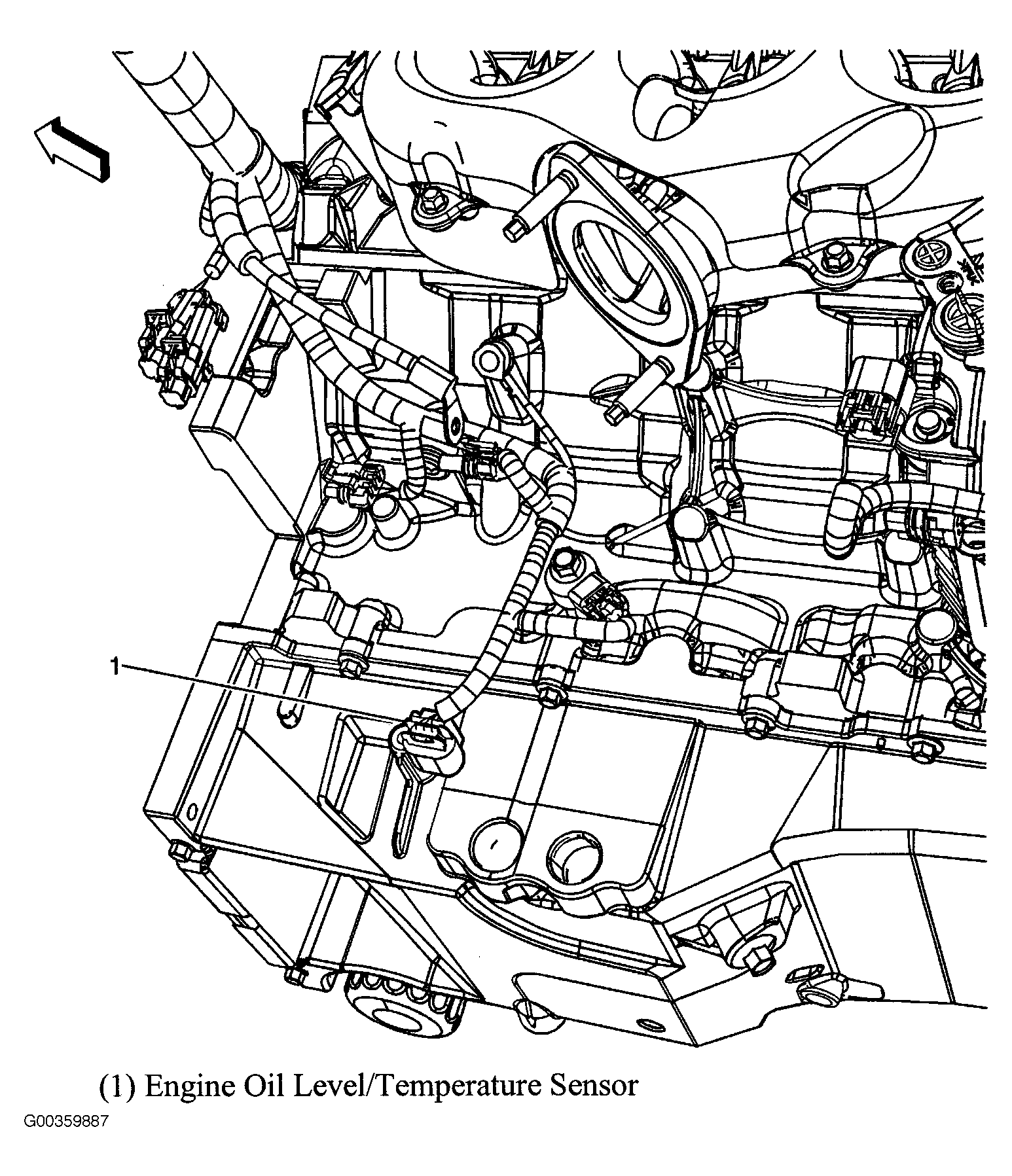

Fig 9: Lower Left Side Of Engine

G00359887

Courtesy of GENERAL MOTORS CORP.

Fig 10: Right Side Of Dash

G00359889

Courtesy of GENERAL MOTORS CORP.

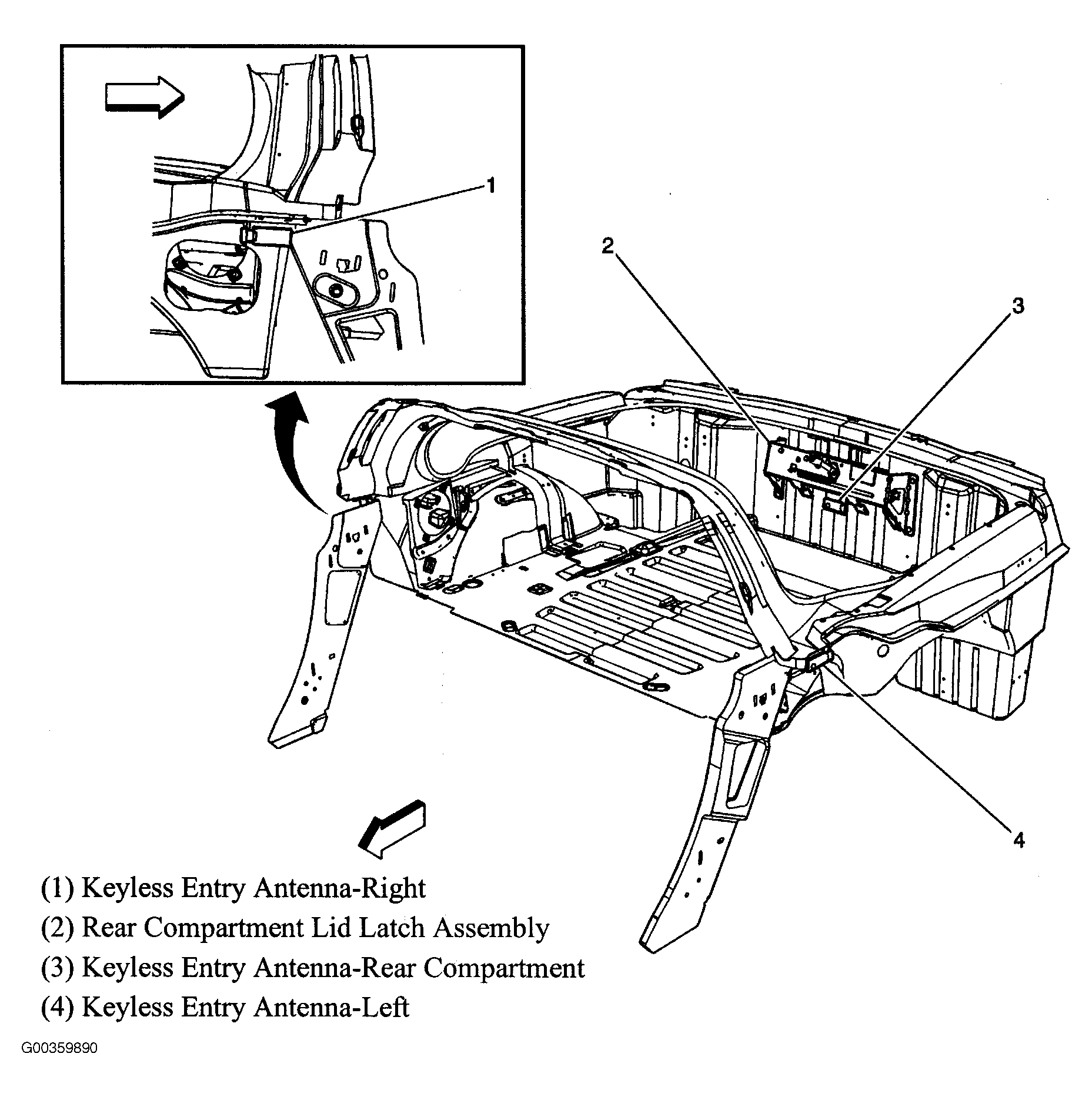

Fig 11: Rear Compartment

G00359890

Courtesy of GENERAL MOTORS CORP.

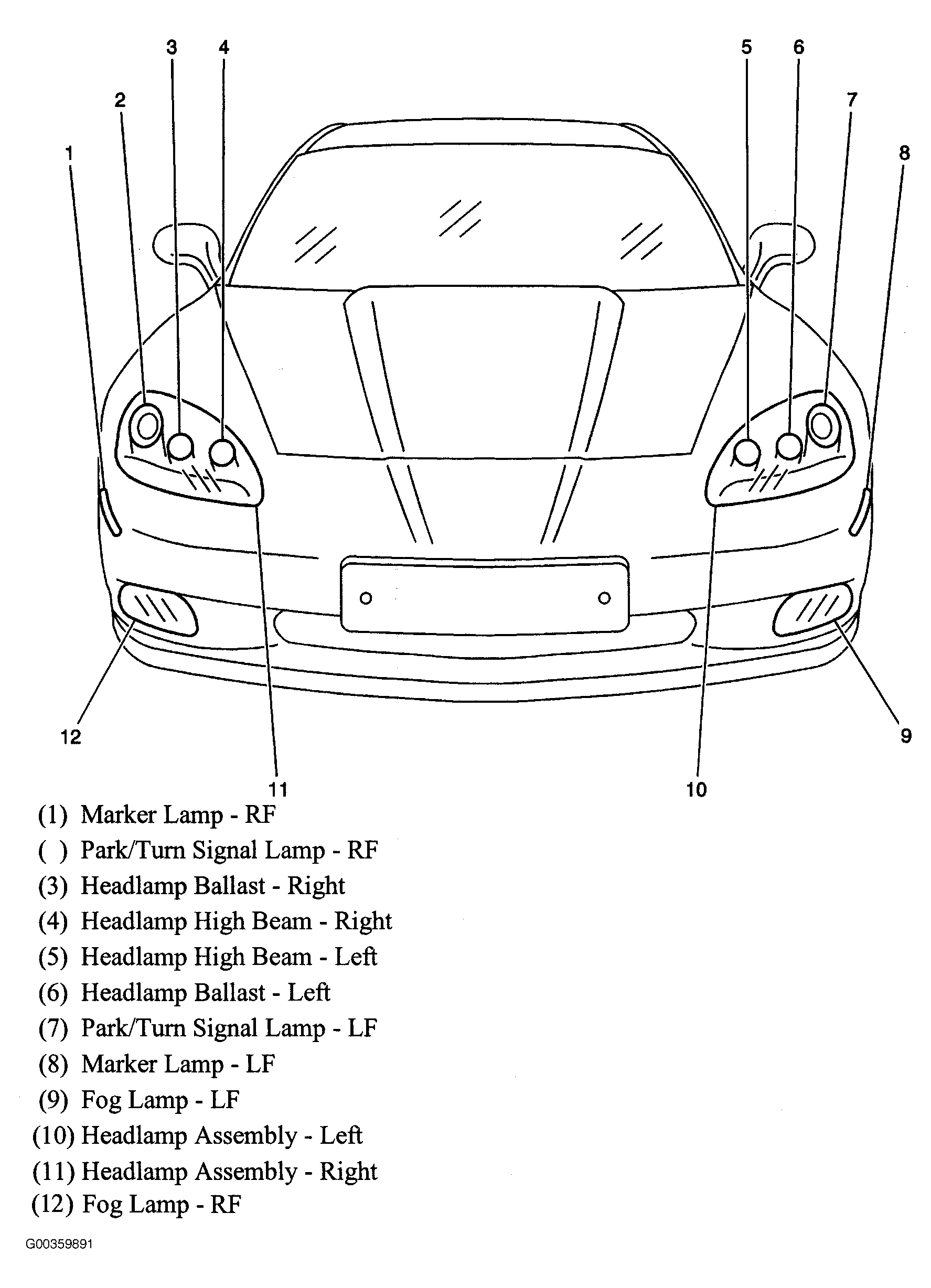

Fig 12: Front Of Vehicle

G00359891

Courtesy of GENERAL MOTORS CORP.

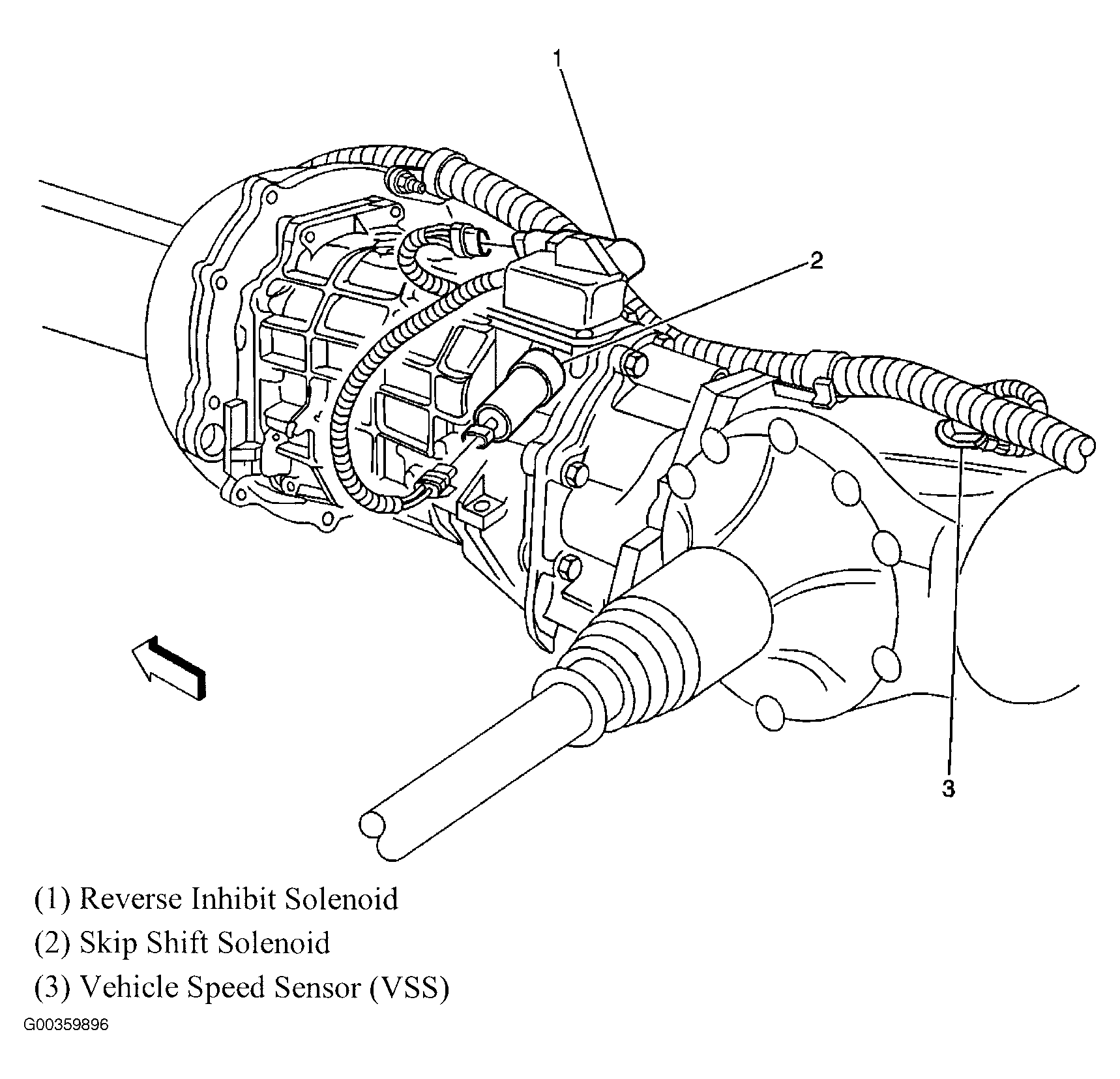

Fig 13: Manual Transmission

G00359896

Courtesy of GENERAL MOTORS CORP.

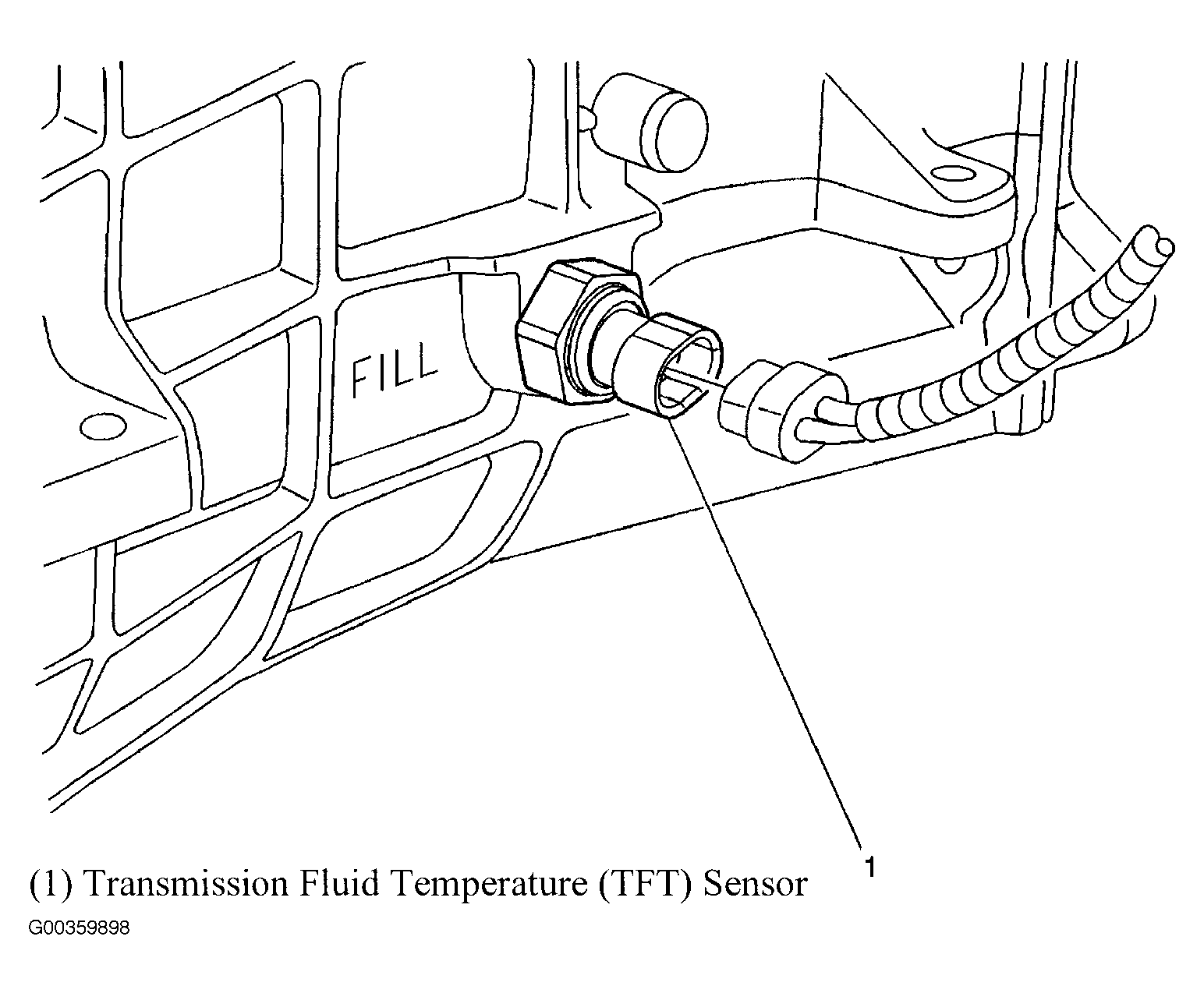

Fig 14: Left Side Of Transmission

G00359898

Courtesy of GENERAL MOTORS CORP.

Fig 15: Center Of Dash

G00359905

Courtesy of GENERAL MOTORS CORP.

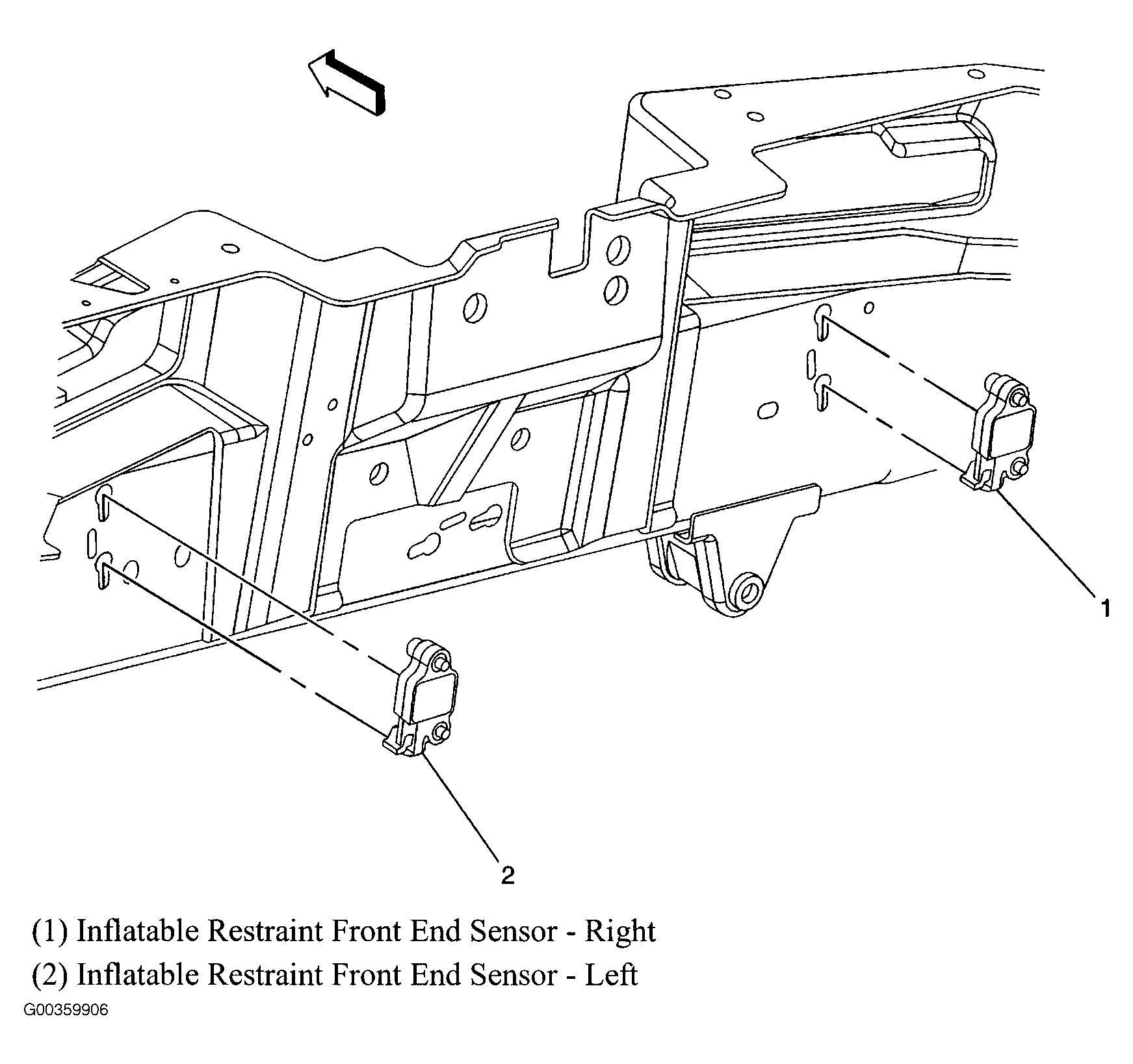

Fig 16: Behind Front Bumper

G00359906

Courtesy of GENERAL MOTORS CORP.

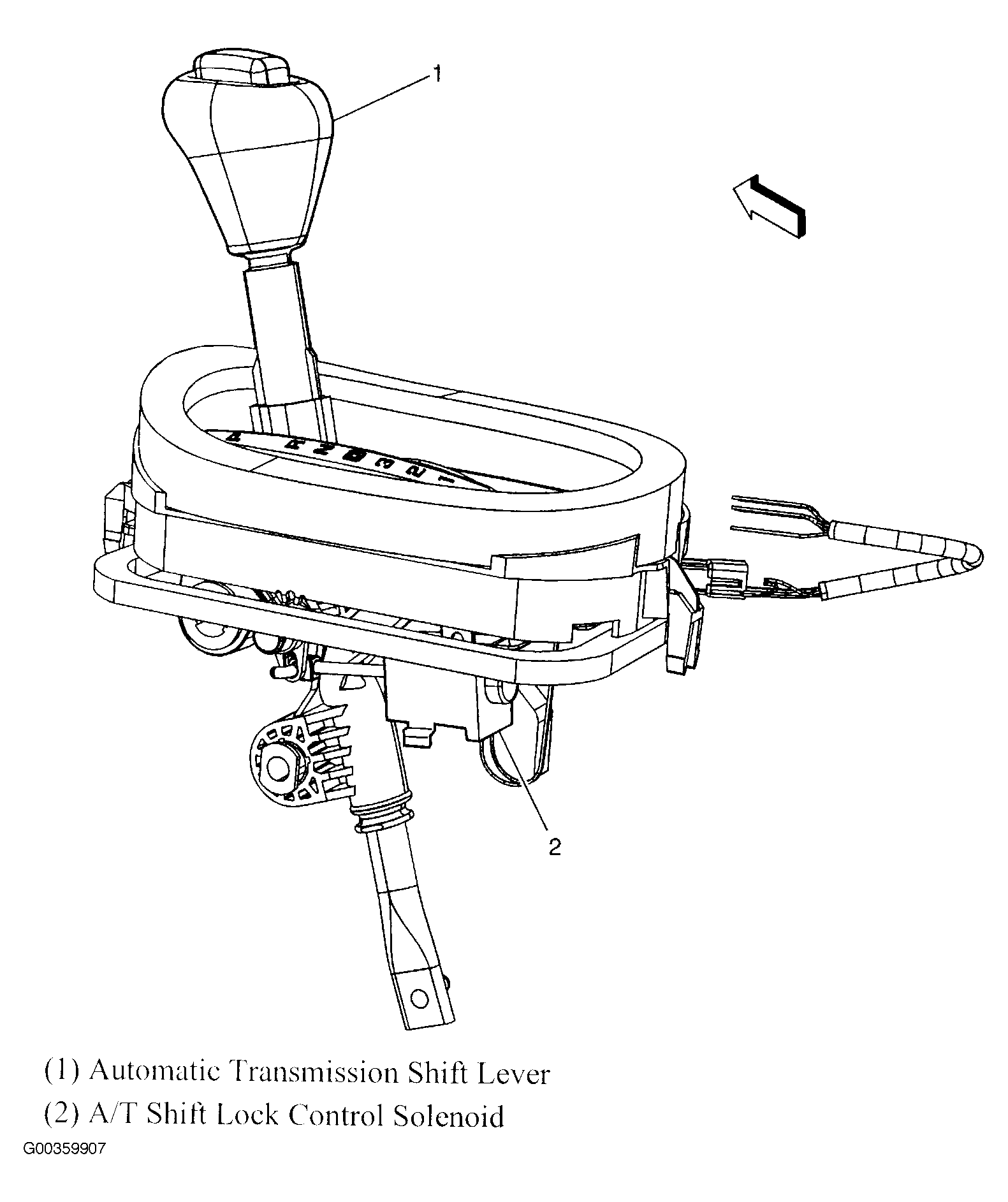

Fig 17: Floor Shifter

G00359907

Courtesy of GENERAL MOTORS CORP.

Fig 18: Steering Components

G00359909

Courtesy of GENERAL MOTORS CORP.

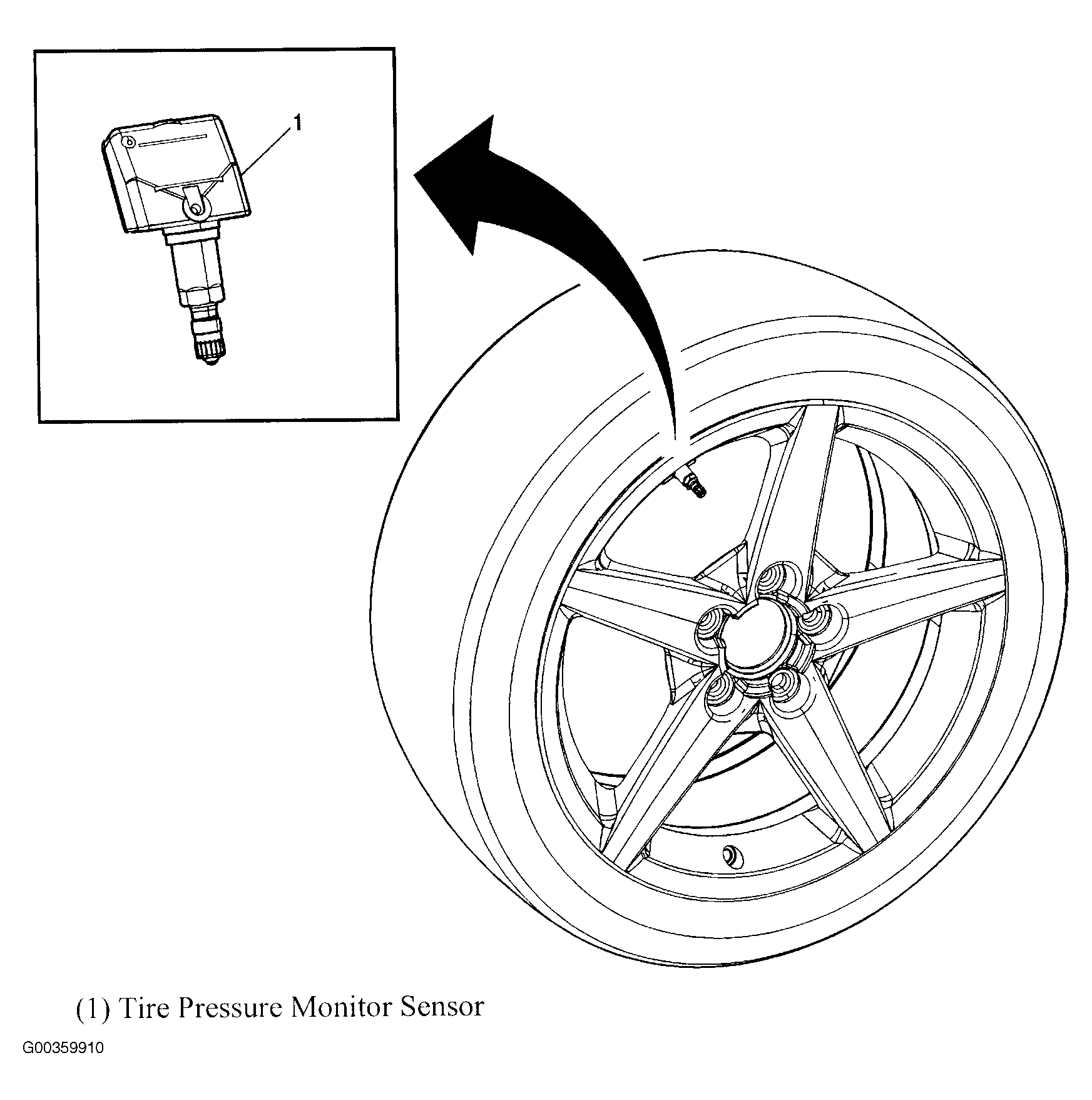

Fig 19: Wheel

G00359910

Courtesy of GENERAL MOTORS CORP.

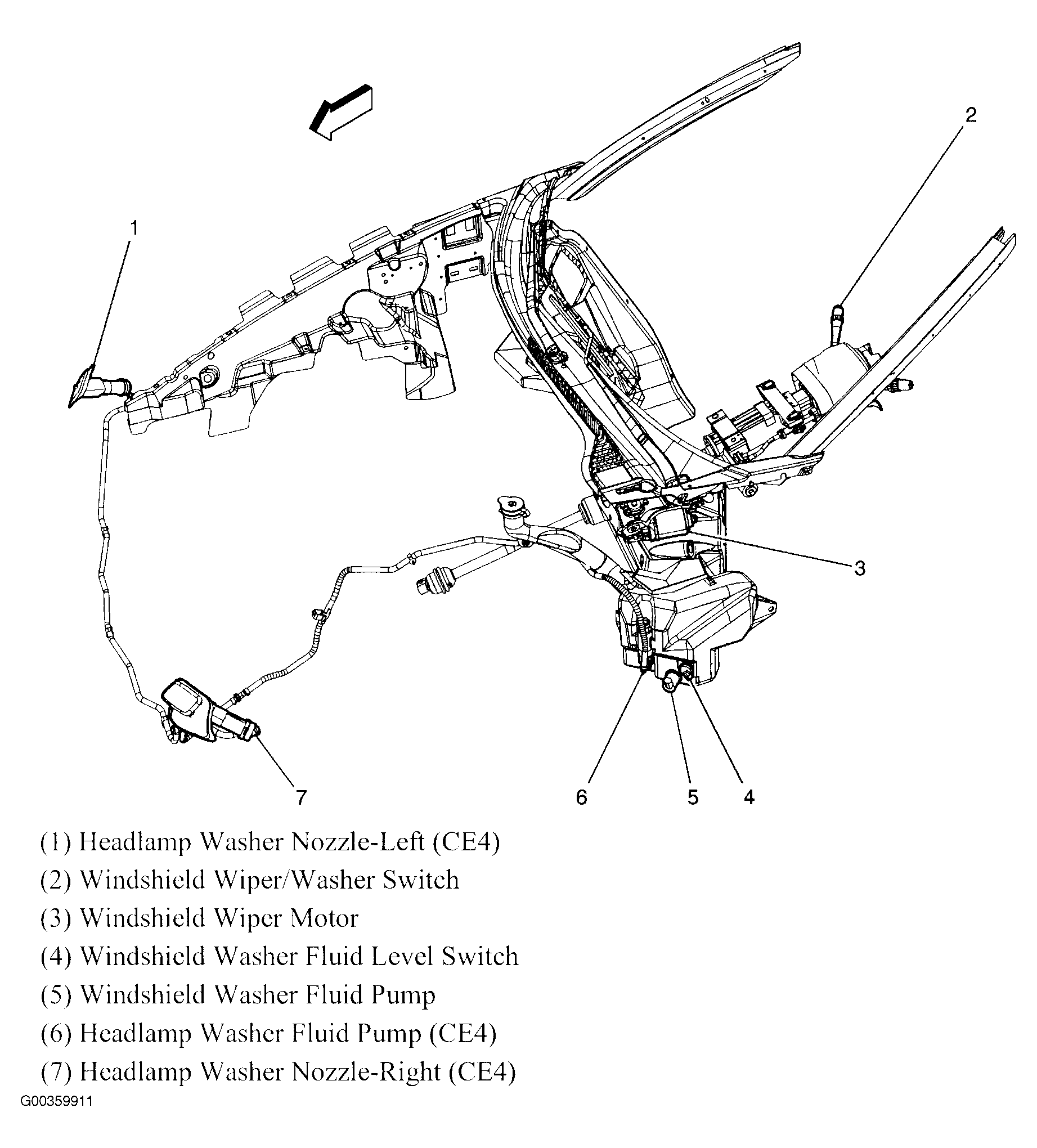

Fig 20: Wiper Washer Components

G00359911

Courtesy of GENERAL MOTORS CORP.

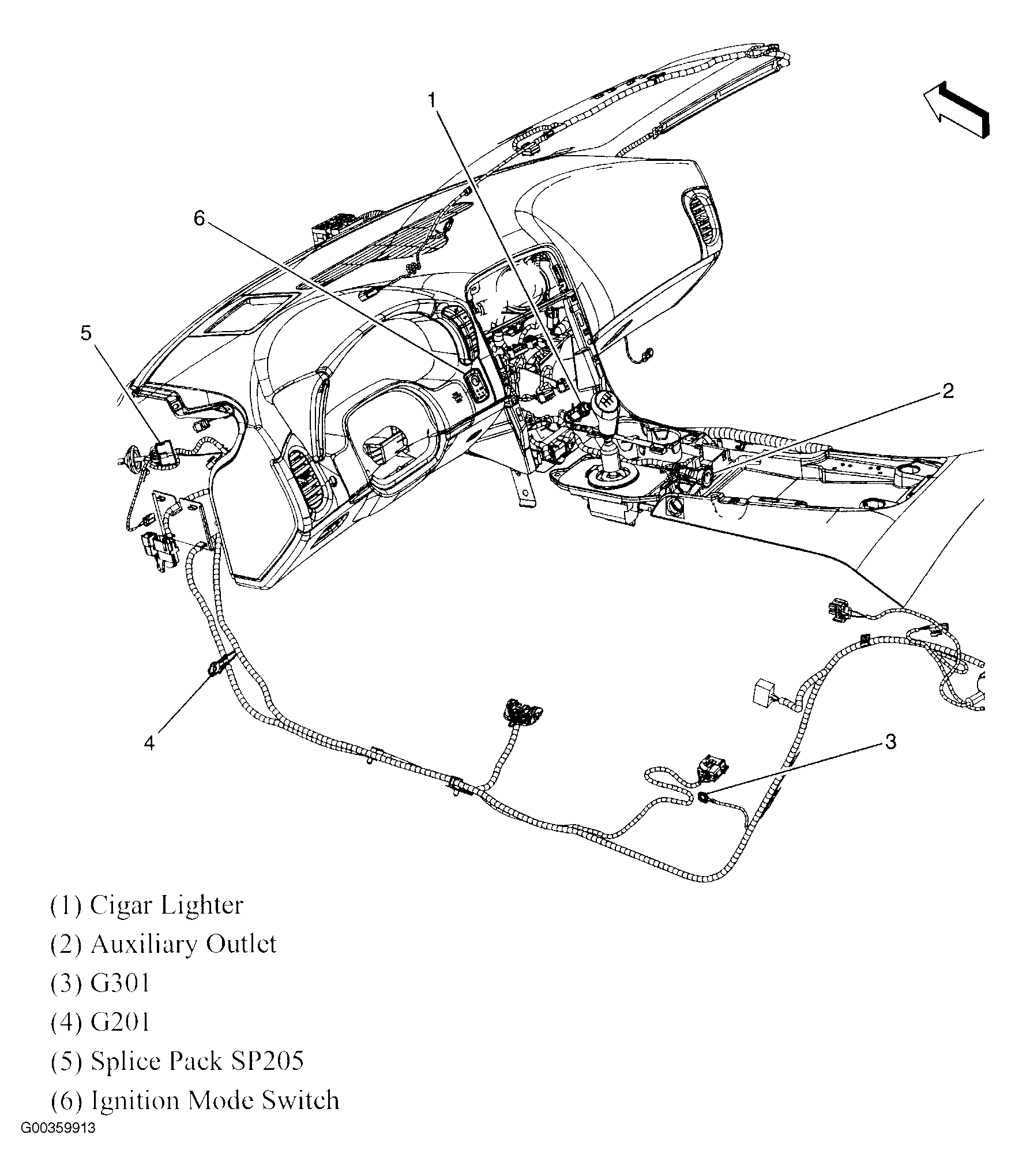

Fig 21: Passenger Compartment

G00359913

Courtesy of GENERAL MOTORS CORP.

Fig 22: Lower Right Side Of Dash

G00440558

Courtesy of GENERAL MOTORS CORP.

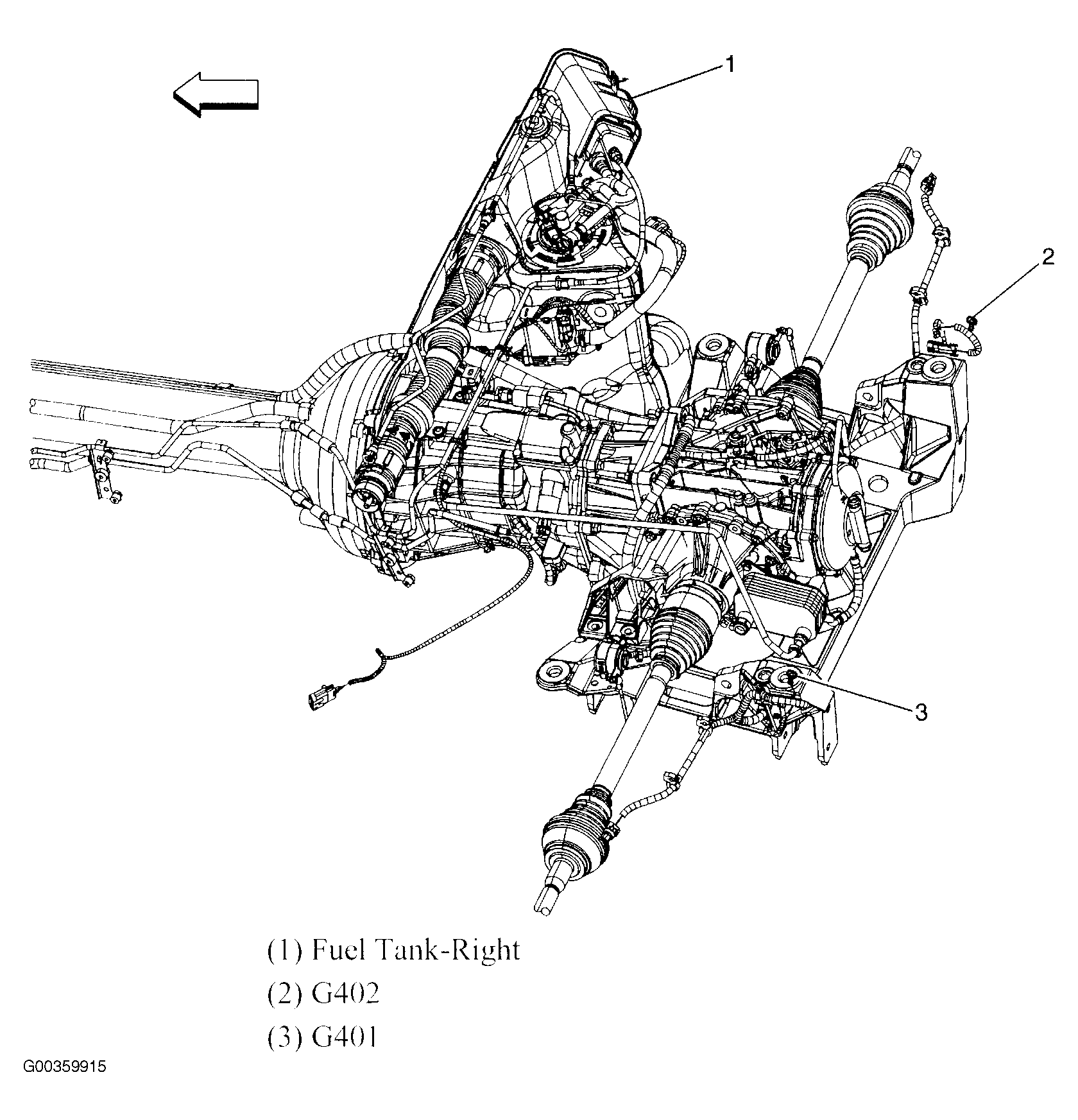

Fig 23: Rear Of Vehicle

G00359915

Courtesy of GENERAL MOTORS CORP.

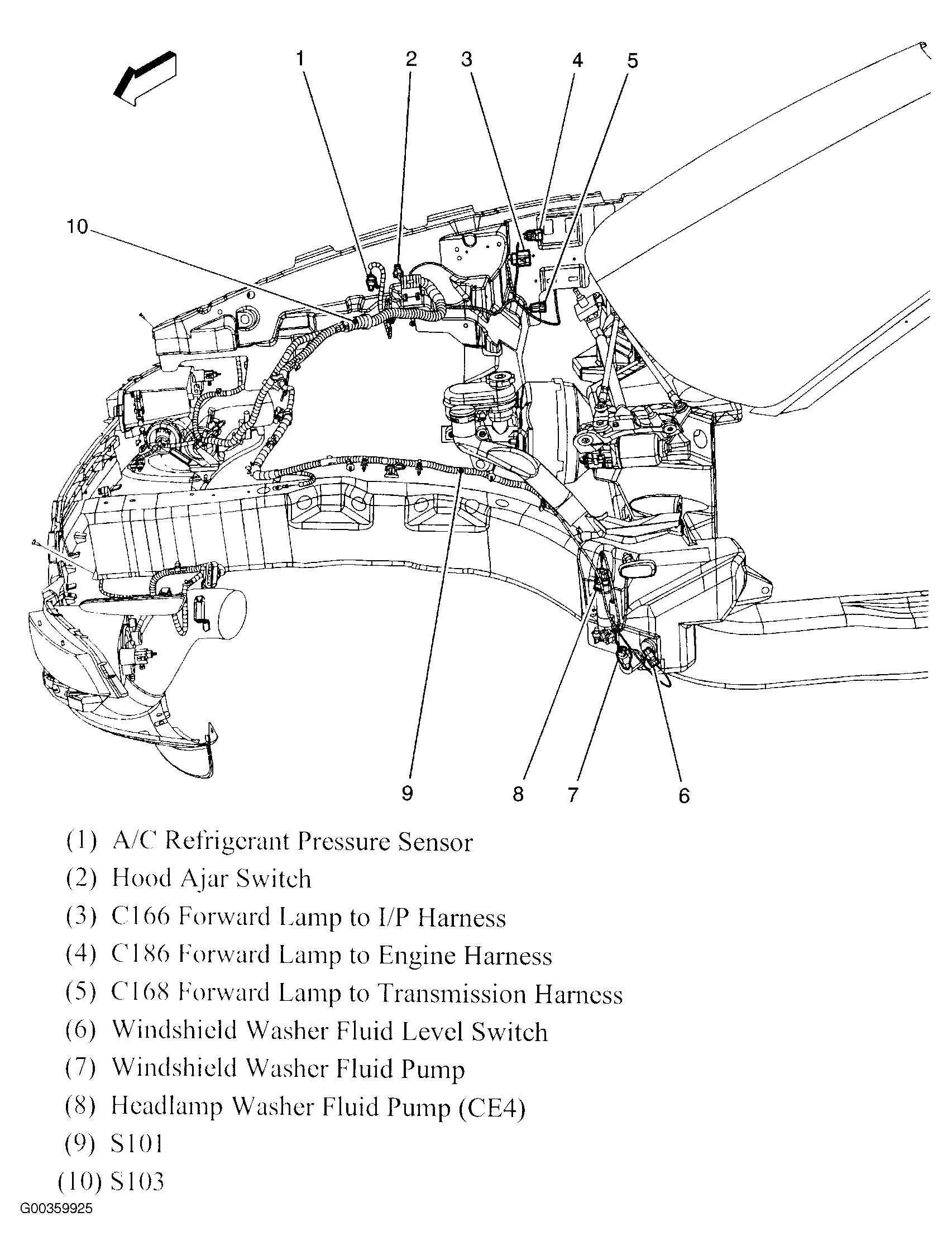

Fig 24: Engine Compartment

G00359925

Courtesy of GENERAL MOTORS CORP.

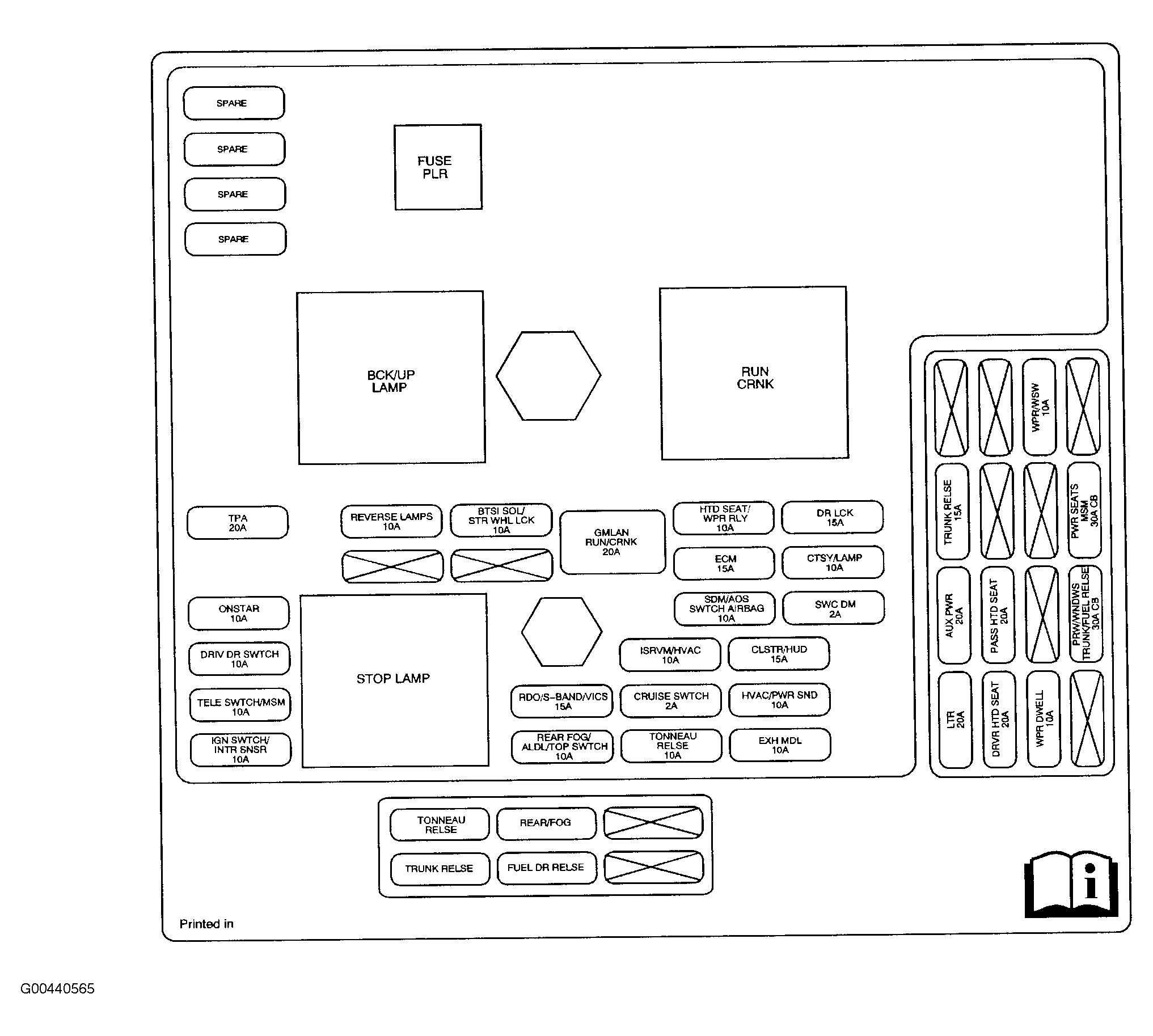

Fig 25: Body Control Module (BCM)

G00440565

Courtesy of GENERAL MOTORS CORP.

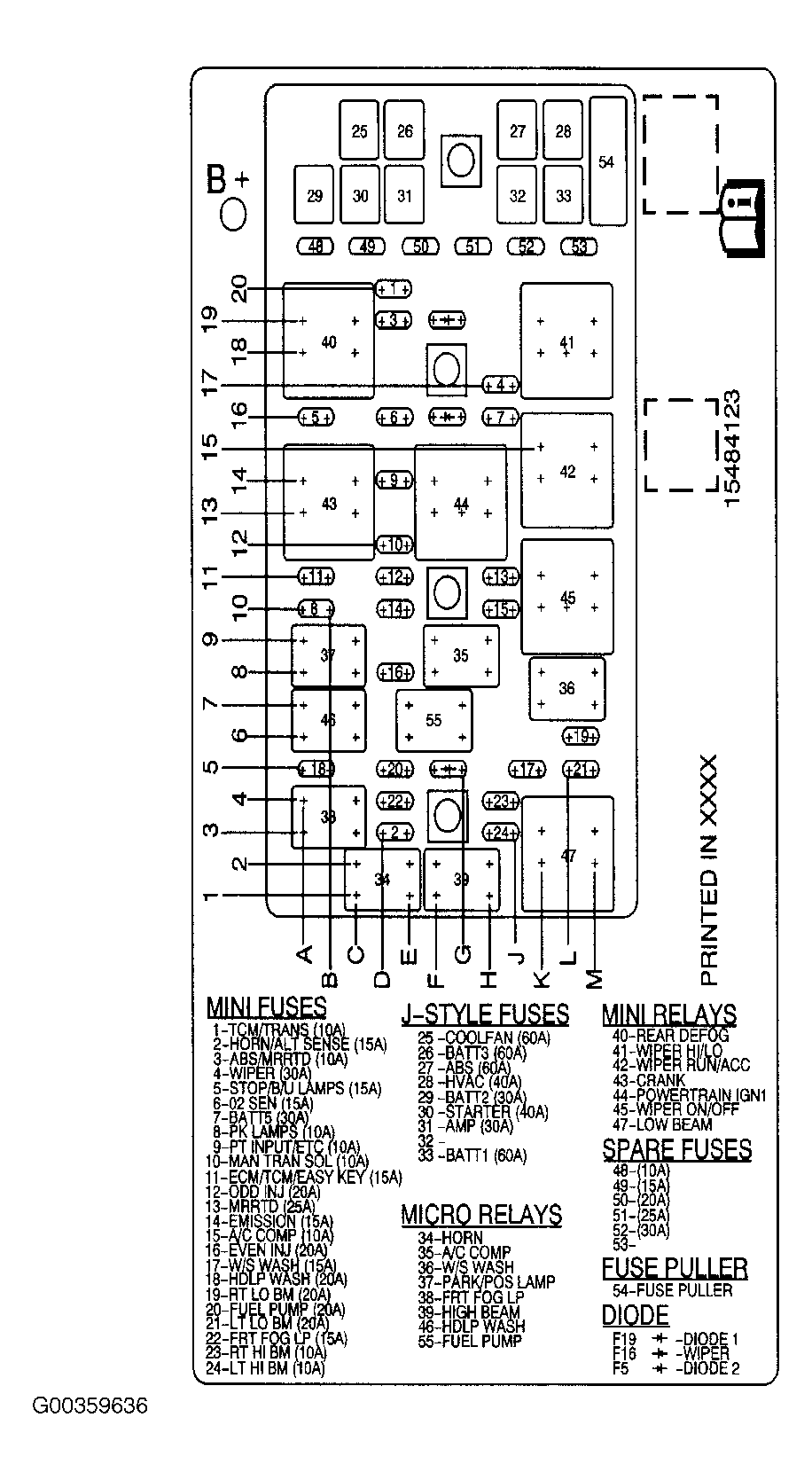

Fig 26: Underhood Fuse Block

G00359636

Courtesy of GENERAL MOTORS CORP.

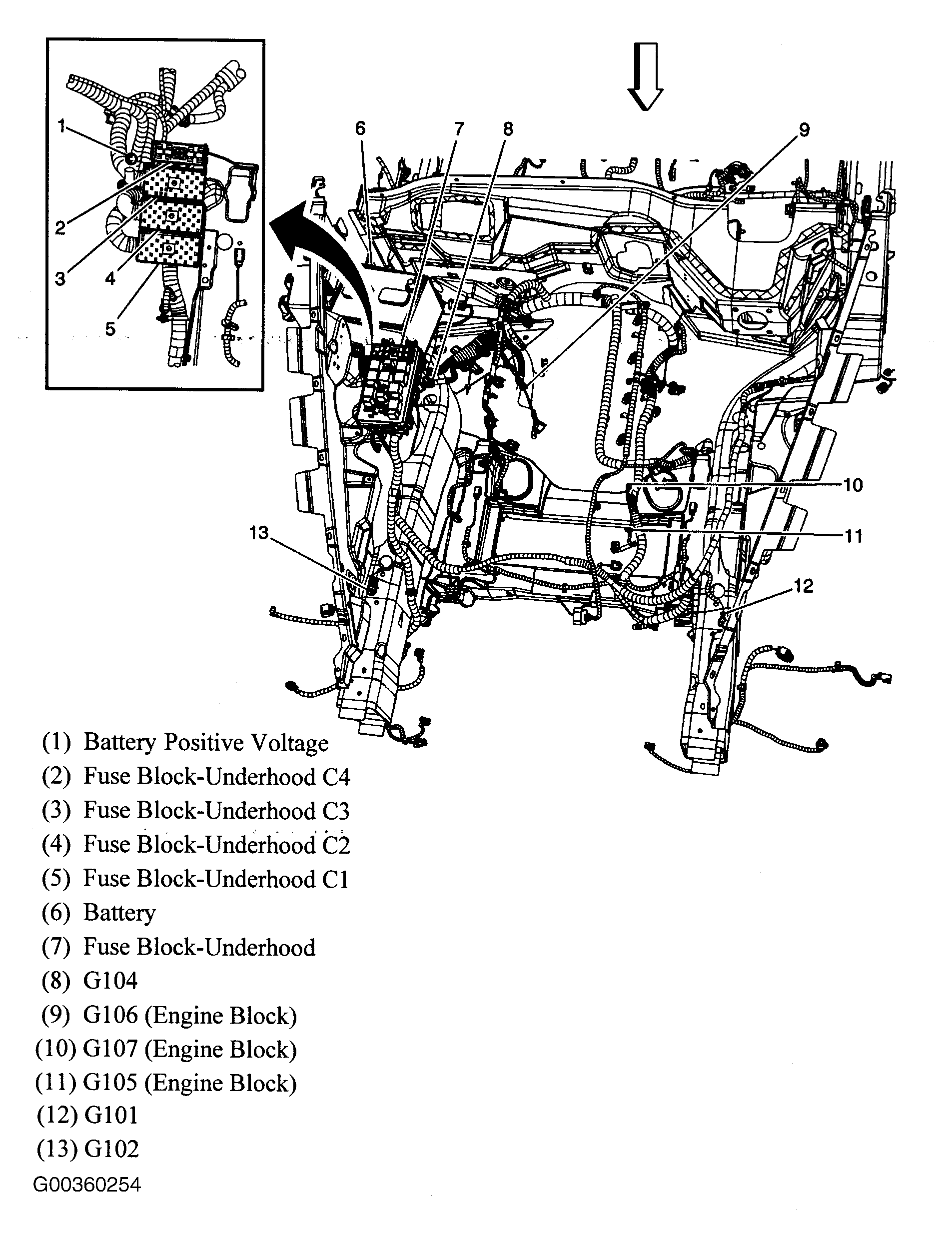

Fig 27: Engine Compartment

G00360254

Courtesy of GENERAL MOTORS CORP.

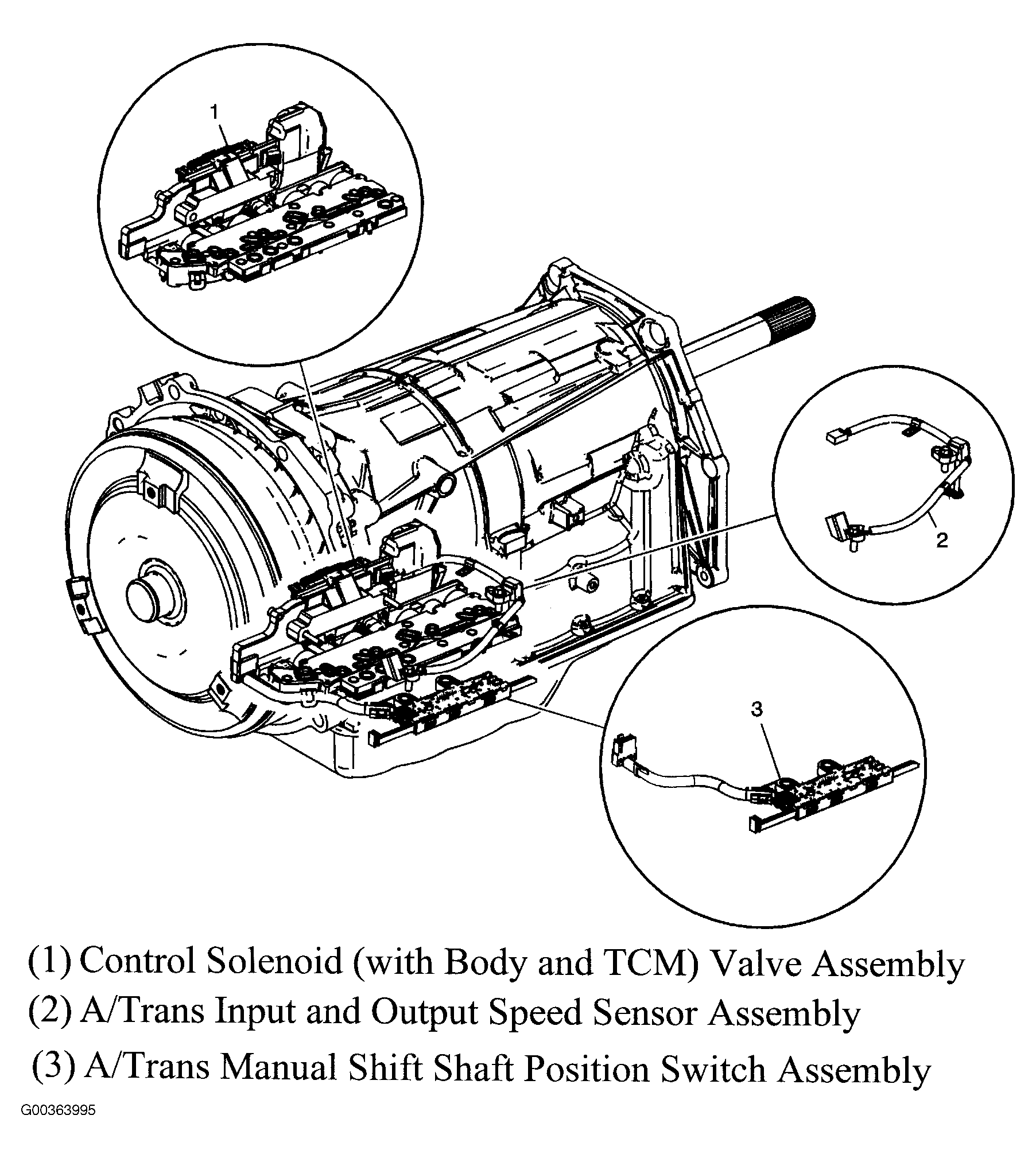

Fig 28: Automatic Transmission

G00363995

Courtesy of GENERAL MOTORS CORP.

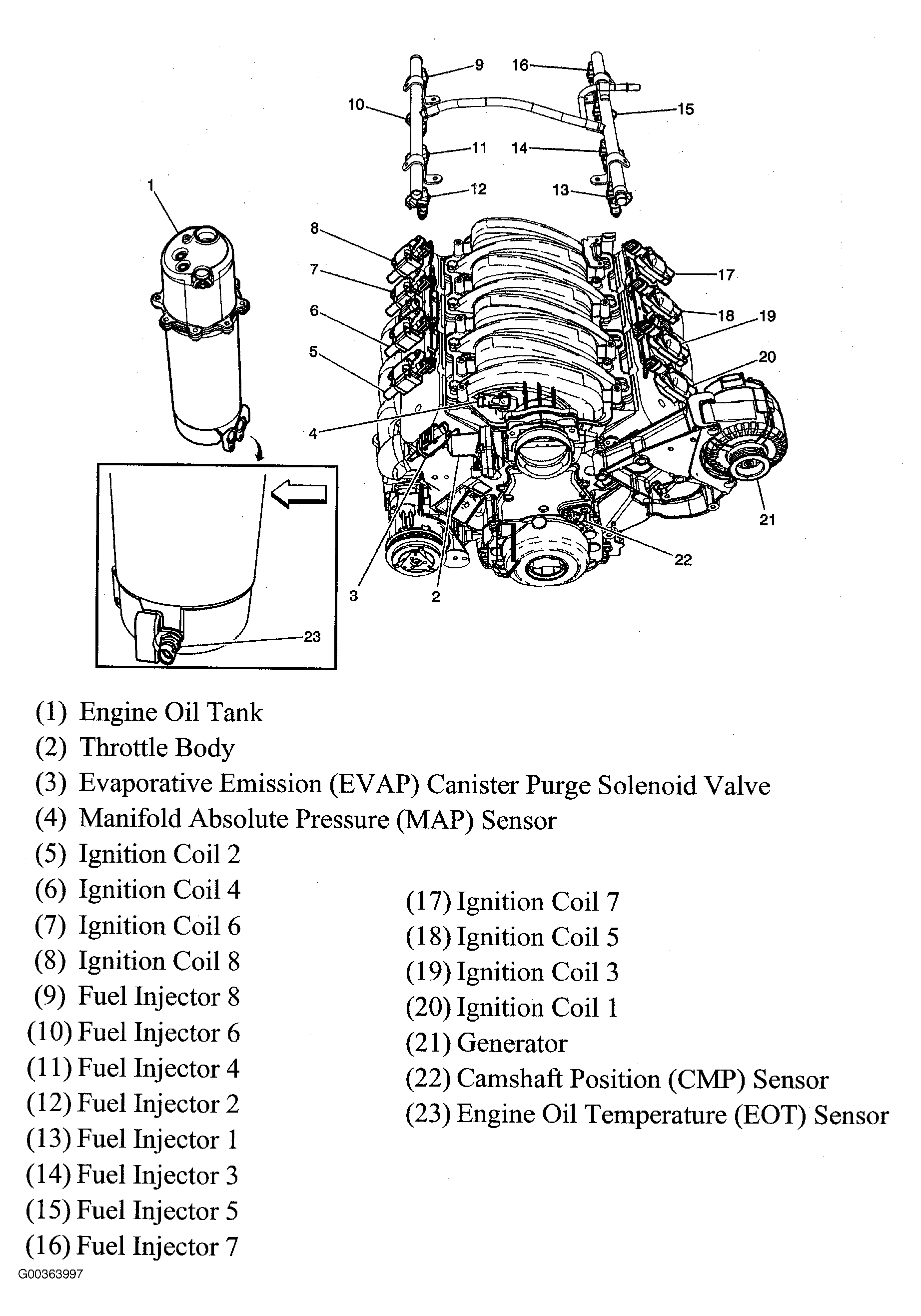

Fig 29: Top Of Engine (7.0L)

G00363997

Courtesy of GENERAL MOTORS CORP.

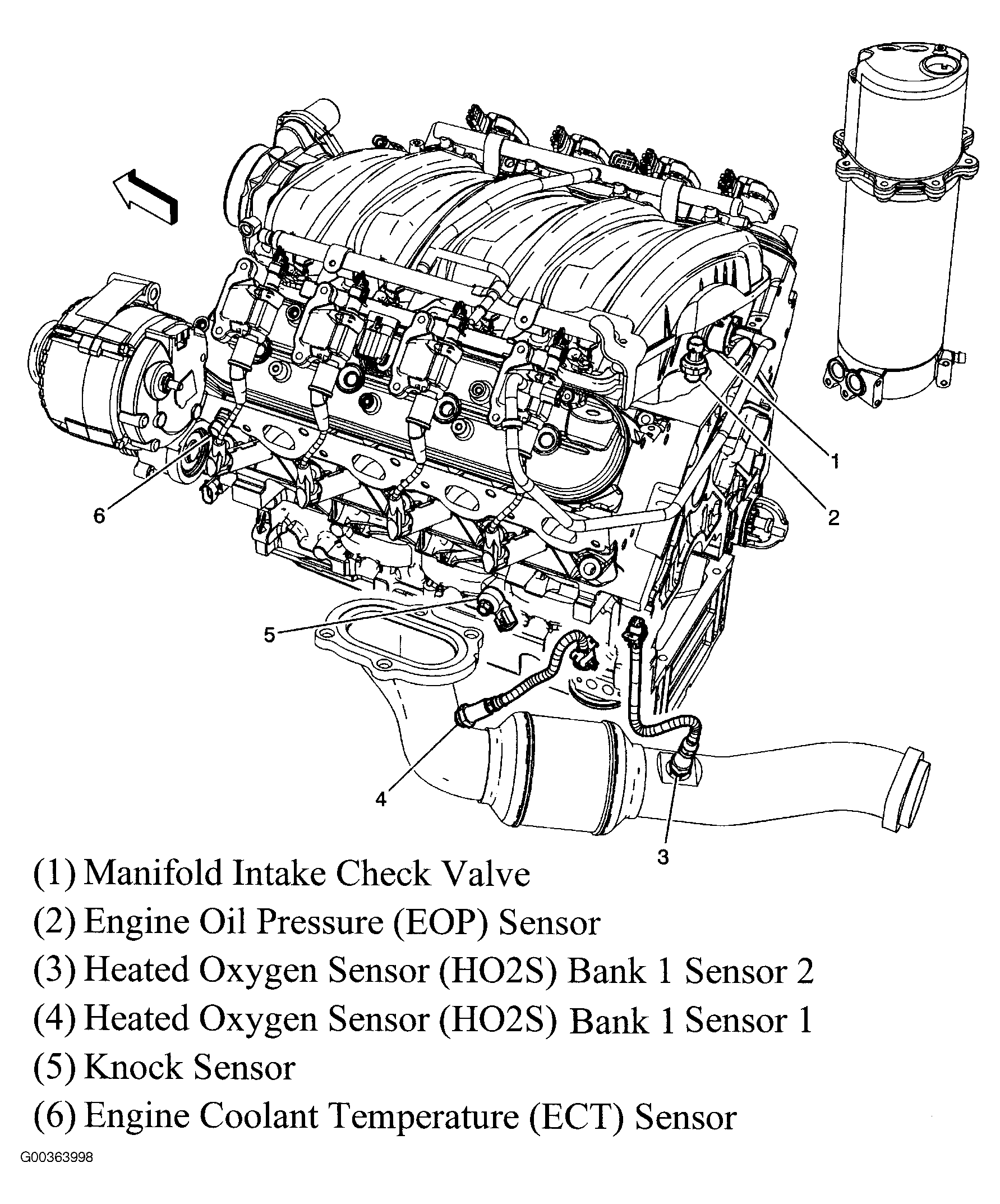

Fig 30: Left Side Of Engine (7.0L)

G00363998

Courtesy of GENERAL MOTORS CORP.

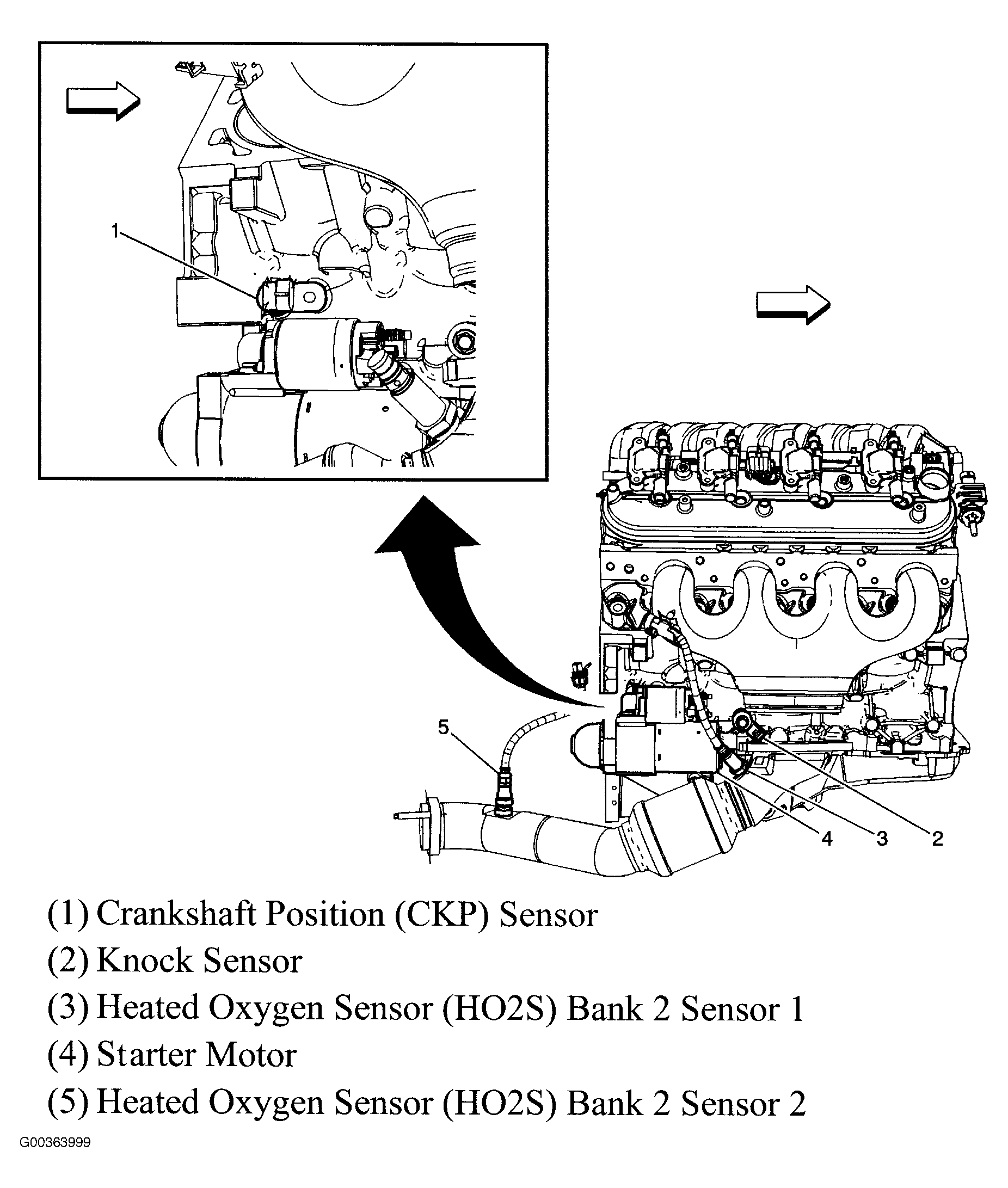

Fig 31: Right Side Of Engine (7.0L)

G00363999

Courtesy of GENERAL MOTORS CORP.

Fig 32: Front Of Engine Compartment

G00440538

Courtesy of GENERAL MOTORS CORP.

Fig 33: Dash Console (1 Of 2)

G00440536

Courtesy of GENERAL MOTORS CORP.

Fig 34: Dash Console (2 Of 2)

G00440537

Courtesy of GENERAL MOTORS CORP.

Fig 35: Engine Compartment Components (6.0L)

G00440514

Courtesy of GENERAL MOTORS CORP.

Fig 36: Rear Exhaust Area

G00440502

Courtesy of GENERAL MOTORS CORP.

Fig 37: Folding Top Harness Routing Components

G00440494

Courtesy of GENERAL MOTORS CORP.

Fig 38: Driver Seat Components

G00440495

Courtesy of GENERAL MOTORS CORP.

Fig 39: Passenger Seat Components

G00440499

Courtesy of GENERAL MOTORS CORP.

Fig 40: Center Of Steering Wheel

G00440503

Courtesy of GENERAL MOTORS CORP.

Fig 41: Antennas & Antenna Modules

G00440530

Courtesy of GENERAL MOTORS CORP.

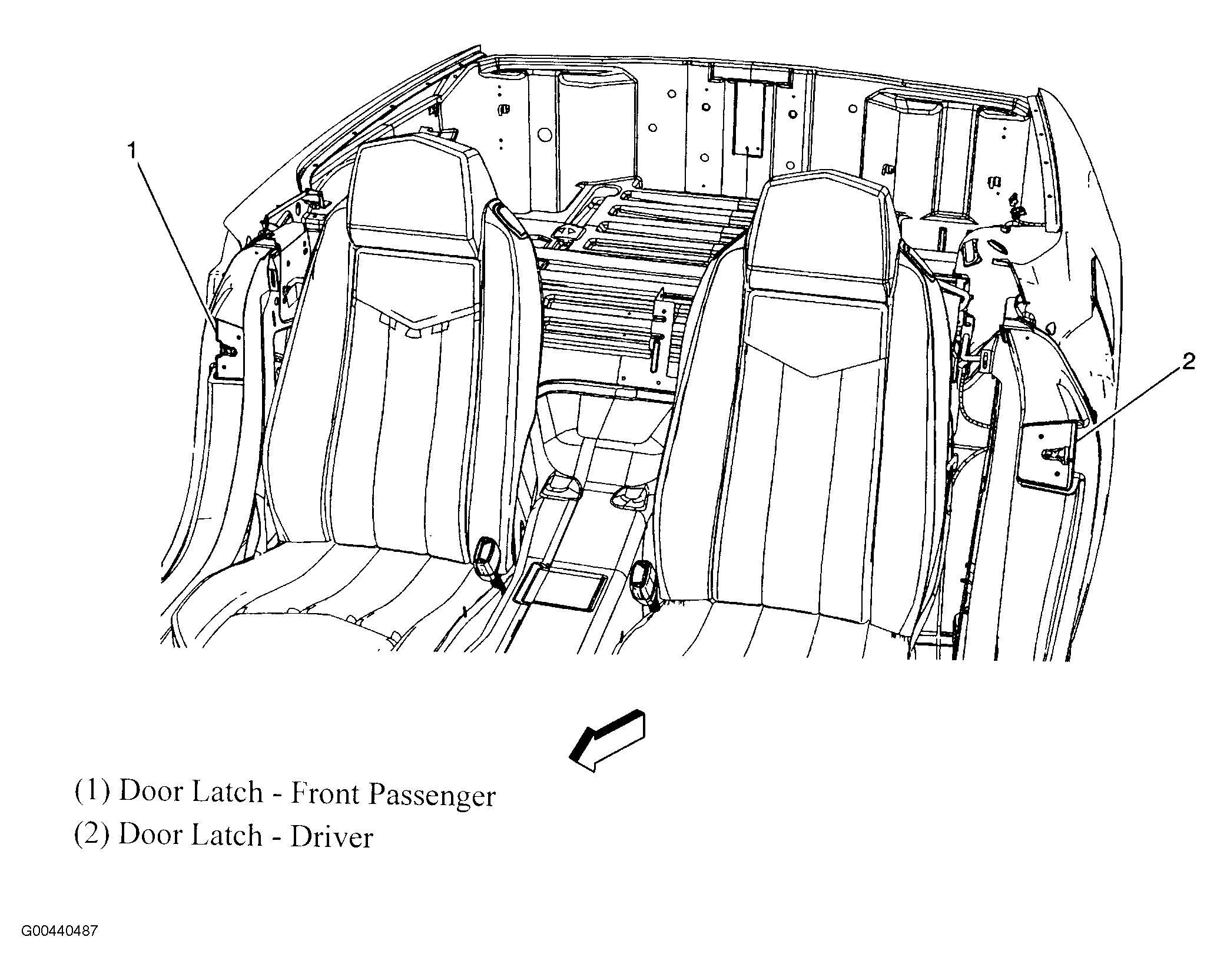

Fig 42: Door Latches

G00440487

Courtesy of GENERAL MOTORS CORP.

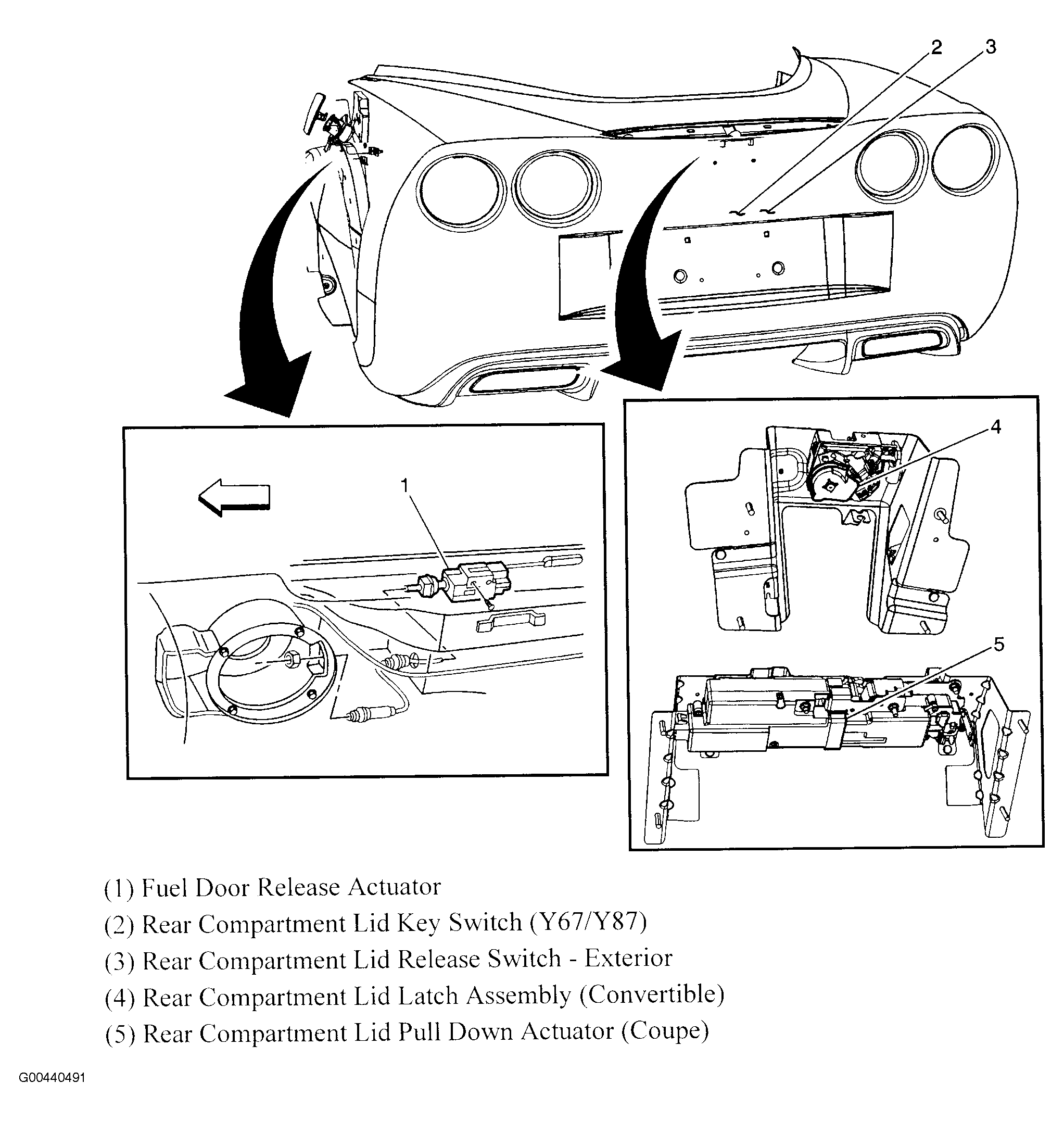

Fig 43: Rear Closure Components

G00440491

Courtesy of GENERAL MOTORS CORP.

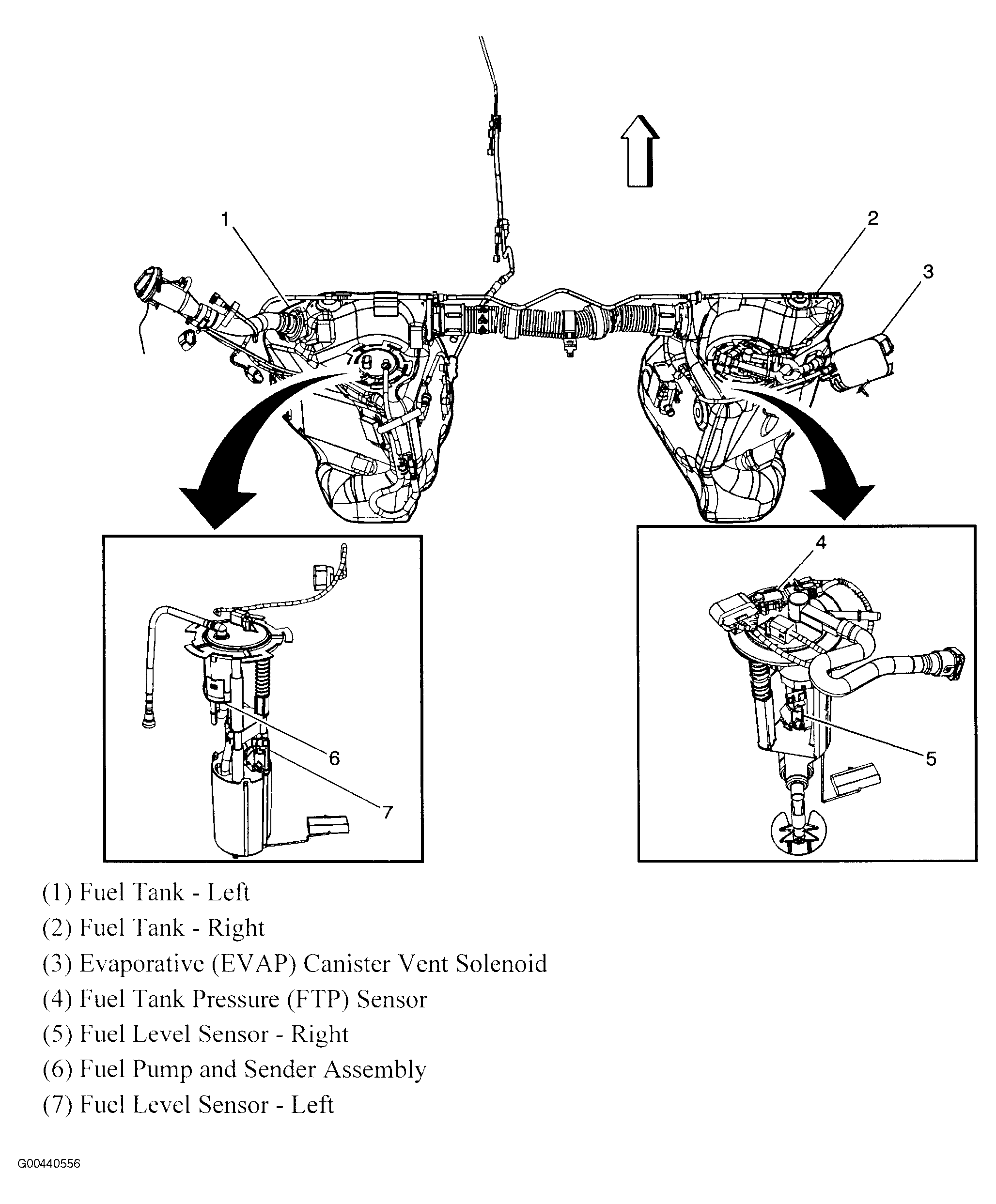

Fig 44: Fuel Tank

G00440556

Courtesy of GENERAL MOTORS CORP.

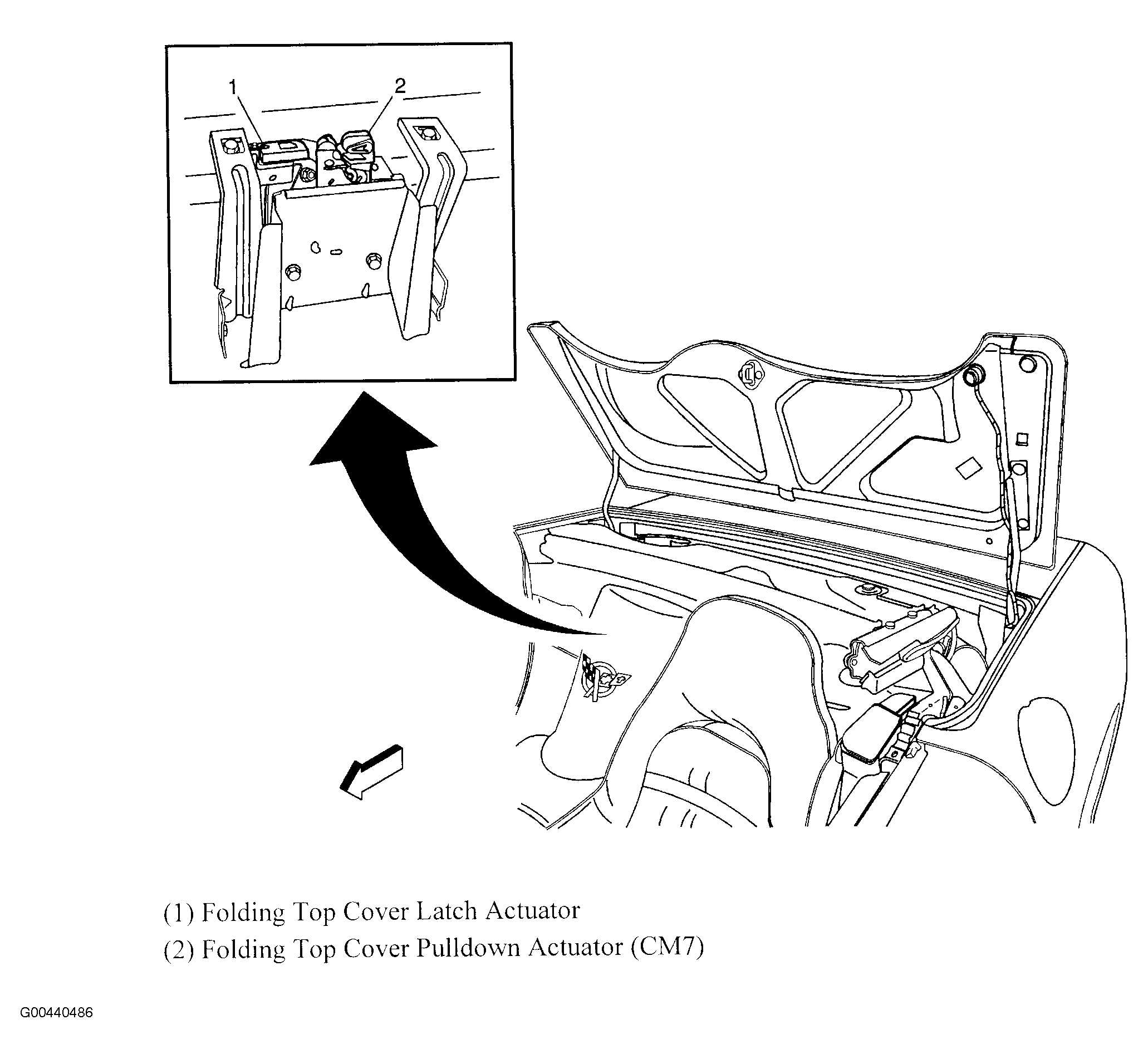

Fig 45: Folding Top Components

G00440486

Courtesy of GENERAL MOTORS CORP.

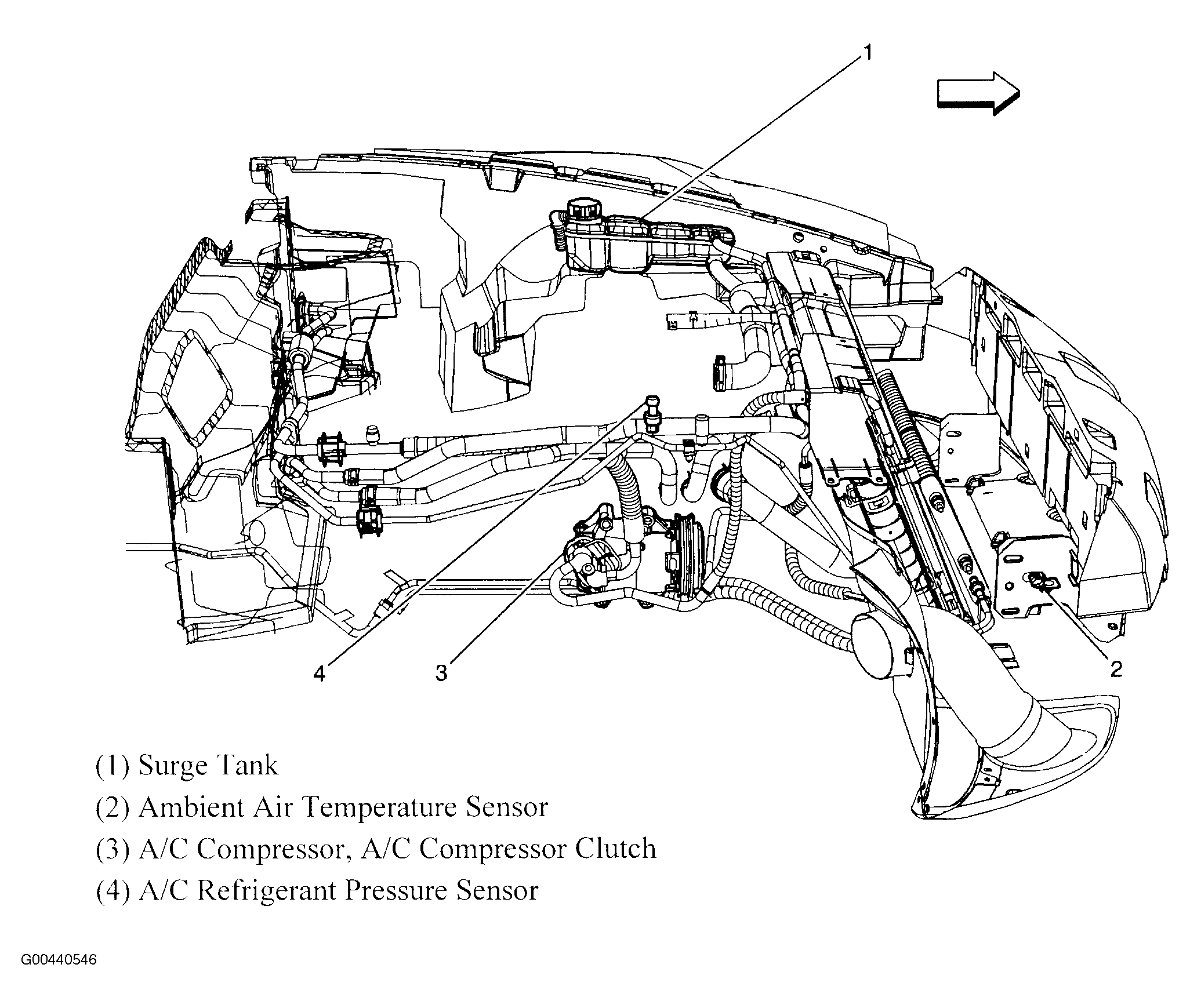

Fig 46: HVAC Components

G00440546

Courtesy of GENERAL MOTORS CORP.

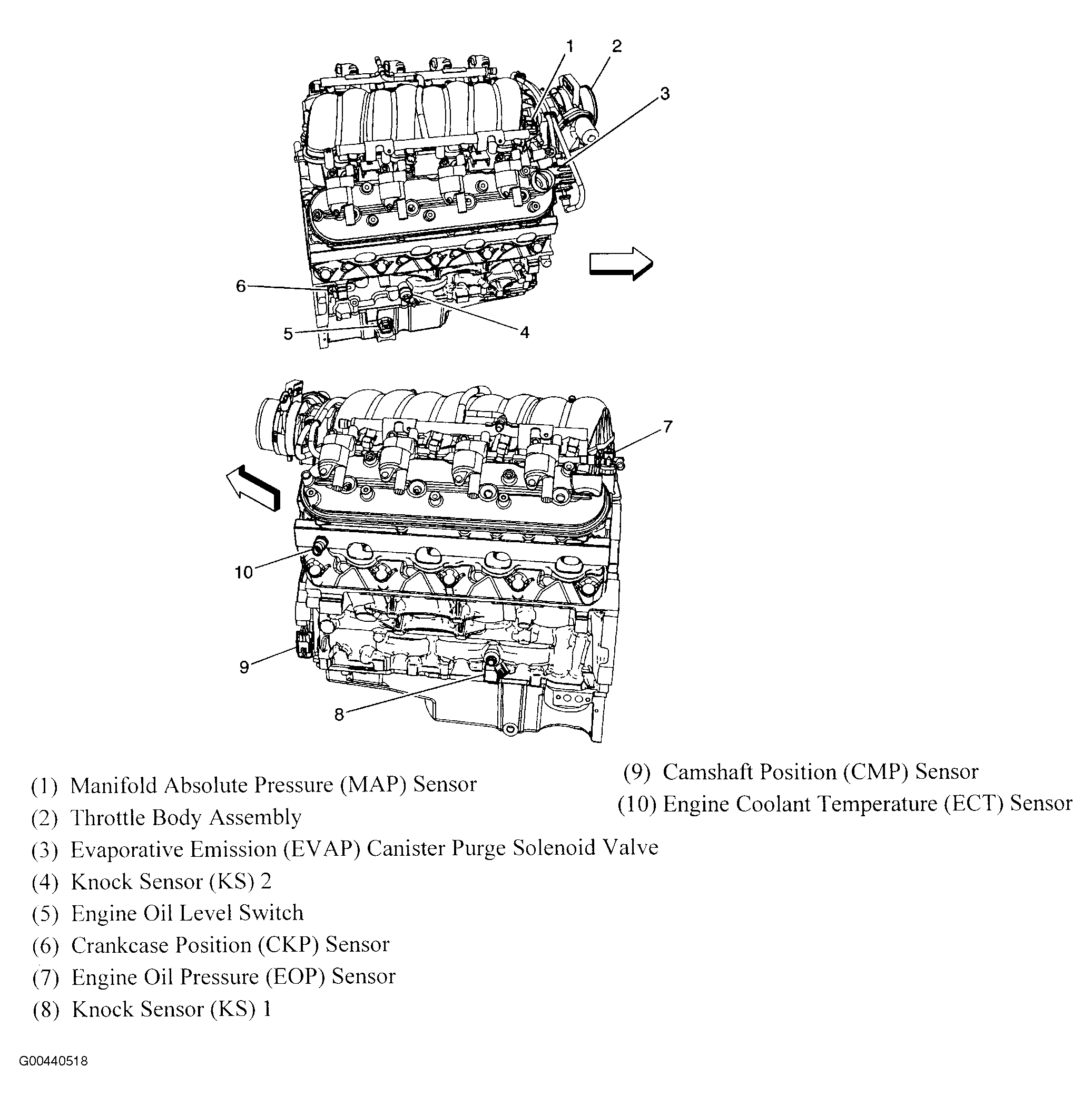

Fig 47: Engine Components

G00440518

Courtesy of GENERAL MOTORS CORP.

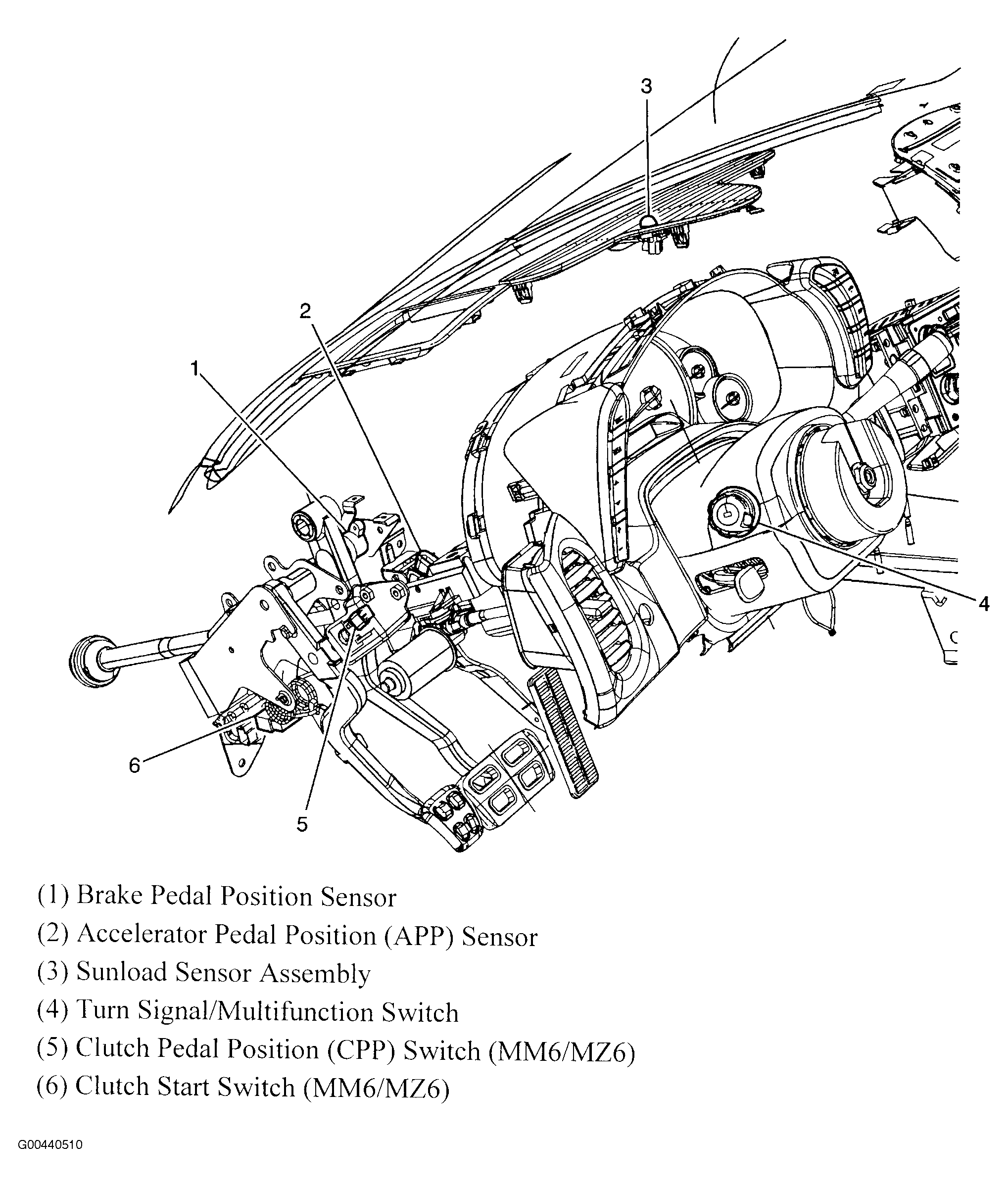

Fig 48: Left Side Of Dash

G00440510

Courtesy of GENERAL MOTORS CORP.

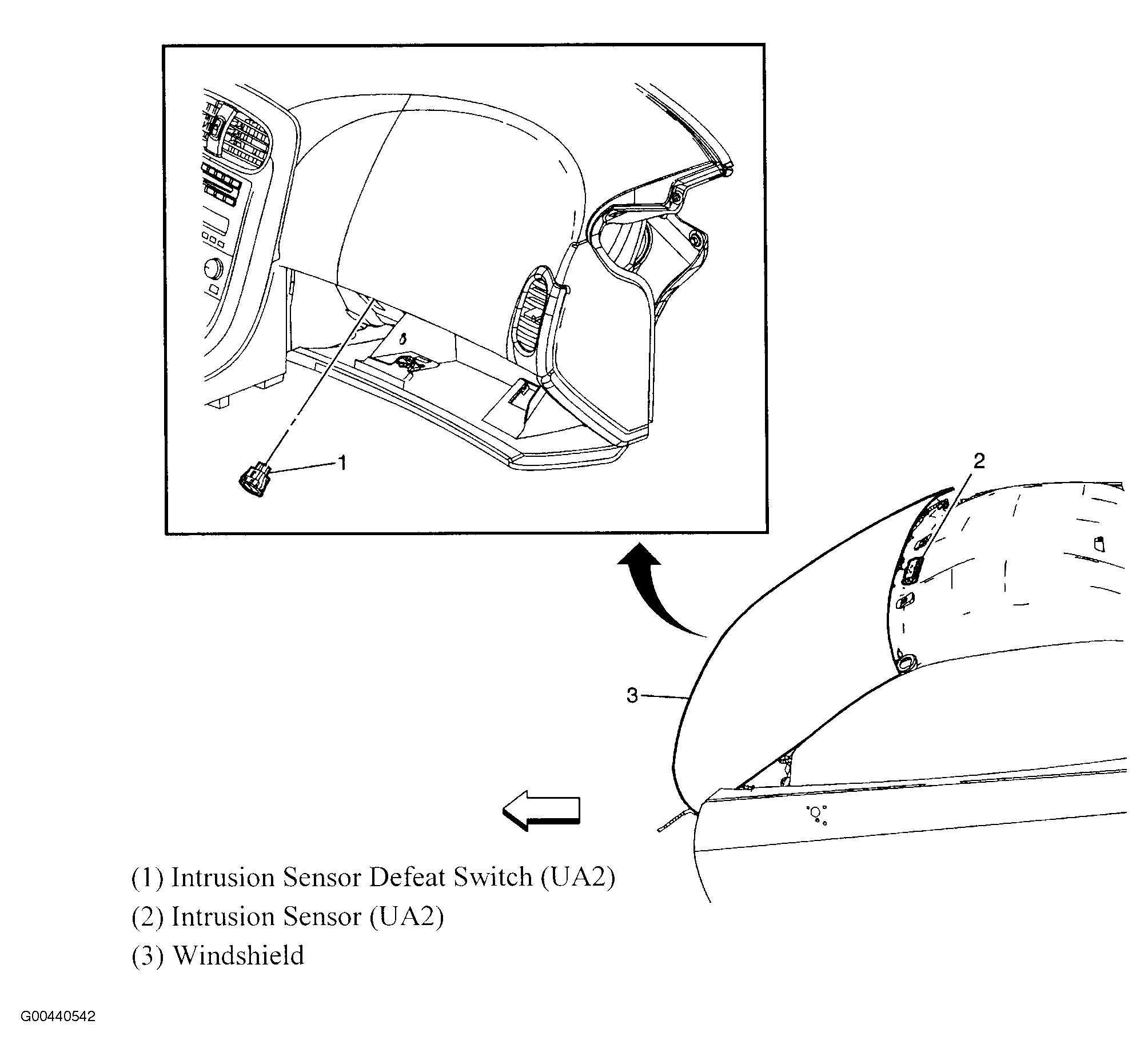

Fig 49: Front Top Center Of Headliner

G00440542

Courtesy of GENERAL MOTORS CORP.

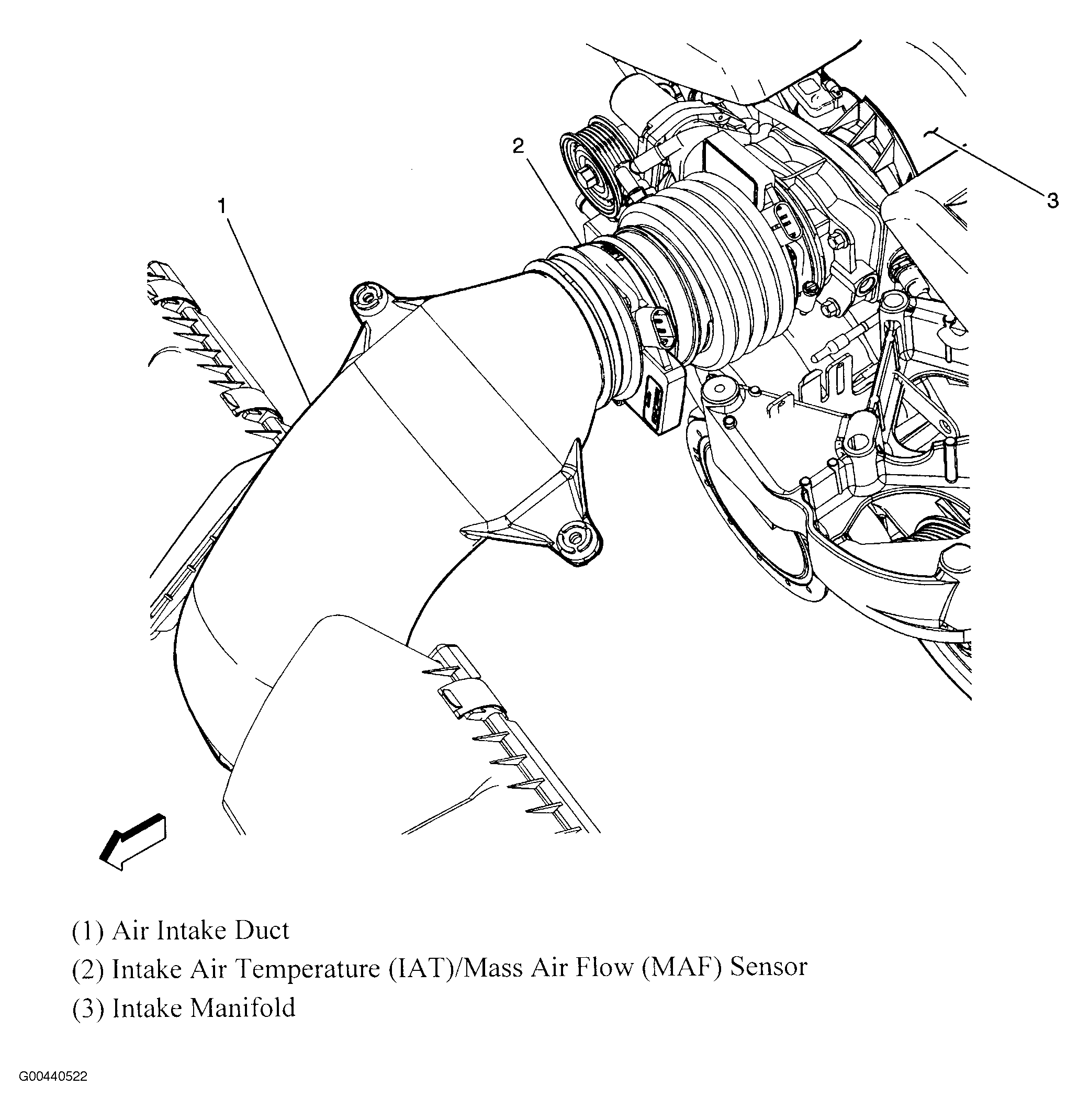

Fig 50: Air Intake Duct

G00440522

Courtesy of GENERAL MOTORS CORP.

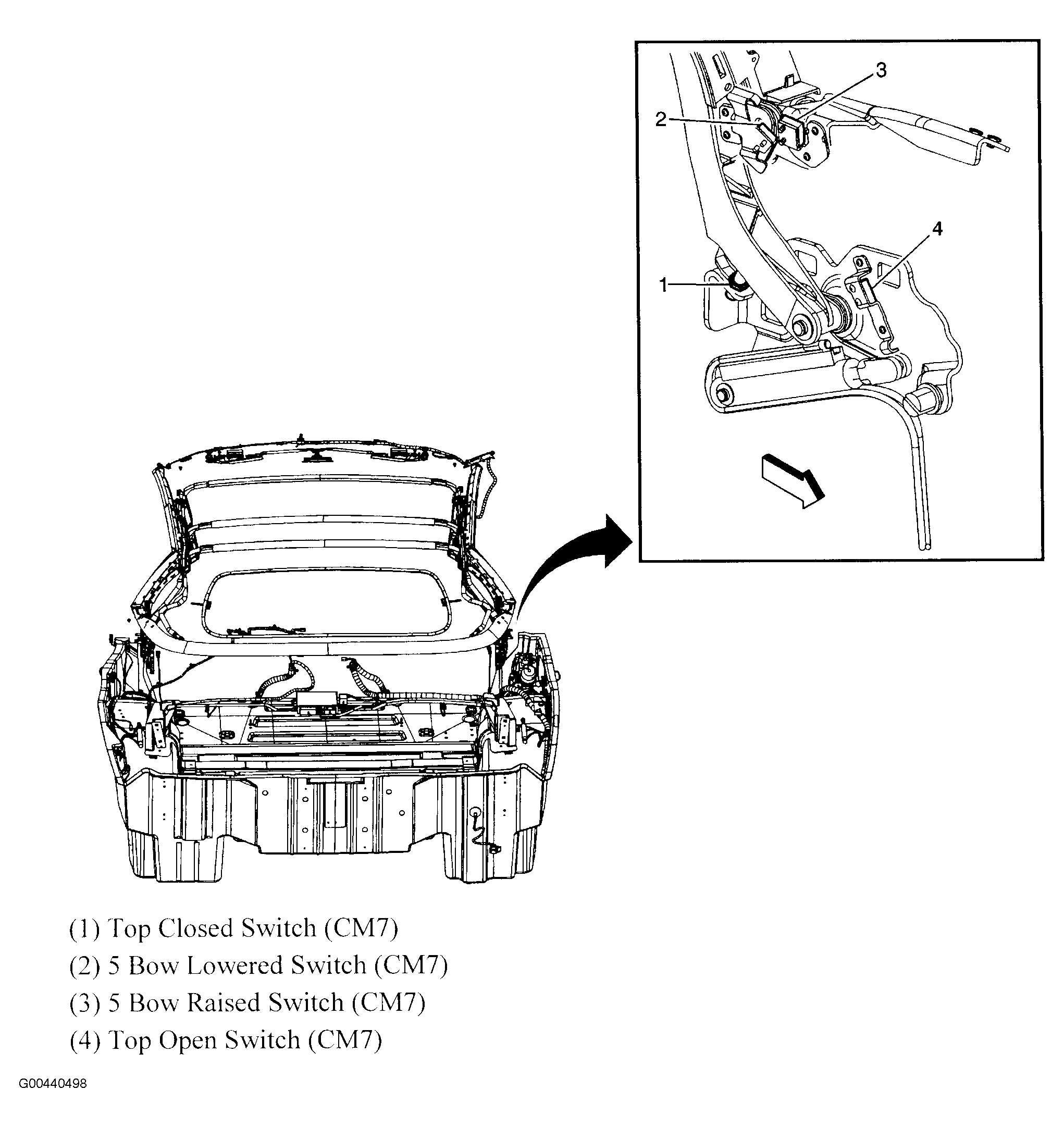

Fig 51: Right Side Of Power Folding Top

G00440498

Courtesy of GENERAL MOTORS CORP.

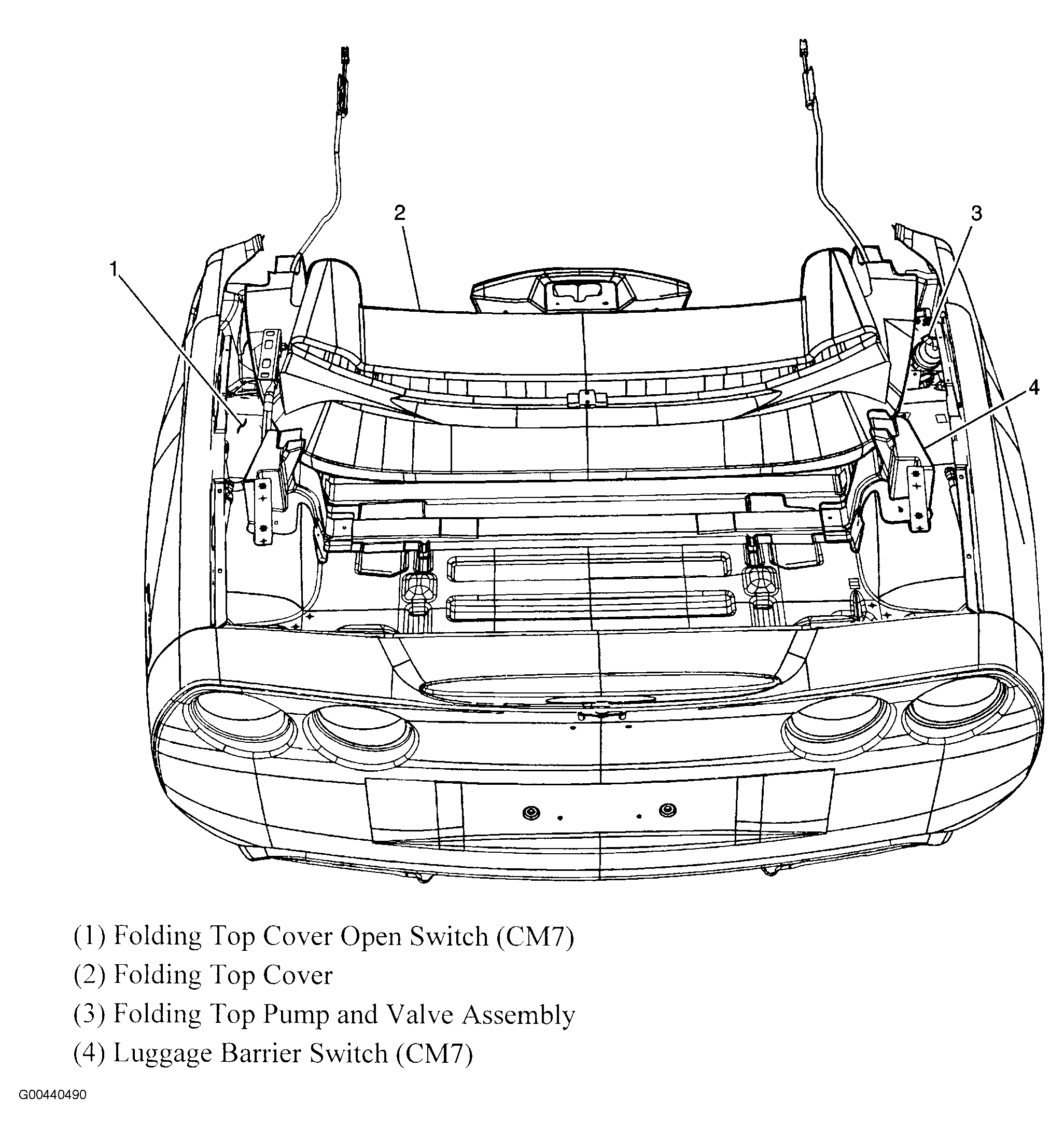

Fig 52: Folding Top Components

G00440490

Courtesy of GENERAL MOTORS CORP.

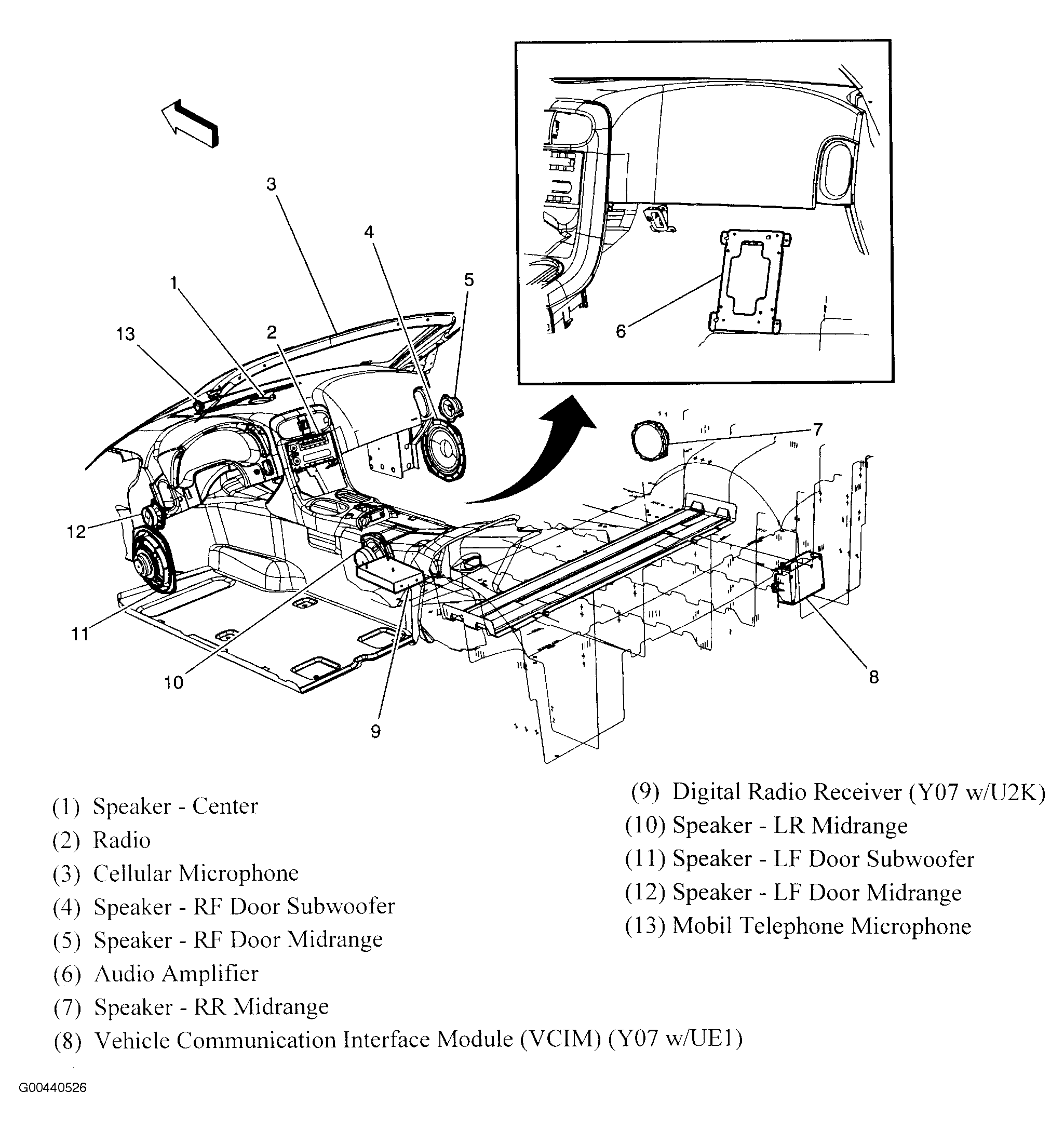

Fig 53: Entertainment Components

G00440526

Courtesy of GENERAL MOTORS CORP.

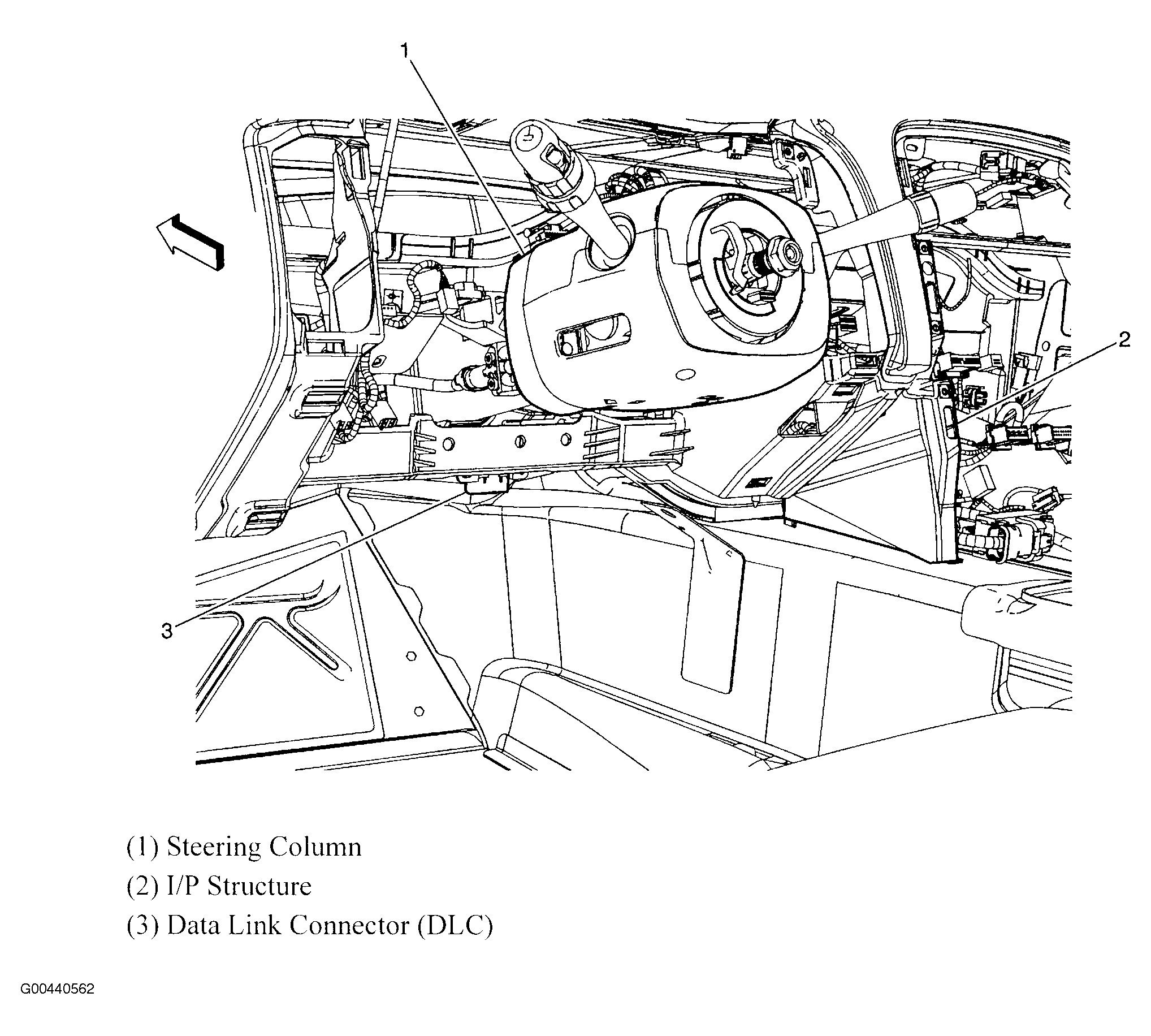

Fig 54: Data Link Connector

G00440562

Courtesy of GENERAL MOTORS CORP.

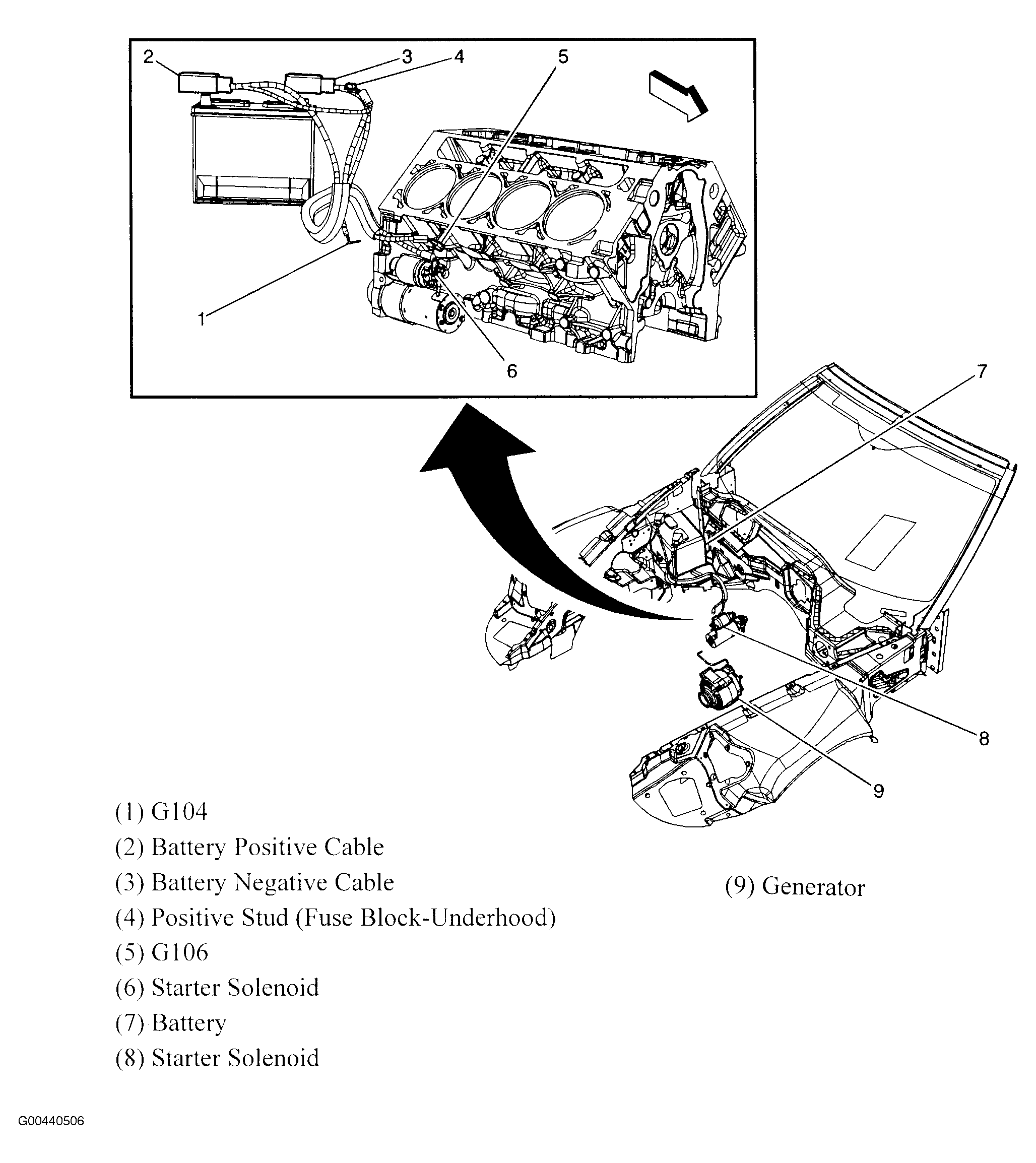

Fig 55: Engine Electrical Components

G00440506

Courtesy of GENERAL MOTORS CORP.

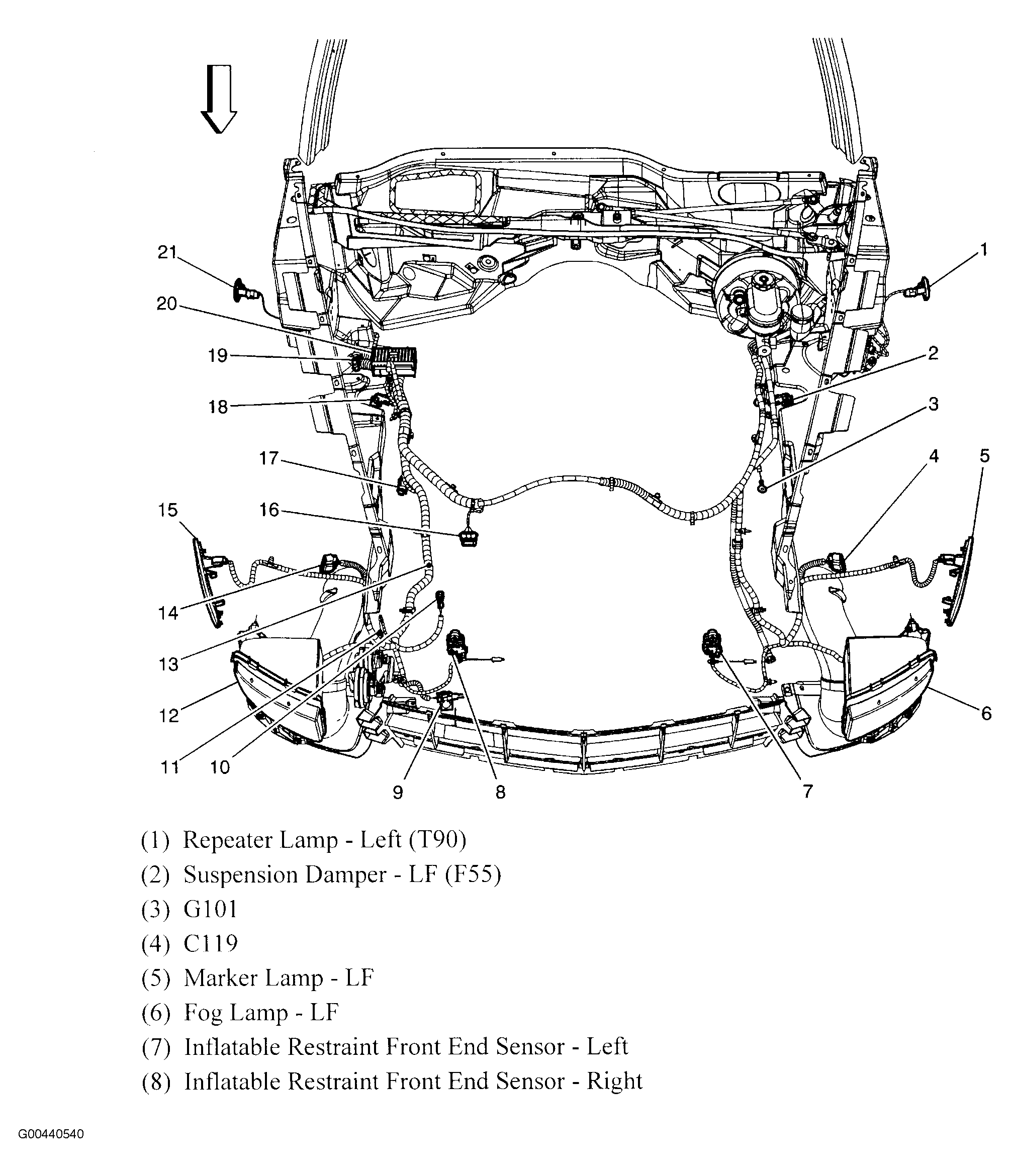

Fig 56: Forward Lamp Wiring Components (1 Of 2)

G00440540

Courtesy of GENERAL MOTORS CORP.

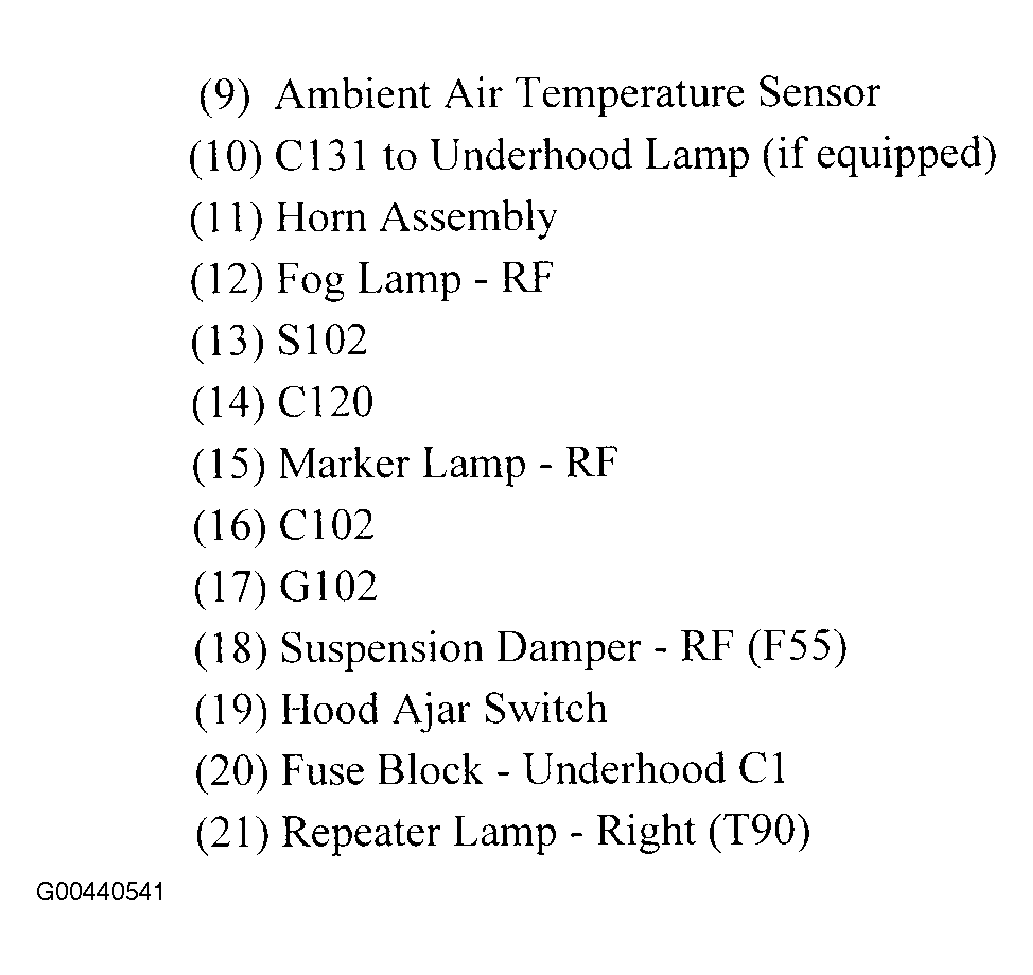

Fig 57: Forward Lamp Wiring Components (2 Of 2)

G00440541

Courtesy of GENERAL MOTORS CORP.

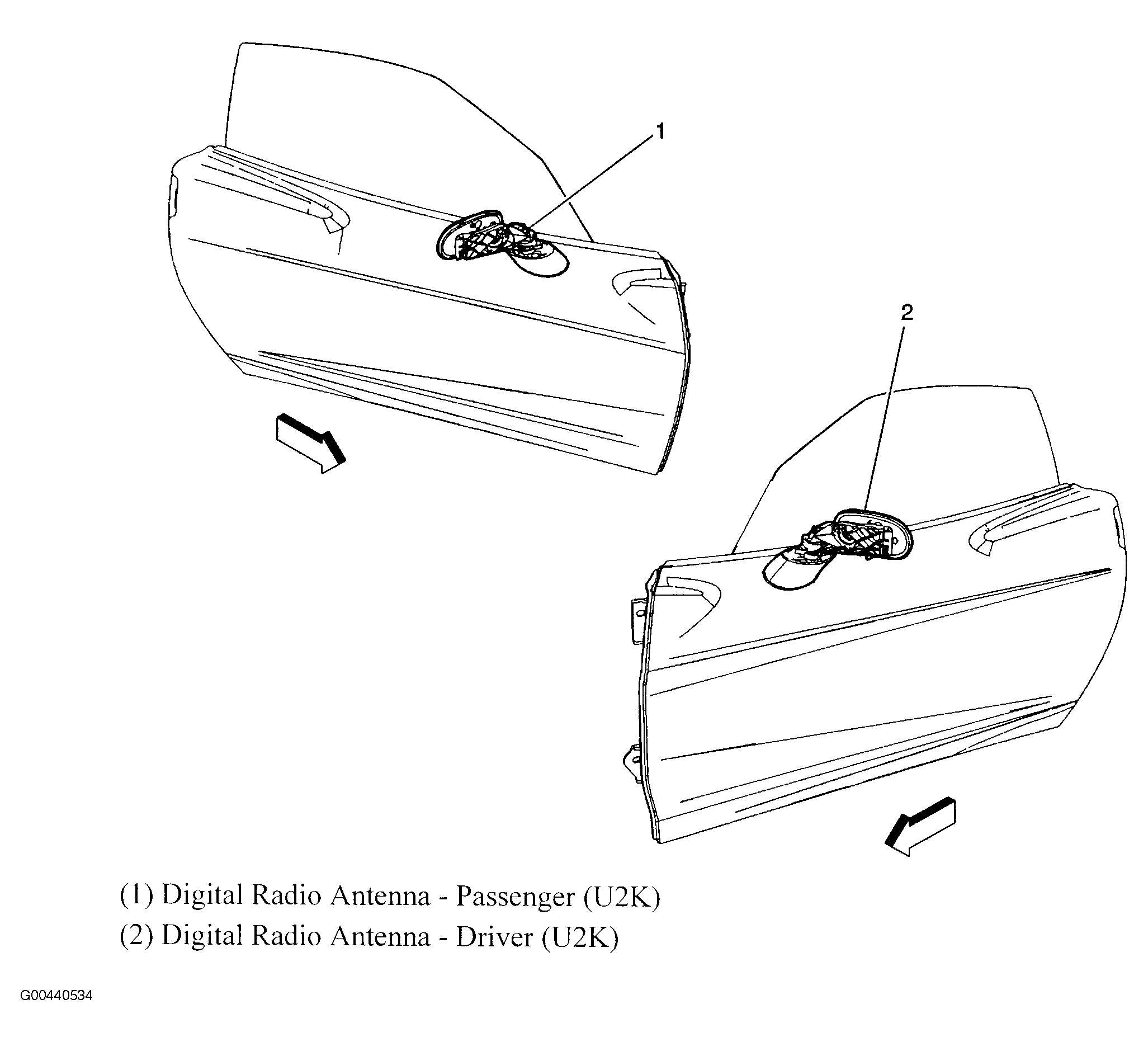

Fig 58: Outside Mirror Antennas

G00440534

Courtesy of GENERAL MOTORS CORP.

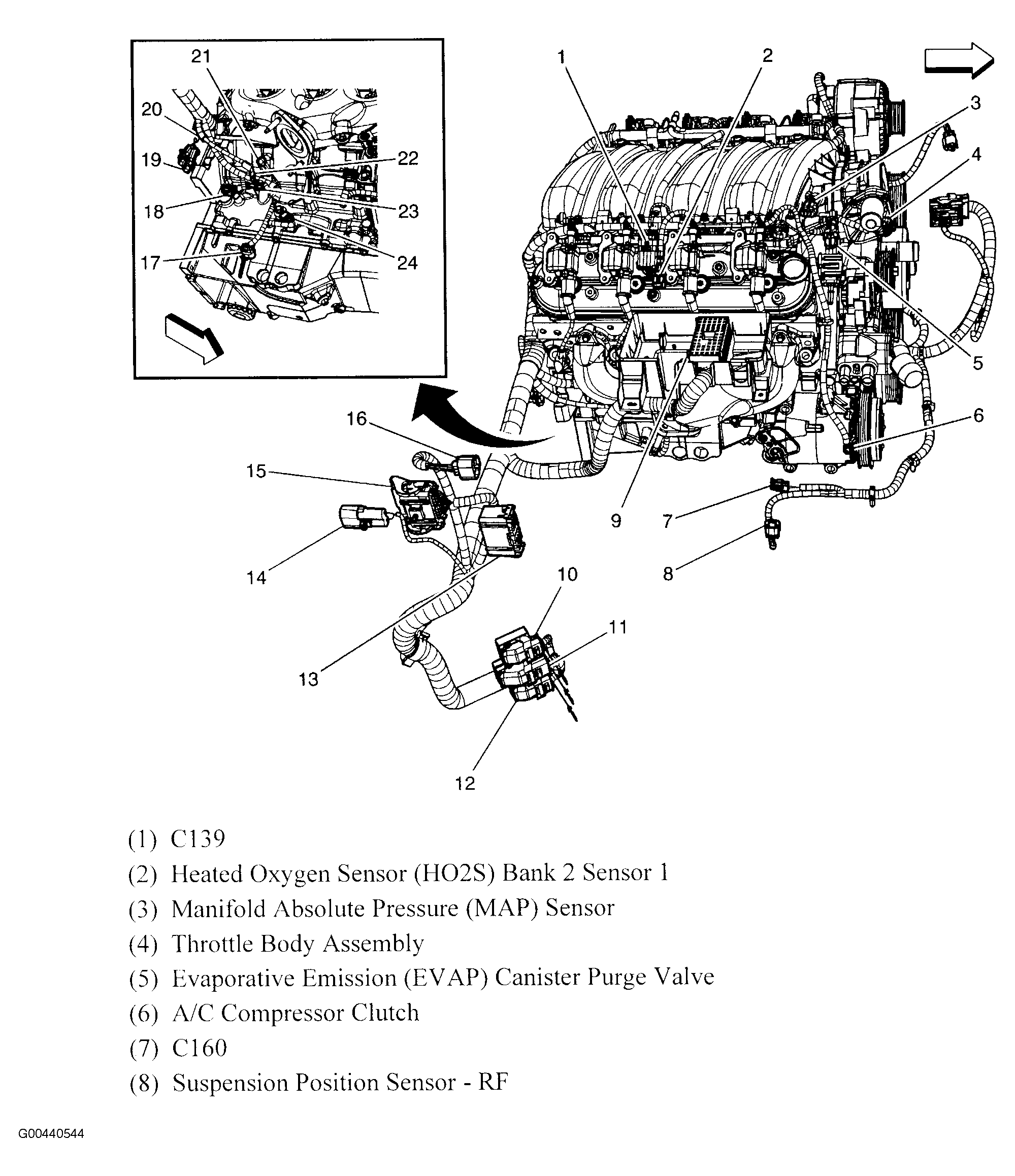

Fig 59: Engine Harness Components (1 Of 2)

G00440544

Courtesy of GENERAL MOTORS CORP.

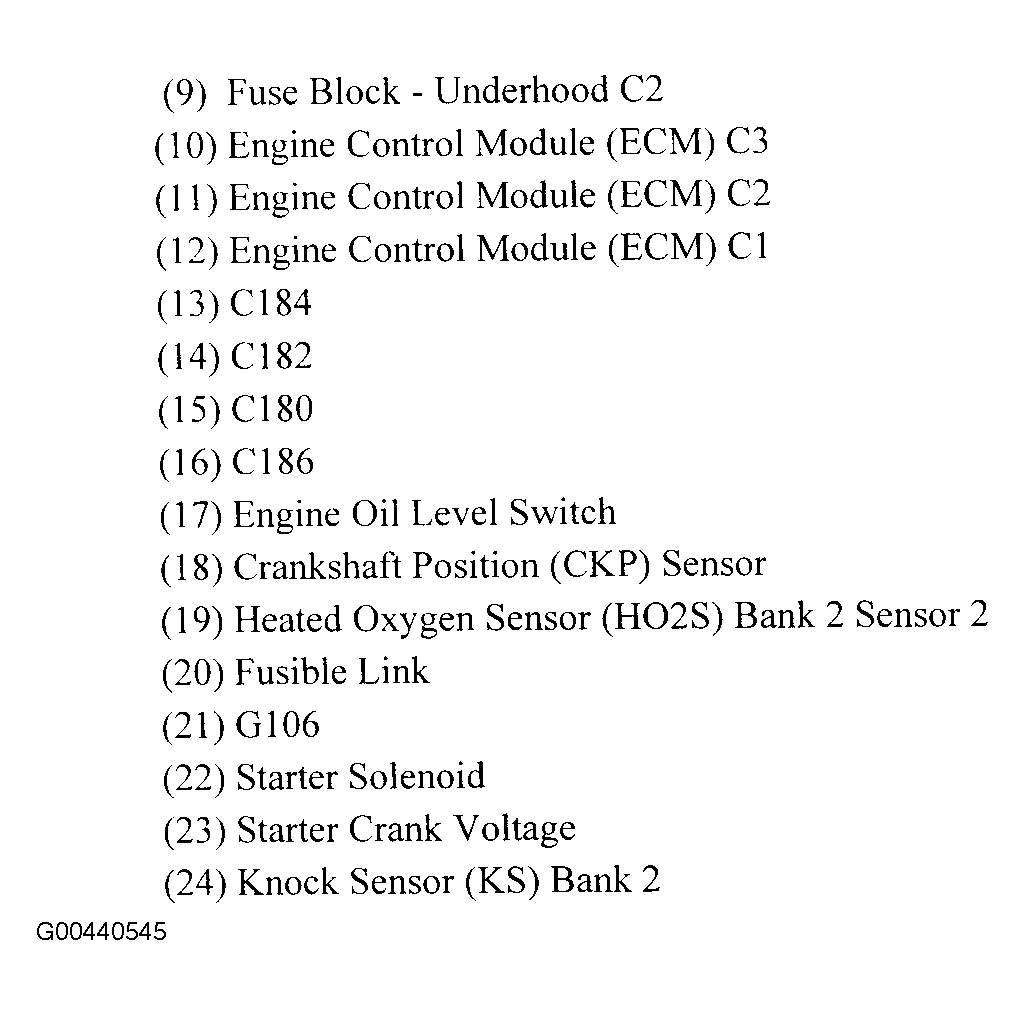

Fig 60: Engine Harness Components (2 Of 2)

G00440545

Courtesy of GENERAL MOTORS CORP.

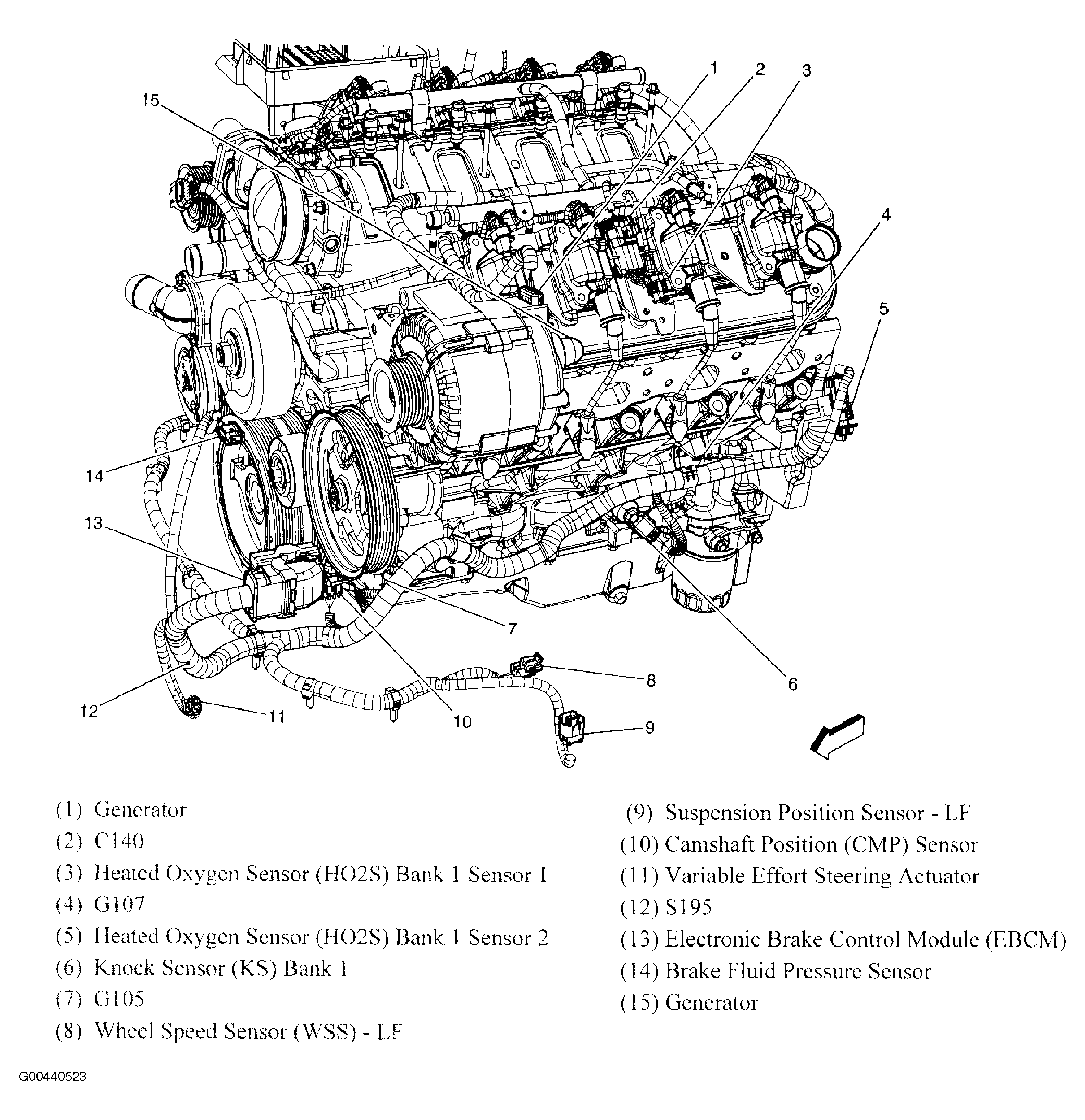

Fig 61: Engine Harness Components

G00440523

Courtesy of GENERAL MOTORS CORP.

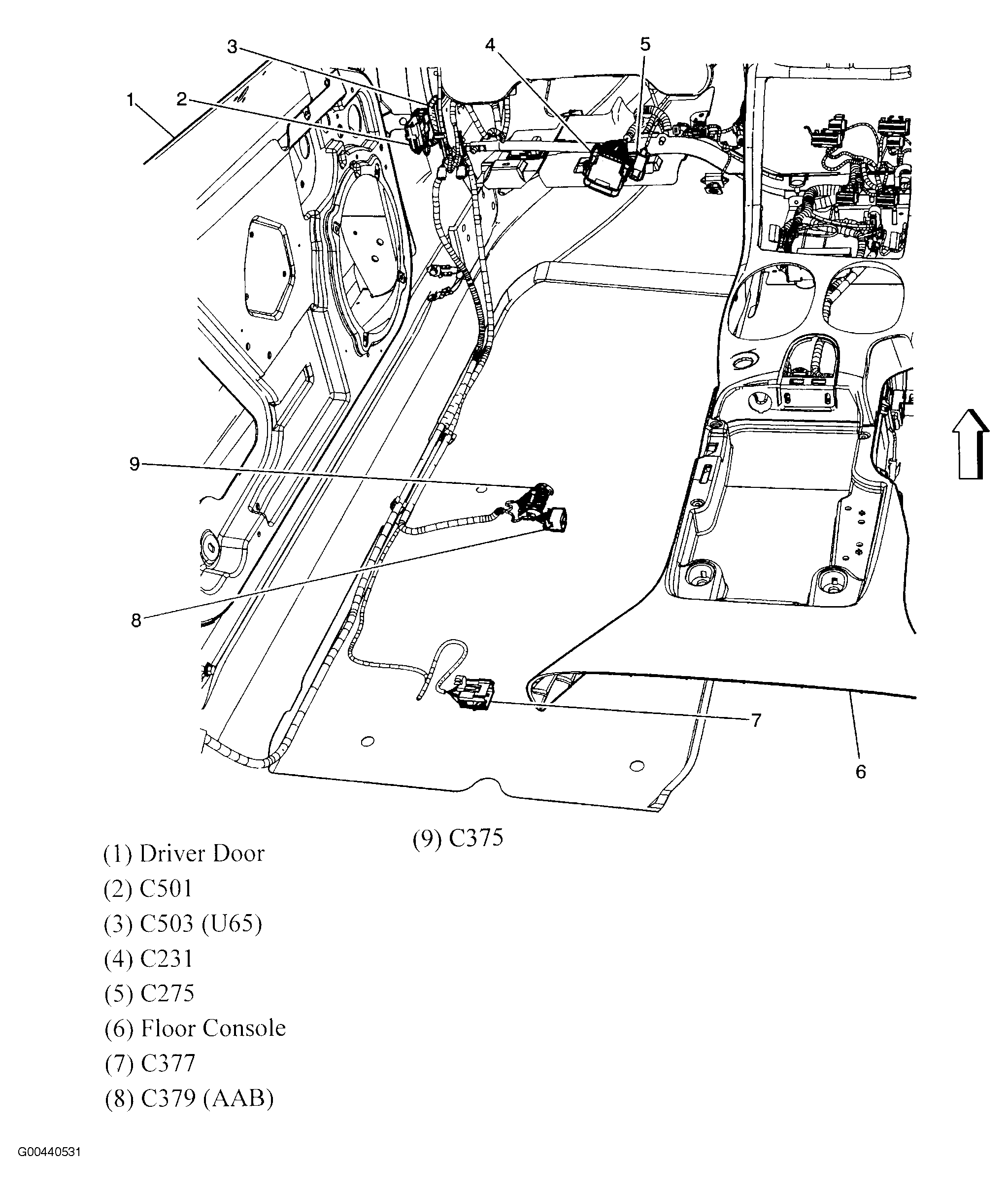

Fig 62: Left Side Of Dash

G00440531

Courtesy of GENERAL MOTORS CORP.

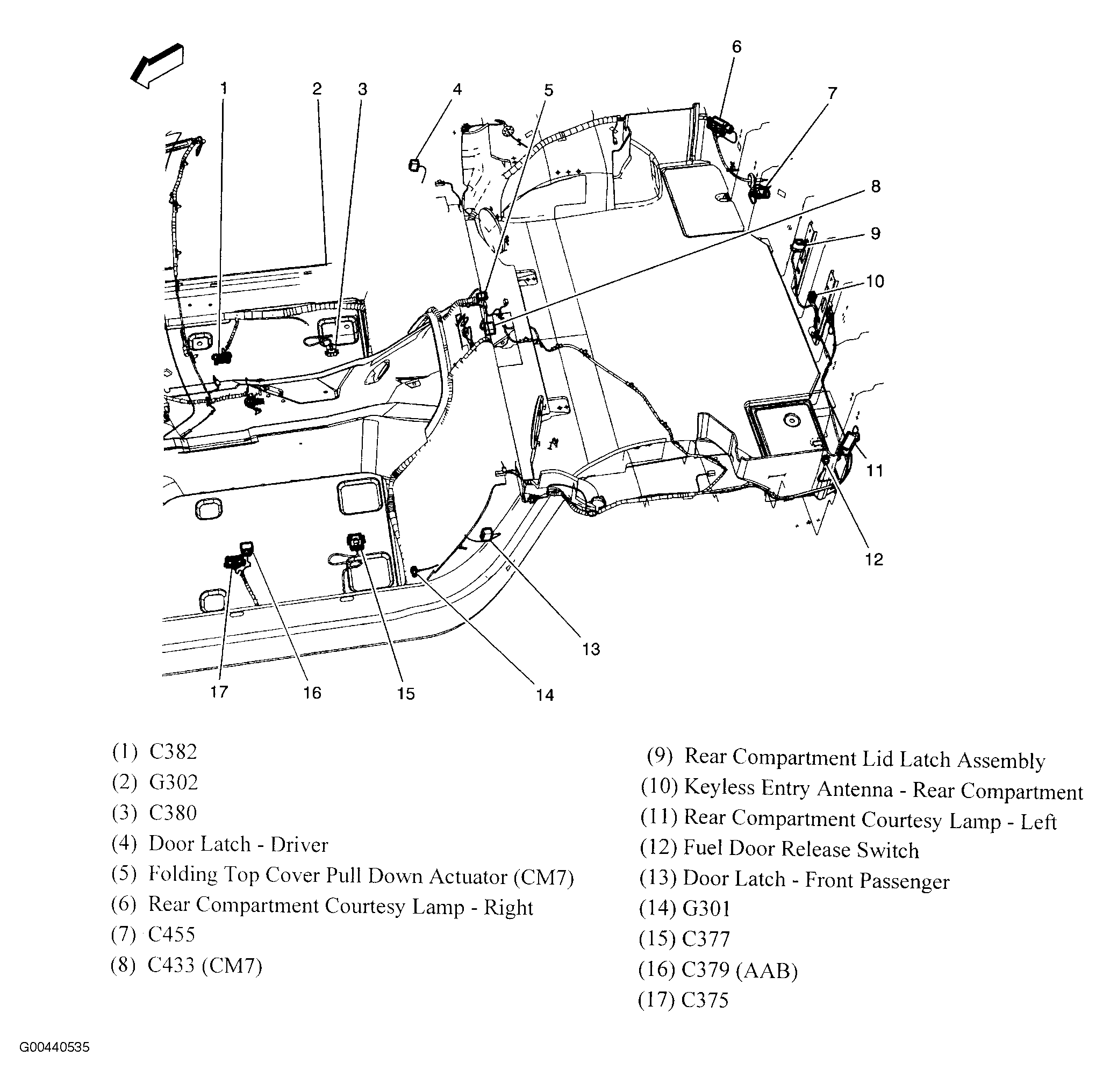

Fig 63: Overhead & Rear Body (Convertible)

G00440535

Courtesy of GENERAL MOTORS CORP.

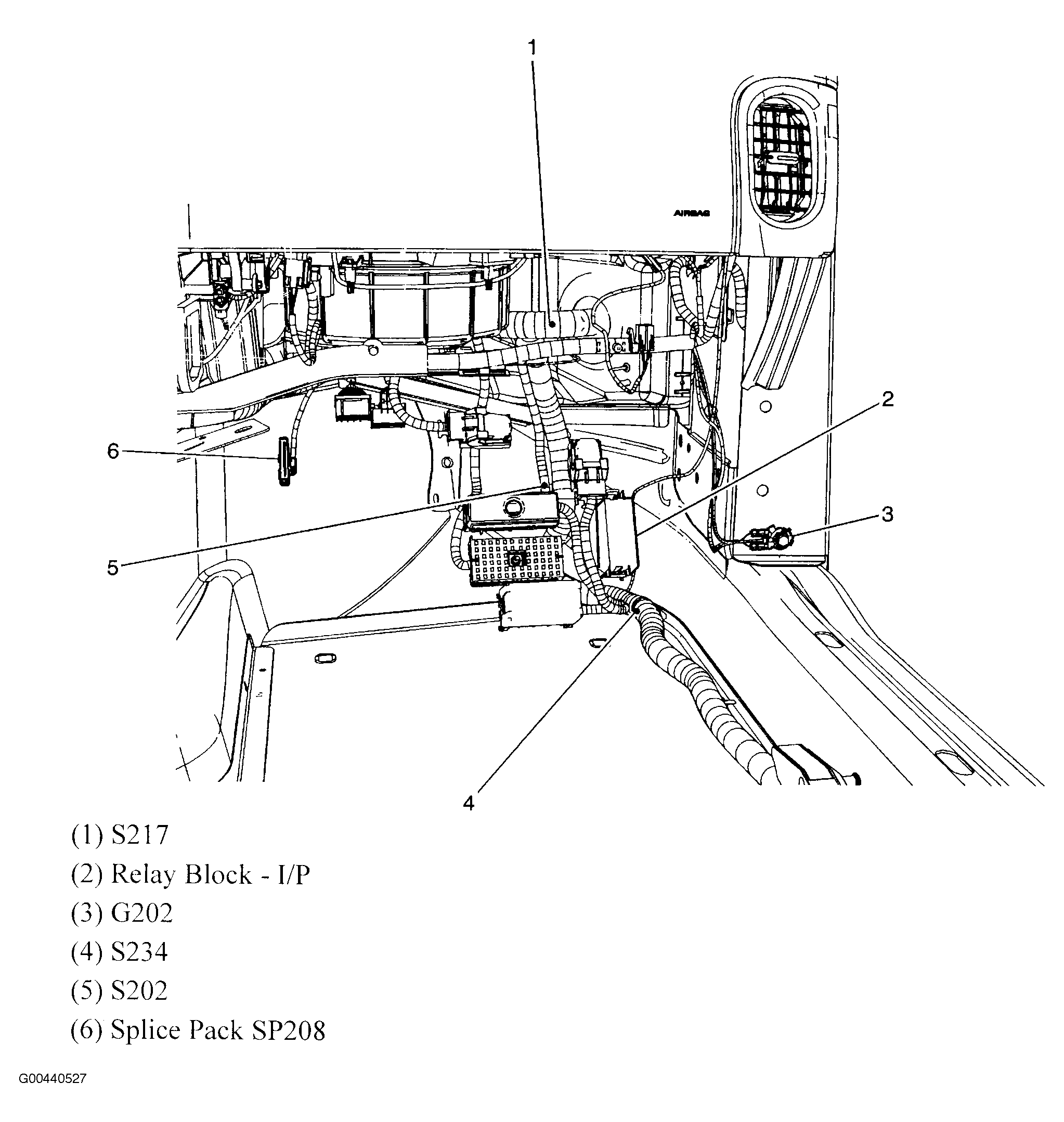

Fig 64: Passenger Floor

G00440527

Courtesy of GENERAL MOTORS CORP.

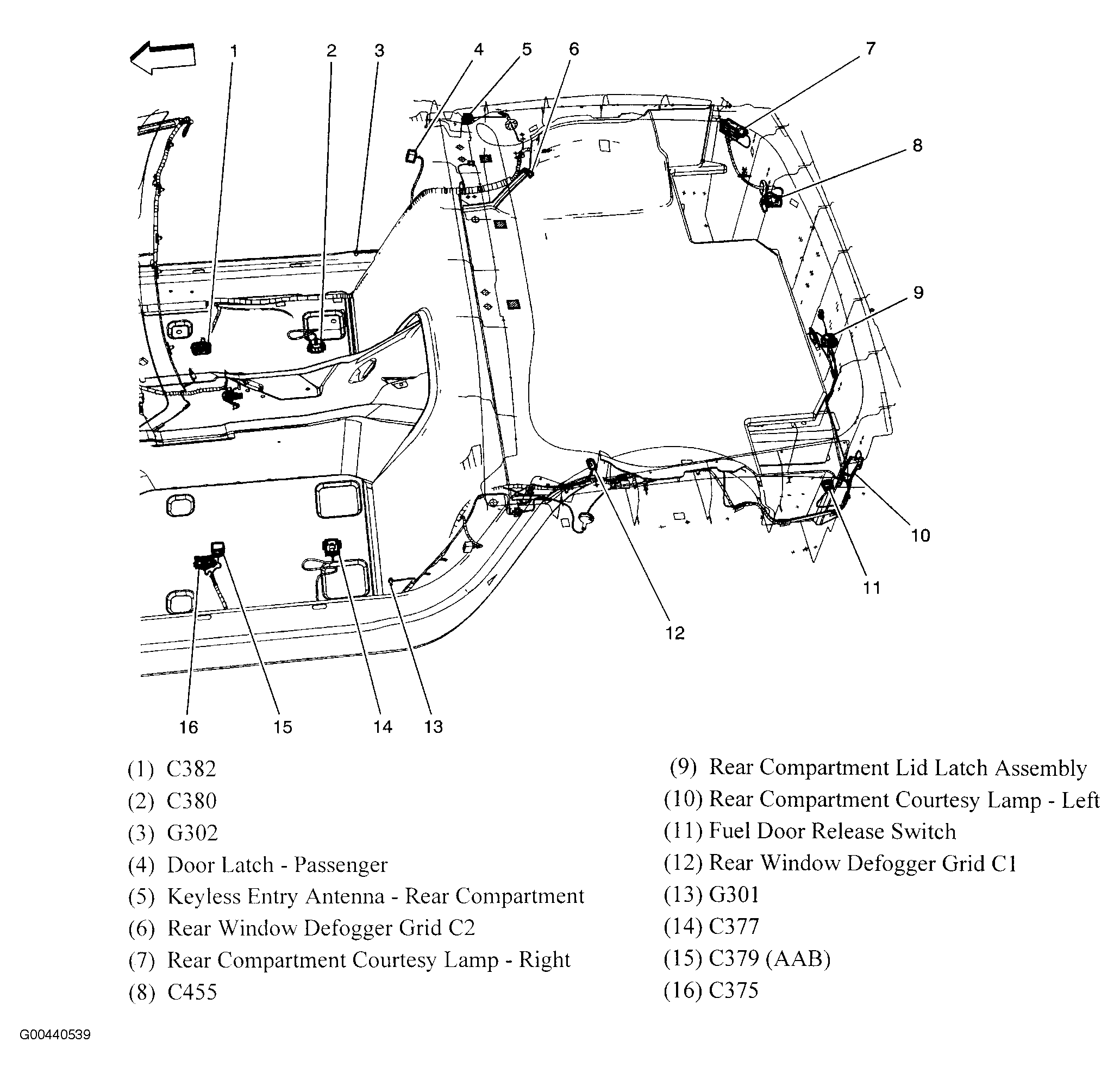

Fig 65: Overhead & Rear Body (Hardtop/Coupe)

G00440539

Courtesy of GENERAL MOTORS CORP.

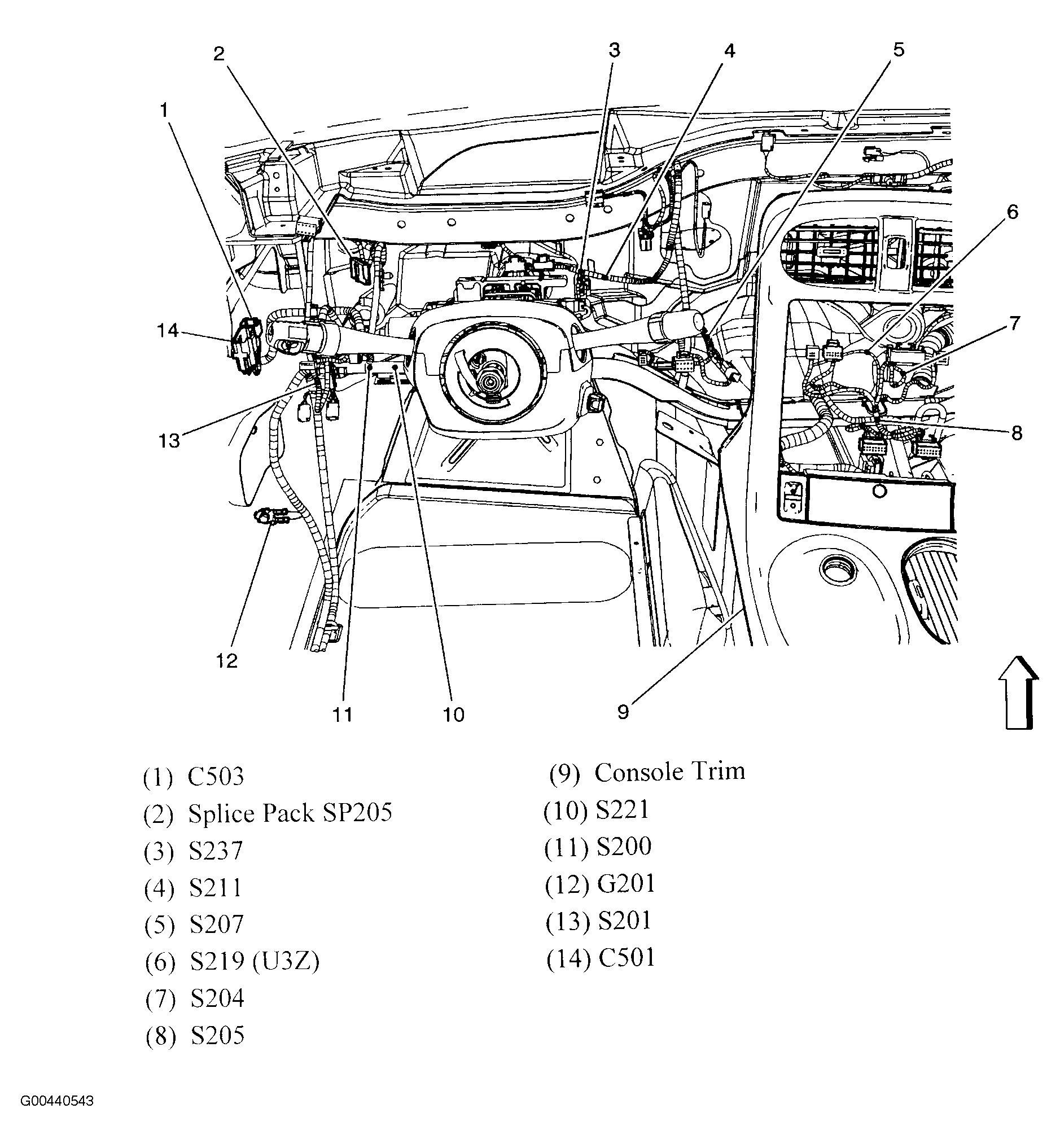

Fig 66: Steering Column

G00440543

Courtesy of GENERAL MOTORS CORP.

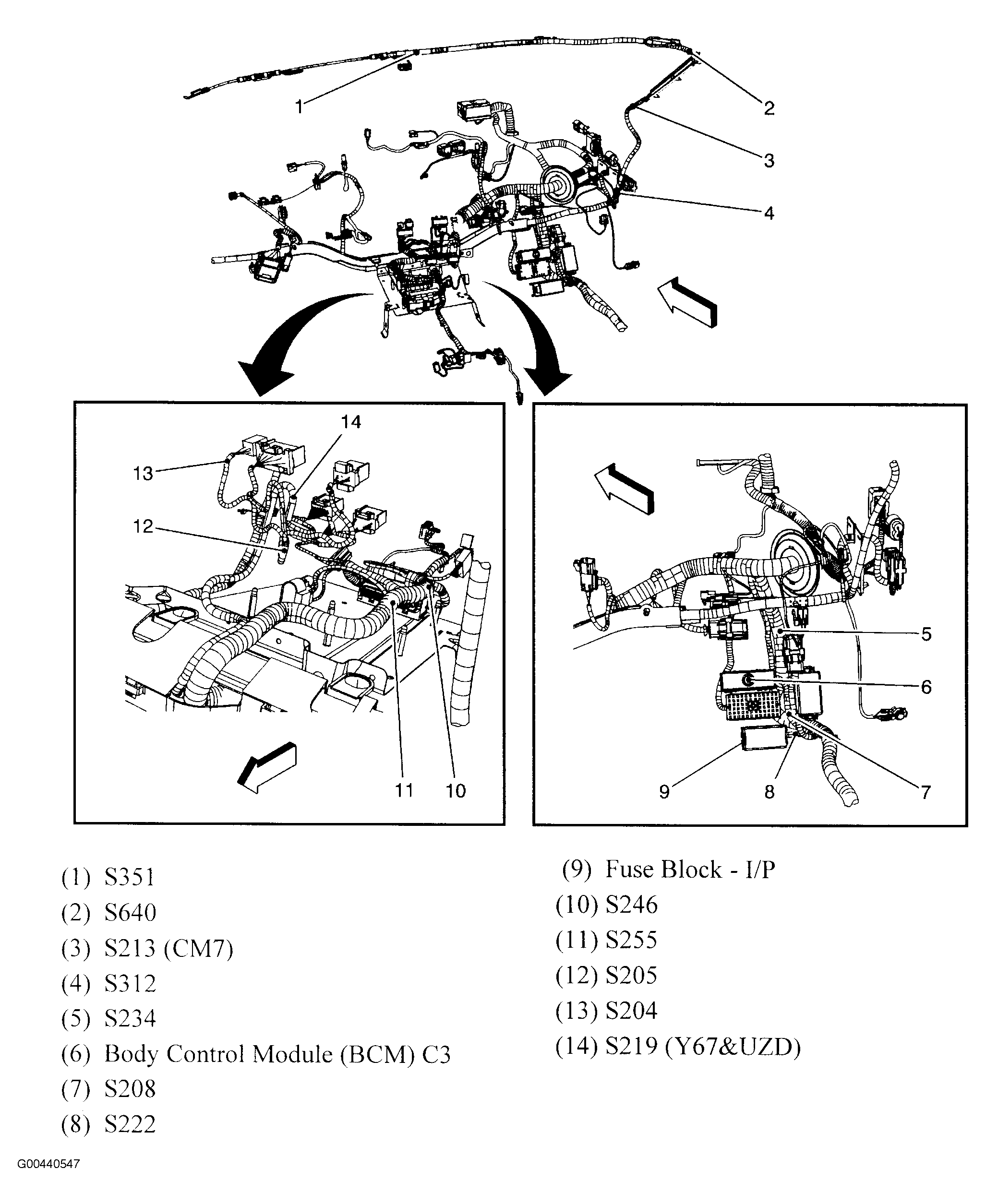

Fig 67: Lower Right & Overhead Console

G00440547

Courtesy of GENERAL MOTORS CORP.

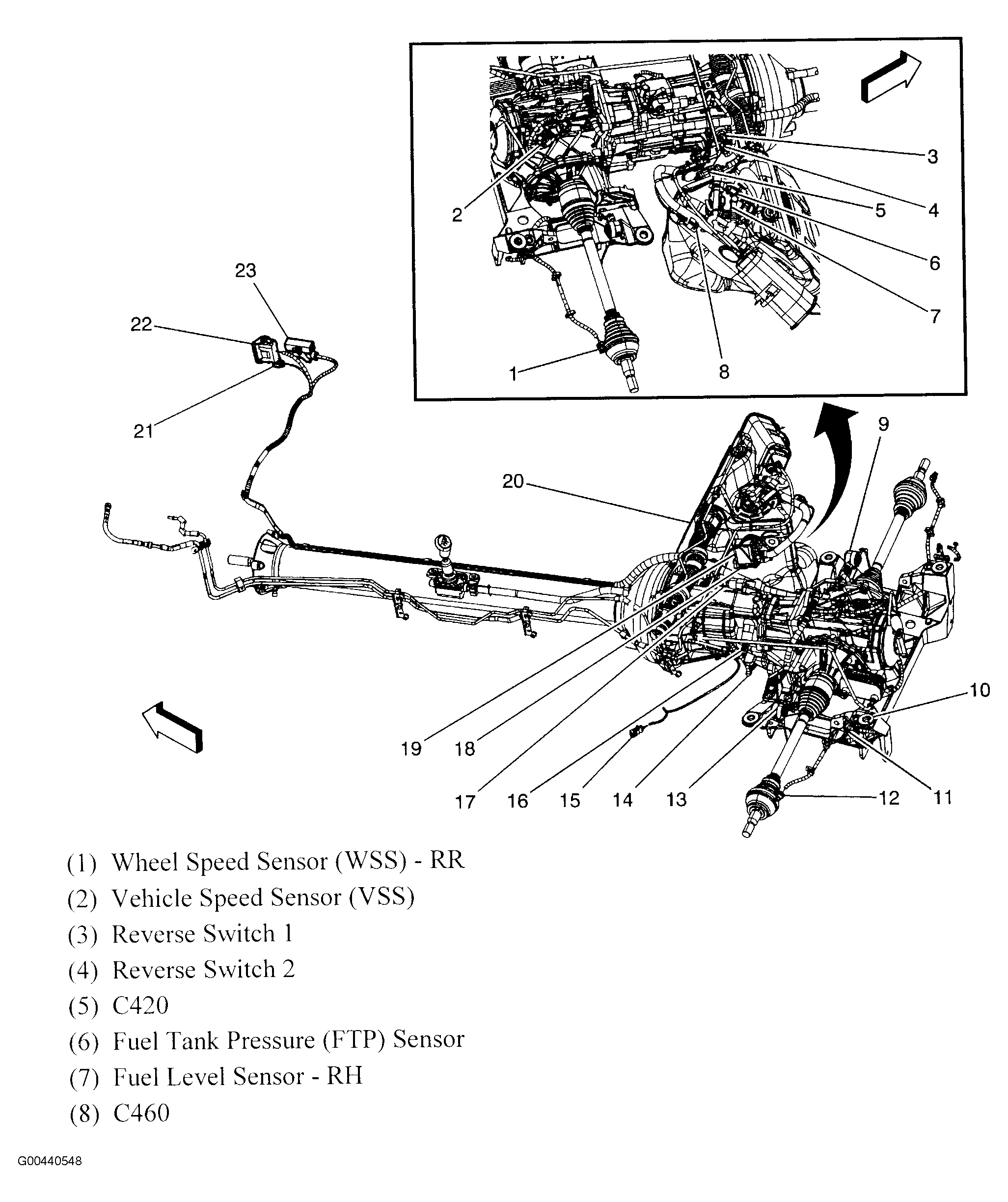

Fig 68: M/T & Fuel Tank Components (1 Of 2)

G00440548

Courtesy of GENERAL MOTORS CORP.

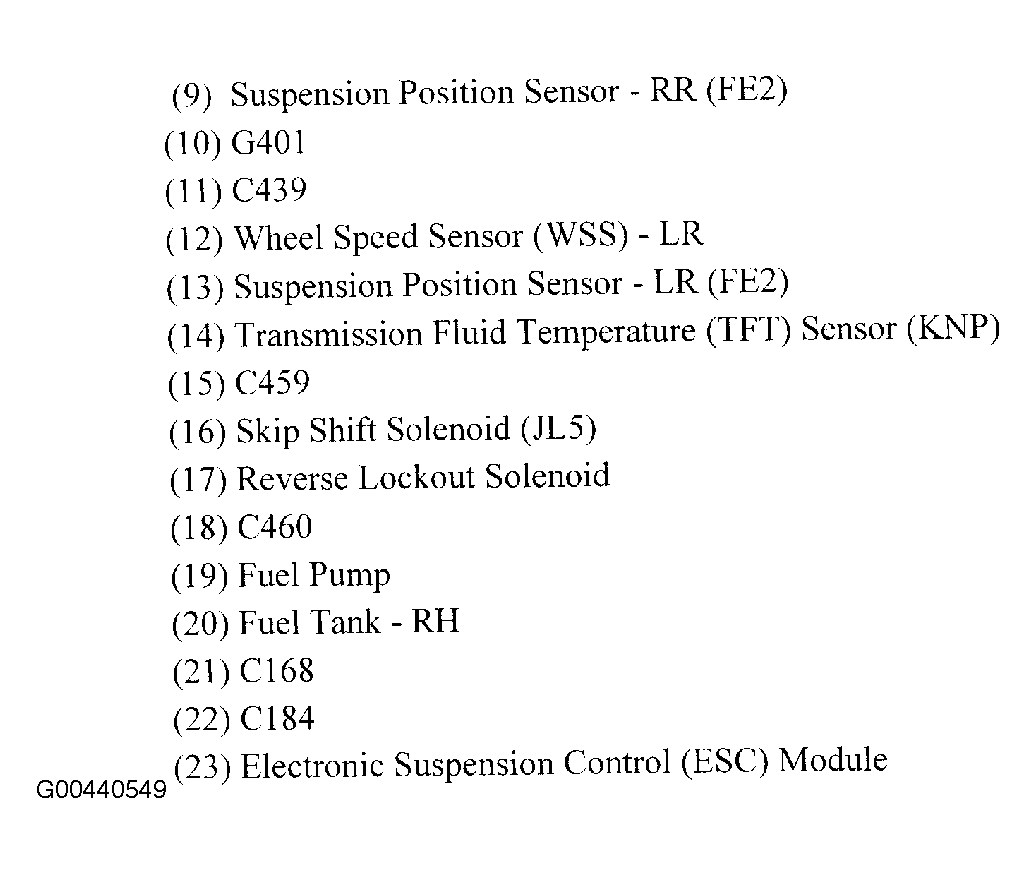

Fig 69: M/T & Fuel Tank Components (2 Of 2)

G00440549

Courtesy of GENERAL MOTORS CORP.

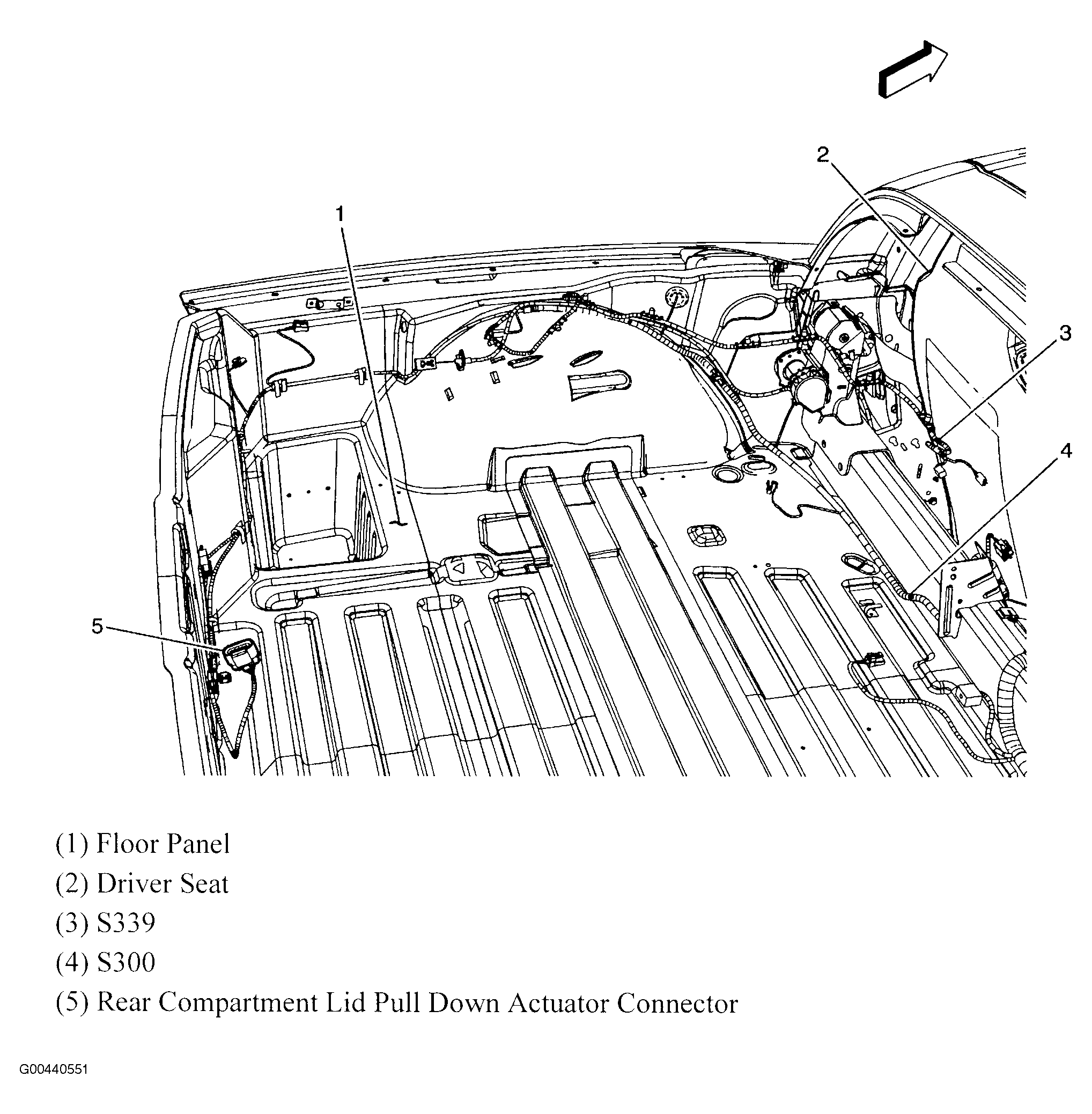

Fig 70: Left Rear Of Vehicle

G00440551

Courtesy of GENERAL MOTORS CORP.

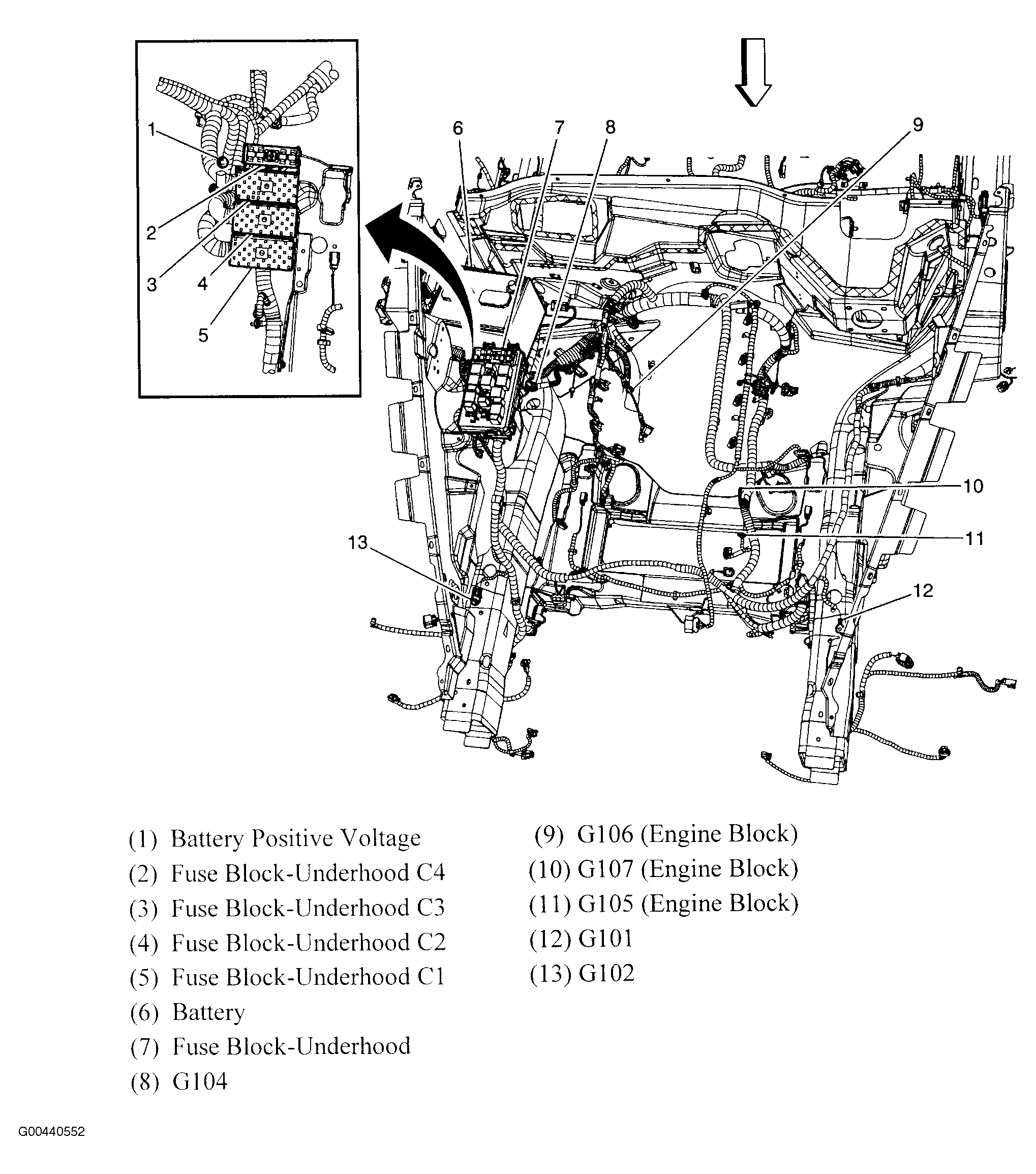

Fig 71: Engine Components

G00440552

Courtesy of GENERAL MOTORS CORP.

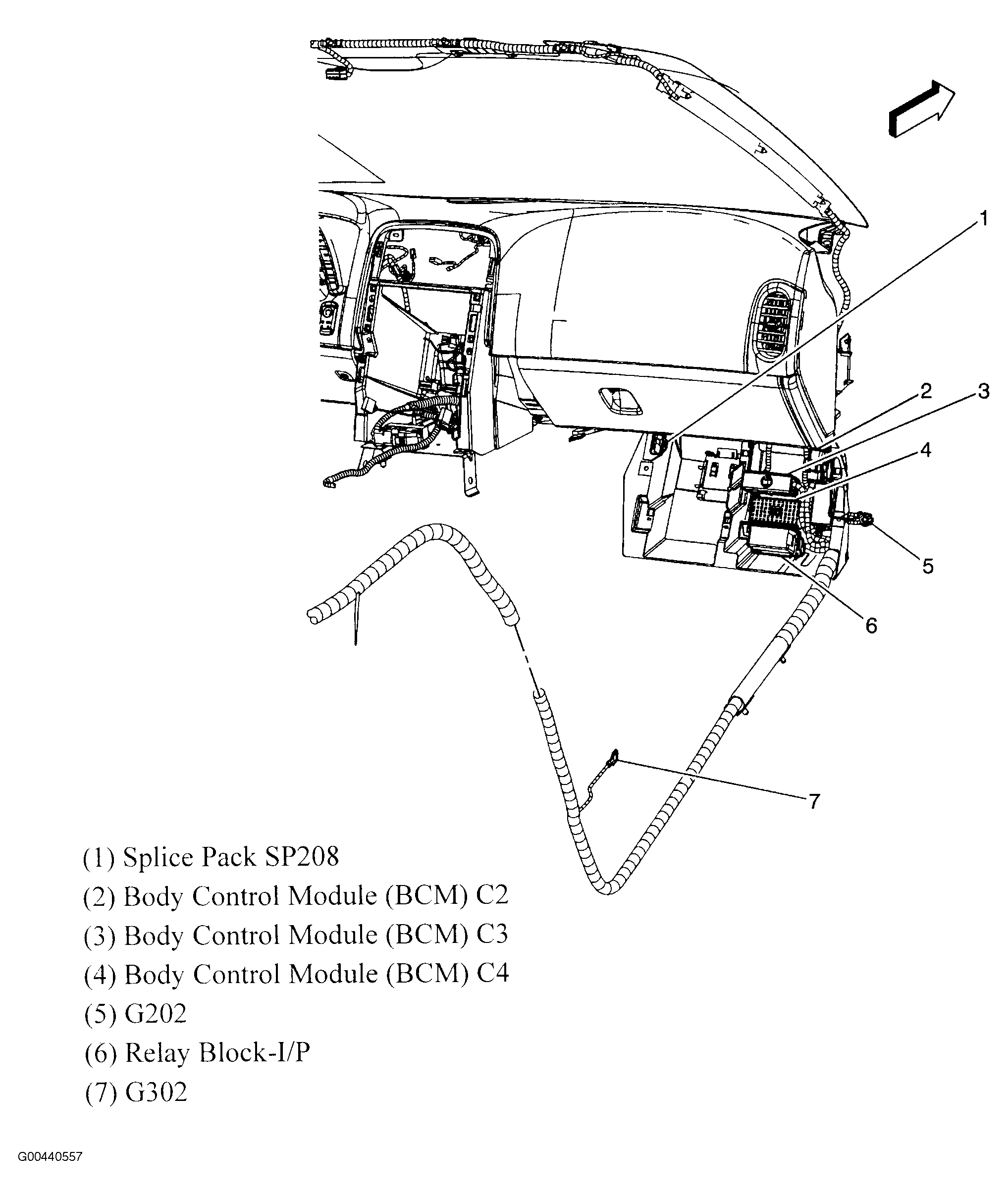

Fig 72: Right Side Of Dash

G00440557

Courtesy of GENERAL MOTORS CORP.

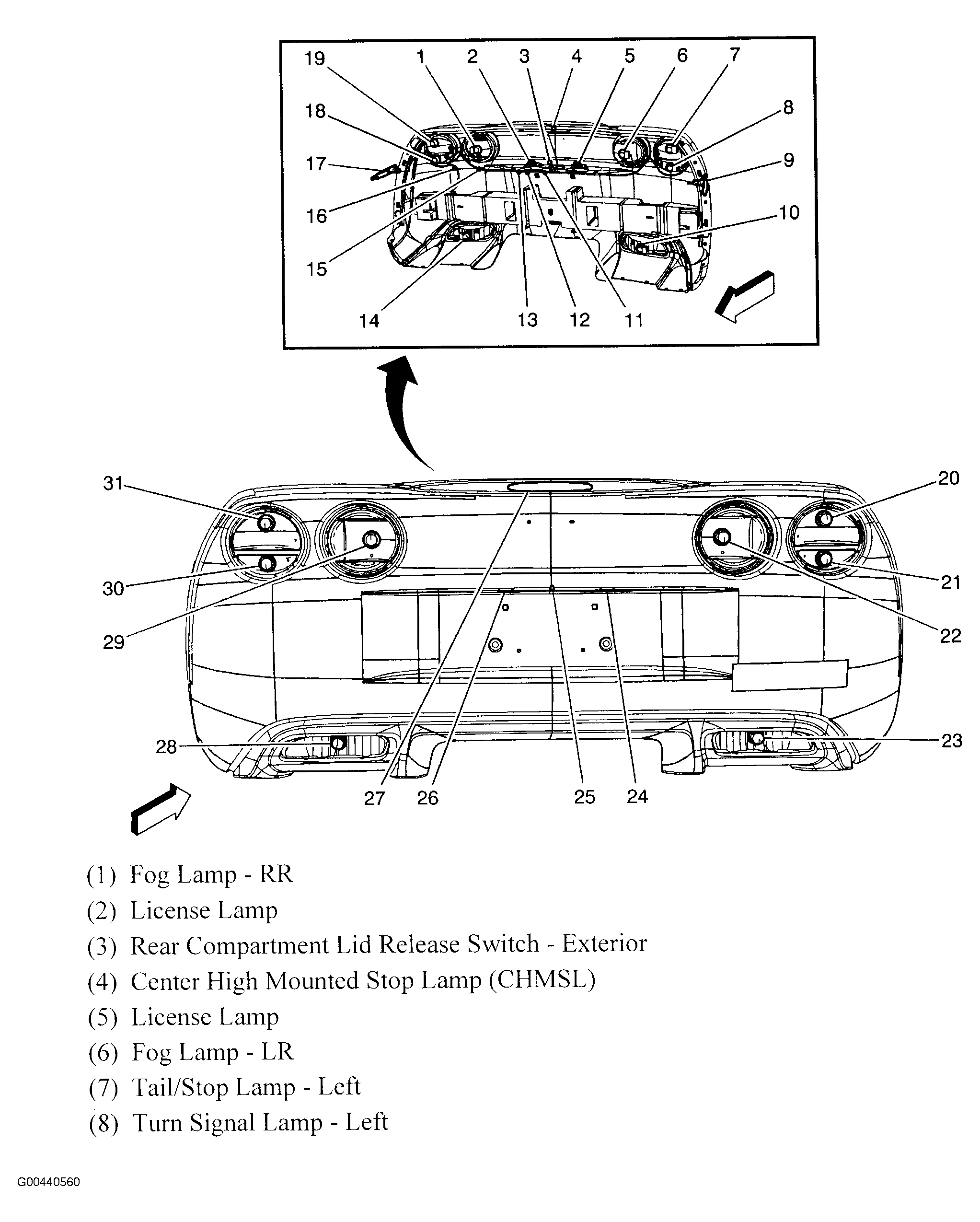

Fig 73: Rear Fascia Lighting (1 Of 2)

G00440560

Courtesy of GENERAL MOTORS CORP.

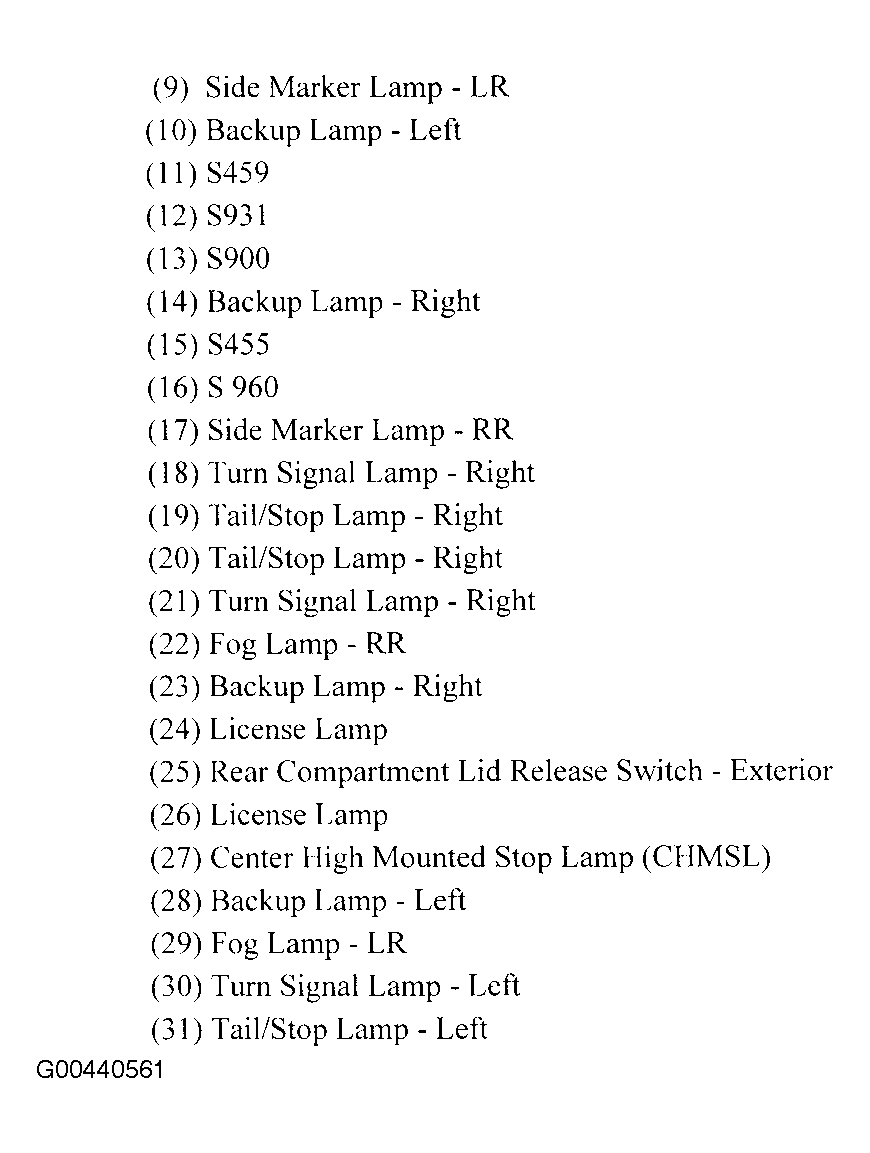

Fig 74: Rear Fascia Lighting (2 Of 2)

G00440561

Courtesy of GENERAL MOTORS CORP.

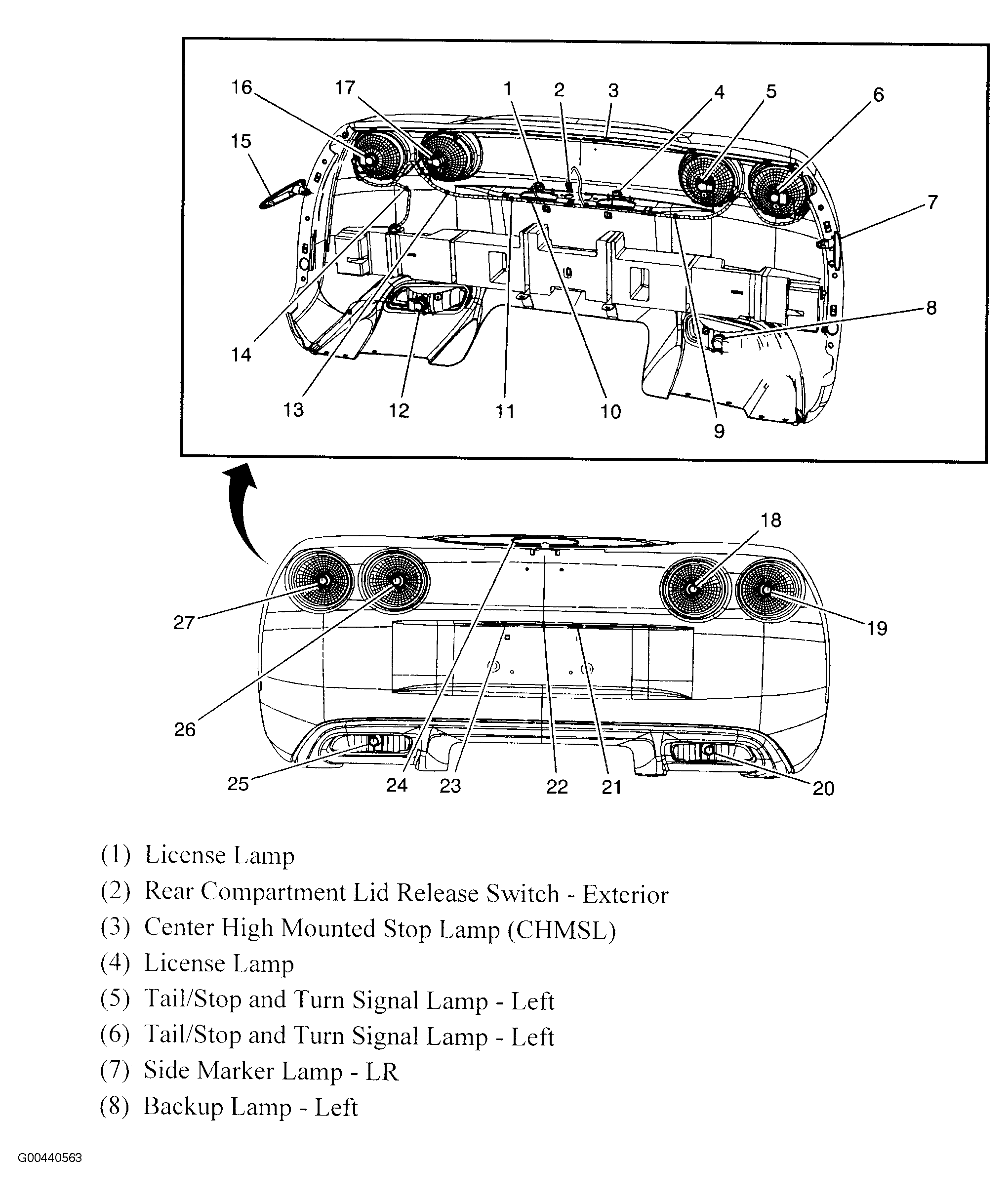

Fig 75: Rear Fascia Lighting (1 Of 2)

G00440563

Courtesy of GENERAL MOTORS CORP.

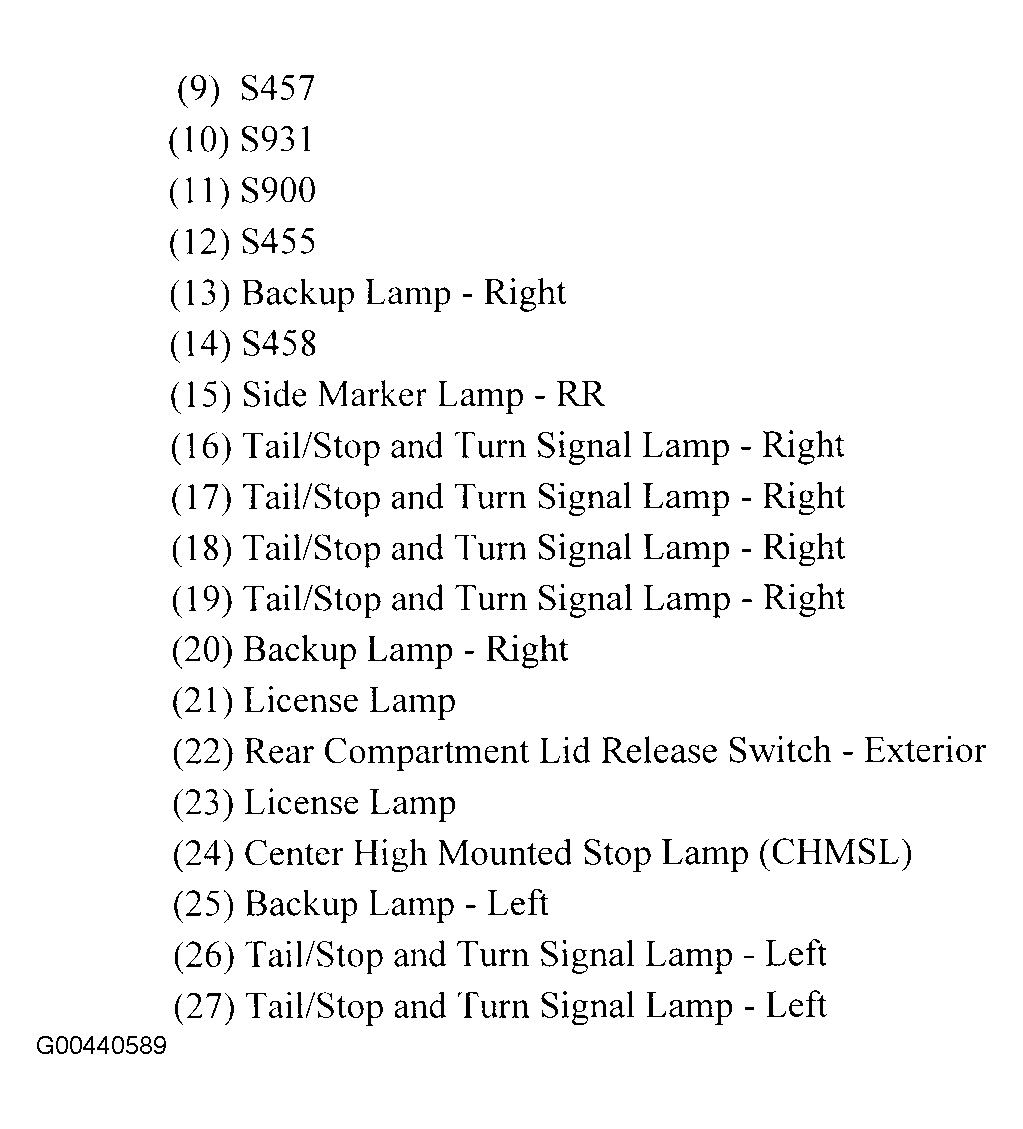

Fig 76: Rear Fascia Lighting (2 Of 2)

G00440589

Courtesy of GENERAL MOTORS CORP.
